Description
Bake and roast six full-size sheet pans with touch screen recipes and a timer for every shelf.

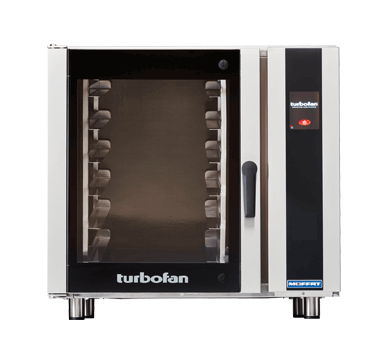

The Moffat Turbofan E35T6-26 is a touch screen full-size electric convection oven for bakeries, restaurants, caterers and institutional kitchens. It holds six 18" x 26" sheet pans, runs saved multi-stage programs or a separate timer on each shelf, adds steam at five levels, and runs a 2-speed reversing fan. It is built for 208V or 220-240V in single-phase or three-phase versions, wired in by an electrician.
Will it fit · Will it plug in
- Outside size
- 35.88" W × 36.88" D × 34.25" H (including 3" feet)
- Door swing
- 24.63" side-hinged door, left-hand hinge standard
- Inside
- 18.25" W × 27.5" D × 28" H, 8 cu. ft.
- Power
- 208V or 220-240V, 1-phase or 3-phase, 11.2-12.5 kW; no cord supplied
- Water
- Optional 3/4" GHT cold water, 20-80 psi, for steam injection
- Clearances
- 2" rear and sides; 12" from heat sources
- Shipping
- 37.88" W × 46" D × 37.5" H packed, 359 lb
Tell us your voltage and phase when you order; the amperage depends on the build (30 to 54 A). There is no cord or plug, so plan for an electrician. Measure doorways on the delivery path against the 37.88" x 46" x 37.5" carton.
Six-pan capacity
Six full-size sheet pans on 4 1/8" spacing in an 8 cu. ft. chamber.
Touch screen recipes
A 5.7" touch screen with picture icons runs saved multi-stage programs; update programs and icons by USB.
Shelf timers
Run a separate timer on each of the six shelves at one temperature.
Steam and vent control
Five steam injection levels, and an oven vent you can open or close by program or by hand.
Two fan speeds
A 2-speed bi-directional fan reverses direction to spread heat across all six rack positions.
Energy saving modes
Built-in Energy Save Set-Back and Auto-Start modes.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 359 lb. Inspect the carton before you sign for it.
- Fit and level the adjustable feet before setting the oven in place.
- Have a qualified electrician connect it to a grounded supply.
- See our shipping policy for delivery details.
Questions buyers ask
What power does it need?
One model number covers four electrical builds: 208V 1-phase (11.2 kW, 54 A), 208V 3-phase (11.2 kW, 31 A per phase), 220-240V 1-phase (12.5 kW, 52 A) or 220-240V 3-phase (12.5 kW, 30 A per phase), all 60 Hz. Tell us your voltage and phase when you order.
Does it come with a plug?
No. Moffat supplies no cordset; a qualified electrician connects it on site.
Do I need a water line?
Only for steam injection. It takes a 3/4" GHT cold water connection at 20 to 80 psi; without water it works as a dry convection oven.
How many pans does it hold?
Six full-size 18" x 26" sheet pans on six rack positions spaced 4 1/8" apart. Six wire racks are included.
How much space does it need?
It is 35.88" wide, 36.88" deep and 34.25" high on its 3" feet. Leave 2" behind and on each side, 12" from heat sources, and 20" on the right for service on a fixed installation. The side-hinged door swings out 24.63".
Can I cook different items on different shelves?
Yes. Shelf mode sets a separate timer for each shelf at one oven temperature.
Can I put it on a stand or stack two?
Yes. Moffat offers the SK35 stand (68.88" total height with the oven) and the DSKE35-26 double stacking kit, on feet, or DSKE35-26C, on casters. Each is sold separately.
What does the warranty cover?
Moffat warrants new equipment installed in the US against defects in material and workmanship for 1 year from installation or 18 months from shipment, whichever comes first, for commercial use. Light bulbs, rubber seals and broken glass doors are not covered.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | E35T6-26 |
| Series | Turbofan 30T Series |
| Quantity | 1 Each |
| Shipping Weight | 359 lbs |
| Net Weight | 302 lbs |
| Width | 35.88 Inches |
| Depth | 36.88 Inches |
| Height | 34.25 Inches (including 3" feet) |
| Height on SK35 Stand | 68.88 Inches (stand sold separately) |
| Door Swing | 24.63 Inches (side-hinged door) |
| Packed Dimensions | 37.88" W x 46" D x 37.5" H37.7 cu. ft. |
| Interior Dimensions | 18.25" W x 27.5" D x 28" H8 cu. ft. |
| Oven Rack Size | 18" x 26" |
| Capacity | 6 Full-Size Sheet Pans (18" x 26") |
| Rack Positions | 6 |
| Rack Spacing | 4 1/8 Inches |
| Racks Included | 6 chrome-plated wire racks |
| Power Type | Electric |
| Voltage | 208 Volts220-240 Volts (specify when ordering) |
| Phase | 1 Phase3 Phase (specify when ordering) |
| Electrical Options | 208V 1-phase, 11.2 kW, 54 A208V 3-phase, 11.2 kW, 31 A per phase220-240V 1-phase, 12.5 kW, 52 A220-240V 3-phase, 12.5 kW, 30 A per phase |
| Heating Elements | 10.7 kW (208V)12 kW (220-240V) |
| Hertz | 60 Hz |
| Plug Type | No cordset supplied (connected on site by an electrician) |
| Water Connection | 3/4" GHT male, cold water (optional, for steam injection) |
| Water Pressure | 20 psi minimum80 psi maximum |
| Controls | 5.7" LED backlit touch screenicon driven program menuUSB port for program and icon updates |
| Modes | ManualProgramShelf mode with individual shelf timersAuto-StartEnergy Save Set-Back |
| Cooking Stages | Multiple stages per program |
| Cook Time | Straight or Flex cooking time |
| Temperature Range | 85 - 500 Degrees F |
| Fan | 2-speed bi-directional reversing fan |
| Steam Injection | 5 levels |
| Oven Vent | Program and manual open / close control |
| Core Probe | Program cooking with optional M236060 Core Temperature Probe Kit |
| Oven Lights | Dual halogen lamps |
| Door | Safe-Touch vented side-hinged door, left-hand hinge standard, field convertible to right-handslam-shut pendulum latch |
| Door Glass | 0.2" outer glass0.2" low energy loss inner glasshinge-out outer glass for cleaning |
| Door Seal | Push-fit continuous seal, removable without tools |
| Interior | Porcelain enameled, fully welded oven chamberremovable stainless steel side racks and fan baffle |
| Exterior | Stainless steel front, sides and topaluminized coated steel base and rear |
| Feet | 3" high adjustable stainless steel feet |
| Safety | Over-temperature safety cut-out |
| Clearances | 2" rear2" left side2" right side20" right side for service on fixed installations |
| Clearance from Heat Sources | 12" from the sides |
| Accessories | SK35 standDSKE35-26 double stacking kit (feet; also listed as DSK35-26)DSKE35-26C (casters; also listed as DSK35C-26)M236060 core probe kit |
| Certifications | cETLusNSF |
| Warranty | 1 year from installation or 18 months from shipment, whichever comes first (Moffat US warranty) |
| Usage | Commercial use only |
| Country of Origin | New Zealand |
