Description
Keep cooked food hot and ready with a touch screen timer for every shelf.

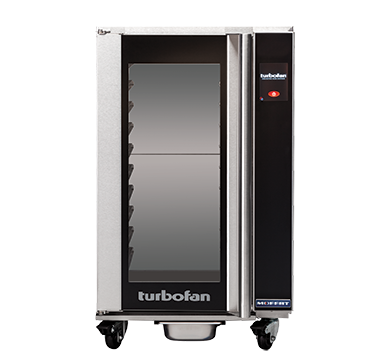

The Moffat Turbofan H10T is a half-size heated holding cabinet for restaurants, cafeterias, caterers and quick-service kitchens. It takes 10 half-size sheet pans or 10 12" x 20" steam pans, holds them at 68-194°F, and runs on a standard 120V outlet with its fitted NEMA 5-15P plug. Its touch screen gives every shelf its own hold timer, and it pairs with Turbofan E33T convection ovens.
Will it fit · Will it plug in
- Outside size
- 24" W × 26.75" D × 40" H (including 3" casters)
- Door swing
- 18" side-hinged glass door
- Power
- 110-120V, 1-phase, 1.3 kW, 10.4 A; NEMA 5-15P plug fitted
- Clearances
- 1" rear, 0" sides; 12" from heat sources
- Shipping
- 25.75" W × 32.63" D × 46.5" H packed, 210 lb
Measure doorways on the delivery path against the 25.75" x 32.63" x 46.5" carton; the cabinet itself is 24" wide and 26.75" deep.
Holds at the right temperature
Electronic control from 68 to 194°F with a low-velocity fan and a double-skin cabinet.
Touch screen with shelf timers
A 5.7" touch screen with an icon menu and a timer for every shelf.
Plugs in
A NEMA 5-15P cord comes fitted for a 110-120V single-phase supply.
See what is inside
A glass door and dual halogen interior lamps let staff see the pans through the door.
Mobile
Four 3" casters; the two front ones have wheel and swivel locks.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 210 lb. Inspect the carton before you sign for it and report any damage right away.
- Side racks are supplied and the cord and plug come fitted. Remove the protective film from the side panels.
- Roll it into place and lock the two front casters.
- See our shipping policy for delivery details.
Questions buyers ask
What outlet does it need?
A standard 110-120V outlet for its fitted NEMA 5-15P plug. It draws 1.3 kW, 10.4 A, single phase. Moffat calls for a clearly marked isolation switch next to the cabinet.
What pans does it hold?
10 half-size sheet pans or 10 12" x 20" steam pans, on 2 7/8" spacing.
How do the shelf timers work?
Each shelf has its own hold timer on the 5.7" touch screen: pick the product, the shelf turns green and counts down, then turns red with a buzzer when the hold time ends. The hold temperature is one setting for the whole cabinet, and product programs can be copied by USB.
Can it go under a counter?
No, this model is 40" high on 3" casters. For undercounter use Moffat makes the 8-pan H8T-UC, which is 31.88" high.
How much space does it need?
It is 24" wide and 26.75" deep. It needs 1" behind it, 0" at the sides, and 12" from the sides to any heat source. The door swings out 18".
Does it need a water line or drain?
Moffat lists no water or drain connection. Door condensation runs from a channel below the door into a removable condensation drawer; empty it regularly and wipe it out once a week.
How do I clean it?
Lift out the side racks weekly and wash them and the interior with a mild detergent and hot water. The door seal pulls out without tools for washing.
What does the warranty cover?
Moffat warrants new equipment installed in the US against defects in material and workmanship for 1 year from installation or 18 months from shipment, whichever comes first, for commercial use. Light bulbs, rubber seals and broken glass doors are not covered.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | H10T |
| Quantity | 1 Each |
| Shipping Weight | 210 lbs |
| Net Weight | 171 lbs |
| Width | 24 Inches |
| Depth | 26.75 Inches |
| Height | 40 Inches (including 3" casters) |
| Door Swing | 18 Inches (side-hinged door) |
| Packed Dimensions | 25.75" W x 32.63" D x 46.5" H22.6 cu. ft. |
| Capacity | 10 Half-Size Sheet Pans10 Steam Pans (12" x 20") |
| Tray Spacing | 2 7/8 Inches |
| Power Type | Electric |
| Voltage | 110-120 Volts |
| Wattage | 1.3 kWCabinet heating 1,200 W |
| Amps | 10.4 A |
| Phase | 1 Phase |
| Hertz | 60 Hz |
| Plug Type | NEMA 5-15P (15 A cordset fitted) |
| Temperature Range | 68 - 194 Degrees F |
| Controls | 5.7" LED backlit touch screenIcon-driven product menuIndividual shelf timersProgram and icon updates via USB port |
| Hold Temperature | One set temperature for the whole cabinet |
| Fan | Low-velocity circulation fan |
| Interior Lights | Dual halogen lamps |
| Door | Side-hinged stainless steel frame door with 0.2" glass |
| Door Seal | Continuous, removable plug-in seal (no tools required) |
| Condensate | Cabinet drain to condensate pan |
| Interior | 304 stainless steel cabinet, removable stainless steel side racks |
| Exterior | Stainless steel front, sides, top, base and control panelAluminized coated steel rear panels |
| Construction | Double-skin cabinet |
| Casters | Four 3" casters2 front with wheel and swivel lock2 rigid rear |
| Clearances | 1" rear0" left side0" right side |
| Clearance from Heat Sources | 12" from the sides |
| Designed to Pair With | Turbofan E33T convection ovens (or use on its own) |
| Certifications | cETLusNSF |
| Warranty | 1 year from installation or 18 months from shipment, whichever comes first (Moffat US warranty) |
| Usage | Commercial kitchens, holding of food products |
| Country of Origin | New Zealand |
