Description
Keep cooked food hot and ready under the counter with digital temperature control and three hold timers.

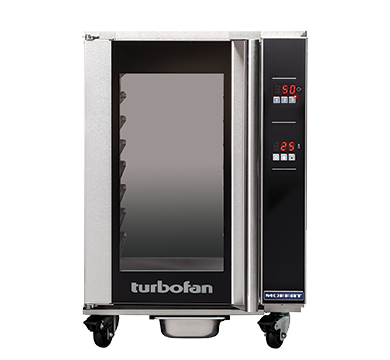

The Moffat Turbofan H8D-UC is a half-size undercounter heated holding cabinet for restaurants, cafeterias, caterers and quick-service kitchens. It takes 8 half-size sheet pans or 8 12" x 20" steam pans, holds them at 68-194°F, and runs on a standard 120V outlet with its fitted NEMA 5-15P plug. Its digital controls carry 3 hold timers, and it pairs with Turbofan E33D convection ovens.
Will it fit · Will it plug in
- Outside size
- 24" W × 26.75" D × 31.88" H (including 2.5" casters)
- Door swing
- 18" side-hinged glass door
- Power
- 110-120V, 1-phase, 1.3 kW, 10.4 A; NEMA 5-15P plug fitted
- Clearances
- 1" rear, 0" sides; 12" from heat sources
- Shipping
- 25.75" W × 32.63" D × 38.38" H packed, 183 lb
Measure doorways on the delivery path against the 25.75" x 32.63" x 38.38" carton; the cabinet itself is 24" wide and 26.75" deep.
Holds at the right temperature
Electronic control from 68 to 194°F with a low-velocity fan and a double-skin cabinet.
Three hold timers
Digital displays and 3 timers of up to 4 hours, count-down or count-up.
Plugs in
A NEMA 5-15P cord comes fitted for a 110-120V single-phase supply.
Fits under a counter
Moffat built it at undercounter height: 31.88" including casters.
See what is inside
A glass door and dual halogen interior lamps let staff see the pans through the door.
Mobile
Four 2.5" casters; the two front ones have wheel and swivel locks.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 183 lb. Inspect the carton before you sign for it and report any damage right away.
- Side racks are supplied and the cord and plug come fitted. Remove the protective film from the side panels.
- Roll it into place and lock the two front casters.
- See our shipping policy for delivery details.
Questions buyers ask
What outlet does it need?
A standard 110-120V outlet for its fitted NEMA 5-15P plug. It draws 1.3 kW, 10.4 A, single phase. Moffat calls for a clearly marked isolation switch next to the cabinet and recommends GFCI protection.
What pans does it hold?
8 half-size sheet pans or 8 12" x 20" steam pans, on 2 7/8" spacing.
How do the timers work?
Three timers can run at the same time, each counting down up to 4 hours or counting up. They are reminders only and do not switch the heat; the temperature display shows the set or actual cabinet temperature.
Will it fit under my counter?
It is 31.88" high including its 2.5" casters, 24" wide and 26.75" deep. Measure the clear height under your counter and leave 1" behind it.
How much space does it need?
It is 24" wide and 26.75" deep. It needs 1" behind it, 0" at the sides, and 12" from the sides to any heat source. The door swings out 18".
Does it need a water line or drain?
Moffat lists no water or drain connection. Door condensation runs from a channel below the door into a removable condensation pan; empty it regularly and wipe it out once a week.
How do I clean it?
Lift out the side racks weekly and wash them and the interior with a mild detergent and hot water. The door seal pulls out without tools for washing. Moffat recommends service every 6 months.
What does the warranty cover?
Moffat warrants new equipment installed in the US against defects in material and workmanship for 1 year from installation or 18 months from shipment, whichever comes first, for commercial use. Light bulbs, rubber seals and broken glass doors are not covered.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | H8D-UC |
| Quantity | 1 Each |
| Shipping Weight | 183 lbs |
| Net Weight | 143 lbs |
| Width | 24 Inches |
| Depth | 26.75 Inches |
| Height | 31.88 Inches (including 2.5" casters)Undercounter unit |
| Door Swing | 18 Inches (side-hinged door) |
| Packed Dimensions | 25.75" W x 32.63" D x 38.38" H18.7 cu. ft. |
| Capacity | 8 Half-Size Sheet Pans8 Steam Pans (12" x 20") |
| Tray Spacing | 2 7/8 Inches |
| Power Type | Electric |
| Voltage | 110-120 Volts |
| Wattage | 1.3 kWCabinet heating 1,200 W |
| Amps | 10.4 A |
| Phase | 1 Phase |
| Hertz | 60 Hz |
| Plug Type | NEMA 5-15P (15 A cordset fitted) |
| Temperature Range | 68 - 194 Degrees F |
| Controls | Electronic controls with digital time and temperature displays3/4" high LED displaysOn/off, cabinet lamp, temperature and 3 timer keys |
| Timers | 3 hold timers, up to 4 hoursCount-down or count-up mode |
| Fan | Low-velocity circulation fan |
| Interior Lights | Dual halogen lamps |
| Door | Side-hinged stainless steel frame door with 0.2" glass |
| Door Seal | Continuous, removable plug-in seal (no tools required) |
| Condensate | Cabinet drain to condensate pan |
| Interior | 304 stainless steel cabinet, removable stainless steel side racks |
| Exterior | Stainless steel front, sides, top, base and control panelAluminized coated steel rear panels |
| Construction | Double-skin cabinet |
| Casters | Four 2.5" casters2 front with wheel and swivel lock2 rigid rear |
| Clearances | 1" rear0" left side0" right side |
| Clearance from Heat Sources | 12" from the sides |
| Designed to Pair With | Turbofan E33D convection ovens (or use on its own) |
| Certifications | cETLusNSF |
| Warranty | 1 year from installation or 18 months from shipment, whichever comes first (Moffat US warranty) |
| Usage | Commercial kitchens, holding of food products |
| Country of Origin | New Zealand |
