Description
Proof dough and hold cooked food in a 24" wide cabinet that plugs into a standard outlet.

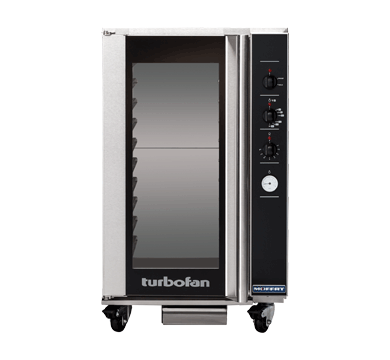

The Moffat Turbofan P10M is a compact half-size proofer and holding cabinet for cafes, bakeries, restaurants and caterers short on floor space. It takes ten 18" x 13" sheet pans or 12" x 20" steam pans, proofs at 65-105°F with auto-fill humidity, holds at 150-185°F, and plugs into a 120V outlet. A Turbofan E33 half-size oven can stack on top.
Will it fit · Will it plug in
- Outside size
- 24" W × 26.75" D × 40" H (including 3" casters)
- Door swing
- 18" side-hinged door (not reversible)
- Inside
- 13" W × 22.44" D × 31.88" H
- Power
- 110-120V, 1-phase, 1.45 kW, 11.6 A; NEMA 5-15P plug fitted
- Water
- 3/4" GHT cold water, 20-80 psi, for the humidity tank
- Clearances
- 1" right side per the 2019 manual (the 2018 spec sheet lists 1" rear); 12" from heat sources
- Shipping
- 25.75" W × 32.63" D × 46.5" H packed, 210 lb
Measure doorways on the delivery path against the 25.75" x 32.63" x 46.5" carton; the cabinet itself is 24" wide.
Proof and hold
One switch sets Proof (65-105°F with humidity) or Hold (150-185°F) mode.
Small footprint
Ten half-size pans in a cabinet only 24" wide and 26.75" deep.
Humidity that refills itself
An auto-fill tank on a cold water line, with a dial to set the humidity level for breads or pastries.
Plugs into the wall
A 120V NEMA 5-15P cord comes fitted, so no hardwiring is needed.
Built to stack
Runs on its own or under a Turbofan E33D5 or E33T5 oven with the DSKE33P10M kit.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 210 lb. Inspect the carton before you sign for it.
- The cord and plug come fitted; connect the cold water line to the auto-fill inlet at the rear.
- Preheat it empty for up to 10 minutes on warm days and up to 30 minutes on cool days before proofing.
- See our shipping policy for delivery details.
Questions buyers ask
What outlet does it need?
A standard 110-120V outlet for its 15 A NEMA 5-15P plug. It draws 1.45 kW, 11.6 A, single phase, and the manual calls for a clearly marked isolation switch next to the cabinet.
Does it take full-size sheet pans?
No. The P10M holds ten 18" x 13" half-size sheet pans or ten 12" x 20" hotel steam pans on 2-7/8" spacing. For full-size 18" x 26" pans, look at the Turbofan P8M or P12M.
Does it need a water line?
For humidity in proof mode, yes: the auto-fill tank connects to cold water with a 3/4" GHT fitting at 20 to 80 psi. Hold mode does not use the humidity system.
Can I use it to hold cooked food?
Yes. Switch it to Hold and set 150 to 185°F; the humidity system is disabled in that mode. A dial thermometer shows the cabinet temperature.
Can I stack an oven on it?
Yes. It is designed to run alone or under a Turbofan E33D5 or E33T5 half-size convection oven, using the DSKE33P10M double stacking kit (sold separately).
How much space does it need?
It is 24" wide, 26.75" deep and 40" high on casters, and the door swings out 18". The 2019 owner's manual asks for 1" on the right side and 0" elsewhere; the 2018 spec sheet lists 1" at the rear. Keep 12" from heat sources.
How do I clean and maintain it?
Lift out the side racks and water tank weekly and wash them with mild detergent, descale the tank element with white vinegar when it scales, and empty the condensation drawer. Moffat recommends service every 6 months.
What does the warranty cover?
Moffat warrants new equipment installed in the US against defects in material and workmanship for 1 year from installation or 18 months from shipment, whichever comes first, for commercial use. Light bulbs, rubber seals and broken glass doors are not covered.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | P10M |
| Quantity | 1 Each |
| Shipping Weight | 210 lbs |
| Net Weight | 171 lbs |
| Width | 24 Inches |
| Depth | 26.75 Inches |
| Height | 40 Inches (including 3" casters) |
| Door Swing | 18 Inches (side-hinged door) |
| Packed Dimensions | 25.75" W x 32.63" D x 46.5" H22.6 cu. ft. |
| Interior Dimensions | 13" W x 22.44" D x 31.88" H |
| Capacity | 10 Half-Size Sheet Pans (18" x 13")10 Hotel Steam Pans (12" x 20") |
| Tray Spacing | 2-7/8 Inches |
| Power Type | Electric |
| Voltage | 110-120 Volts |
| Wattage | 1.45 kW |
| Amps | 11.6 A |
| Phase | 1 Phase |
| Hertz | 50/60 Hz |
| Plug Type | NEMA 5-15P (15 A cordset fitted) |
| Water Connection | 3/4" GHT male, cold water |
| Water Pressure | 20 psi minimum80 psi maximum |
| Humidity | Auto-fill water system with removable humidity tank |
| Modes | OffProofHold |
| Thermostat | Mechanical, 65 - 185 Degrees F |
| Proofing Range | 65 - 105 Degrees F |
| Holding Range | 150 - 185 Degrees F |
| Controls | Mode selector, thermostat and humidity dialsheating and humidity indicator lightscabinet thermometer |
| Fan | Low-velocity circulation fan |
| Interior Lights | Dual halogen lamps |
| Door | Side-hinged, not reversible (per owner's manual) |
| Door Glass | 0.2" thick |
| Door Seal | Continuous, removable without tools |
| Interior | 304 stainless steel, removable stainless steel side racks |
| Exterior | Stainless steel front, sides, top and control panelaluminized coated steel base and rear |
| Construction | Double-skin cabinet |
| Casters | Four 3" casters2 front swivel with wheel and swivel lock2 rigid rear |
| Clearances | 0" top0" rear0" left side1" right side (owner's manual, 2019)spec sheet (2018): 1" rear, 0" sides |
| Clearance from Heat Sources | 12" from the sides |
| Stacking | DSKE33P10M kit (Turbofan E33D5 or E33T5 oven on top) |
| Accessories | 3M Cuno water filter kit with cartridge (optional) |
| Certifications | cETLusNSF |
| Warranty | 1 year from installation or 18 months from shipment, whichever comes first (Moffat US warranty) |
| Usage | Commercial use only |
| Country of Origin | New Zealand |
