Description
Proof and hold twelve full sheet pans in a cabinet built to sit under a Turbofan E35 oven.

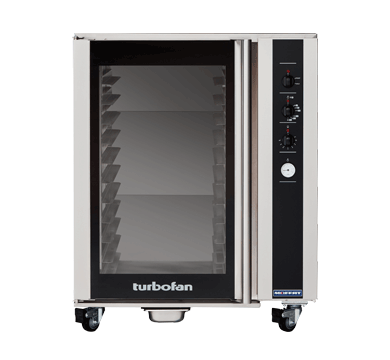

The Moffat Turbofan P85M12 is a full-size proofer and holding cabinet for bakeries, cafes, restaurants and caterers. It takes twelve 18" x 26" sheet pans, proofs at 65-105°F with auto-fill humidity, holds at 150-185°F, and plugs into a 120V, 20 A receptacle. Moffat designed it to complement the Turbofan E35 ovens, which can stack on top.
Will it fit · Will it plug in
- Outside size
- 35.88" W × 34.63" D × 44.5" H (including 3" casters)
- Door swing
- 25.5" side-hinged door, left-hand hinge standard
- Inside
- 18.25" W × 31.25" D × 37.25" H, 12.4 cu. ft.
- Power
- 110-120V, 1-phase, 1.95 kW, 15.6 A; NEMA 5-20P plug fitted
- Water
- 3/4" GHT cold water, 20-80 psi, for the humidity tank
- Clearances
- 1" rear, left and right; 12" from heat sources
- Shipping
- 37.38" W × 40.5" D × 50.63" H packed, 320 lb
Measure doorways on the delivery path against the 37.38" x 40.5" x 50.63" carton; the cabinet itself is 35.88" wide and 34.63" deep.
Proof and hold
One switch sets Proof (65-105°F with humidity) or Hold (150-185°F) mode.
Humidity that refills itself
An auto-fill tank on a cold water line, with a dial to set the humidity level for breads or pastries.
Plugs into the wall
A 120V NEMA 5-20P cord comes fitted, so no hardwiring is needed.
Built for the E35 oven
Designed to complement the Turbofan E35 ovens, which stack on top with the DSKE35P85 kit.
Moves where you need it
Four 3" casters, the two front ones with wheel and swivel locks.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 320 lb. Inspect the carton before you sign for it.
- The cord and plug come fitted; connect the cold water line to the auto-fill inlet at the rear.
- Preheat it empty for up to 10 minutes on warm days and up to 30 minutes on cool days before proofing.
- See our shipping policy for delivery details.
Questions buyers ask
What outlet does it need?
A 110-120V, 20 A receptacle for its NEMA 5-20P plug; a standard 15 A outlet will not take it. It draws 1.95 kW, 15.6 A, single phase, and the manual calls for a clearly marked isolation switch next to the cabinet.
Does it need a water line?
For humidity in proof mode, yes: the auto-fill tank connects to cold water with a 3/4" GHT fitting at 20 to 80 psi. Hold mode does not use the humidity system.
Can I use it to hold cooked food?
Yes. Switch it to Hold and set 150 to 185°F; the humidity system is disabled in that mode. A dial thermometer shows the cabinet temperature.
How many pans does it hold?
Twelve full-size 18" x 26" sheet pans or twenty-four 18" x 13" half-size pans, on 2-7/8" spacing.
Can I stack an oven on it?
Yes. Moffat designed it to run alone or under a Turbofan E35D6-26 or E35T6-26 full-size oven, stacked with the DSKE35P85 kit (sold separately).
How much space does it need?
It is 35.88" wide, 34.63" deep and 44.5" high on casters. The spec sheet asks for 1" at the rear and on each side, and 12" from heat sources. The door swings out 25.5".
How do I clean and maintain it?
Lift out the side racks and water tank weekly and wash them with mild detergent, descale the tank element with white vinegar when it scales, and empty the condensation drawer. Moffat recommends service every 6 months.
What does the warranty cover?
Moffat warrants new equipment installed in the US against defects in material and workmanship for 1 year from installation or 18 months from shipment, whichever comes first, for commercial use. Light bulbs, rubber seals and broken glass doors are not covered.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | P85M12 |
| Quantity | 1 Each |
| Shipping Weight | 320 lbs |
| Net Weight | 235 lbs |
| Width | 35.88 Inches |
| Depth | 34.63 Inches |
| Height | 44.5 Inches (including 3" casters) |
| Door Swing | 25.5 Inches (side-hinged door) |
| Packed Dimensions | 37.38" W x 40.5" D x 50.63" H44.3 cu. ft. |
| Interior Dimensions | 18.25" W x 31.25" D x 37.25" H12.4 cu. ft. |
| Capacity | 12 Full-Size Sheet Pans (18" x 26")24 Half-Size Sheet Pans (18" x 13") |
| Tray Spacing | 2-7/8 Inches |
| Power Type | Electric |
| Voltage | 110-120 Volts |
| Wattage | 1.95 kW |
| Amps | 15.6 A |
| Phase | 1 Phase |
| Hertz | 50/60 Hz |
| Plug Type | NEMA 5-20P (20 A cordset fitted) |
| Water Connection | 3/4" GHT male, cold water |
| Water Pressure | 20 psi minimum80 psi maximum |
| Humidity | Auto-fill water system with removable humidity tank |
| Modes | OffProofHold |
| Thermostat | Mechanical, 65 - 185 Degrees F |
| Proofing Range | 65 - 105 Degrees F |
| Holding Range | 150 - 185 Degrees F |
| Controls | Mode selector, thermostat and humidity dialsheating and humidity indicator lightscabinet thermometer |
| Fan | Low-velocity circulation fan |
| Interior Lights | Dual halogen lamps |
| Door | Side-hinged, left-hand hinge standard, field reversible to right-hand |
| Door Glass | 0.2" thick |
| Door Seal | Continuous |
| Interior | 304 stainless steel, removable stainless steel side racks |
| Exterior | Stainless steel front, sides, top and control panelaluminized coated steel base and rear |
| Construction | Double-skin cabinet |
| Casters | Four 3" casters2 front swivel with wheel and swivel lock2 rigid rear |
| Clearances | 1" rear1" left side1" right side (spec sheet) |
| Clearance from Heat Sources | 12" from the sides |
| Stacking | DSKE35P85 kit (Turbofan E35D6-26 or E35T6-26 oven on top) |
| Accessories | 3M Cuno water filter kit with cartridge (optional), installs in the rear housing |
| Certifications | cETLusNSF |
| Warranty | 1 year from installation or 18 months from shipment, whichever comes first (Moffat US warranty) |
| Usage | Commercial use only |
| Country of Origin | New Zealand |
