Description
Proof dough and hold cooked food in one mobile cabinet that plugs into a standard outlet.

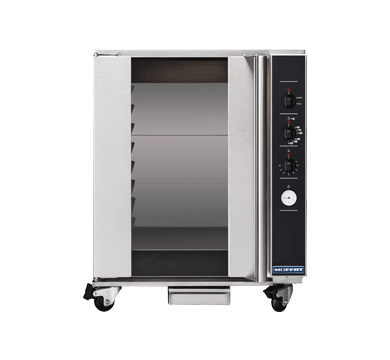

The Moffat Turbofan P8M is a full-size proofer and holding cabinet for bakeries, cafes, restaurants and caterers. It takes eight 18" x 26" sheet pans, proofs at 65-105°F with auto-fill humidity, holds at 150-185°F, and plugs into a 120V outlet. At 28.88" wide it matches the Turbofan E32D5 oven, which can stack on top.
Will it fit · Will it plug in
- Outside size
- 28.88" W × 31.88" D × 36" H (including 3" casters)
- Door swing
- 22.63" side-hinged door, left-hand hinge standard
- Inside
- 18.25" W × 27.5" D × 28.75" H, 8.5 cu. ft.
- Power
- 110-120V, 1-phase, 1.45 kW, 11.6 A; NEMA 5-15P plug fitted
- Water
- 3/4" GHT cold water, 20-80 psi, for the humidity tank
- Clearances
- 0" top, rear and left; 1" right; 12" from heat sources
- Shipping
- 30" W × 36.38" D × 42.5" H packed, 201 lb
Measure doorways on the delivery path against the 30" x 36.38" x 42.5" carton; the cabinet itself is 28.88" wide.
Proof and hold
One switch sets Proof (65-105°F with humidity) or Hold (150-185°F) mode.
Humidity that refills itself
An auto-fill tank on a cold water line, with a dial to set the humidity level for breads or pastries.
Plugs into the wall
A 120V NEMA 5-15P cord comes fitted, so no hardwiring is needed.
Built to stack
Runs on its own or under a Turbofan E32D5 oven with the DSKE32P8 kit.
Moves where you need it
Four 3" casters, the two front ones with wheel and swivel locks.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 201 lb. Inspect the carton before you sign for it.
- The cord and plug come fitted; connect the cold water line to the auto-fill inlet at the rear.
- Preheat it empty for up to 10 minutes on warm days and up to 30 minutes on cool days before proofing.
- See our shipping policy for delivery details.
Questions buyers ask
What outlet does it need?
A standard 110-120V outlet for its 15 A NEMA 5-15P plug. It draws 1.45 kW, 11.6 A, single phase, and the manual calls for a clearly marked isolation switch next to the cabinet.
Does it need a water line?
For humidity in proof mode, yes: the auto-fill tank connects to cold water with a 3/4" GHT fitting at 20 to 80 psi. Hold mode does not use the humidity system.
Can I use it to hold cooked food?
Yes. Switch it to Hold and set 150 to 185°F; the humidity system is disabled in that mode. A dial thermometer shows the cabinet temperature.
How many pans does it hold?
Eight full-size 18" x 26" sheet pans or sixteen 18" x 13" half-size pans, on 3" spacing.
Can I stack an oven on it?
Yes. Moffat designed it to work alone or with the Turbofan E32D5 and G32D5 ovens. The DSKE32P8 kit stacks an E32D5 on top, and the DSKP8 kit stacks two P8M cabinets; kits are sold separately.
How much space does it need?
It is 28.88" wide, 31.88" deep and 36" high on casters. It can sit against the wall and the left side, needs 1" on the right, and 12" from heat sources. The door swings out 22.63".
How do I clean and maintain it?
Pull the side racks and water tank weekly and wash them with mild detergent, descale the tank element with white vinegar when it scales, and empty the condensation drawer. Moffat recommends service every 6 months.
What does the warranty cover?
Moffat warrants new equipment installed in the US against defects in material and workmanship for 1 year from installation or 18 months from shipment, whichever comes first, for commercial use. Light bulbs, rubber seals and broken glass doors are not covered.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | P8M |
| Quantity | 1 Each |
| Shipping Weight | 201 lbs |
| Net Weight | 171 lbs |
| Width | 28.88 Inches |
| Depth | 31.88 Inches |
| Height | 36 Inches (including 3" casters) |
| Door Swing | 22.63 Inches (side-hinged door) |
| Packed Dimensions | 30" W x 36.38" D x 42.5" H26.8 cu. ft. |
| Interior Dimensions | 18.25" W x 27.5" D x 28.75" H8.5 cu. ft. |
| Capacity | 8 Full-Size Sheet Pans (18" x 26")16 Half-Size Sheet Pans (18" x 13") |
| Tray Spacing | 3 Inches |
| Power Type | Electric |
| Voltage | 110-120 Volts |
| Wattage | 1.45 kW |
| Amps | 11.6 A |
| Phase | 1 Phase |
| Hertz | 60 Hz |
| Plug Type | NEMA 5-15P (15 A cordset fitted) |
| Water Connection | 3/4" GHT male, cold water |
| Water Pressure | 20 psi minimum80 psi maximum |
| Humidity | Auto-fill water system with removable humidity tank |
| Modes | OffProofHold |
| Thermostat | Mechanical |
| Proofing Range | 65 - 105 Degrees F |
| Holding Range | 150 - 185 Degrees F |
| Controls | Mode selector, thermostat and humidity dialsheating and humidity indicator lightscabinet thermometer |
| Fan | Low-velocity circulation fan |
| Interior Lights | Dual halogen lamps |
| Door | Side-hinged, left-hand hinge standard, field reversible to right-hand |
| Door Glass | 0.2" thick |
| Door Seal | Continuous |
| Interior | 304 stainless steel, removable stainless steel side racks |
| Exterior | Stainless steel front, sides and topaluminized coated steel base and rear |
| Construction | Double-skin cabinet |
| Casters | Four 3" casters2 front swivel with wheel and swivel lock2 rigid rear |
| Clearances | 0" top0" rear0" left side1" right side |
| Clearance from Heat Sources | 12" from the sides |
| Stacking | DSKE32P8 kit (E32D5 oven on top)DSKP8 kit (two P8M cabinets) |
| Accessories | 234347 water filter kit (3M Cuno)234652 filter cartridge |
| Certifications | cETLusNSF |
| Warranty | 1 year from installation or 18 months from shipment, whichever comes first (Moffat US warranty) |
| Usage | Commercial use only |
| Country of Origin | New Zealand |
