Description
Run a Turbofan full-size electric convection oven without a ducted hood.

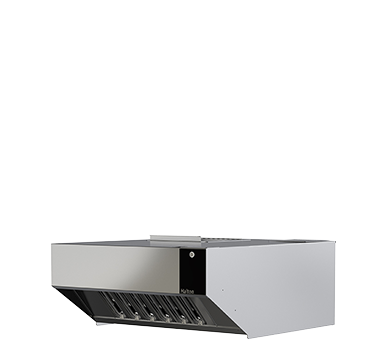

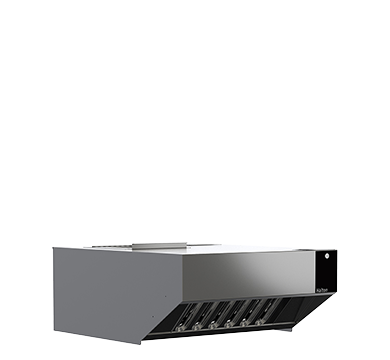

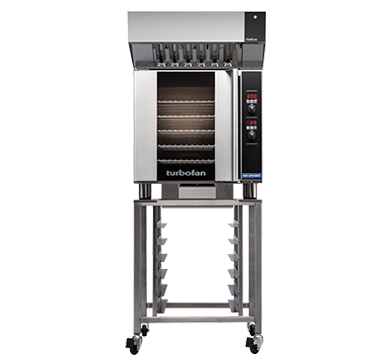

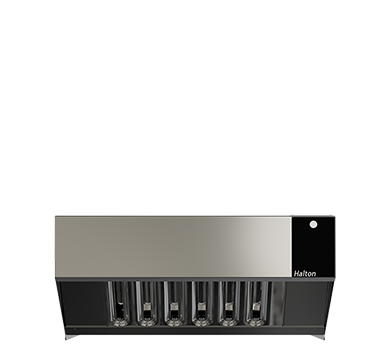

The Moffat Turbofan VH32 is a ventless condensing hood made by Halton for Turbofan E32D and E32T electric convection ovens. It sits on top of the oven, pulls the oven vent through a condensing heat exchanger and three filters, and plugs into a standard 120V outlet. It suits food courts, convenience stores, stadiums, bars and older buildings where adding a duct is hard. The oven and stand are sold separately.
Will it fit · Will it plug in
- Hood size
- 29.25" W × 40" D × 14.5" H
- Fits
- Turbofan E32D4, E32D5, E32T4 and E32T5 (built after week 4 of 2021)
- Power
- 110-120V, 1-phase, 60 Hz, 1.6 A; 6 ft NEMA 5-15P cord
- Water / drain
- No water; condensate pan under the oven or optional hose to a drain
- Clearance
- Allow 3" extra at the rear; check ceiling height above oven and hood
- Shipping
- 31.5" W x 44" D x 21.5" H packed, 125 lb
This hood only works with the Turbofan ovens listed. Measure doorways on the delivery path against the carton, and confirm hood requirements with your local inspector.
No duct, no canopy
Recirculating hood that sits on the oven, for sites where a ducted hood is not practical.
3-stage filtration
Grease baffle and mesh filters lift out for washing; the charcoal filter removes remaining odor and smoke.
Condensing heat exchanger
Condenses oven vent steam and reduces the heat released into the room.
Smart fan control
Automatic 2-speed extraction fan runs quietly at low speed and switches to high when the door opens or a program is about to end.
Interlocked with the oven
The oven will not run if the hood is off, and the oven control alarms if the hood stops.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 125 lb. Inspect the carton before you sign for it.
- The VHIK32 installation kit is included and needs mechanical and electrical field assembly by a qualified technician.
- See our shipping policy for delivery details.
Questions buyers ask
Which ovens does it fit?
Only Turbofan E32D4, E32D5, E32T4 and E32T5 electric convection ovens built after week 4 of 2021. It is not for gas ovens or other brands, because it connects to the oven controller and sits over the oven vent.
Does it replace a Type 1 hood?
Moffat says it removes the need for a canopy or ducted oven hood and meets the EPA 202 test method for less than 5 mg/m3 grease-laden effluent when fitted to a matching Turbofan oven. The installation must follow NFPA 96 and your local code, and the local authority has the final say, so confirm with your inspector before ordering.
What power does it need?
A grounded 110-120V outlet for its 6 ft NEMA 5-15P cord. The 2023 manual rates it at 1.6 A (1.0 A on the 2021 spec sheet). The oven keeps its own power supply.
Do I need a drain or water line?
No water line. Condensate runs into a collection pan under the oven that you empty, or you can run the supplied 6 ft, 3/8" hose to a waste drain.
Who installs it?
A qualified technician. The VHIK32 kit has to be fitted to the oven, including an interlock harness wired into the oven control board, and the hood function is enabled in the oven settings. The manual calls for 4 people to lift the hood onto the oven.
How do I maintain it?
Wash the baffle and mesh filters and the drip tray weekly with detergent, and replace the charcoal filter (H11715 (10" x 10" x 1")) every quarter.
How much space does it add?
The hood is 29.25" wide, 40" deep and 14.5" high and overhangs the oven. Allow 3" of extra rear clearance and check the ceiling height above the oven.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan (made by Halton Company, USA, for Moffat) |
| Model Number | VH32 |
| Quantity | 1 Each |
| Shipping Weight | 125 lbs |
| Net Weight | 103 lbs |
| Width | 29.25 Inches |
| Depth | 40 Inches |
| Height | 14.5 Inches |
| Packed Dimensions | 31.5" W x 44" D x 21.5" H19 cu. ft. |
| Rear Clearance | Allow 3" additional rear clearance |
| Compatible Ovens | Turbofan E32D4, E32D5, E32T4 and E32T5 electric convection ovens built after week 4 of 2021 |
| Matching Stand | SK32 |
| Gas Ovens | Not listed by Moffat for any gas oven, including the G32D |
| Installation Kit | VHIK32 includedoven interlock wire harnessfour 4" oven feetcondensate collection pan and housingoven rear shroudoven-to-stand rear securing plate |
| Power Type | Electric |
| Voltage | 110-120 Volts |
| Amps | 1.6 A (Halton/Moffat manual 2023)1.0 A (spec sheet 2021) |
| Phase | 1 Phase |
| Hertz | 60 Hz |
| Plug Type | NEMA 5-15P (6 ft cordset fitted) |
| Airflow | 132 CFM low speed248 CFM high speed |
| Sound Level | 62 dB low speed73 dB high speed |
| Fan | Automatic 2-speed extraction fanlow speed while idle or cookinghigh speed 10 seconds before the end of a timer or program and whenever the oven door is open |
| Filtration | 3 stagesgrease baffle filter (removable)mesh particle filter (removable)charcoal odor filter (replaceable) |
| Replacement Charcoal Filter | H11715 (10" x 10" x 1") |
| Heat Exchanger | Condensing heat exchanger on the oven vent |
| Condensate | Self-contained collection pan under the ovenoptional drain to a waste drain with the supplied 6 ft, 3/8" OD hose |
| Water Connection | None required |
| Controls | Illuminated power switchoven interlock with alarm on the oven control if the hood is not running |
| Emissions | EPA 202 test method, less than 5 mg/m3 grease-laden effluent when fitted to a matching Turbofan oven |
| Construction | 304 stainless steel, welded casingservice panels top and rear |
| Usage | Commercial kitchens; installation per NFPA 96 and local codes |
| Made By | Halton Company, USA, exclusively for Moffat Turbofan ovens |
