Description
The Norlake KODF77614-C Kold Locker is a 6' x 14' outdoor walk-in freezer with a 7' 7" enclosure height. It combines a modular insulated storage enclosure with CPF175PC-E-4 Capsule Pak refrigeration for commercial food storage.
The self-contained refrigeration system uses R290 refrigerant and mounts above the enclosure. Plan additional overhead clearance and service access; the enclosure height is not the overall height with refrigeration installed.
This configuration includes a smooth aluminum interior floor. Confirm the floor load requirements and the handling equipment used inside the walk-in.
Construction and Daily Use
Kold Locker panels have 4-inch polyurethane insulation and 26-gauge embossed coated steel interior and exterior surfaces. The series features a self-closing door, locking deadbolt handle, digital thermometer and LED lighting. Confirm the required door width, hinge direction and accessories when finalizing the order.
A membrane roof is included in the manufacturer product data for this outdoor model. Confirm outdoor site preparation, roof installation and local electrical requirements with the installing contractor.
Model Specifications
| Manufacturer | Norlake |
|---|---|
| Model | KODF77614-C |
| Series | Kold Locker |
| Storage Application | Freezer |
| Installation Location | Outdoor |
| Width | 72 inches |
| Depth | 168 inches |
| Enclosure Height | 91 inches |
| Floor | With Floor |
| Refrigeration Type | Self-Contained |
| Refrigeration System | CPF175PC-E-4 |
| Refrigerant | R290 |
| Electrical | 208-230V / 60 Hz / 1 phase |
Installation Planning
Check access routes, available floor space, door clearance and electrical service before ordering. Shelving and optional accessories are not included unless specified in the order.

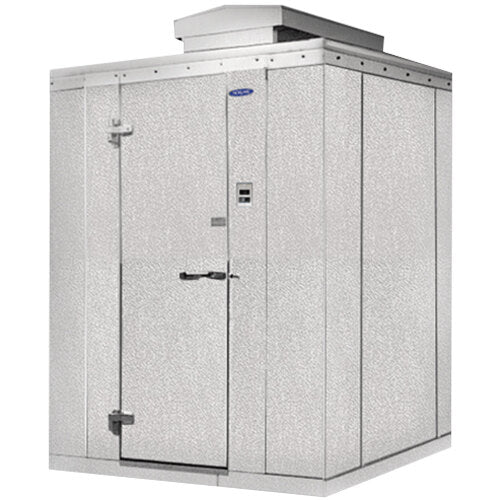

Representative Kold Locker series image shown. Door placement, dimensions and refrigeration appearance vary by configuration.
