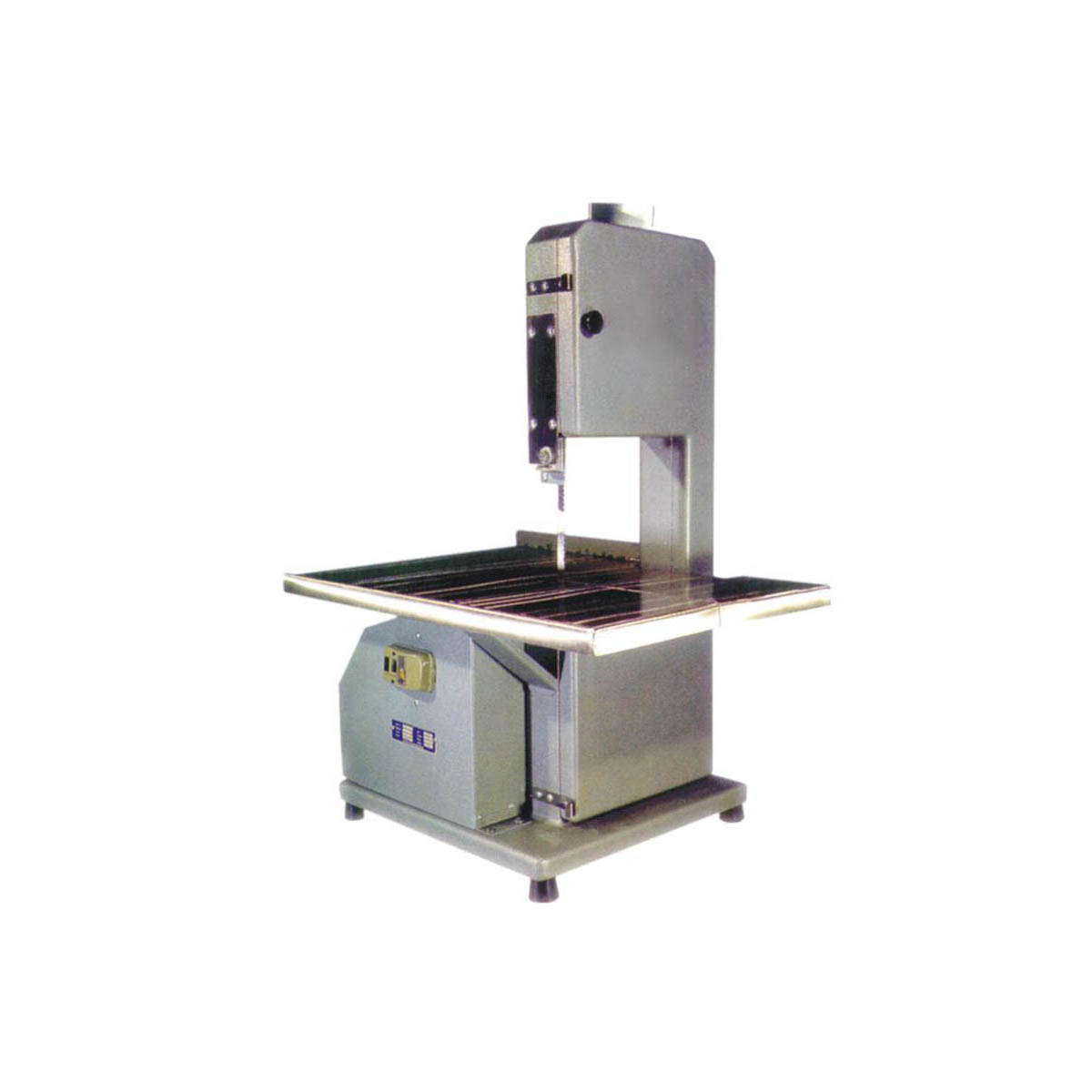

Omcan 10270 — (BS-VE-1981-E) Countertop 78" Band Saw, 1 hp, 110/60/1-ph
The Omcan 10270 (BS-VE-1981-E) Countertop 78" Band Saw, 1 hp, 110/60/1-ph is part of Atlantic’s electric meat & bone saws selection. Width: 28 in. Depth: 21 in. Height: 41 in.
Product Highlights
- Fabricated in steel with electrostatic oven paint, complete with an aluminum head. Its stainless steel table has a four-wheel base that slides on rails
- ITEM NUMBER 10270
- MODEL BS-VE-1981-E
- BLADE LENGTH 78”/ 1981 mm
- CUTTING CAPACITY (H*W) 7.75” x 7.5”/ 197 x 190.5 mm
- POWER 1 HP / 0.75 kW
- ELECTRICAL 110V/60Hz/1
- WEIGHT 248 lbs. / 112.73 kg.
- PACKAGING WEIGHT 287 lbs. / 130.45 kg.
- PACKAGING DIMENSIONS 26” x 32” x 46”/ 660 x 812.8 x 1168 mm
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 10270 |
| Listed Weight | 290 lbs |
| Width | 28 in. |
| Depth | 21 in. |
| Height | 41 in. |
| Installation Type | countertop |
| Horsepower | 1 hp |
| Blade Size Range (ınches) | 78" - 98" |
| Base Construction | painted steel body |
| Blade Size | 78" blade |
| Voltage | 110 |
| Certifications | cETLus, ETL-Sanitation, ETL |
| Phase | 1 |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

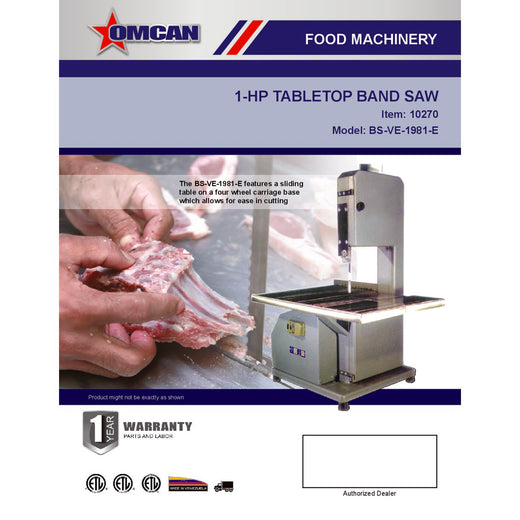

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
