Description

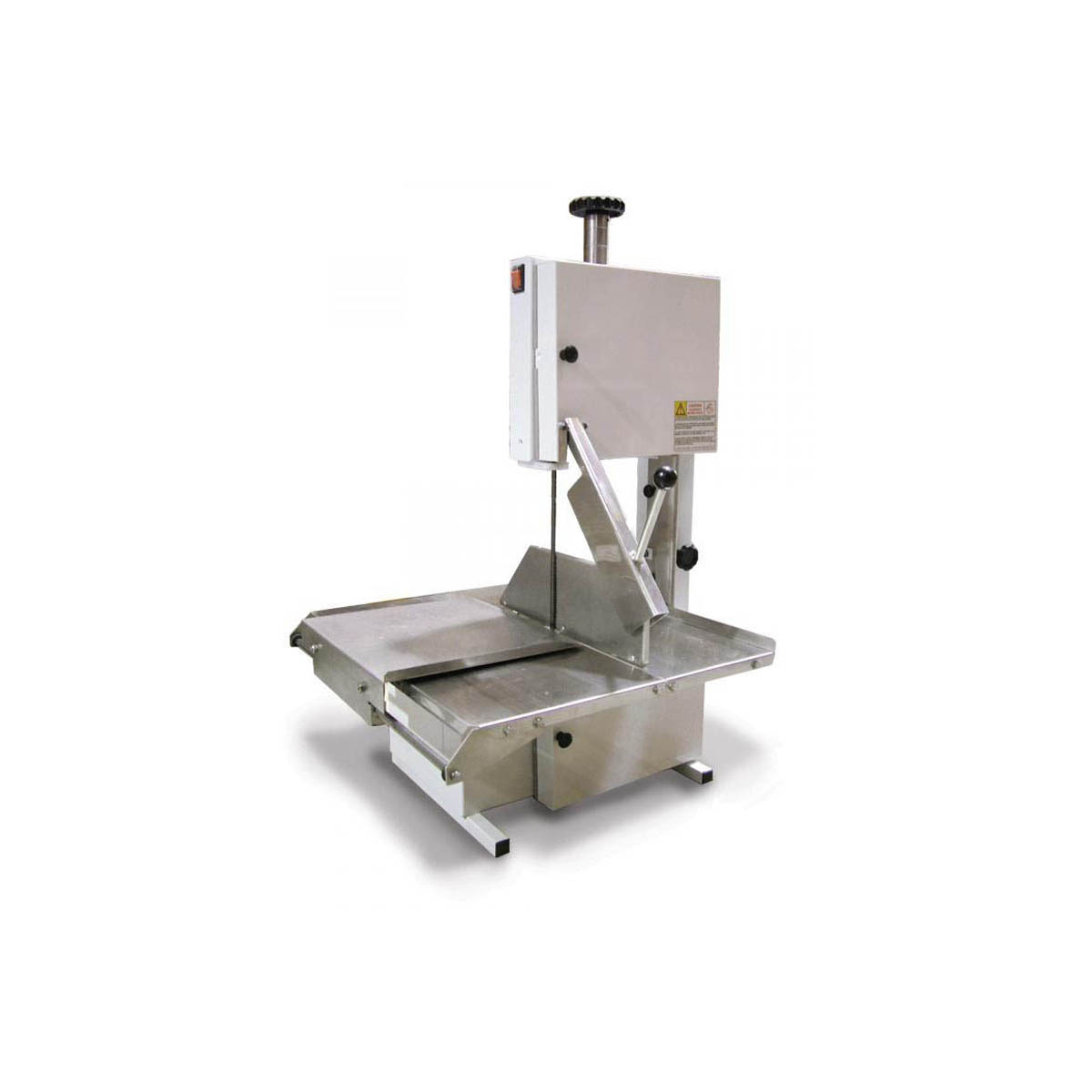

Omcan 10274 — (BS-BR-1880) Countertop 74" Elite Series Band Saw, 1/2 hp, 110/60/1-Ph
The Omcan 10274 (BS-BR-1880) Countertop 74" Elite Series Band Saw, 1/2 hp, 110/60/1-Ph is part of Atlantic’s electric meat & bone saws selection. Width: 25.2 in. Depth: 19.7 in. Height: 38.6 in.
Product Highlights
- CUT SLABS OF MEAT QUICKLY, EASILY, AND PRECISELY
- Sliding stainless steel table, cut regulator, and a pushing lever
- 4-teeth per inch stainless steel blades
- Guide plate and pushing lever for easycutting
- ITEM NUMBER 10274
- MODEL BS-BR-1880
- BLADE LENGTH 74” / 1880 mm
- CUTTING CAPACITY (H*W) 10” x 8.5” / 254 x 216 mm
- POWER 0.5 HP / 0.37 kW
- ELECTRICAL 110 V / 60 Hz / 1 Ph
- WEIGHT 77 lbs. / 35 kg.
- PACKAGING WEIGHT 131 lbs. / 59 kg.
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 10274 |
| Listed Weight | 162 lbs |
| Width | 25.2 in. |
| Depth | 19.7 in. |
| Height | 38.6 in. |
| Installation Type | countertop |
| Horsepower | 1/2 hp |
| Blade Size Range (ınches) | 60" - 74" |
| Base Construction | cast aluminum |
| Blade Size | 74" blade |
| Voltage | 110 |
| Phase | 1 |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

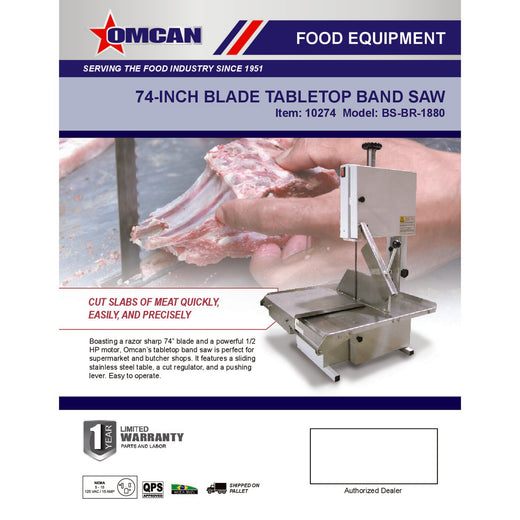

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
