Description

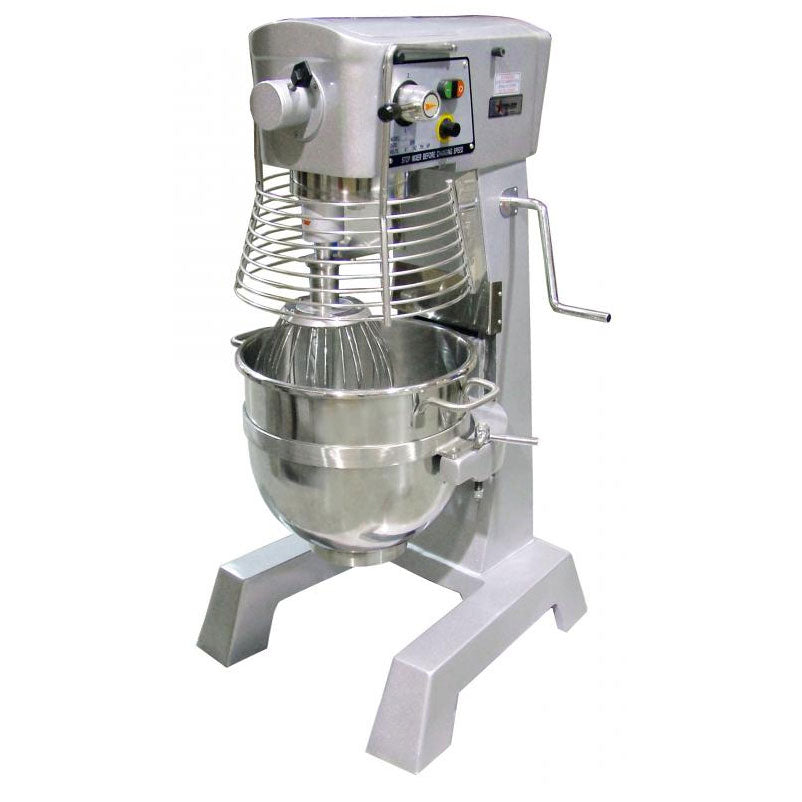

Omcan 17836 — Floor Model 30 qt Planetary Mixer with Guard and Timer, #12 HUB, 3-Speed, 2 hp
The Omcan 17836 Floor Model 30 qt Planetary Mixer with Guard and Timer, #12 HUB, 3-Speed, 2 hp is part of Atlantic’s commercial mixers selection. Width: 21 in. Depth: 23.5 in. Height: 44.5 in.
Product Highlights
- Boasting a powerful 2 Horsepower motor, Omcan’s ETL certified 30-QT mixer with guard has a 3-speed, gear-driven transmission making it easy to mix ingredients nice and easy.
- This mixer has 3 speeds. It comes complete with 3 attachments, a stainless steel bowl, and a safety guard
- ITEM NUMBER 17836
- MODEL MX-CN-0030-T
- POWER 2 HP / 1.5 kW
- SHAFT RPM 1ST SPEED | 2ND SPEED | 3RD SPEED 91 | 166 | 282
- CAPACITY 30 QT
- TIMER Yes
- GUARD Yes
- ELECTRICAL 110V / 60Hz / 1Ph
- PACKAGING WEIGHT 433 lbs. / 196.82 kg.
- DIMENSIONS (DWH) 23.5” x 21” x 44.5” / 596.9 x 533.4 x 1130.3 mm
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 17836 |
| Listed Weight | 480 lbs |
| Width | 21 in. |
| Depth | 23.5 in. |
| Height | 44.5 in. |
| Mixer Type | planetary |
| Installation Type | floor model |
| Bowl Capacity | 30 qts |
| Speed | 3-speed |
| Timer | with timer |
| Attachments | bowl guard, bowl, beater, whip, hook |
| Hub size | #12 hub |
| Housing Construction | metallic |
| Color | gray |
| Voltage | 110 |
| Certifications | cETLus, ETL |
| Phase | 1 |
| Horsepower | 2 hp |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

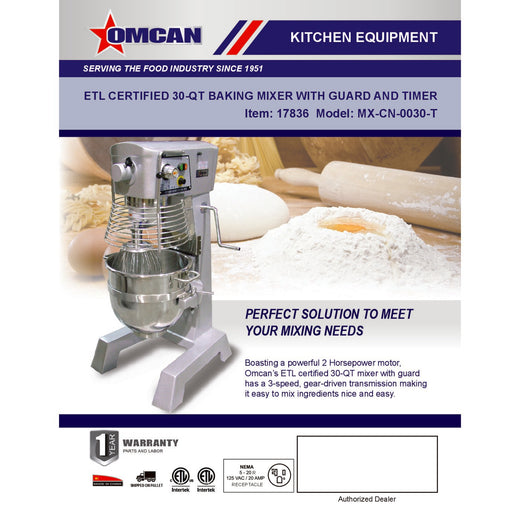

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
