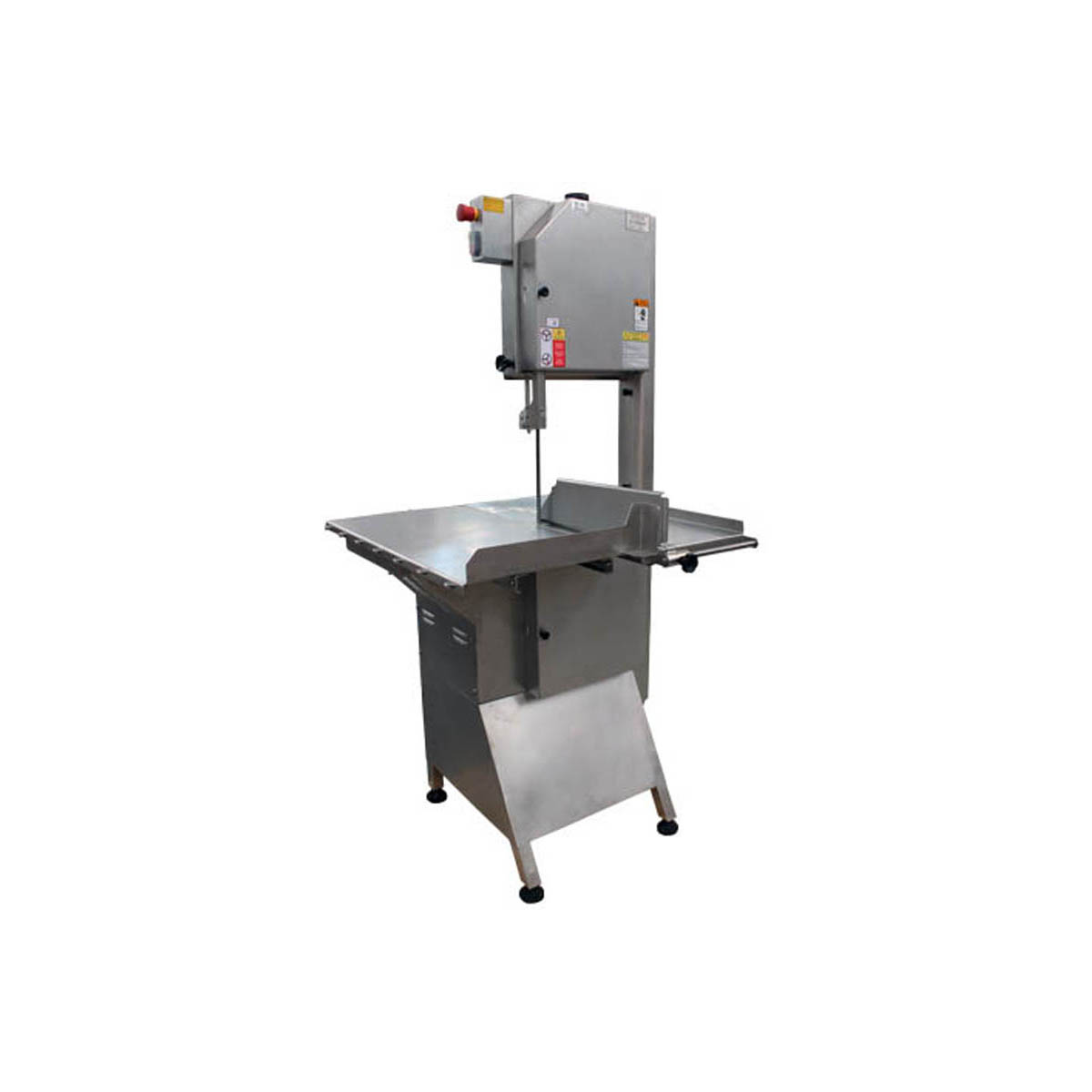

Omcan 20237 — (BS-BR-2820-SS) Floor Model 111" Band Saw, 2 hp, 230/60/1-Ph
The Omcan 20237 (BS-BR-2820-SS) Floor Model 111" Band Saw, 2 hp, 230/60/1-Ph is part of Atlantic’s electric meat & bone saws selection. Width: 36.25 in. Depth: 38.63 in. Height: 73.63 in.
Product Highlights
- 2 HP (1.47 kW) motor at 230 V/60 Hz provides steady cutting power for high‑throughput operations.
- 111‑inch stainless steel blade with 12¾" × 10" cutting capacity handles large cuts and bone sections.
- Stainless‑steel table and 4‑wheel rail base slide smoothly, while adjustable legs ensure level placement on any floor.
- NEMA 6‑20P plug and ETL‑sanitation certification meet commercial kitchen safety and hygiene standards.
- Robust steel body with aluminum head resists wear, supporting long‑term durability in demanding environments.
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 20237 |
| Listed Weight | 339 lbs |
| Width | 36.25 in. |
| Depth | 38.63 in. |
| Height | 73.63 in. |
| Installation Type | floor model |
| Horsepower | 2 hp |
| Blade Size Range (ınches) | 110" - 120" |
| Base Construction | stainless steel |
| Blade Size | 111" blade |
| Voltage | 230 |
| Certifications | ETL-Sanitation, ETL, cETL |
| Phase | 1 |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

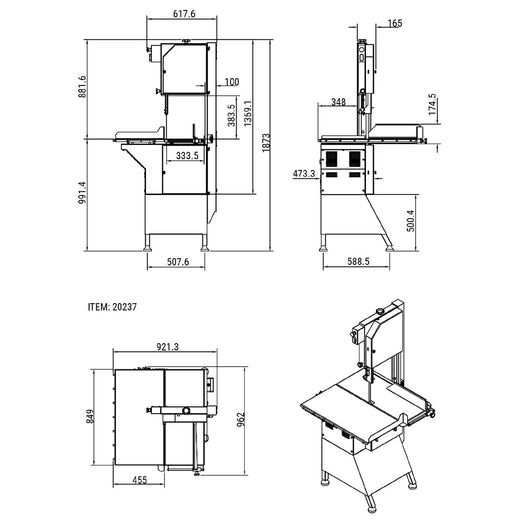

Available product resources: Spec Sheet, Technical_Drawing_20237. Use the document links on this page to view or download the files.
