Description

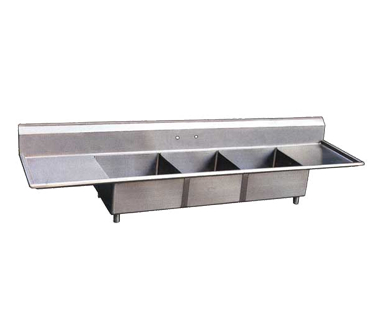

Omcan 22117 — Three Compartment Sink
The Omcan 22117 Three Compartment Sink is part of Atlantic’s 3 compartment sinks selection. Width: 90 in. Depth: 23.5 in. Height: 44 in.
Product Highlights
- Three 18" x 18" x 11" stainless steel bowls provide ample space for washing, rinsing and sanitizing dishes.
- 18‑gauge 304 stainless steel construction meets NSF and CSA certifications for food‑safe durability.
- Corner drain with 1.8" drain size and left/right drain boards streamline water removal and reduce splash.
- Galvanized legs with adjustable bullet feet and side cross‑rails ensure stable, level installation on any floor.
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 22117 |
| Listed Weight | 95 lbs |
| Width | 90 in. |
| Depth | 23.5 in. |
| Height | 44 in. |
| Compartment (front - back) | 18" |
| Compartment Width (side - side) | 18" |
| Drainboards | with left & right-hand drainboards |
| Base Type | legs with side crossrails |
| Base Construction | galvanized |
| Splash Height | 9-3/4" |
| Top Gauge | 18 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 11" |
| Certifications | NSF, CSA |
Compatibility and Ordering
Match the Omcan item number, dimensions and listed equipment compatibility before ordering. Equipment shown for context is included only when explicitly stated in the product specifications.
Documents and Downloads
Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
