Description

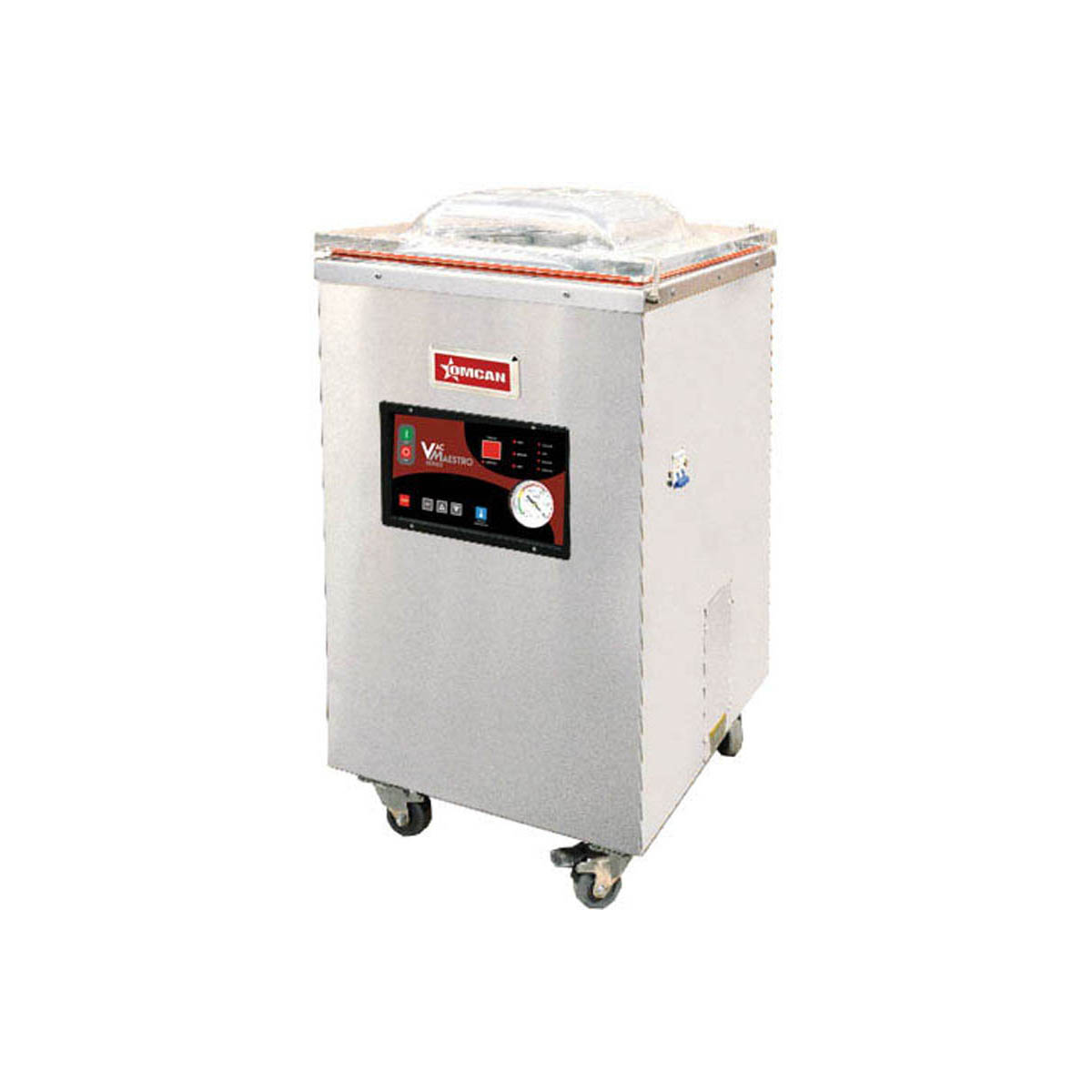

Omcan 24081 — Floor Model Chamber Vacuum Packaging Machine with 16-1/2" Double Seal Bar
The Omcan 24081 Floor Model Chamber Vacuum Packaging Machine with 16-1/2" Double Seal Bar is part of Atlantic’s commercial vacuum sealer machines selection. Width: 18.7 in. Depth: 22 in. Height: 39 in.
Product Highlights
- ECONOMY VACUUM PACKAGING MACHINES
- ITEM NUMBER 24081
- MODEL VP-CN-0971
- DESCRIPTION Double Seal Bar
- SEAL BAR 16.5” x 0.31” / 42cm x 0.8cm (2x)
- CYCLE TIME 23 seconds
- PUMP POWER 20 m³/h
- POWER 0.9 kw / 1.2 HP
- CHAMBER SIZE 17.3” x 16.5” x 3”/ 44cm x 42cm x 7.3cm (5”/ 13 cm with dome cover)
- ELECTRICAL 220V/ 60 Hz/ 1Ph
- WEIGHT 176 lbs./ 79.8kg.
- DIMENSIONS(DWH) 22” x 18.7” x 39”/ 56cm x 47cm x 99cm
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 24081 |
| Listed Weight | 176 lbs |
| Width | 18.7 in. |
| Depth | 22 in. |
| Height | 39 in. |
| Installation Type | floor model |
| Packaging Type | vacuum |
| Packagıng Style | chamber |
| Seal Bar Length (Range) | 16-1/2"-20-1/4" seal bar(s) |
| Number of Seal Bars | 2 bars |
| Chambers Quantity | single chamber |
| Control Type | digital control |
| Seal Bar Length | 16-1/2" seal bar(s) |
| Voltage | 220 |
| Certifications | CE |
| Phase | 1 |
| Wattage | 900 watts |
| Horsepower | 1-1/5 Hp |
| Pump Capacity | 20 m³/h |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads
Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
