Description

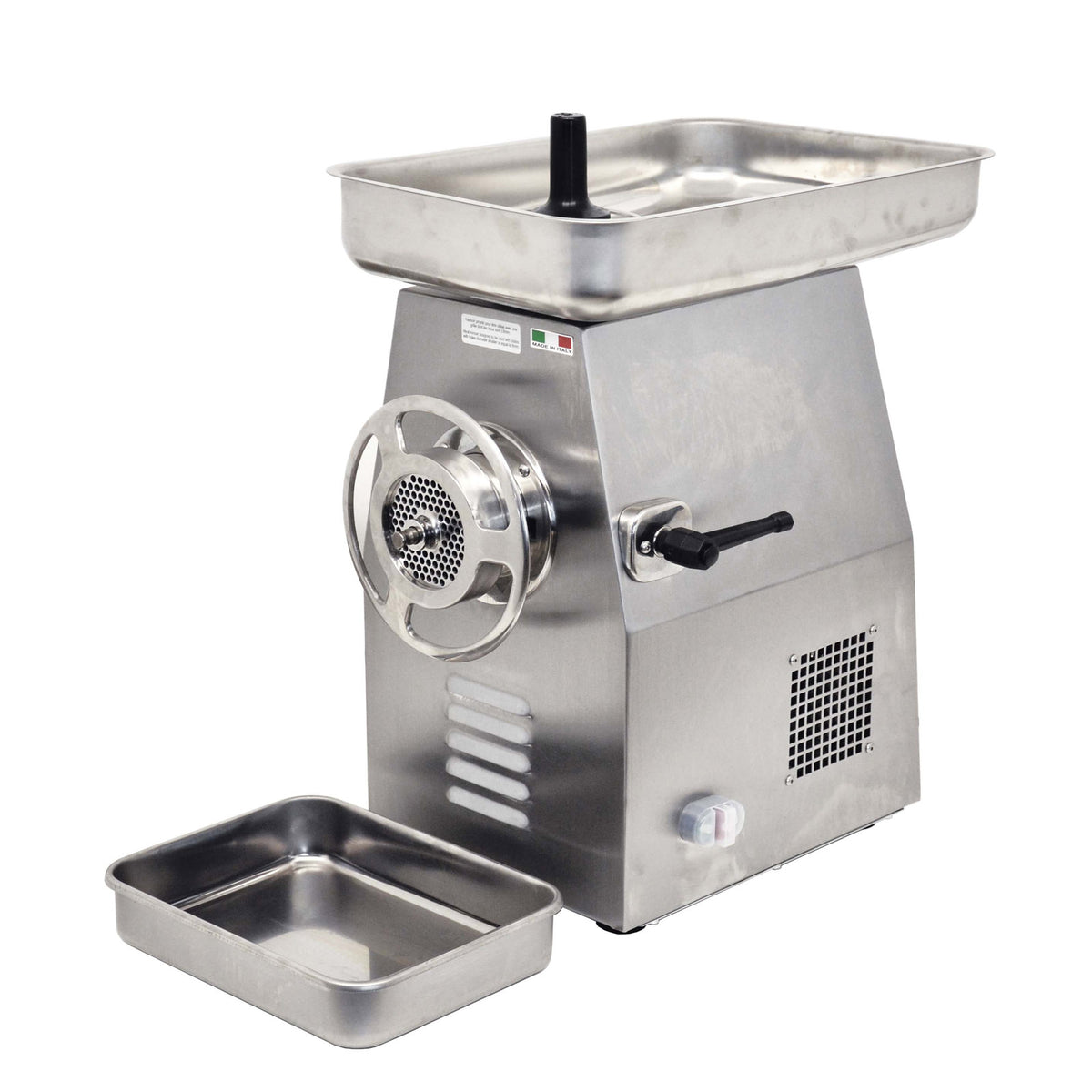

Omcan 39714 — Countertop Electric Meat Grinder, 3 HP Motor, #32 Hub, 220V/60Hz, 16.6A, 1320 lbs/hr, Made in Italy
The Omcan 39714 Countertop Electric Meat Grinder, 3 HP Motor, #32 Hub, 220V/60Hz, 16.6A, 1320 lbs/hr, Made in Italy is part of Atlantic’s commercial meat grinders & choppers selection. Width: 11.8 in. Depth: 22.5 in. Height: 22 in.
Product Highlights
- ITEM NUMBER 39714
- MODEL MG-IT-0032-C
- POWER 3 HP. 2.2 kW
- PRODUCTION/ HR 600 kg/ 1320 lbs.
- ELECTRICAL 220V/ 60 Hz / 1 Ph
- AMPS 16.6 A
- THROAT OPENING 2.75” / 69.85 mm
- DIMENSIONS (DWH) 22.5” X 11.8” X 22”/
- 571.5 x 300 x 560 mm
- PACKAGING
- DIMENSIONS
- 24.4” x 16.9” x 25.6”/
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 39714 |
| Listed Weight | 139 lbs |
| Width | 11.8 in. |
| Depth | 22.5 in. |
| Height | 22 in. |
| Power Type | electric |
| Bench or Floor Model | bench |
| Hub size | #32 hub |
| Special Features | feed stomper, on/off switch protection with waterproof cover, Fan cooled motor |
| Motor | 3 HP |
| Voltage | 220 |
| Certifications | CE, Made in Italy |
| Phase | 1 |
| Production Per Hour | 1320 lbs/hr |
| Plate Type | 1/4” (6mm) plate |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

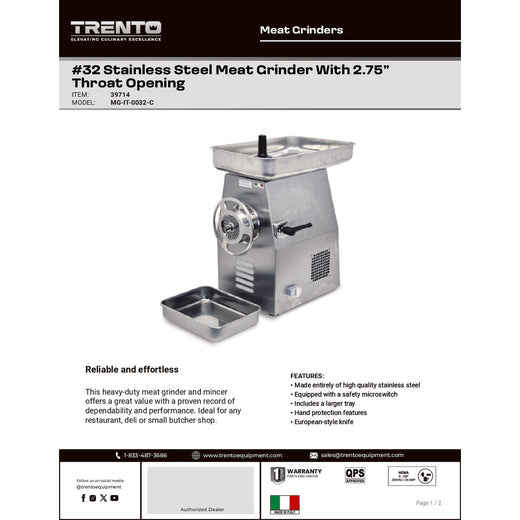

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
