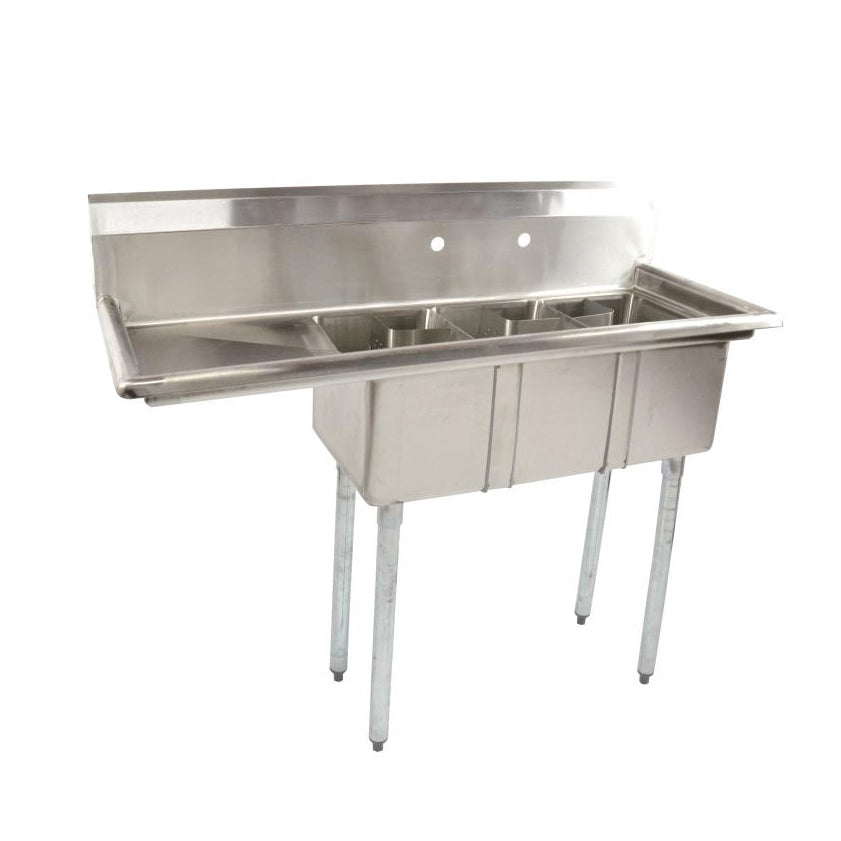

Omcan 39762 — Three Compartment Sink
The Omcan 39762 Three Compartment Sink is part of Atlantic’s 3 compartment sinks selection. Width: 48.63 in. Depth: 19.5 in. Height: 43.75 in.
Product Highlights
- Bowl size 14" × 10" × 10" (front‑back × wide × depth) for ample washing, rinsing and sanitizing space.
- 9¾" splash guard protects nearby work surfaces from water overflow.
- Left‑hand 16" drainboard with corner drain speeds liquid removal and keeps countertops dry.
- 16‑gauge galvanized legs with adjustable bullet feet provide sturdy, level support on uneven floors.
- 18‑gauge 304 stainless steel construction, NSF certified, with 1" on‑center faucet holes for versatile faucet installation.
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 39762 |
| Listed Weight | 112 lbs |
| Width | 48.63 in. |
| Depth | 19.5 in. |
| Height | 43.75 in. |
| Compartment (front - back) | 14" |
| Compartment Width (side - side) | 10" |
| Drainboards | with left-hand drainboard |
| Base Type | legs |
| Base Construction | galvanized |
| Splash Height | 9-3/4" |
| Top Gauge | 18 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 10" |
| Certifications | NSF |
Compatibility and Ordering
Match the Omcan item number, dimensions and listed equipment compatibility before ordering. Equipment shown for context is included only when explicitly stated in the product specifications.
Documents and Downloads

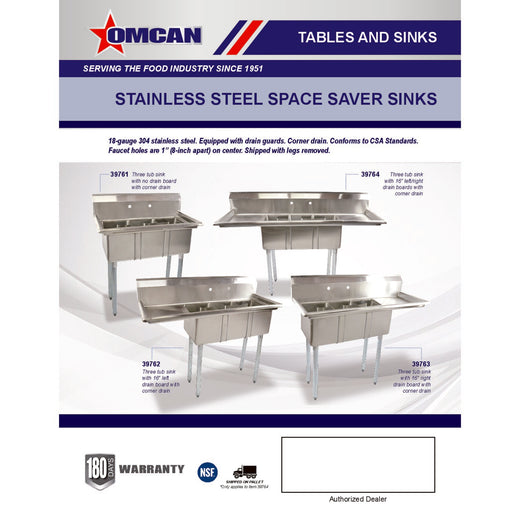

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
