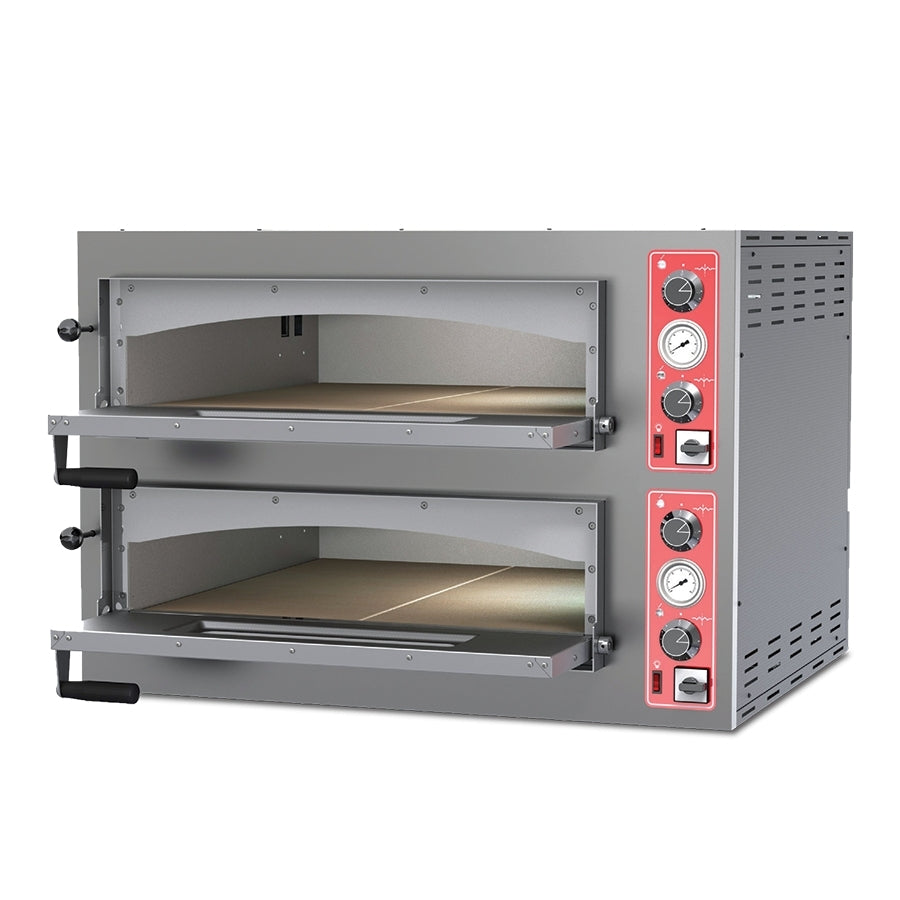

Omcan 40636 — Electric Deck-Type Pizza Bake Oven
The Omcan 40636 Electric Deck-Type Pizza Bake Oven is part of Atlantic’s pizza deck ovens selection. Width: 39 in. Depth: 36 in. Height: 26.7 in.
Product Highlights
- Stainless steel front, two mechanical thermostats per chamber, heat resistant, light, main switch for each chamber, stainless steel door with glass and handle (Each chamber is independent)
- Up to 2 single-chamber oven can be placed on top of each other without the need for an exhauster connection
- Insulation is evaporated fiberglass
- Left-sided handles
- Upon request the machines can be produced in a “full refractory stone” version and for single-phase operation.
- Special Order are available for the following upon request: stands, casters, hoods, vents and suction motor
- ITEM NUMBER 40636
- MODEL PE-IT-0038-D
- MAXIMUM TEMPERATURE 842° F / 450° C
- ELECTRICAL 220V / 60 /3
- POWER 11.2 kW
- CHAMBER DIMENSIONS (LxDxH) 27.6” x 27.6” x 5.9” (x2) / 700 x 700 x 150 mm (x2)
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 40636 |
| Listed Weight | 325 lbs |
| Width | 39 in. |
| Depth | 36 in. |
| Height | 26.7 in. |
| Power Type | electric |
| Oven Type | deck |
| Number Of Decks | 2 decks |
| Height (per deck) | 5" |
| Deck Depth (front - back) | 27" |
| Deck Construction | hearth stone |
| Control Type | manual & thermostatic control |
| Voltage | 220v |
| Exterior Finish | all stainless steel exterior |
| Certifications | Made in Italy |
| Deck Width (Side - Side) | 27.6" |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

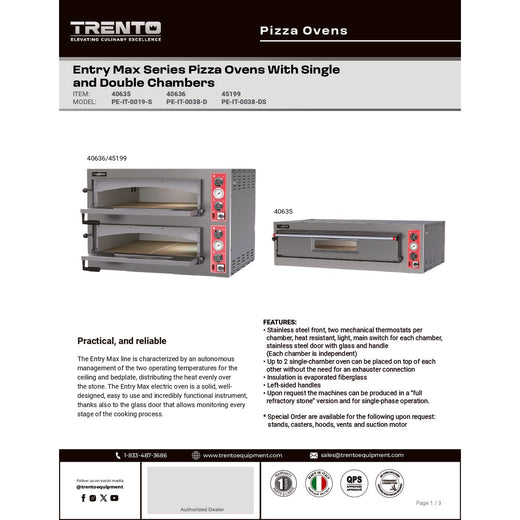

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
