Description

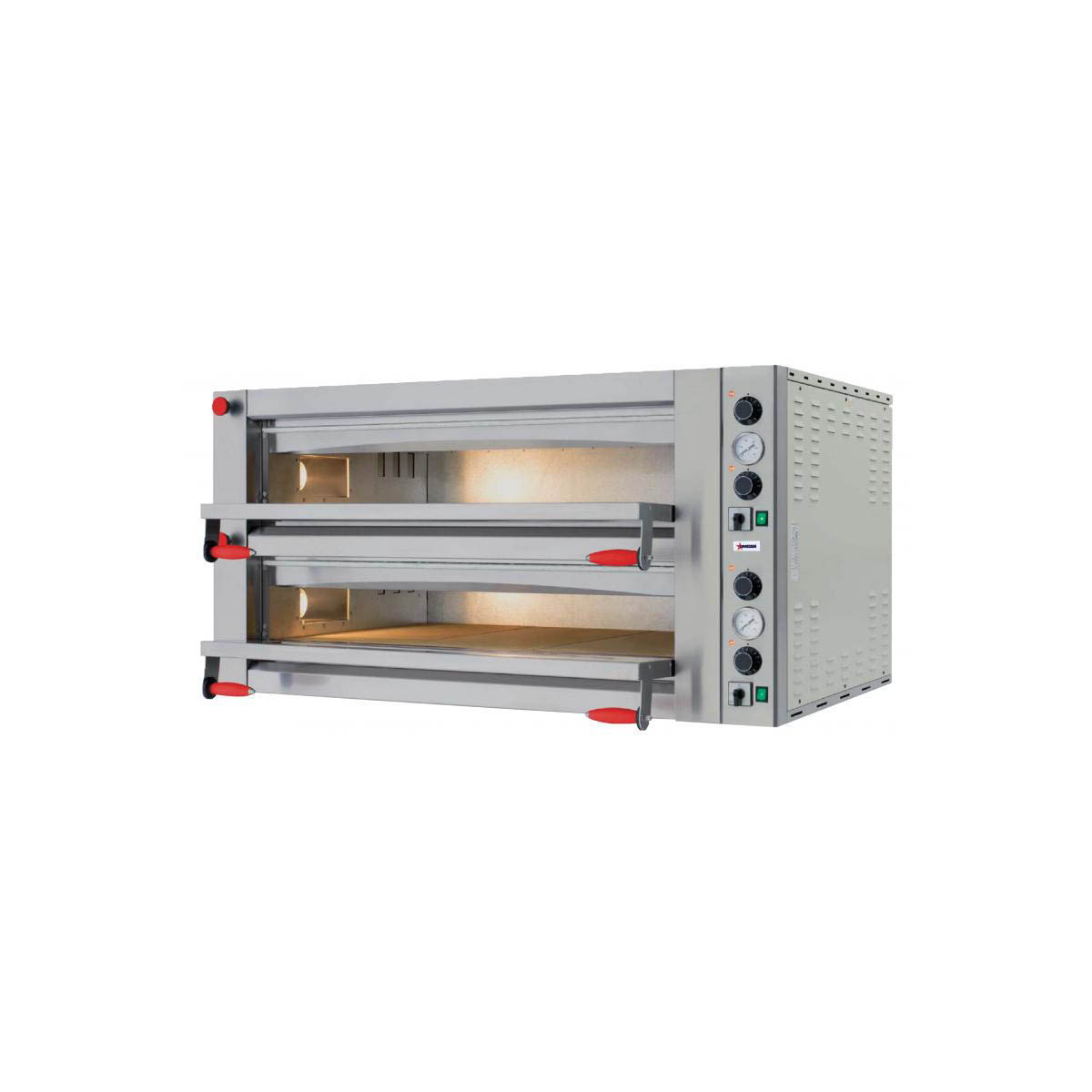

Omcan 40641 — Electric Deck-Type Pizza Bake Oven
The Omcan 40641 Electric Deck-Type Pizza Bake Oven is part of Atlantic’s pizza deck ovens selection. Width: 56.7 in. Depth: 39.7 in. Height: 29.5 in.
Product Highlights
- Pyralis ovens have a steel front, pre-painted white grey body, steel door with glass, a knob for opening and closing the steam exhauster and non-thermal handles.
- The Pyralis is an electric oven that was designed and built to offer extremely high levels of performance, efficiency and reliability with low operating costs. In the mechanical version, the temperature is set by the top and bottom thermostats and is displayed on the mechanical thermometer. The Mechanical Pyralis has a safety thermostat and independent chambers. The door is balanced thanks to a spring with an adjustable tie-rod. The baking chambers are in stainless steel and illuminated by light kits with heat resistant lamps.
- Special Order are available for the following upon request: stainless stands, casters, hoods, vents and suction motor
- ITEM NUMBER 40641
- MODEL PE-IT-0049-D
- MAXIMUM TEMPERATURE 842° F / 450° C
- ELECTRICAL 220V / 60 /3
- POWER 18 kW
- CHAMBER DIMENSIONS (LxDxH) 41.3” x 27.6 x 5.9” (x2) 1050 x 700 x 150 mm (x2)
- EXTERNAL DIMENSIONS (LxDxH) 56.9” x 39.8” x 29.5”/ 1440 x 1010 x 750 mm
- PACKAGING DIMENSIONS (LxDxH) 44.1” x 57.9” x 33.1”/ 1120 x 1470 x 840 mm
- WEIGHT Net Weight: 231 kg / 509 lbs.
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 40641 |
| Listed Weight | 584 lbs |
| Width | 56.7 in. |
| Depth | 39.7 in. |
| Height | 29.5 in. |
| Power Type | electric |
| Oven Type | deck |
| Number Of Decks | 2 decks |
| Height (per deck) | 5" |
| Deck Depth (front - back) | 27" |
| Deck Construction | hearth stone |
| Control Type | thermostatic control |
| Voltage | 220v |
| Exterior Finish | all stainless steel exterior |
| Certifications | Made in Italy |
| Deck Width (Side - Side) | 41.3" |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads
Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
