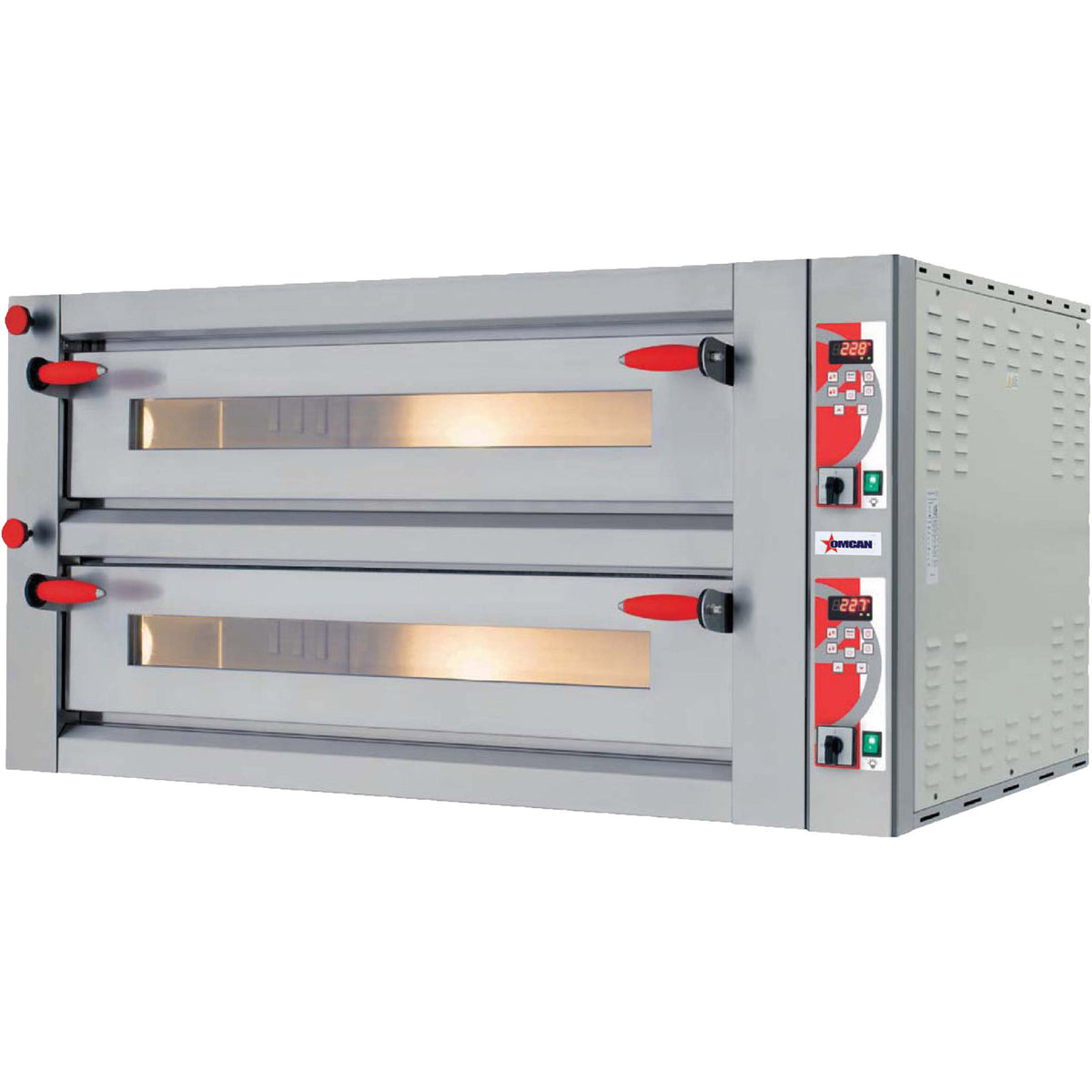

Omcan 40643 — Electric Deck-Type Pizza Bake Oven
The Omcan 40643 Electric Deck-Type Pizza Bake Oven is part of Atlantic’s pizza deck ovens selection. Width: 56.7 in. Depth: 39.7 in. Height: 29.5 in.
Product Highlights
- Pyralis ovens have a steel front, pre-painted white grey body, steel door with glass, a knob for opening and closing the steam exhauster and non-thermal handles
- The Pyralis is an electric oven that was designed and built to offer extremely high levels of performance, efficiency and reliability with low operating costs. The digital version has an electronic card that is used to program the start to end of baking and two work settings (continuous/P2 and non-continuous/P1). The digital Pyralis has a safety thermostat and independent chambers. Upon request, some models can be produced with single-phase voltage
- Special Order are available for the following upon request: stainless stands, casters, hoods, vents and suction motor
- ITEM NUMBER 40643
- MODEL PE-IT-0049-DD
- TEMPERATURE 842° F / 450° C
- ELECTRICAL 220V / 60 /3
- POWER 18 kW
- CHAMBER DIMENSIONS (LxDxH) 41.3” x 27.6” x 5.9” (x2)/ 1050 x 700 x 150 (x2)
- EXTERNAL DIMENSIONS (LxDxH) 56.7” x 39.8” x 29.5”/ 1440 x1010 x 750 mm
- PACKAGING DIMENSIONS (LxDxH) 44” x 57.7” x 33”/ 1120 x1470 x 840 mm
- WEIGHT Net Weight: 231 kg / 508.2 lbs.
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 40643 |
| Listed Weight | 543 lbs |
| Width | 56.7 in. |
| Depth | 39.7 in. |
| Height | 29.5 in. |
| Power Type | electric |
| Oven Type | deck |
| Number Of Decks | 2 decks |
| Height (per deck) | 5" |
| Deck Depth (front - back) | 27" |
| Deck Construction | hearth stone |
| Control Type | digital control |
| Voltage | 220v |
| Exterior Finish | all stainless steel exterior |
| Certifications | Made in Italy |
| Deck Width (Side - Side) | 41.3" |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

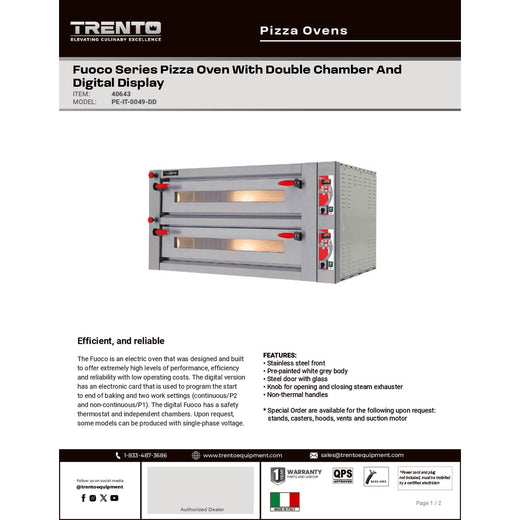

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
