Description

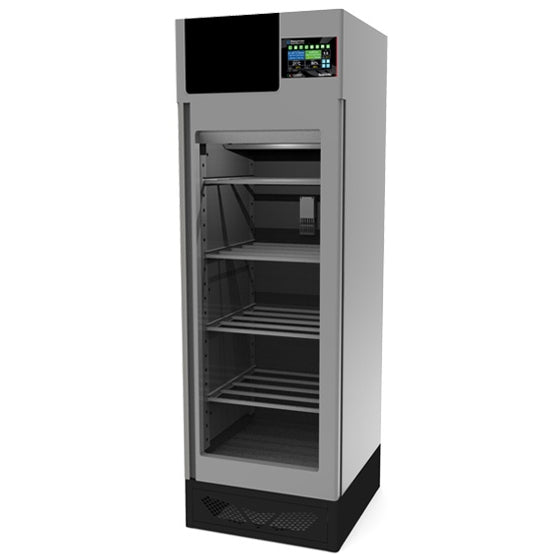

Omcan 41474 — Stagionello Evo Meat Curing Cabinet, 28-3/4" W, 100 kg load, 49.44 cu ft, 35.6-95°F, 2100W, glass door
The Omcan 41474 Stagionello Evo Meat Curing Cabinet, 28-3/4" W, 100 kg load, 49.44 cu ft, 35.6-95°F, 2100W, glass door is part of Atlantic’s meat curing chambers selection. Width: 28.74 in. Depth: 30.7 in. Height: 83 in.
Product Highlights
- ITEM NUMBER 41474
- MODEL STG100TF0
- DESCRIPTION Stagionello® 100kg cabinet with
- DESCRIPTION ClimaTouch® and Fumotic®
- INTERIOR 4 Guide sets/ 20 stainless steel hanging rods
- WORKING TEMPERATURE -5 - 50 °C/ 23 - 122°F
- STORAGE TEMPERATURE -10 - 70 °C/ 14 - 158°F
- AMBIENT RELATIVE HUMIDITY Less than 90% RH
- ELECTRICAL 220V/2.6kW/11A
- INTERNAL MEMORY 352 Kb Ram (approx.100 recipes)
- NET WEIGHT 140 kg (308lbs)
- GROSS WEIGHT 212 kg (466.4 lbs)
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 41474 |
| Listed Weight | 539 lbs |
| Width | 28.74 in. |
| Depth | 30.7 in. |
| Height | 83 in. |
| Meat Process Cabinet Type | meat curing cabinet |
| Door Type | glass door |
| Door Style | swing |
| Number of Doors | 1 door |
| Number of Guide Sets | 4 guide sets |
| Number of Hanging Rods | 20 hanging rods |
| Finish | stainless steel |
| Voltage | 220 |
| Certifications | Made in Italy |
| Phase | 1 |
| Wattage | 2,600 watts |
| Load Capacity | 220 lb (100 kg) |
| İnterior Capacity | 49.44 cu ft |
| Working Temperature | 23°F - 122°F (-5°C – 50°C) |
| Storage Temperature | 14°F - 158°F (-10°C – 70°C) |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads
Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
