Description

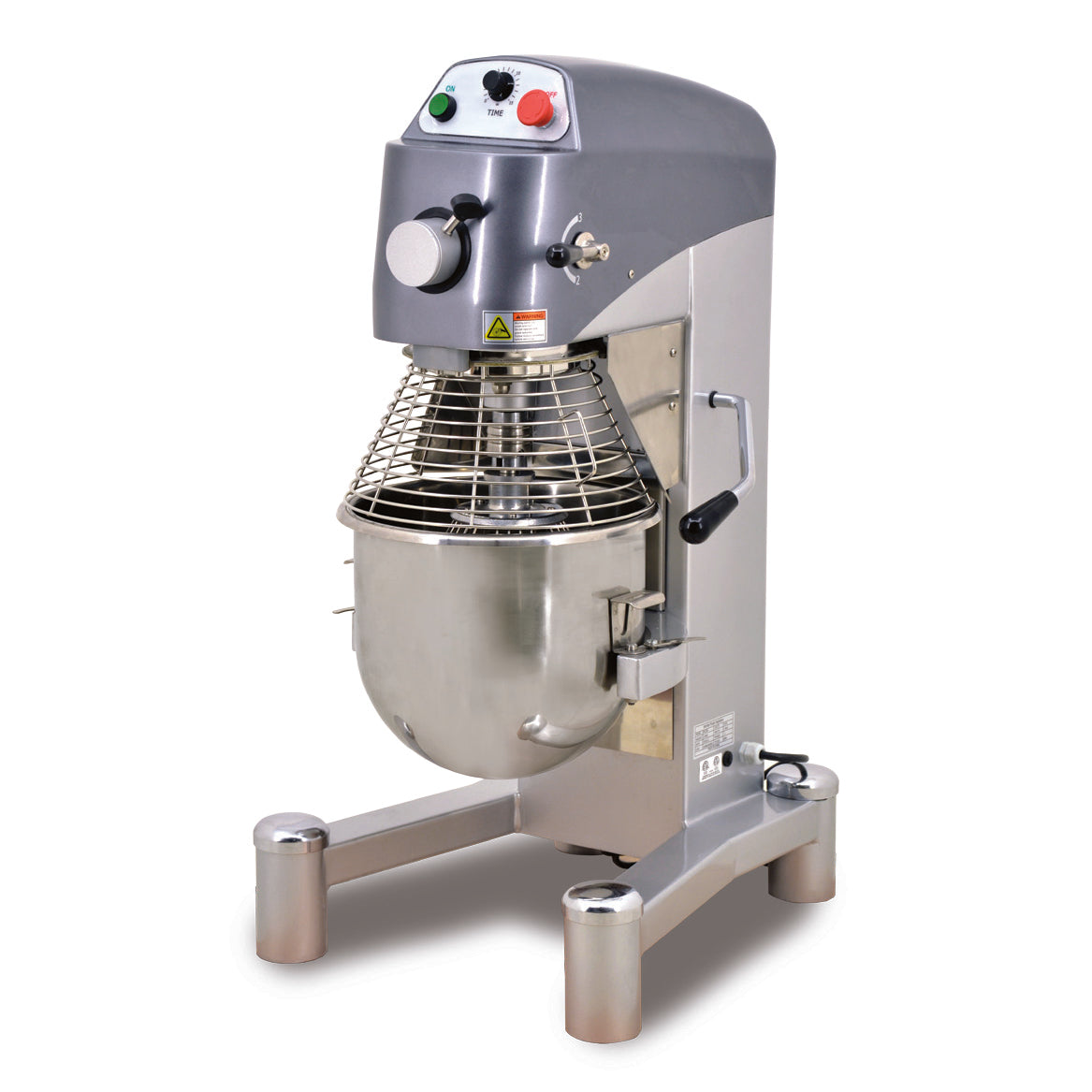

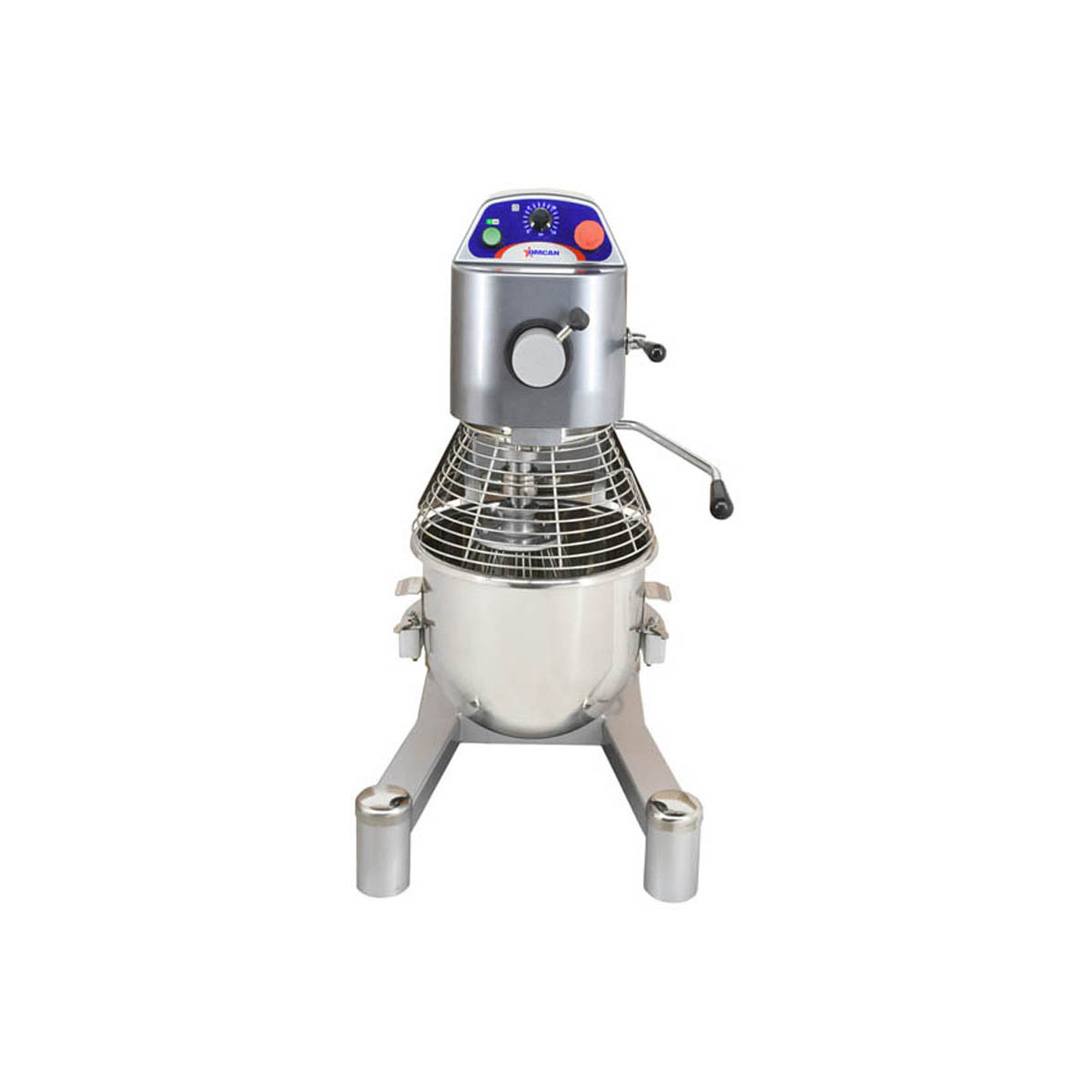

Omcan 43560 — Floor Model 20 qt Planetary Mixer with Guard and Timer, #12 HUB, 3-Speed, 2 hp
The Omcan 43560 Floor Model 20 qt Planetary Mixer with Guard and Timer, #12 HUB, 3-Speed, 2 hp is part of Atlantic’s commercial mixers selection. Width: 21 in. Depth: 24.76 in. Height: 39.21 in.
Product Highlights
- Designed with an overload protection to effectively guarantee long-life service. Heat is spread in axial direction. These units are equipped with a #12 drive hub.

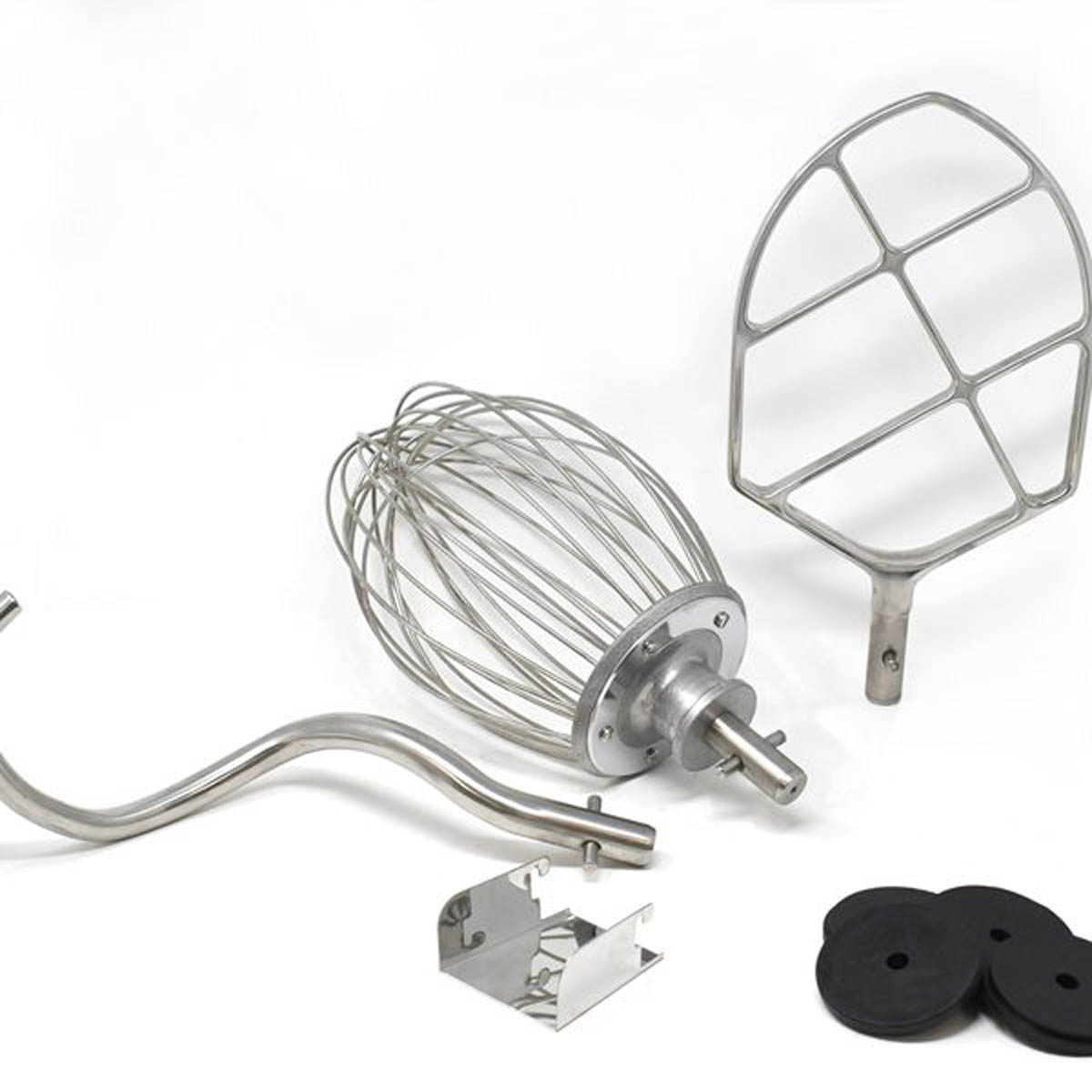

- Upgraded gear drives for maximum strength and efficiency. Comes with a heavy-duty 2-HP motor. The unit is also equipped with a guard and timer. Stainless steel bowl, wire whip, flat beater and hook included.
- ITEM NUMBER 43560
- MODEL MX-CN-0020
- POWER 2 HP / 1.5 kW
- CAPACITY 20 QT
- SHAFT SPEED (R/MIN) First Speed: 97-120 / Second Speed: 220-271 / Third Speed: 316-389
- TIMER Yes
- GUARD Yes
- ELECTRICAL 110 V / 60Hz / 1
- PACKAGING WEIGHT 275 lbs. / 125 kg.
- DIMENSIONS (DWH) 24.76” x 16.18” x 39.21”/ 629 x 427 x 996 mm
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 43560 |
| Listed Weight | 360 lbs |
| Width | 21 in. |
| Depth | 24.76 in. |
| Height | 39.21 in. |
| Mixer Type | planetary |
| Installation Type | floor model |
| Bowl Capacity | 20 qts |
| Speed | 3-speed |
| Timer | with timer |
| Attachments | bowl guard, bowl, beater, whip, hook, chute |
| Hub size | #12 hub |
| Housing Construction | coated |
| Color | metallic gray |
| Voltage | 110 |
| Phase | 1 |
| Horsepower | 2 hp |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

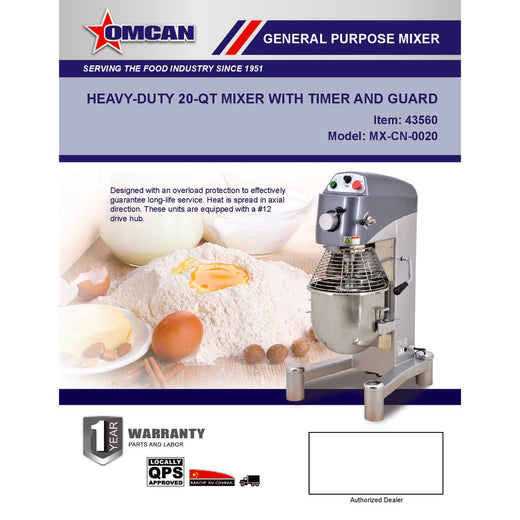

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
