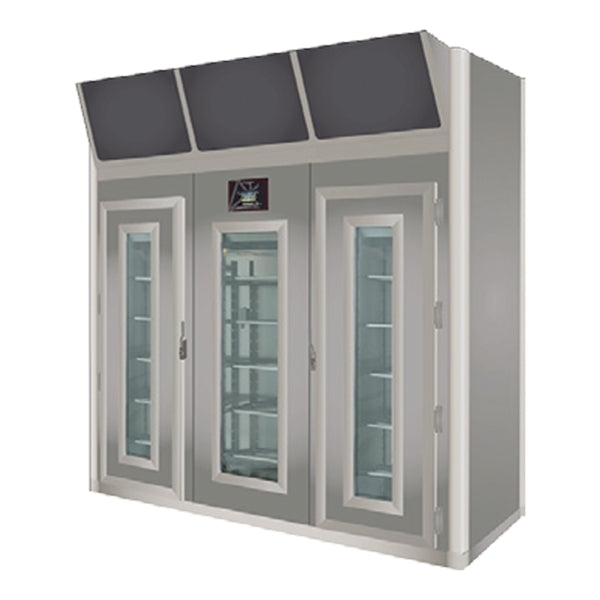

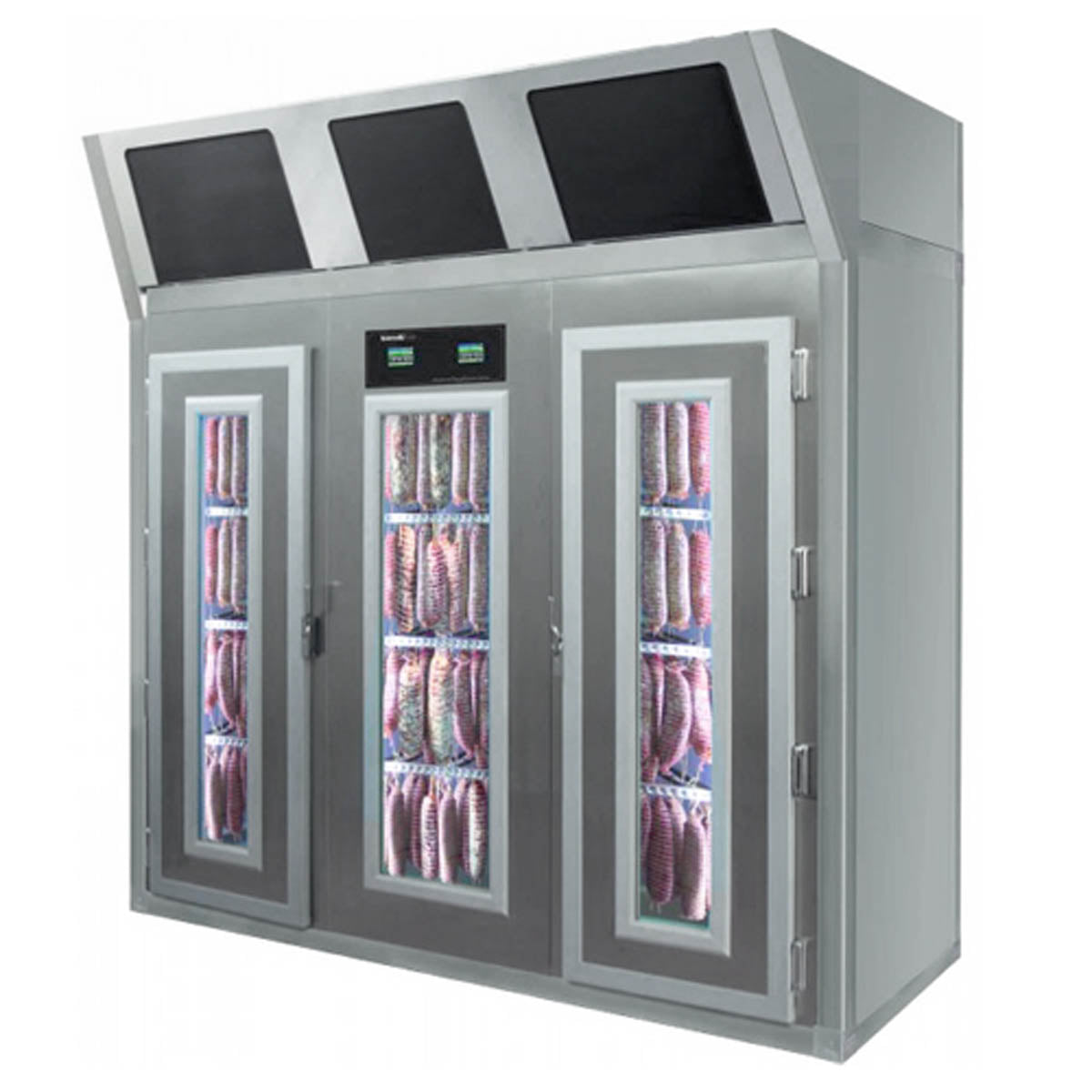

Omcan 45485 — Stagionello Meat Curing Cabinet - 220+660 lb Capacity, 35.6-95°F, Steel, Door, Touch-Screen
The Omcan 45485 Stagionello Meat Curing Cabinet - 220+660 lb Capacity, 35.6-95°F, Steel, Door, Touch-Screen is part of Atlantic’s meat curing chambers selection. Width: 100 in. Depth: 37.4 in. Height: 101 in.
Product Highlights
- Made in Stainless Steel AISI 304
- The most important advantage of using stainless steel AISI 304 is the fact that it is non-porous and easier to clean
- Energy Efficient
- The AISI 304 Stainless Steel body and doors are fully injected with CFC free polyurethane foam creating a unibody frame and higher R-value
- Professional grade Non Monoblock system
- Our non monoblock system is comprised of various components specially designed with the capability to be used for seasoning and dry aging, and can function in an ambient temperature range for up to +32°C (89.6°F)
- Alarms
- There are a number of alarms built into the system to protect the Stagionello®
- Lock and Key
- Equipped with a lock and key system for additional safety
- ITEM NUMBER 45485*
- MODEL STG100300
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 45485 |
| Listed Weight | 620 lbs |
| Width | 100 in. |
| Depth | 37.4 in. |
| Height | 101 in. |
| Meat Process Cabinet Type | meat curing cabinet |
| Door Type | glass door |
| Door Style | swing |
| Number of Doors | 3 doors |
| Finish | stainless steel |
| Voltage | 220 |
| Certifications | Made in Italy |
| Phase | 3 |
| Wattage | 7,120 watts |
| Load Capacity | 220 lb + 661 lb (100 kg + 300 kg) |
| Working Temperature | 23°F - 122°F (-5°C – 50°C) |
| Storage Temperature | 14°F - 158°F (-10°C – 70°C) |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads
Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
