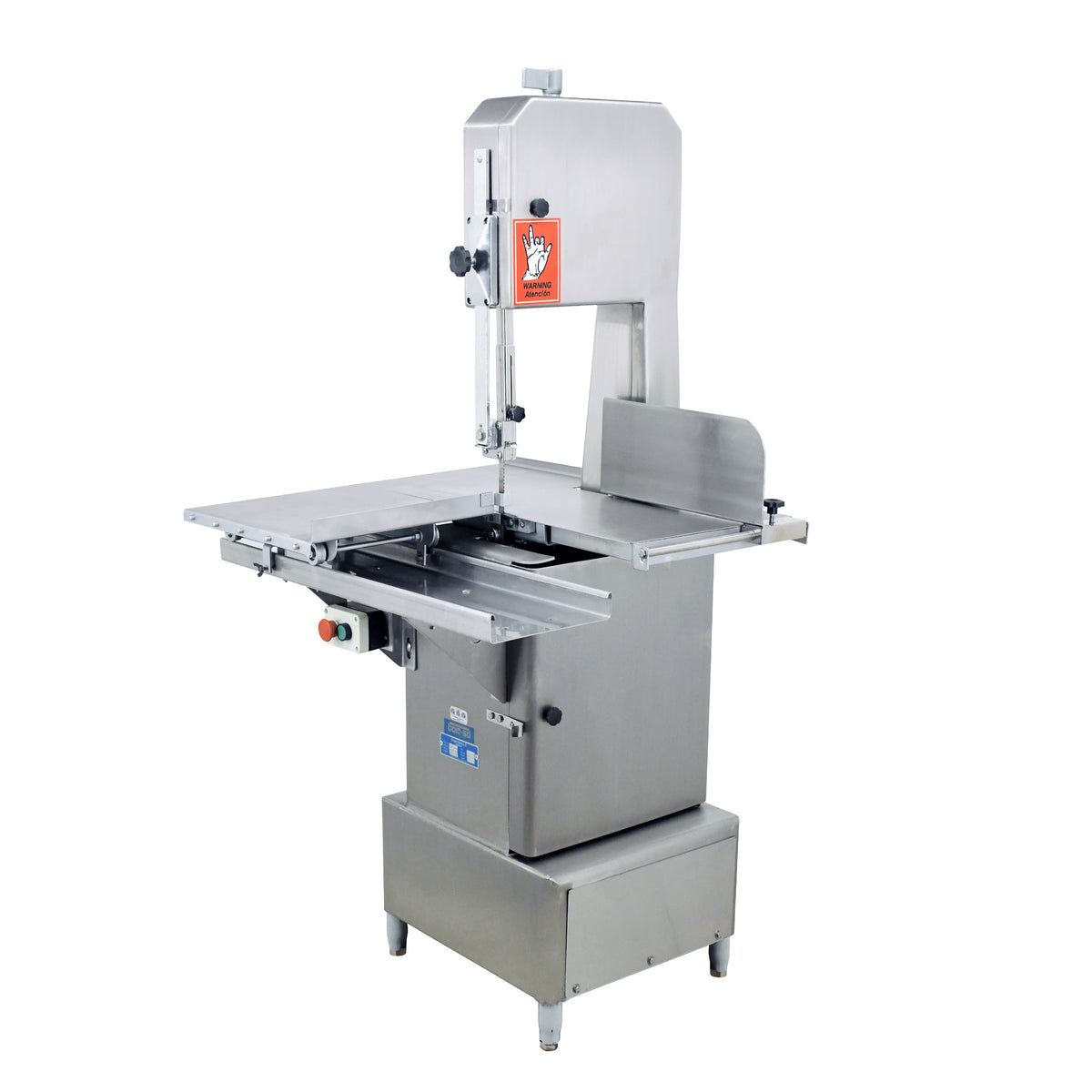

Omcan 45978 — (BS-VE-2489-ES) Floor Model 98" Stainless Steel Band Saw, 2 hp, 220/60/1-Ph
The Omcan 45978 (BS-VE-2489-ES) Floor Model 98" Stainless Steel Band Saw, 2 hp, 220/60/1-Ph is part of Atlantic’s electric meat & bone saws selection. Width: 30.7 in. Depth: 31.5 in. Height: 67.7 in.
Product Highlights
- CUT SLABS OF MEAT QUICKLY, EASILY, AND PRECISELY
- Fully manufactured in frosted stainless steel.
- Semi-industrial, adapted for large restaurants, butchers, delicatessens and supermarkets.
- The butterfly nut, located at the upper end of the crest, has the purpose of adjusting the pulley that straps the band saw to avoid the oscillation of the belt.
- The table consists of a piece of stainless steel; equipped with four wheels that run on a rail for easy handling and cutting of meat.
- It has a sliding arm with instant blocker, which can be placed in any desired position to select the thickness of the meat as desired.
- ITEM NUMBER 45978
- MODEL BS-VE-2489-ES
- BLADE LENGTH 98” / 2489.2 mm
- CUTTING CAPACITY 10.8” x 13.38” / 274.32 x 340 mm
- POWER 2 HP / 1491 W
- ELECTRICAL 220V / 60Hz / 1Ph
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 45978 |
| Listed Weight | 308.64 lbs |
| Width | 30.7 in. |
| Depth | 31.5 in. |
| Height | 67.7 in. |
| Installation Type | floor model |
| Horsepower | 2 hp |
| Blade Size Range (ınches) | 78" - 98" |
| Base Construction | stainless steel |
| Blade Size | 98" blade |
| Voltage | 220 |
| Certifications | cETLus, ETL-Sanitation |
| Phase | 1 |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

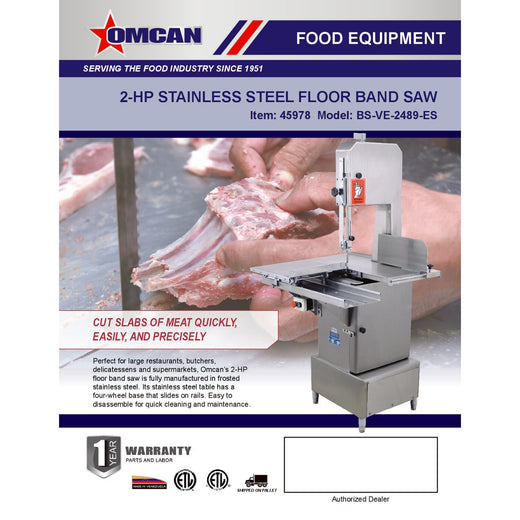

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
