Description

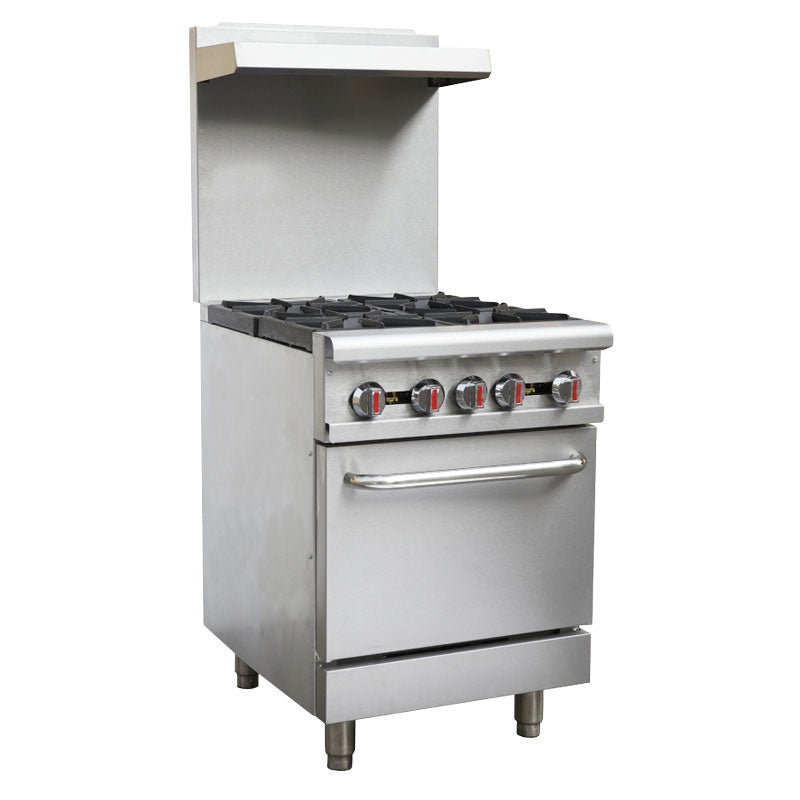

Omcan 46024 — 24" Gas Commercial Range w/ (4) Open Burners, (1) Standard Oven, 151.000 BTU
The Omcan 46024 24" Gas Commercial Range w/ (4) Open Burners, (1) Standard Oven, 151.000 BTU is part of Atlantic’s commercial gas ranges selection. Width: 24 in. Depth: 32.6 in. Height: 59.8 in.
Product Highlights
- Stainless steel front and galvanized sides
- Cast iron open burner, each 30,000 BTU/hr
- Thermostat 250°F - 550°F controlled
- Welded frame structure for best stability
- Adjustable heavy-duty legs
- U-shape oven burner with 31,000 BTU/hr
- Pull-out crumb tray with angled handle at the front
- Anti-clogging pilot cover under the grate
- 12” x 12” cast iron grate
- ITEM NUMBER 46024
- MODEL CE-CN-0609-R
- OVEN DIMENSIONS 20.5” x 25.8” x 13.9” / 520.7 x 655.32 x 353.06 mm
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 46024 |
| Listed Weight | 357.14 lbs |
| Width | 24 in. |
| Depth | 32.6 in. |
| Height | 59.8 in. |
| Installation Type | free standing |
| Range Type | standard duty/restaurant range |
| Number of Burners | 4 burners |
| Gas Type | natural gas |
| Base Type | oven base |
| Oven Type | standard oven |
| Number Of Ovens | 1 |
| Control Type | manual control |
| Top Configuration | burner |
| Exterior Finish | stainless steel front |
| Top | (4) open burners |
| Vent | backriser with hi-shelf |
| Certifications | cETLus, ETL-Sanitation |
| Total BTU | 151,000 |
| Burner BTU | 30,000 |
| Oven BTU | 31,000 |
Selection and Care
Check the listed size, material and configuration against your intended use. Follow the manufacturer’s cleaning and care instructions.
Documents and Downloads

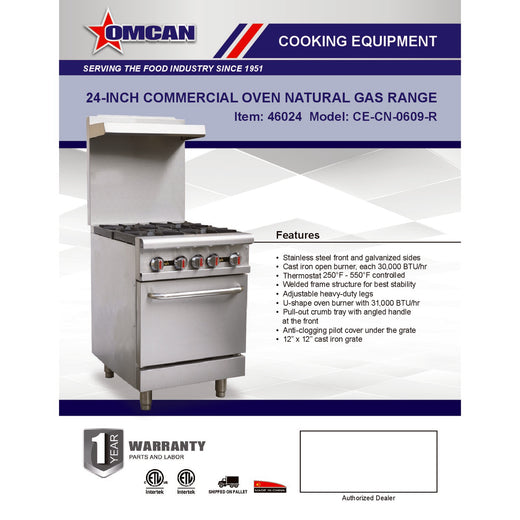

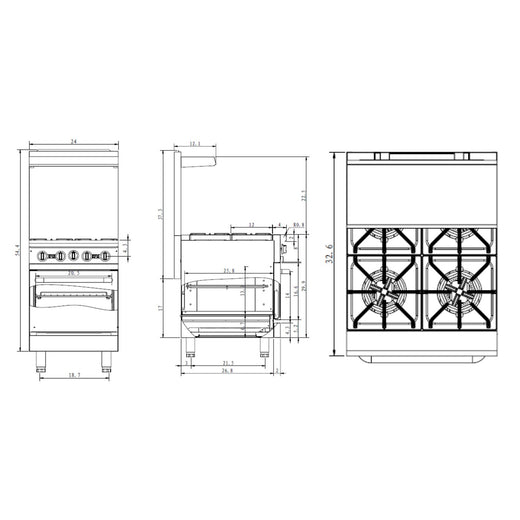

Available product resources: Spec Sheet, Diagram. Use the document links on this page to view or download the files.
