Description

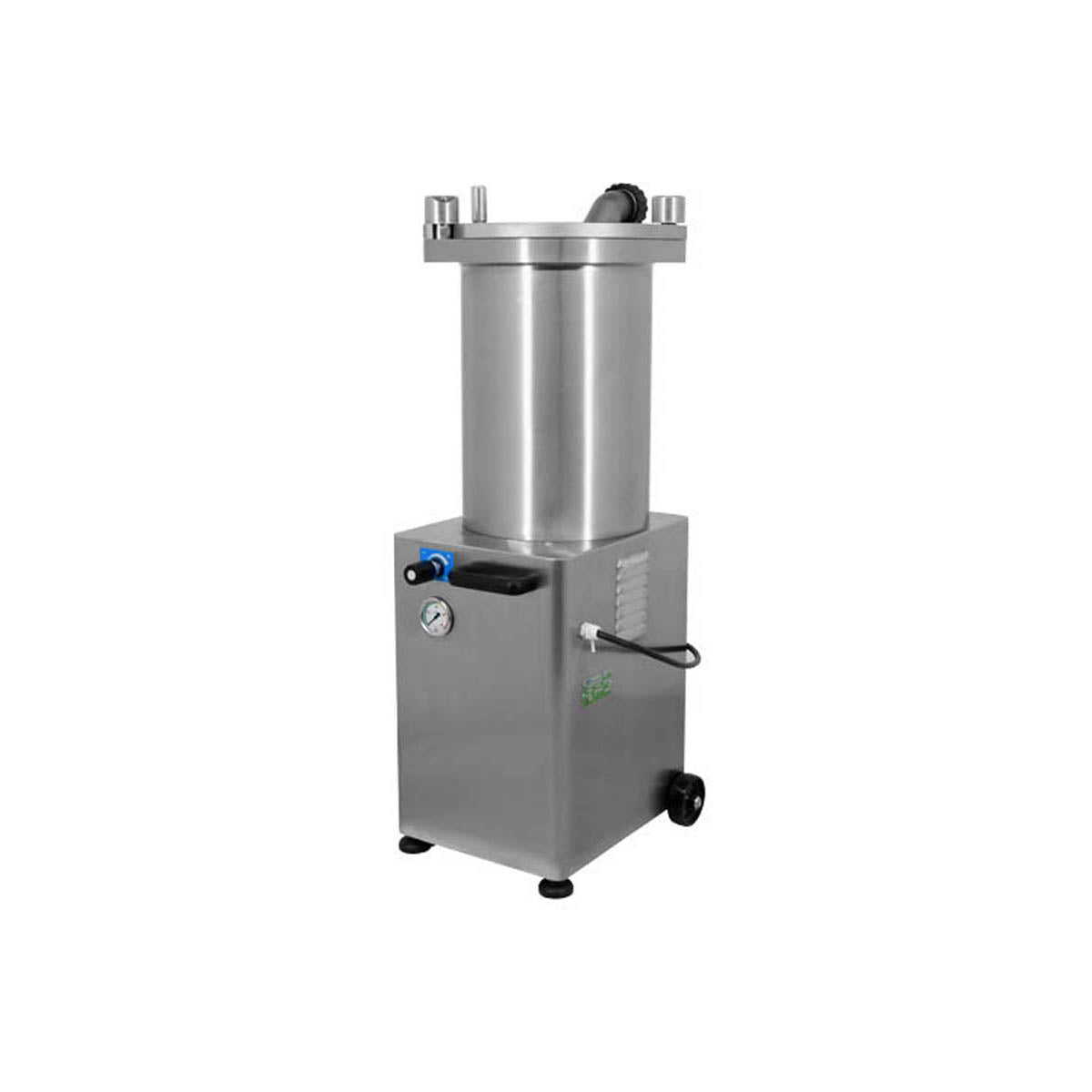

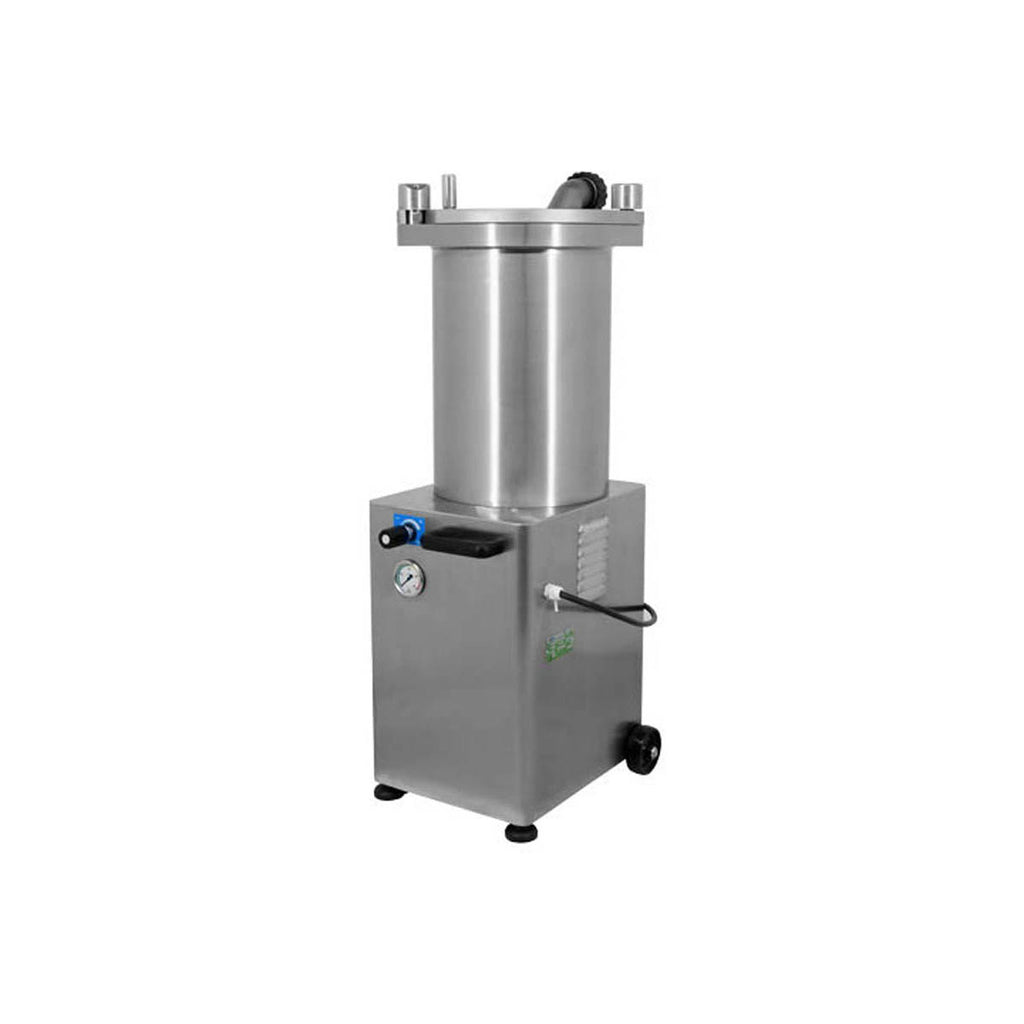

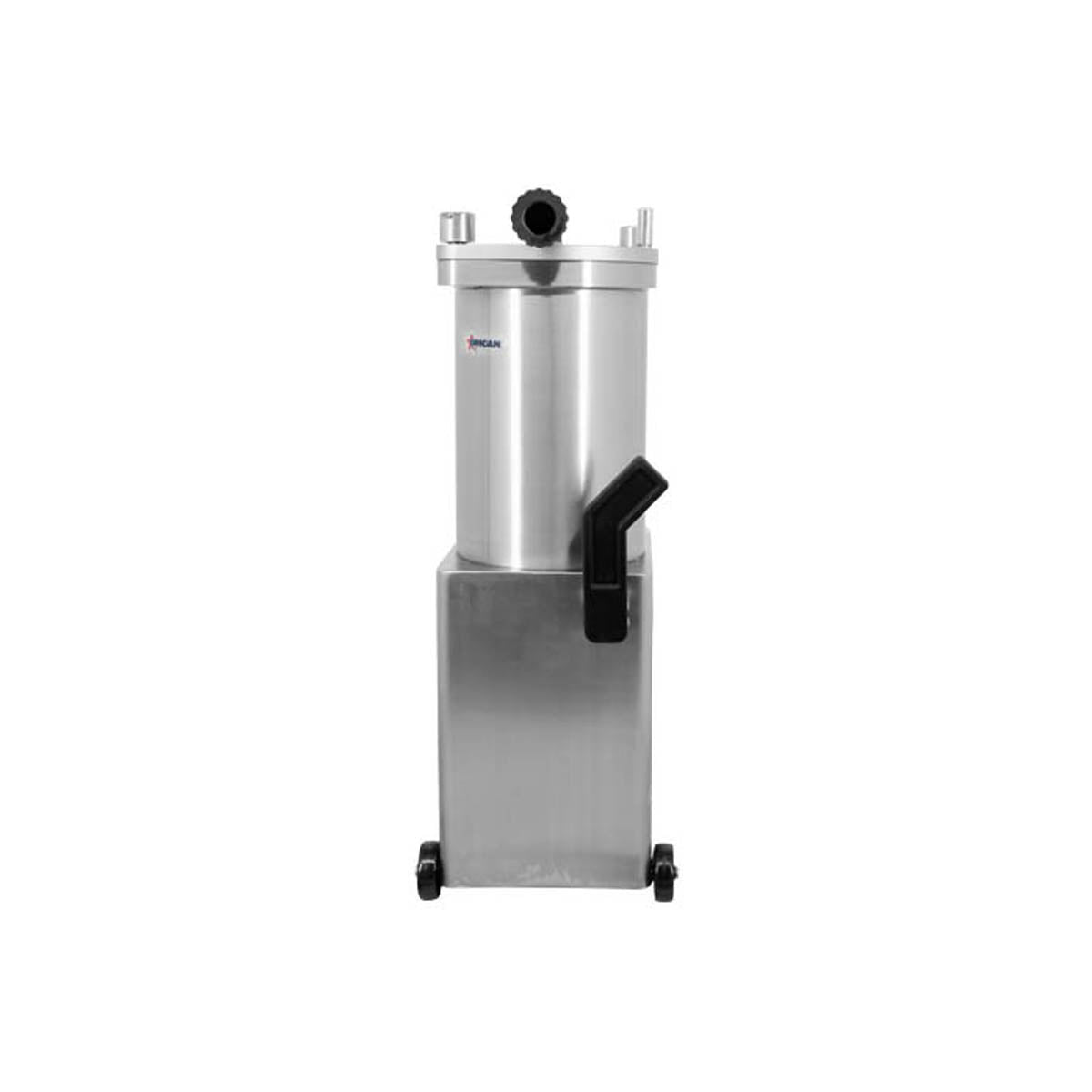

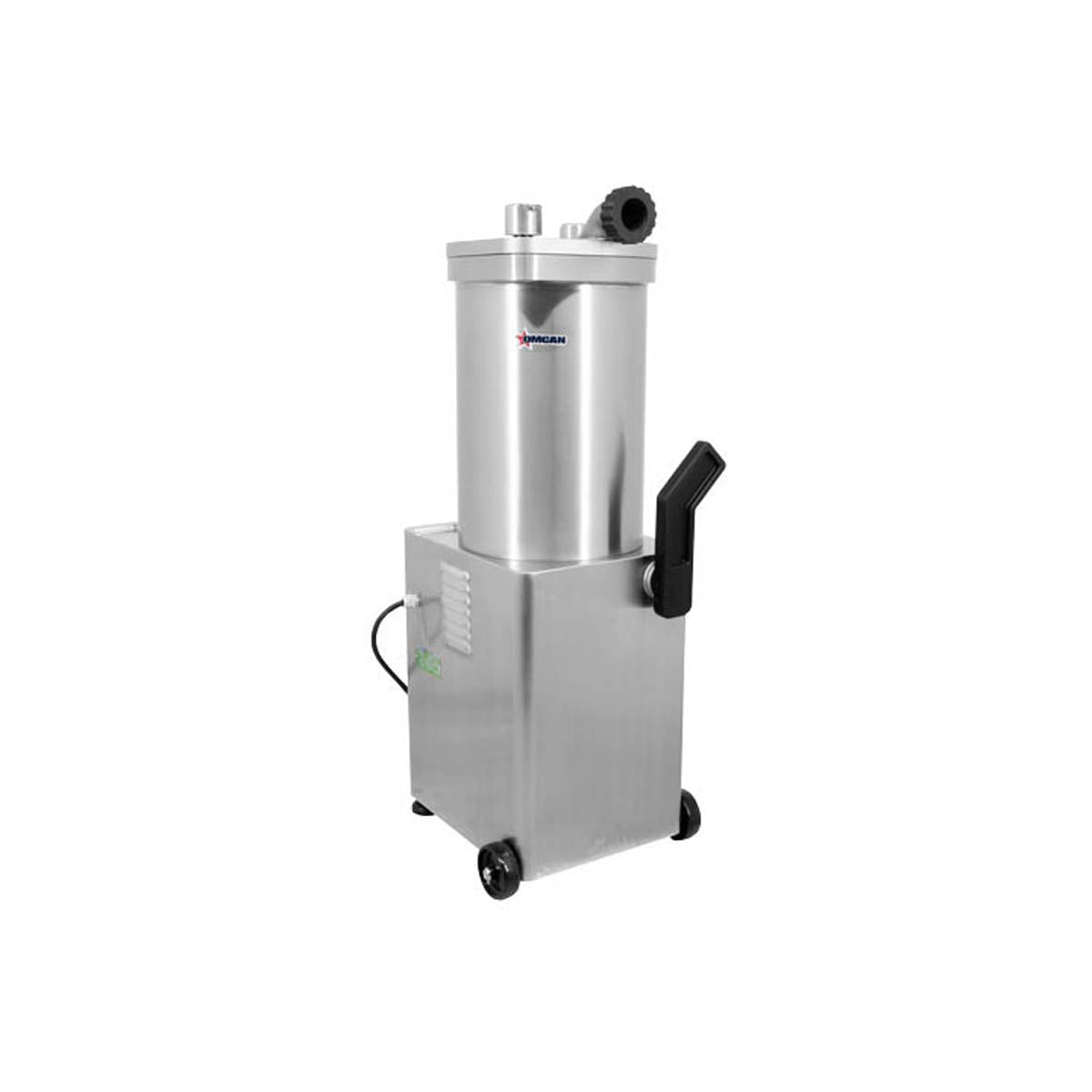

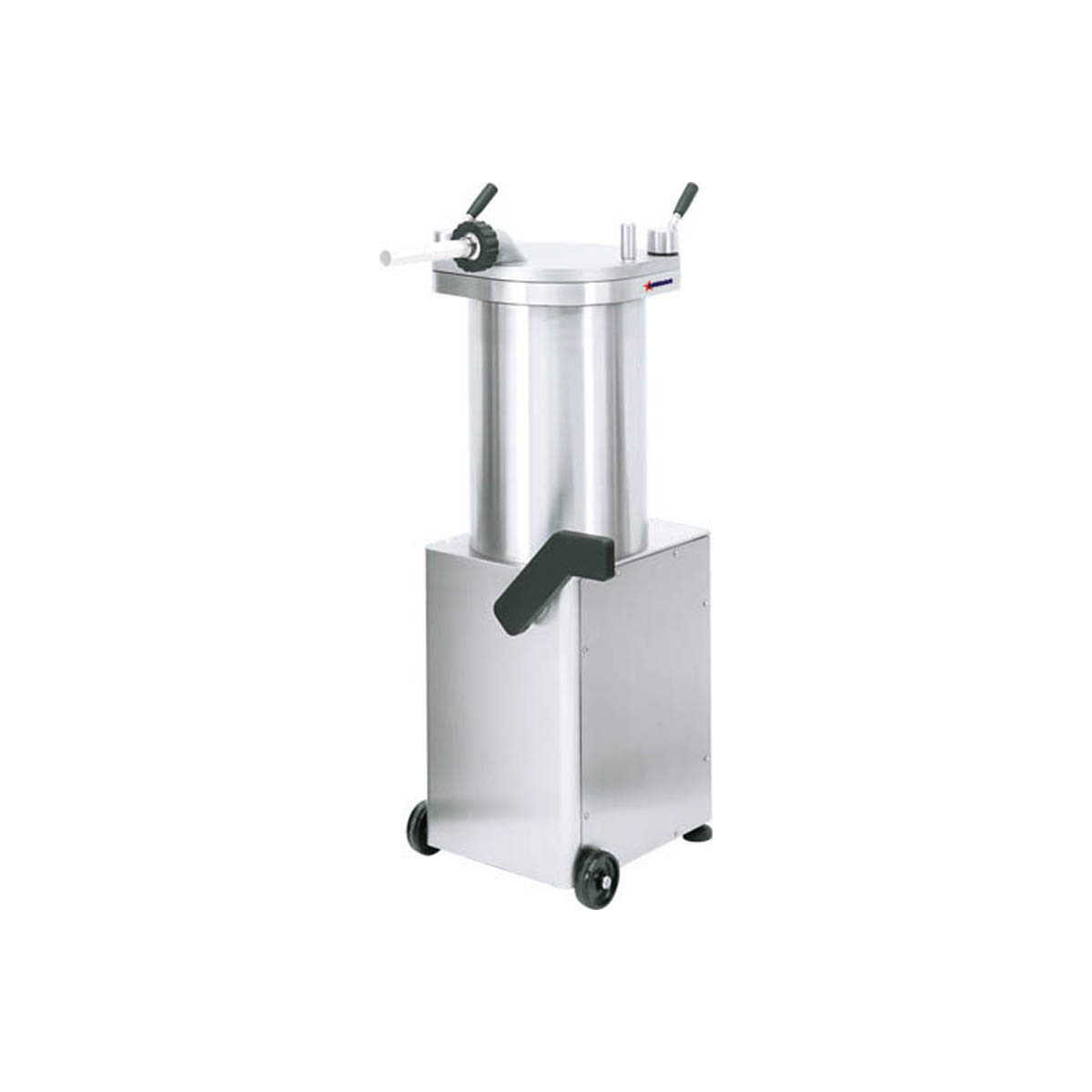

Omcan 46101 — (Ss-Es-0065-Fs) Hydraulic Sausage Stuffer, Automatic, Vertical
The Omcan 46101 (Ss-Es-0065-Fs) Hydraulic Sausage Stuffer, Automatic, Vertical is part of Atlantic’s commercial sausage stuffers selection. Width: 21 in. Depth: 27 in. Height: 54 in.
Product Highlights
- Ergonomic knee lever. Reversible operating direction.
- Removable lid, adjustable lid lock nuts with handles.
- Speed control & pressure gauge.
- Adjustable anti-vibration feet.
- Fully s/s barrel bottom with water draining outlet. Simple cleaning.
- ITEM NUMBER 46101
- MODEL SS-ES-0065-FS
- POWER 1.75 HP / 1.3 kW
- AMPS 8.8 Amps
- BARREL CAPACITY 35 L / 9.2 Gal
- APPROX. MEAT CAPACITY 65 lbs. / 28 kg.
- OPERATING TEMPERATURE 5°C - 40°C / 40°F - 100°F
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 46101 |
| Listed Weight | 392 lbs |
| Width | 21 in. |
| Depth | 27 in. |
| Height | 54 in. |
| Power Type | electric |
| Capacity | 61 - 70 lb |
| Direction | vertical |
| Special Features | Speed control & pressure gauge |
| Motor | 1-3/4 HP |
| Voltage | 220 |
| Phase | 1 |
| Meat Capacity | 65 lb |
| stuffing funnels size | 14 mm, 20 mm & 30 mm |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

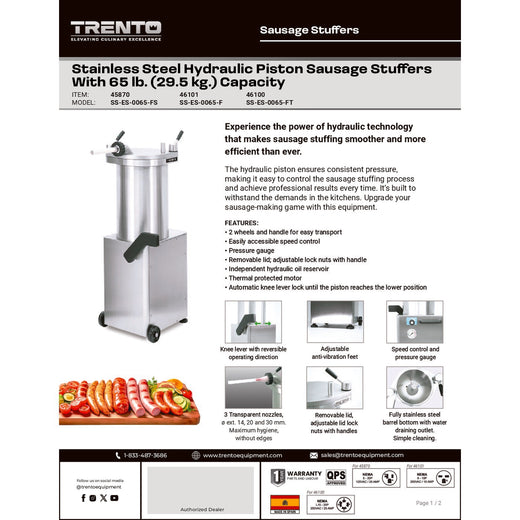

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
