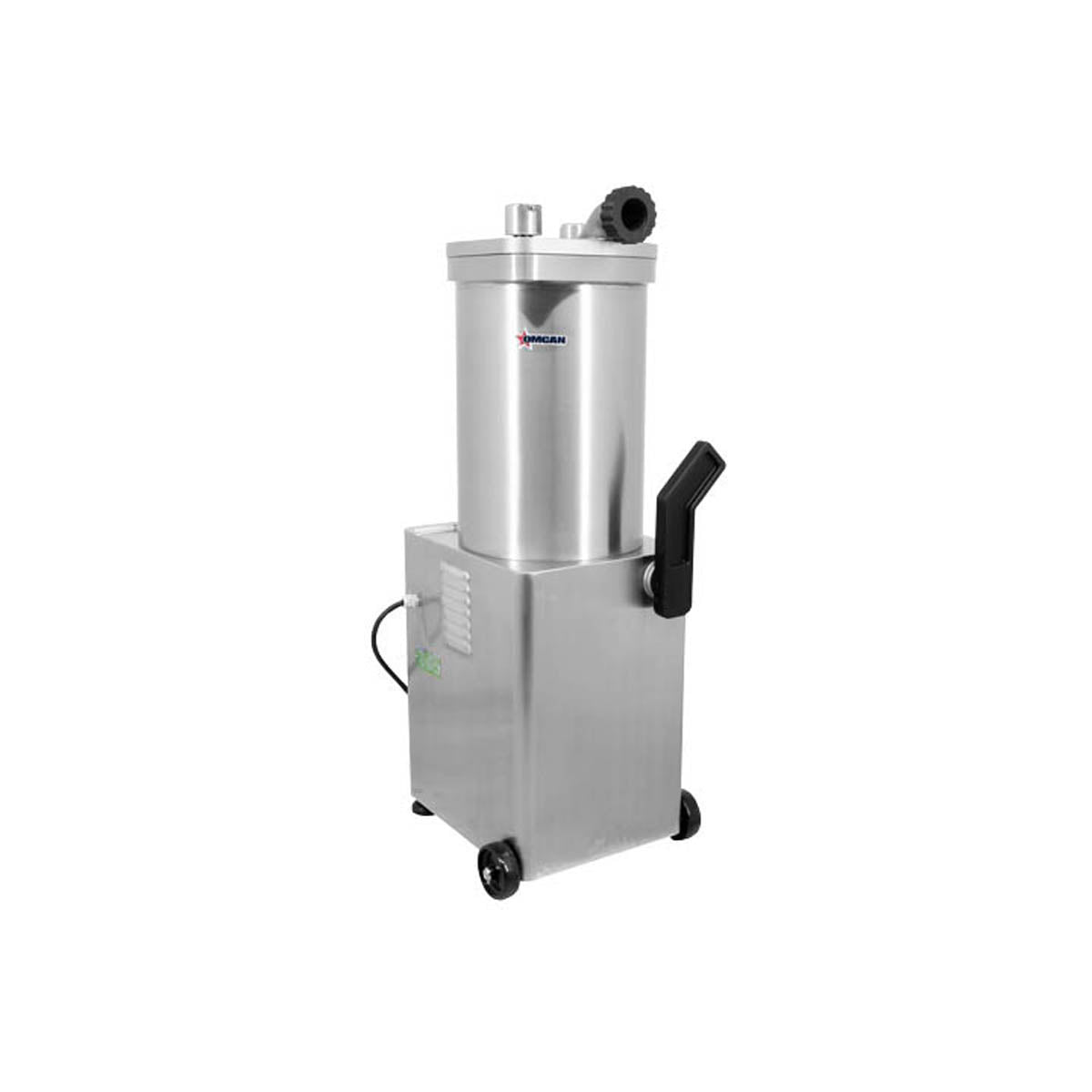

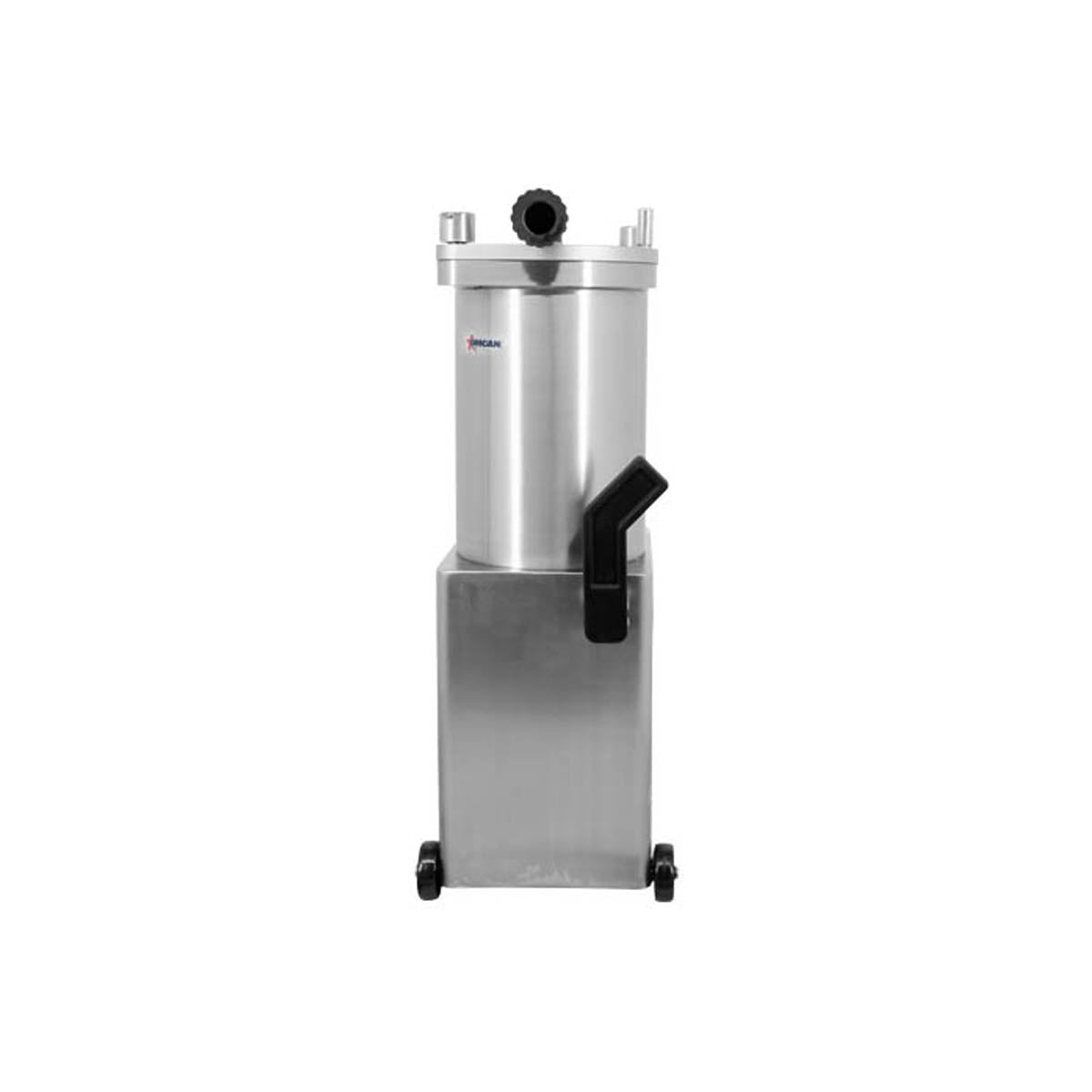

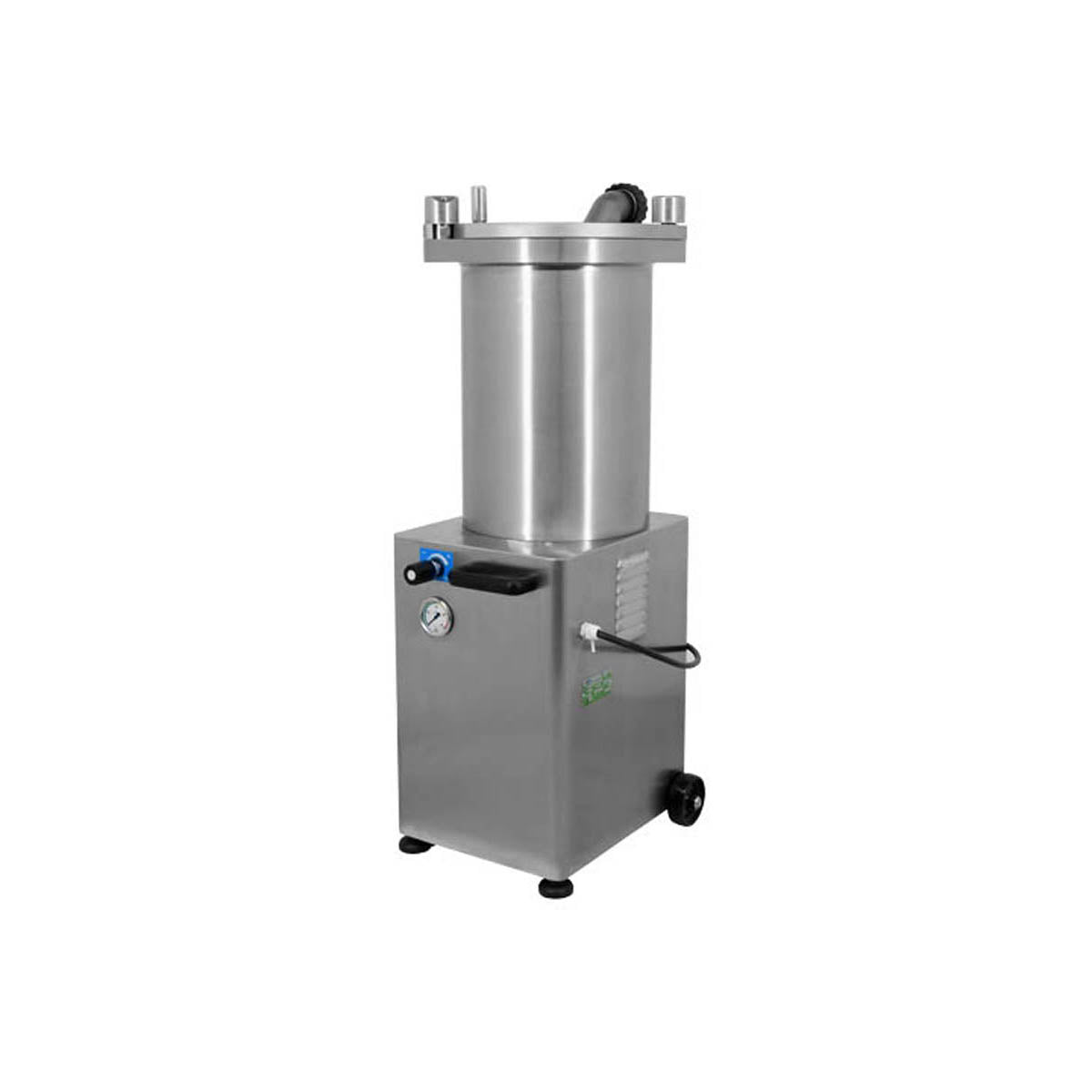

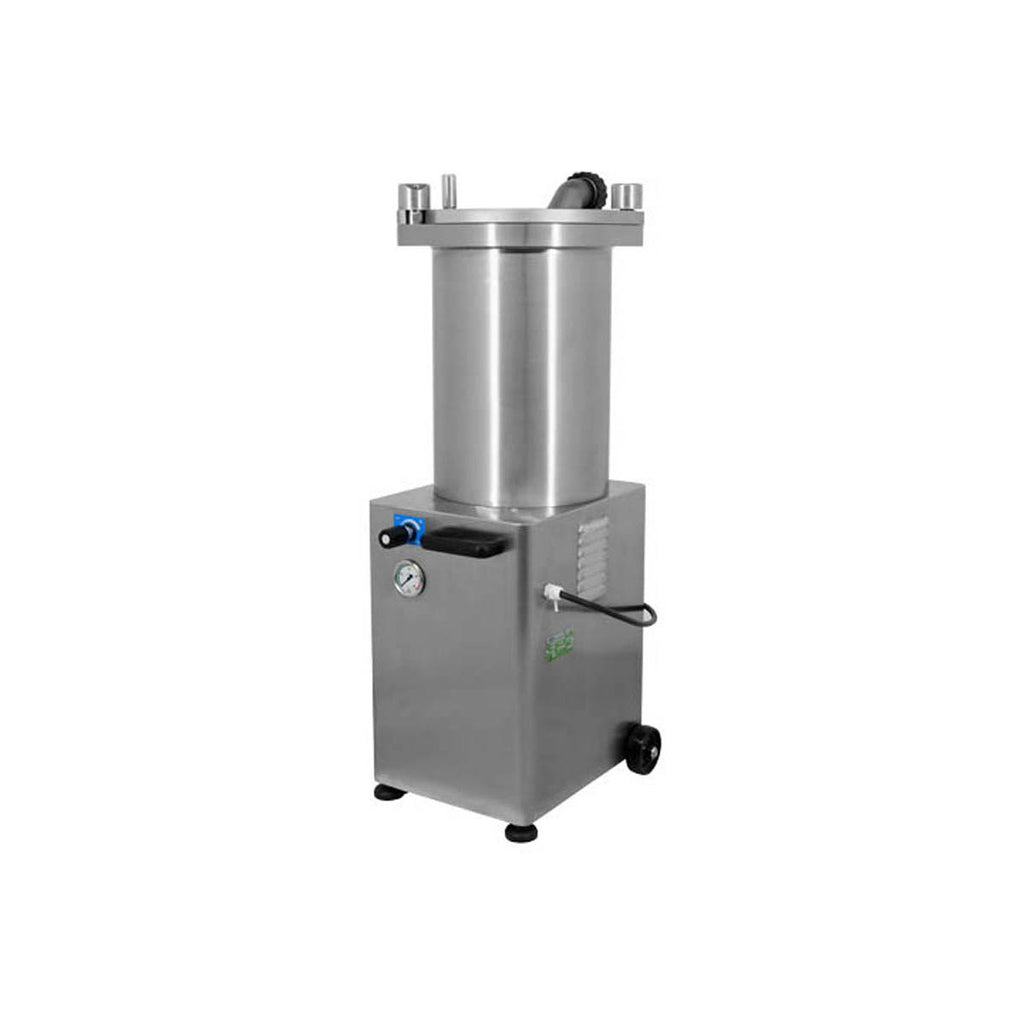

Omcan 46103 — (Ss-Es-0095-Ft) Hydraulic Sausage Stuffer, Automatic, Vertical
The Omcan 46103 (Ss-Es-0095-Ft) Hydraulic Sausage Stuffer, Automatic, Vertical is part of Atlantic’s commercial sausage stuffers selection. Width: 25 in. Depth: 26 in. Height: 64 in.
Product Highlights
- Ergonomic knee lever. Reversible operating direction.
- Removable lid, adjustable lid lock nuts with handles.
- Speed control & pressure gauge.
- Adjustable anti-vibration feet.
- Fully s/s barrel bottom with water draining outlet. Simple cleaning.
- ITEM NUMBER 46103
- MODEL SS-ES-0095-FT
- POWER 2.5 HP / 1.8 kW
- AMPS 8 Amps
- BARREL CAPACITY 51 L / 13 Gal
- APPROX. MEAT CAPACITY 95 lbs. / 40 kg.
- OPERATING TEMPERATURE 5°C - 40°C / 40°F - 100°F
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 46103 |
| Listed Weight | 621 lbs |
| Width | 25 in. |
| Depth | 26 in. |
| Height | 64 in. |
| Power Type | electric |
| Capacity | 91 - 100 lb |
| Direction | vertical |
| Special Features | Speed control & pressure gauge |
| Motor | 2-1/2 HP |
| Voltage | 208/220 |
| Phase | 3 |
| Meat Capacity | 95 lb |
| stuffing funnels size | 14 mm, 20 mm & 30 mm |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads
Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
