Description

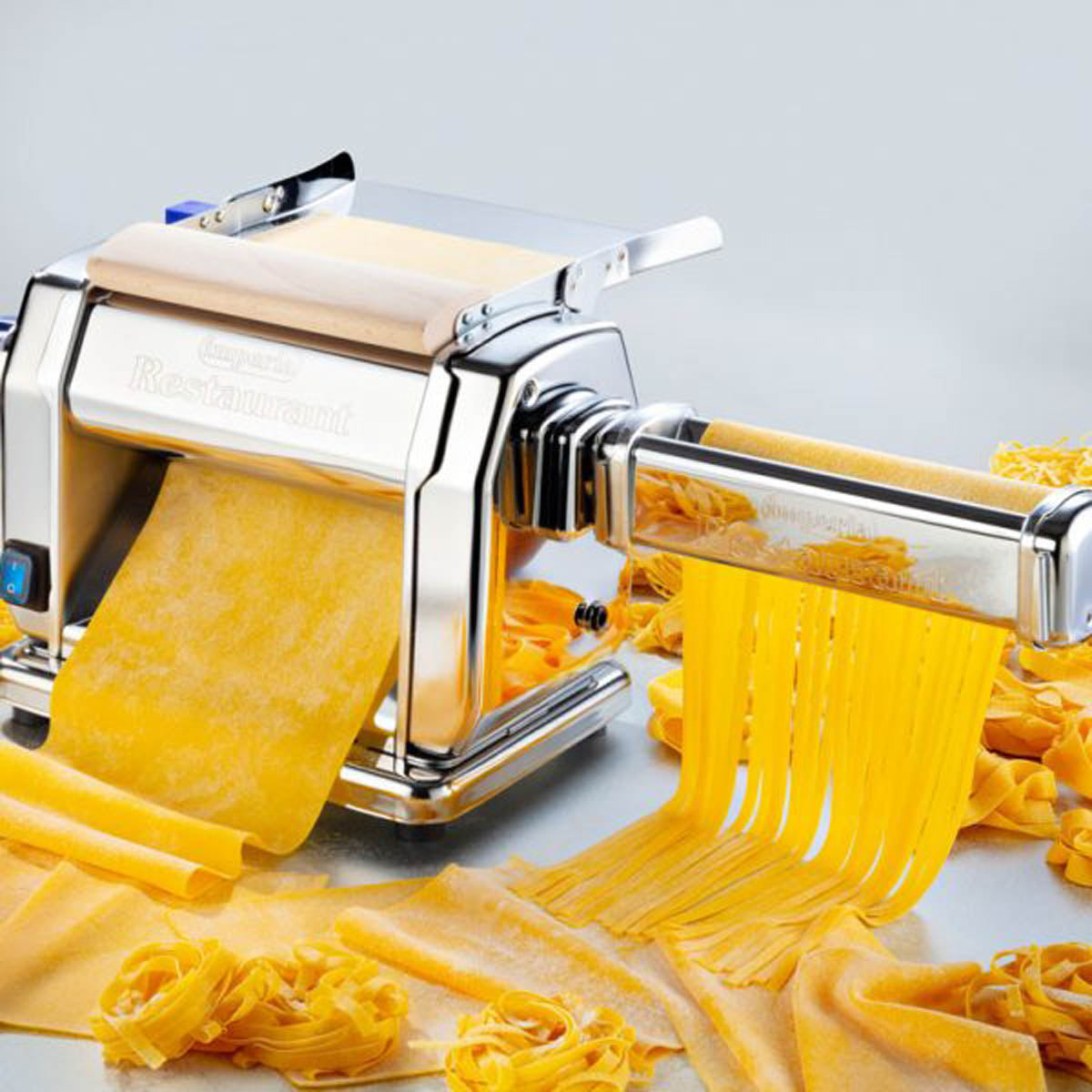

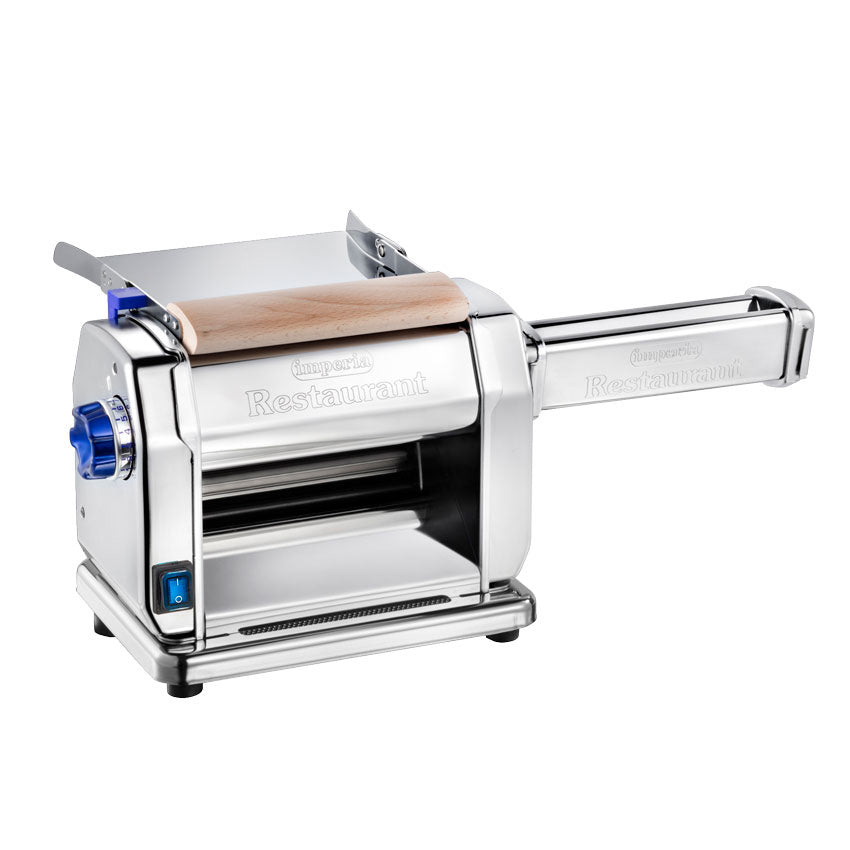

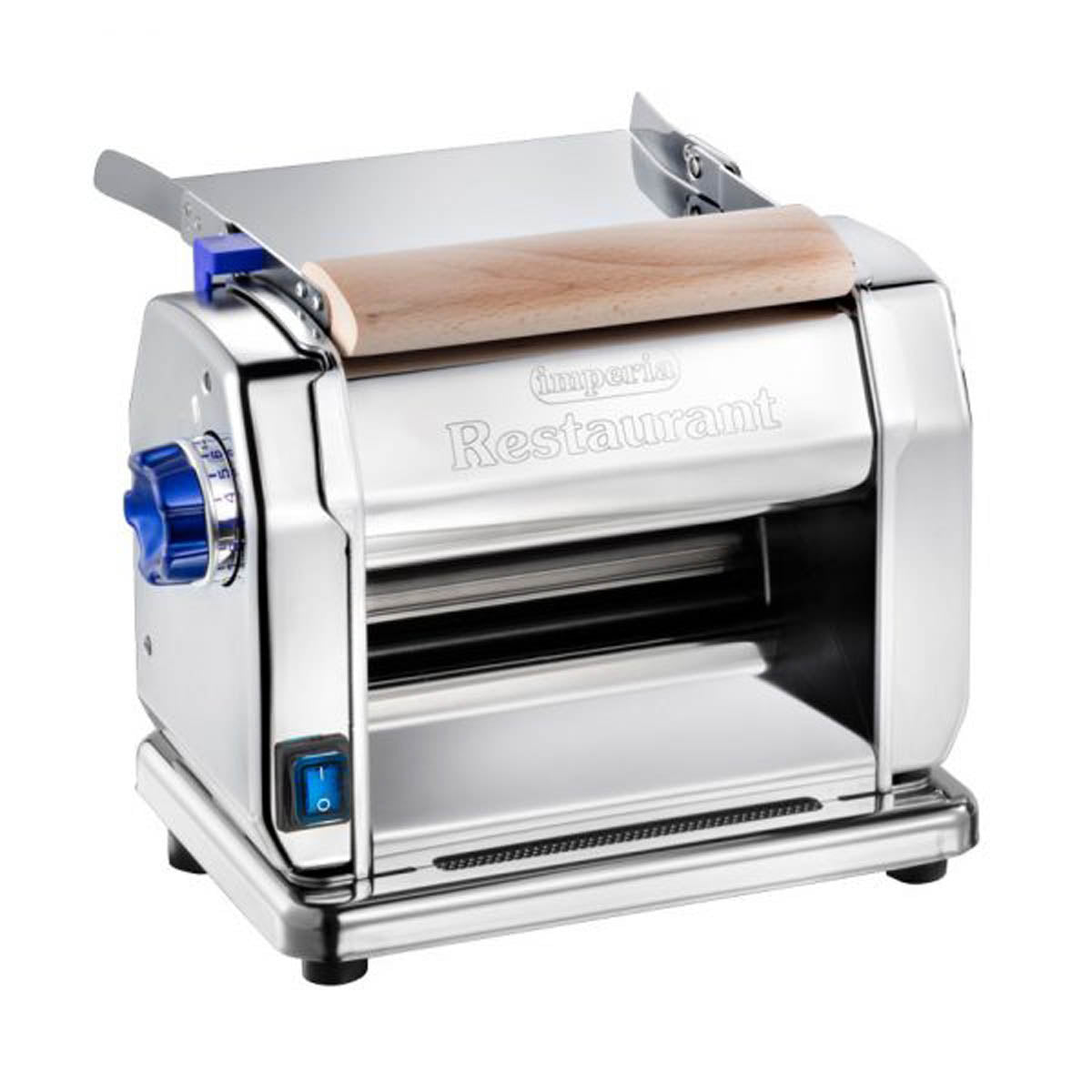

Omcan 46292 — European Style Automatic Style Pasta Sheeter, 8.66" Roller Length 1/4 Hp
The Omcan 46292 European Style Automatic Style Pasta Sheeter, 8.66" Roller Length 1/4 Hp is part of Atlantic’s dough sheeter & roller machines selection. Width: 8.5 in. Depth: 14 in. Height: 10 in.
Product Highlights
- ITEM NUMBER 46292
- MODEL PM-IT-0037
- ROLLER LENGTH 8.66” / 220 mm
- MAX. ROLLER OPENING 2” / 50 mm
- ELECTRICAL 110V / 60Hz / 1Ph
- POWER 0.25 HP / 190 W
- WEIGHT 35.5 lbs. / 16.10 kg.
- PACKAGING WEIGHT 36 lbs. / 16.3 kg.
- MACHINE DIMENSIONS (DWH) 8.5” x 14” x 10”
- PACKAGING DIMENSIONS 14” x 17” x 15”
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 46292 |
| Listed Weight | 35.5 lbs |
| Width | 8.5 in. |
| Depth | 14 in. |
| Height | 10 in. |
| Installation Type | countertop |
| Power Type | electric |
| Dough Processing Type | dough sheeter |
| Pass Type | single pass |
| Roller Direction | single direction |
| Horsepower | 1/4 hp |
| Roller style | stainless steel |
| Roller size | 8 3/4" |
| Construction | stainless steel |
| Voltage | 110 |
| Certifications | Made in Italy |
| Phase | 1 |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

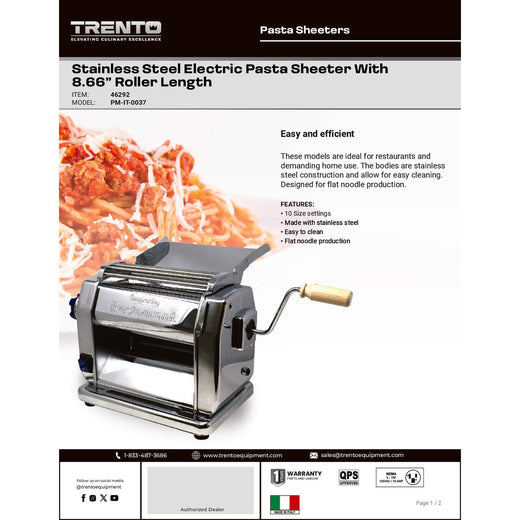

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
