Description

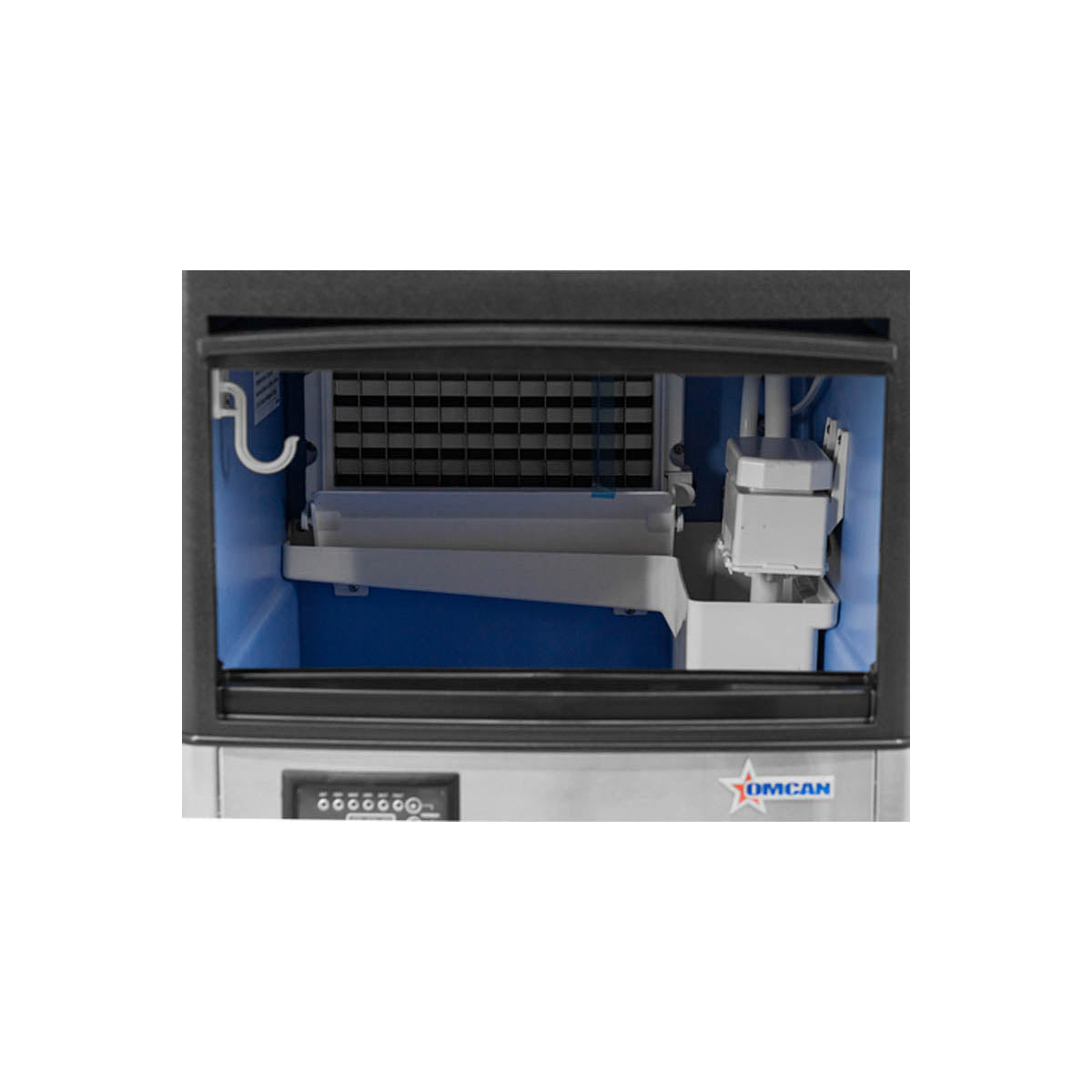

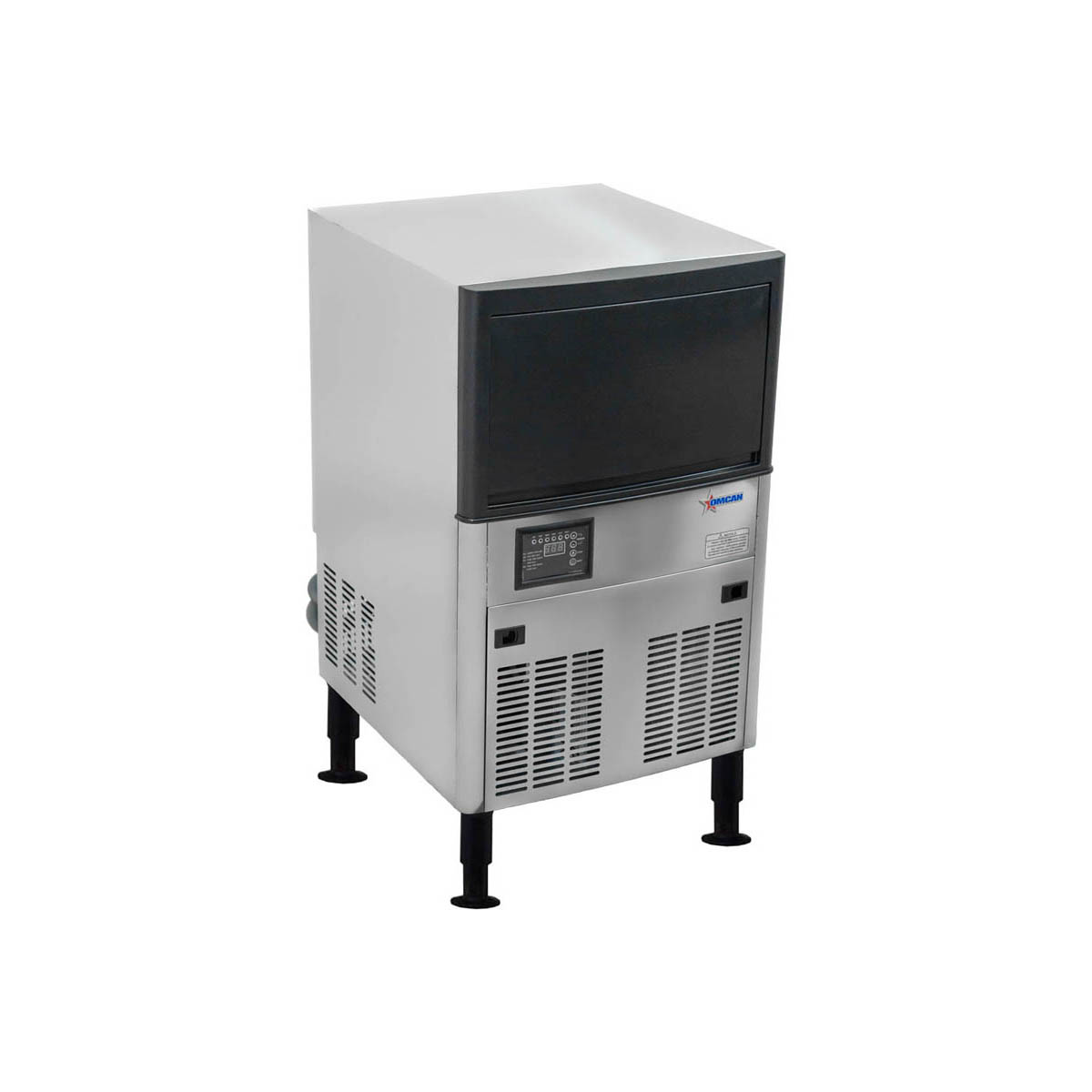

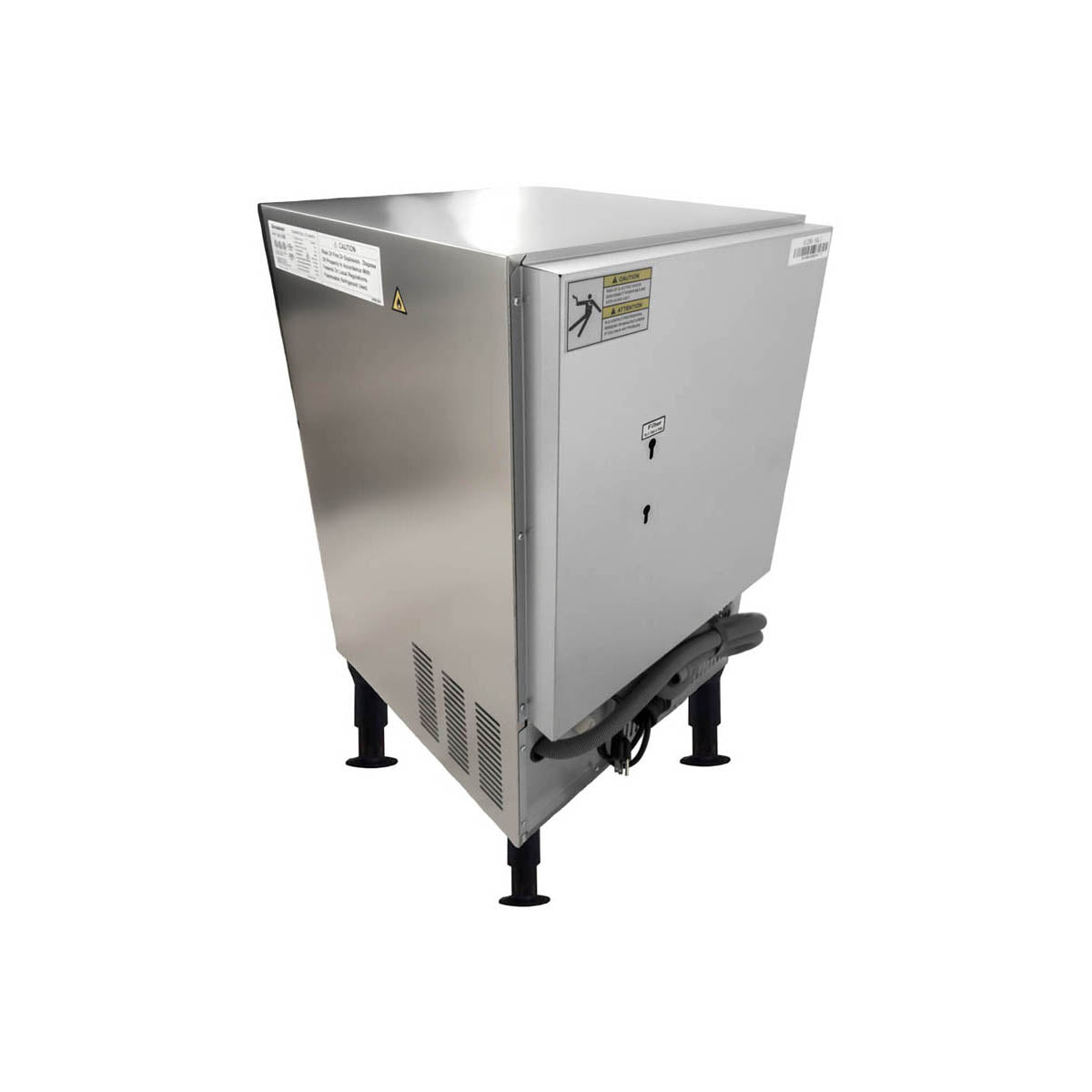

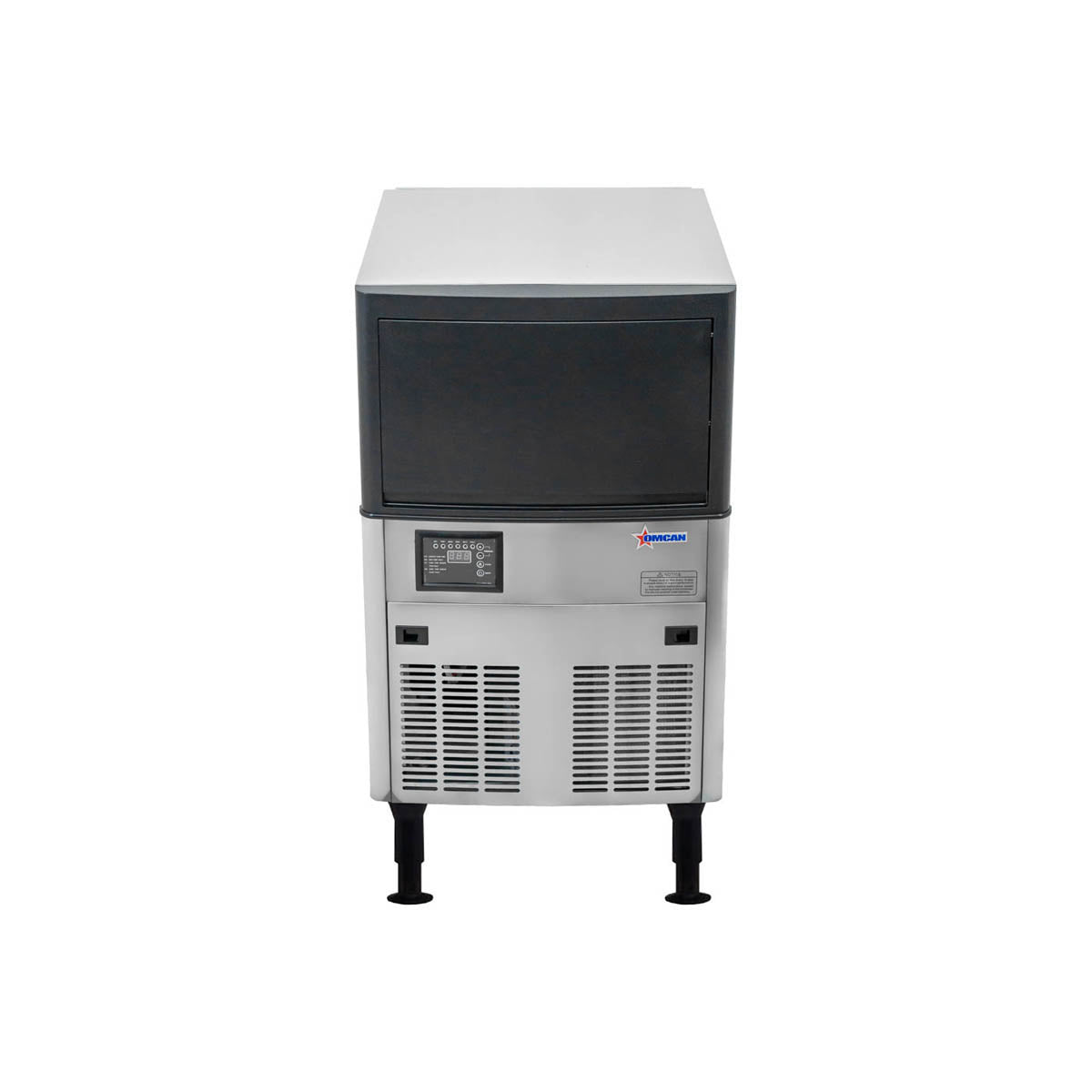

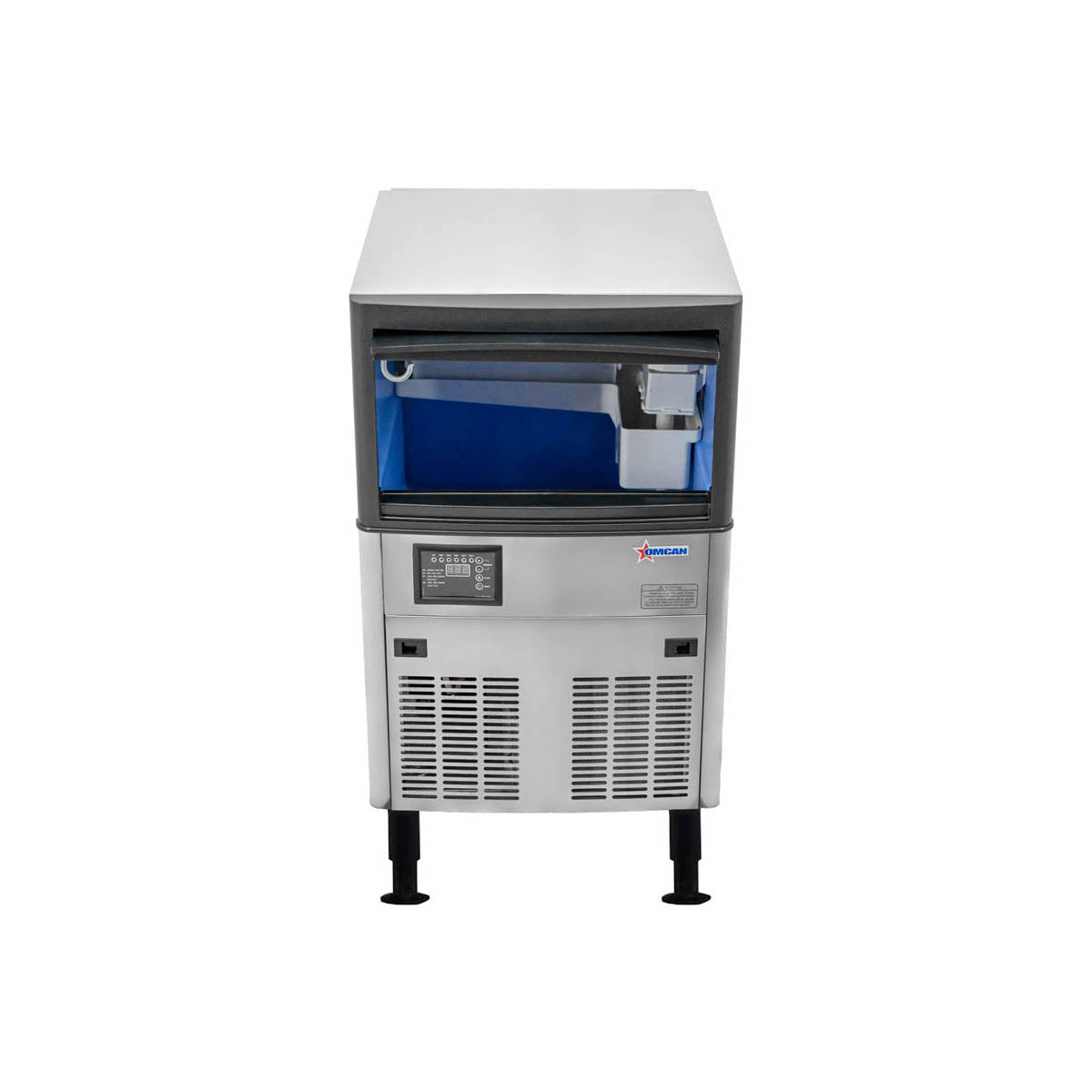

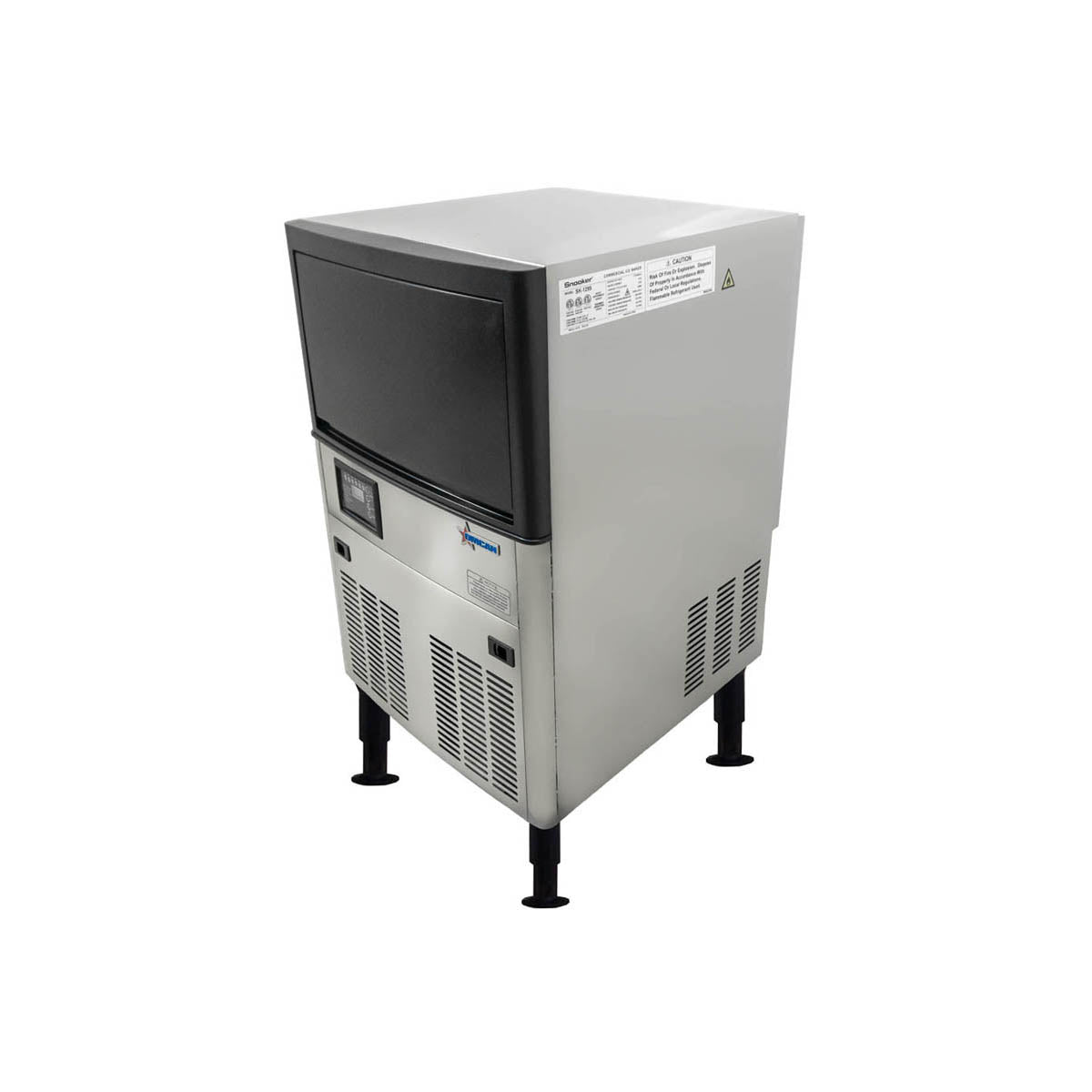

Omcan 47483 — 23" Air Cooled Full Cube 120 lb Undercounter Ice Machine with 40 lb Bin
The Omcan 47483 23" Air Cooled Full Cube 120 lb Undercounter Ice Machine with 40 lb Bin is part of Atlantic’s ice maker with bin selection. Width: 22.8 in. Depth: 26.4 in. Height: 32.9 in.
Product Highlights

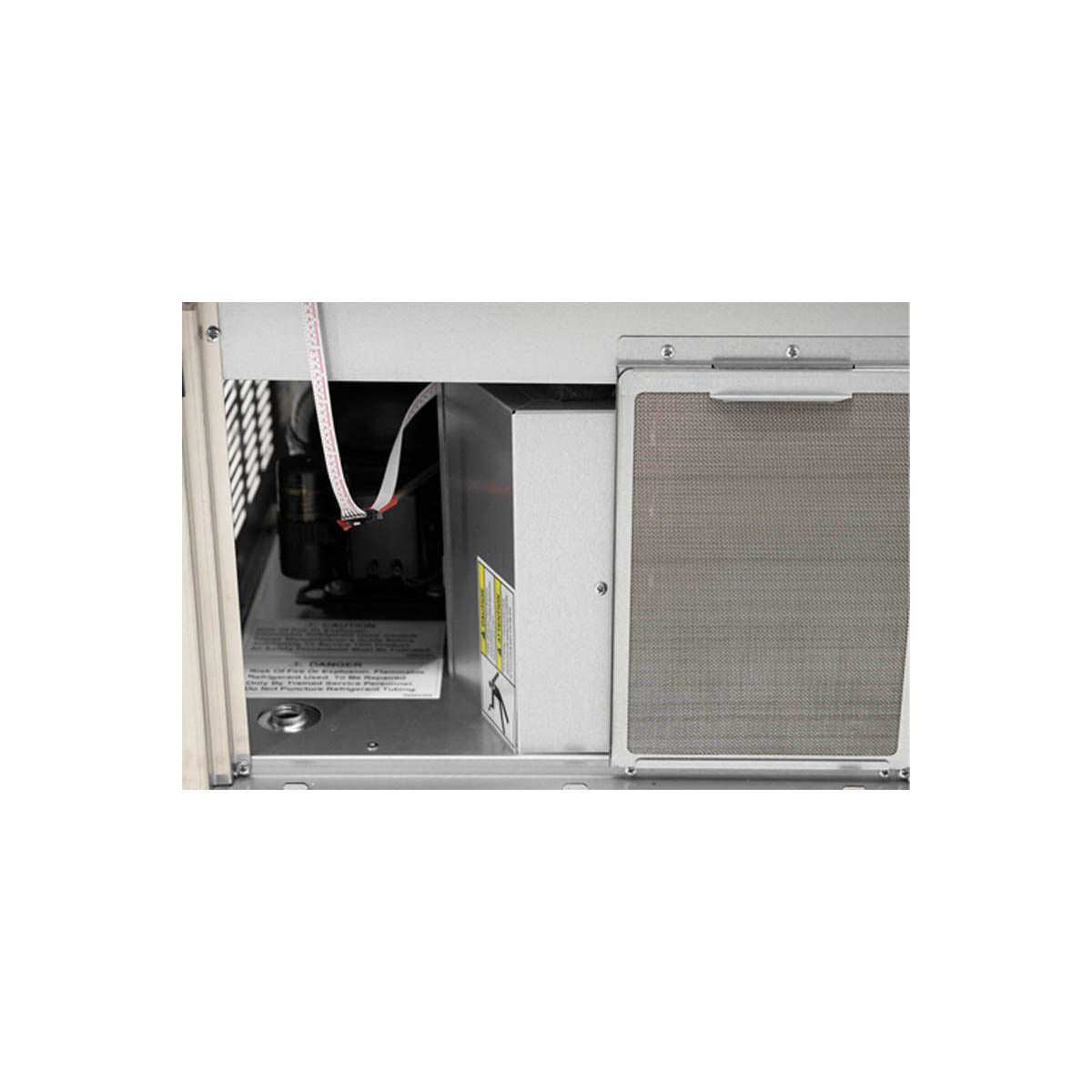

- Air‑cooled stainless‑steel condenser delivers efficient cooling while using low‑global‑warming R‑290 refrigerant.
- Digital control panel lets operators set ice thickness, cube size and run cleaning cycles with a single touch.
- Adjustable feet and hinged door simplify installation and maintenance in tight under‑counter spaces.
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 47483 |
| Listed Weight | 110.2 lbs |
| Width | 22.8 in. |
| Depth | 26.4 in. |
| Height | 32.9 in. |
| Condenser Type | air-cooled |
| Ice Type | full cube |
| Special Features | gravity drain |
| Finish | stainless steel |
| Voltage | 115 |
| Refrigerant Type | R-290 |
| Certifications | cETLus, ETL-Sanitation |
| Phase | 1 |
| Production per 24 hr (Lbs) | 120 |
| Bin storage capacity (Lbs) | 40 |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads
Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
