Description

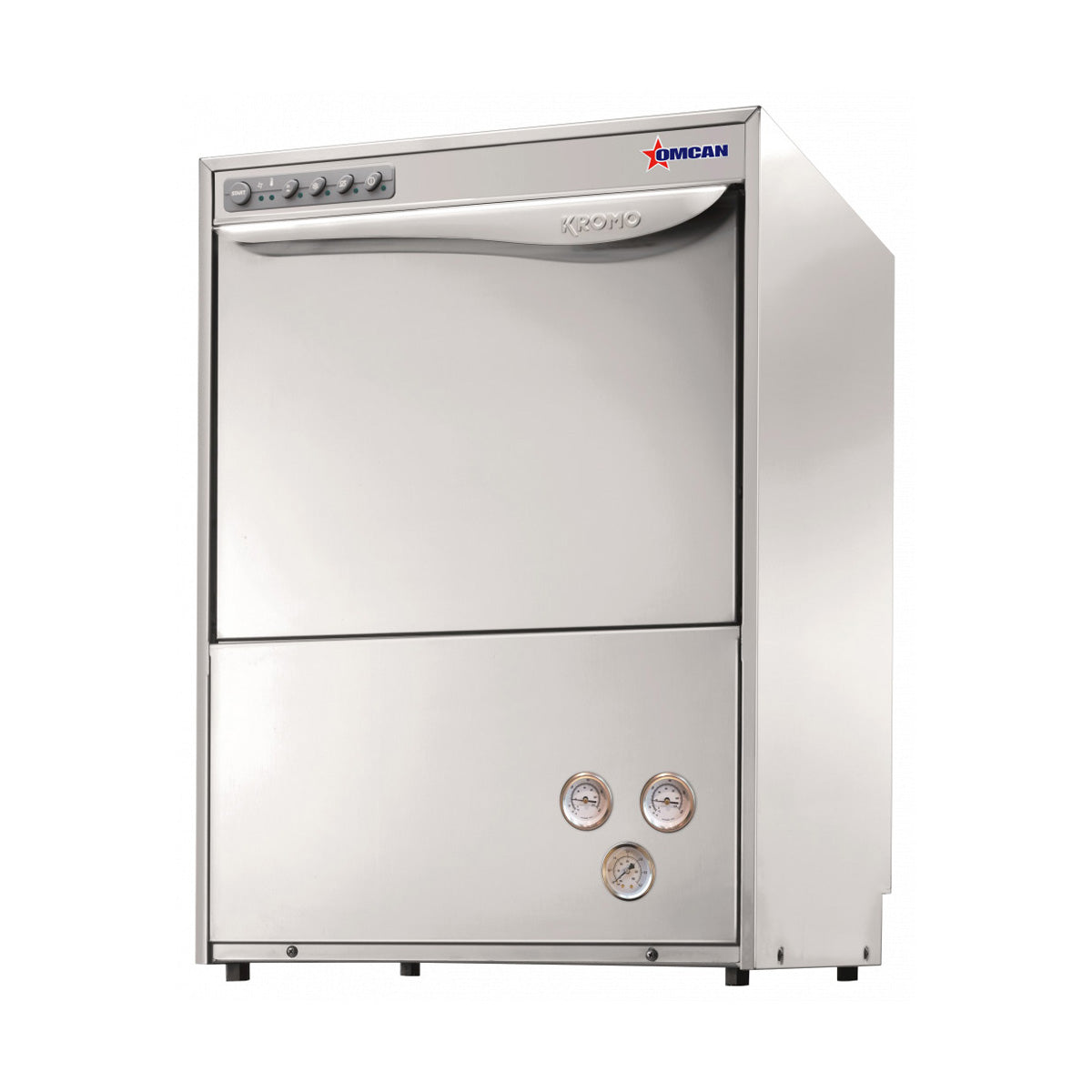

Omcan 49126 — 23" Undercounter Dishwasher,30 or 20 Racks/Hr-0.74 Gal/Rack-High Temp w/Booster
The Omcan 49126 23" Undercounter Dishwasher,30 or 20 Racks/Hr-0.74 Gal/Rack-High Temp w/Booster is part of Atlantic’s undercounter dishwashers selection. Width: 23.44 in. Depth: 24 in. Height: 33.31 in.
Product Highlights
- Double walled AISI 304 structure
- 2 wash cycles
- Overflow and drain pipes integrated system, for a triple protection of the wash pump
- Anti-drop roof panel
- Door security microswitch
- Pressed basket supports
- Split wash and rinse arms
- Built-in rinse-aid dispenser
- Fully automatic process
- Standard drain pump
- Detergent dispenser
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 49126 |
| Listed Weight | 134.5 lbs |
| Width | 23.44 in. |
| Depth | 24 in. |
| Height | 33.31 in. |
| Height Of Legs | No Leg |
| Temperature | high temp with booster |
| Dishwasher Type | Dishwasher Only |
| Rack capacity | approximately (30) racks/hour |
| Construction | stainless steel |
| Rack Size | 20" x 20" |
| Tank Heat | electric |
| Cabinet base | fully enclosed |
| Voltage | 220/240 |
| Door Clearance | 15" |
| Number Of Wash Cycle | 2 |
| Certifications | cETLus, ETL-Sanitation, Made in Italy |
| Phase | 1 |
| Water Consumption(Approx) | 20 Gallons Per Hour |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

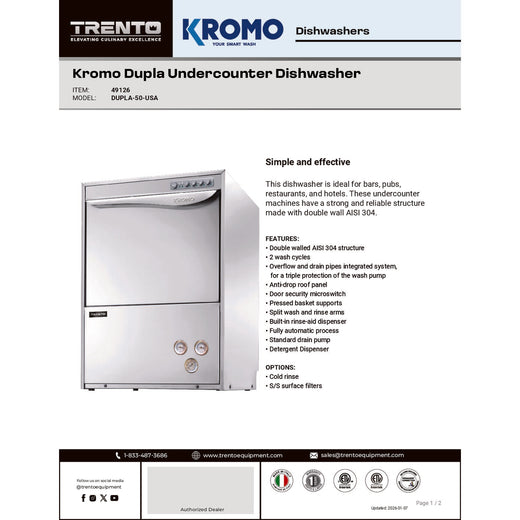

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
