Description

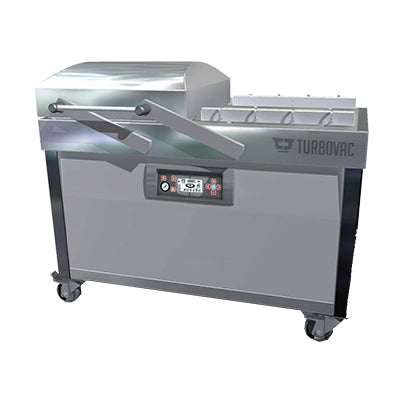

Omcan 50002 — Turbovac Floor Model Chamber Vacuum Packaging Machine with (4) 23" Seal Bar
The Omcan 50002 Turbovac Floor Model Chamber Vacuum Packaging Machine with (4) 23" Seal Bar is part of Atlantic’s commercial vacuum sealer machines selection. Width: 28.34 in. Depth: 52.95 in. Height: 40.98 in.
Product Highlights
- HEAVYDUTY:INDUSTRIAL PERFORMANCE,INDUSTRIAL QUALITY
- Our new range of double chambers are reliable, durable and offer flexibility in volume production. Our machines can be equipped with semi-automatic or automatic cover movement for an even more efficient production. Constructed with Buschpump. The double chambers can also be equipped with an external pump.
- Double Chamber with Stainless Steel Cover and Flat Working Surface-24” Seal Length / 100 m³
- ITEM NUMBER 50002
- MODEL VP-NL-0063-L
- SEAL LENGTH 23.62” / 600mm x 4
- VACUUM PUMP 63 m3
- 10 PROGRAMMABLE CONTROL YES
- MAXIMUM PRODUCT HEIGHT 7” / 180mm
- USEFUL CHAMBER SIZE (DWH) 20” x 24” x 7”
- POWER CONSUMPTION (kW) 4.4
- ELECTRICAL 190-240/ 60Hz-3Ph
Technical Specifications
| Manufacturer | Omcan USA |
|---|---|
| Model Number | 50002 |
| Listed Weight | 528 lbs |
| Width | 28.34 in. |
| Depth | 52.95 in. |
| Height | 40.98 in. |
| Installation Type | floor model |
| Packaging Type | vacuum |
| Packagıng Style | chamber |
| Seal Bar Length (Range) | 20-1/2"-39-1/4" seal bar(s) |
| Number of Seal Bars | 4 bars |
| Chambers Quantity | double chamber |
| Control Type | digital control |
| Construction | aluminum |
| Seal Bar Length | 23" seal bar(s) |
| Voltage | 190/240 |
| Certifications | cMETus |
| Phase | 3 |
| Horsepower | 5.90 Hp |
| Pump Capacity | 63 m³/h |
Installation and Setup
Confirm the listed dimensions, power supply and installation requirements for your location. Follow the manufacturer’s instructions for setup, operation and maintenance.
Documents and Downloads

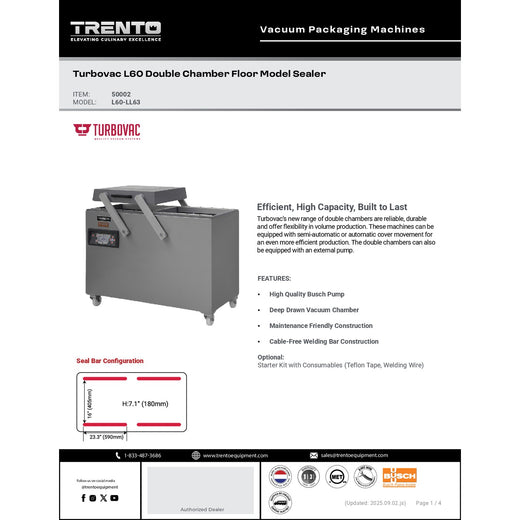

Available product resources: Spec Sheet. Use the document links on this page to view or download the files.
