Description
Two 27.6" x 27.6" stone decks in one 38" Melstone electric oven.

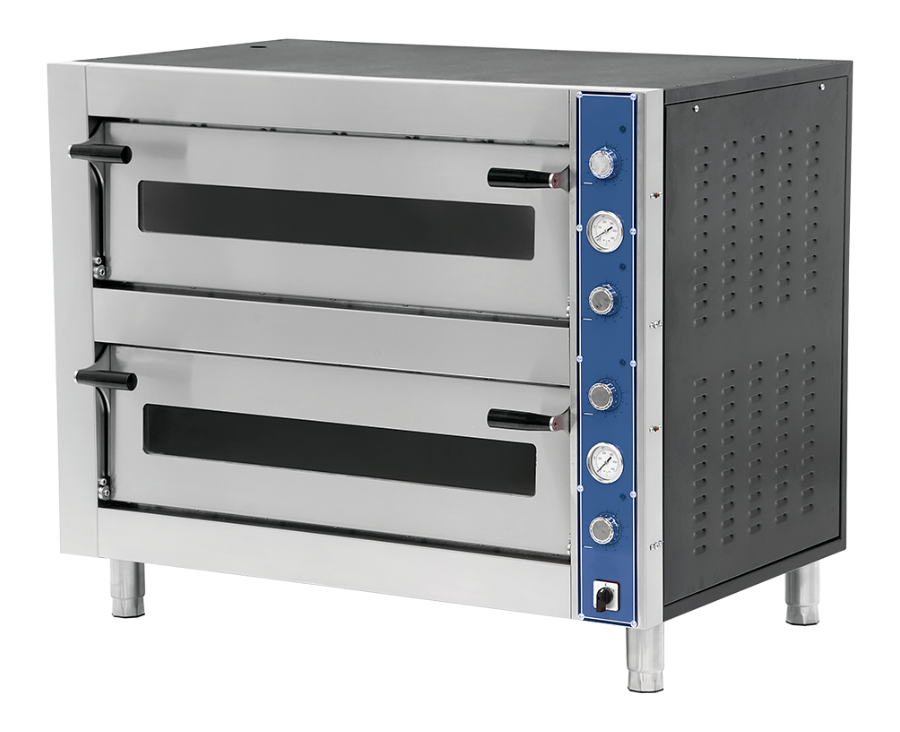

The Pegasus MS38E-2 is a double deck 208V electric pizza oven from the Melstone series for pizzerias, restaurants and bars. Each 27.6" x 27.6" refractory deck has an 8" deck height, the oven holds eight 12.99" pizzas at a time, and a thermostat runs it up to 752°F on 15 kW at 208V. The stainless steel body is fully insulated, and the welded angle iron frame is designed to allow double-stacking.
Will it fit · Will it plug in
- Outside size
- 38" W × 35.4" D × 39.4" H
- Shipping weight
- 386 lb
- Power
- 208V, 60 Hz, 3-phase (field convertible to 1-phase): 42A (21A + 21A) on 3-phase or 72A (36A + 36A) on 1-phase; 15 kW. Rear electrical connection; no plug type listed
- Clearances
- Non-combustible walls: 0" left, 0" right, 2" back. Combustible walls: 1" left, 3" right, 3" back
Plan for a 36" deep space plus the back clearance and a 208V circuit sized by your electrician, and measure every doorway on the delivery path. Your local code may require it under a ventilation hood.
Stone deck baking
A refractory baking bedplate with an 8" deck height bakes pizza and bread directly on the deck.
Up to 752°F
A thermostat sets the deck temperature up to 752°F.
No gas line needed
Runs on 208V power, 3-phase or 1-phase after field conversion.
Watch the bake
A tempered glass door lets you check the pizza without opening it.
Holds its heat
Fully insulated stainless steel keeps the outside cooler and the inside temperature steady.
Delivery and setup
- Free shipping on this item.
- Ships by freight carrier at 386 lb. Inspect it for damage before you sign for it.
- Have a licensed electrician connect it to 208V power, 3-phase or 1-phase.
- See our shipping policy for delivery options, including pickup at our Kearny, NJ warehouse.
Questions buyers ask
How many pizzas fit at once?
Galaxy Group lists 4 + 4 pizzas of 12.99" (330 mm) on the two decks.
How hot does it get?
The thermostat goes up to 752°F, per the current Pegasus spec sheet.
What power does it need?
208V, 60 Hz, 15 kW. It draws 42A (21A + 21A) on 3-phase or 72A (36A + 36A) on 1-phase, and it is field convertible from 3-phase to 1-phase.
Does it come with a plug?
The spec sheet lists a rear electrical connection but no cord or plug type. Plan for an electrician to connect it.
Can I use it on 240V?
Pegasus lists it for 208V only. Call us before ordering if your building has 240V.
Is there a single deck version?
Yes, the MS38E-1 has one deck of the same size.
How close can it go to a wall?
Against non-combustible walls it needs 0" on the sides and 2" at the back. Against combustible walls it needs 1" on the left and 3" on the right and back.
What other sizes are there?
The Melstone series also includes the MS35E-2, MS47RE-2 and MS47DE-2.
What does the warranty cover?
Pegasus gives a one-year limited warranty in the USA and Canada.
Specs
| Manufacturer | Pegasus |
|---|---|
| Model Number | MS38E-2 |
| Series | Melstone |
| Shipping Weight | 386 lbs |
| Width | 38 Inches |
| Depth | 35.4 Inches |
| Height | 39.4 Inches |
| Number of Decks | 2 |
| Deck Size | 27.6" x 27.6" (700 x 700 x 203 mm) per deck |
| Deck Height | 8 Inches |
| Capacity | 4 + 4 pizzas, 12.99" (330 mm) (Galaxy Group product page) |
| Baking Deck | Refractory baking bedplate |
| Power | 15,000 W (7,500 W per deck) |
| Voltage | 208 Volts |
| Hertz | 60 |
| Phase | 3-phase, field convertible to 1-phase |
| Amps, 3-Phase | 42A (21A + 21A) |
| Amps, 1-Phase | 72A (36A + 36A) |
| Electrical Connection | Rear |
| Temperature Range | Up to 752 Degrees F |
| Controls | Thermostatic |
| Construction | Stainless steel interior and exteriorHeavy duty angle iron frame, fully welded to allow double-stackingFully insulated |
| Door | Tempered glass |
| Clearance, Non-Combustible | Left 0"Right 0"Back 2" |
| Clearance, Combustible | Left 1"Right 3"Back 3" |
| Certifications | cETLusETL SanitationCE (marks on spec sheet) |
| Warranty | One-year limited (USA and Canada only) |
| Usage | Commercial |
