Description

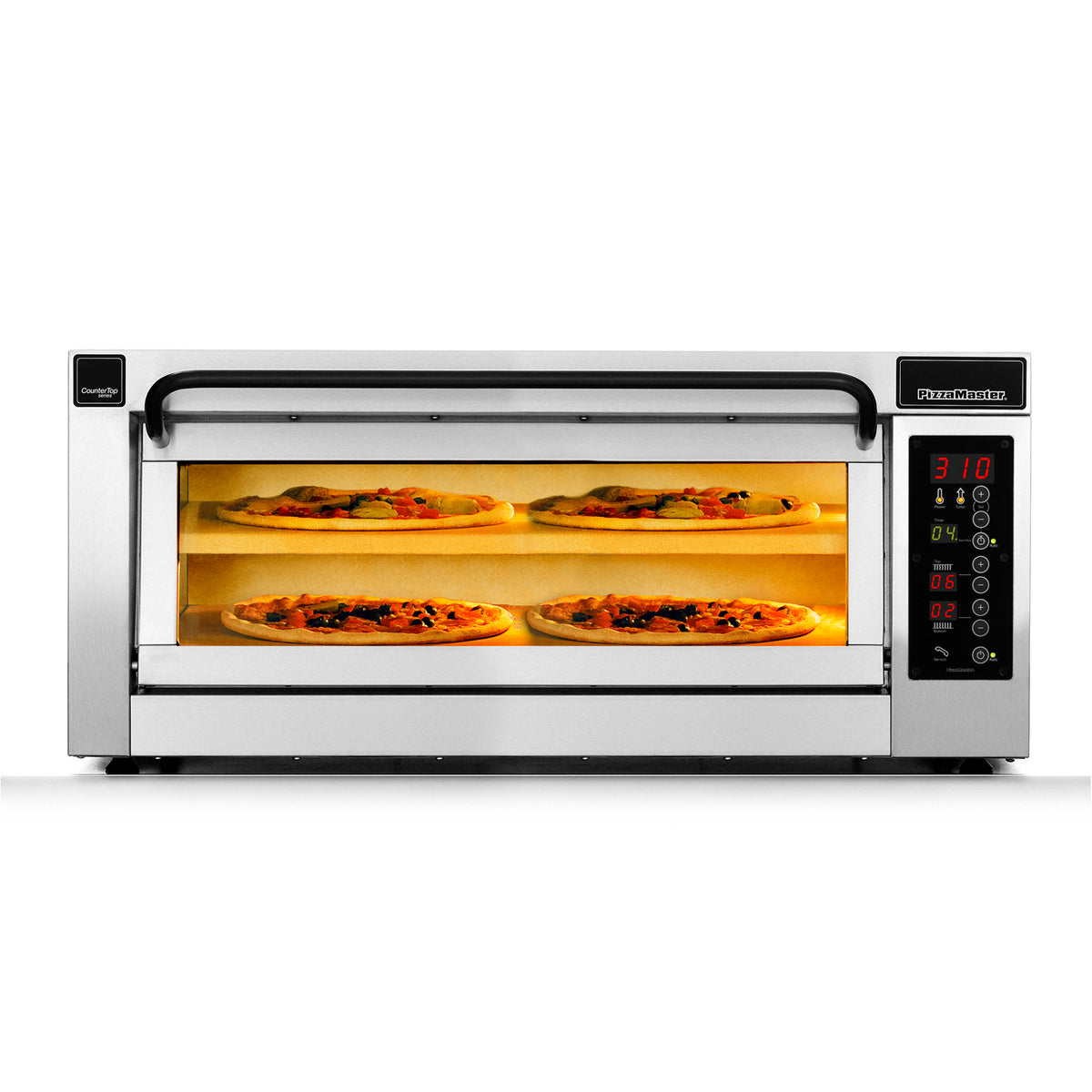

PizzaMaster PM 401ED-2DW
Review this model’s deck configuration, exterior dimensions and available electrical options to select the oven that fits your operation. Overall oven width is not the maximum pizza diameter; consult the manufacturer sheet for baking chamber dimensions.
Key Features
- Digital controls with timer and dual Xenon lights.
- 752°F max temperature for rapid crust.
- 9.05 kW power, UL/EPH certified for safety.
- Stainless‑steel body and heat‑reflecting glass door.
- 32.3" × 16.1" stone hearth for authentic bake.
Choose Your Configuration
Select voltage before ordering. Voltage and phase must match your installation. Any finish surcharge is included in the selected variant price.
- Voltage: 208 V / 60 Hz / 3-Phase, 240 V / 60 Hz / 3-Phase, 480 V / 60 Hz / 3-Phase + Neutral
Technical Specifications
| Manufacturer | PizzaMaster |
|---|---|
| Model Number | PM 401ED-2DW |
| Shipping Weight (Supplier Reference) | 227 lbs |
| Width | 41.4 in. |
| Depth | 23.6 in. |
| Height | 19.7 in. |
| Installation Type | countertop |
| Power Type | electric |
| Number Of Decks | 1 deck |
| Control Type | digital controls |
| Certifications | UL, UL EPH Classified |
Installation and Optional Equipment
Have a qualified installer confirm the selected power supply, clearances and ventilation requirements against the manufacturer documentation. Optional factory equipment and extended warranty plans are not included unless explicitly identified in the selected configuration.
Documents and Resources

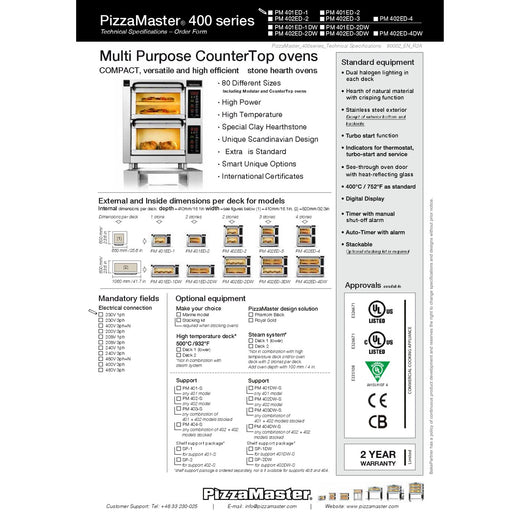

Available manufacturer documents: Spec Sheet, Terms and Conditions. Open the documents section to view or download the PDFs.
