Description

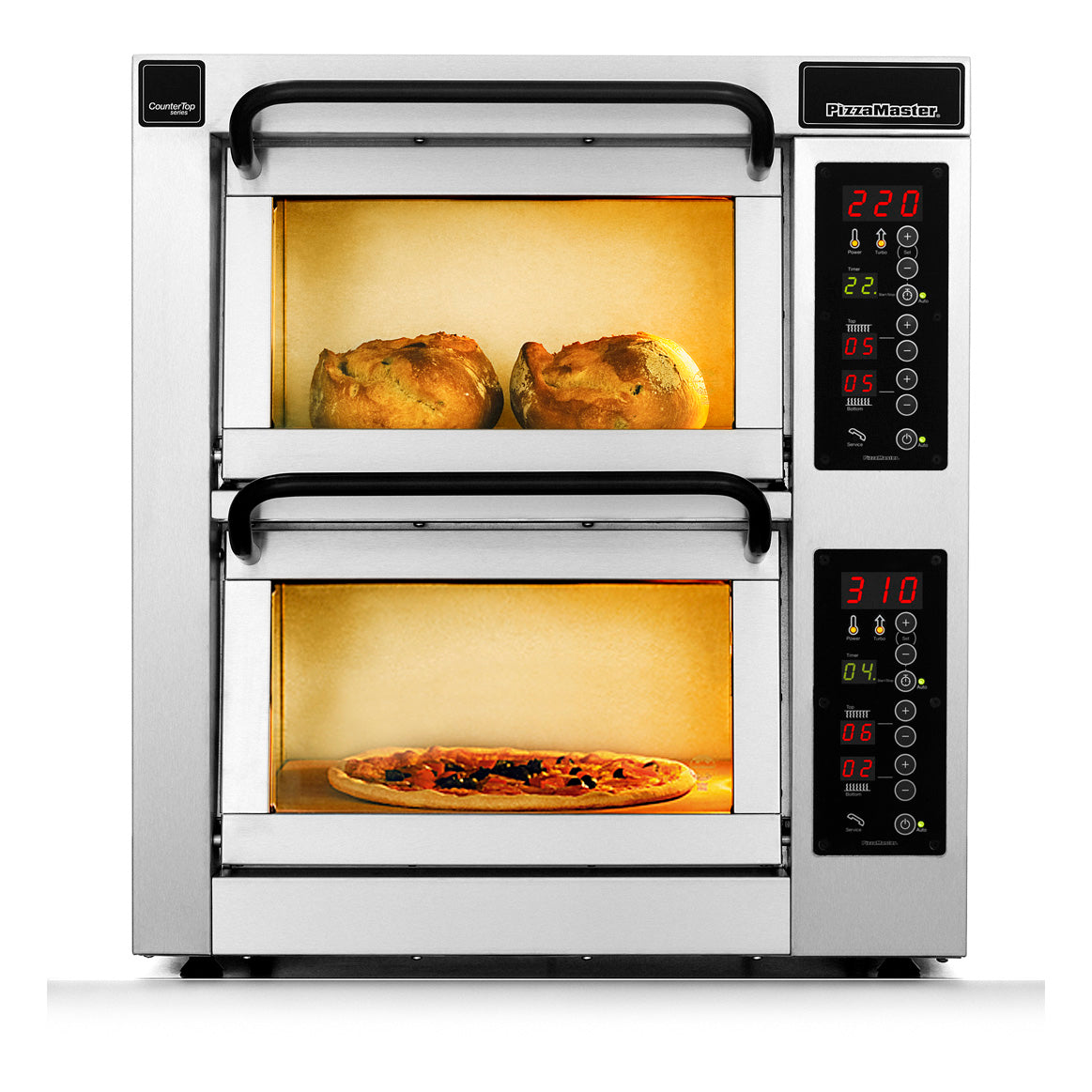

PizzaMaster PM 402ED
Review this model’s deck configuration, exterior dimensions and available electrical options to select the oven that fits your operation. Overall oven width is not the maximum pizza diameter; consult the manufacturer sheet for baking chamber dimensions.
Key Features
- Two 16‑inch stone decks give 16.1" × 16.1" cooking area per deck for even heat distribution.
- Digital control panel with timer and halogen lighting lets chefs monitor bake progress precisely.
- Turbo‑Start and 752°F max temperature enable rapid bake cycles, increasing throughput.
- Stainless‑steel top, front and sides provide durability and easy cleaning in demanding environments.
- 6.10 kW per deck power and UL/UL‑EPH certification meet commercial safety and performance standards.
Choose Your Configuration
Select voltage before ordering. Voltage and phase must match your installation. Any finish surcharge is included in the selected variant price.
- Voltage: 208 V / 60 Hz / 3-Phase, 208 V / 60 Hz / Single Phase, 240 V / 60 Hz / 3-Phase, 240 V / 60 Hz / Single Phase, 480 V / 60 Hz / 3-Phase + Neutral
Technical Specifications
| Manufacturer | PizzaMaster |
|---|---|
| Model Number | PM 402ED |
| Shipping Weight (Supplier Reference) | 190 lbs |
| Width | 25.6 in. |
| Depth | 23.6 in. |
| Height | 31.5 in. |
| Installation Type | countertop |
| Power Type | electric |
| Number Of Decks | 2 decks |
| Control Type | digital control |
Installation and Optional Equipment
Have a qualified installer confirm the selected power supply, clearances and ventilation requirements against the manufacturer documentation. Optional factory equipment and extended warranty plans are not included unless explicitly identified in the selected configuration.
Documents and Resources
Available manufacturer documents: Spec Sheet, Terms and Conditions. Open the documents section to view or download the PDFs.
