Description

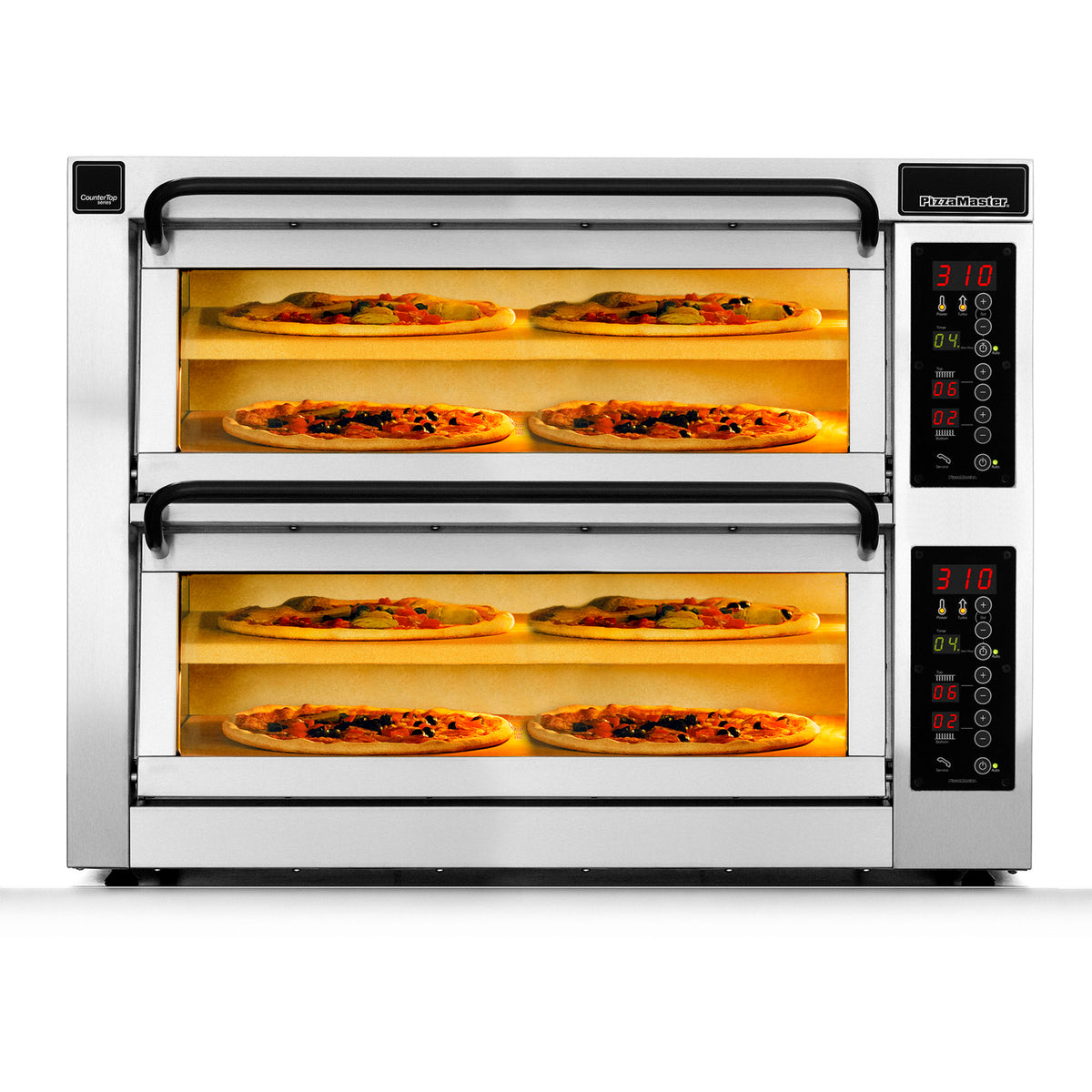

PizzaMaster PM 402ED-4DW
Review this model’s deck configuration, exterior dimensions and available electrical options to select the oven that fits your operation. Overall oven width is not the maximum pizza diameter; consult the manufacturer sheet for baking chamber dimensions.
Key Features
- Digital controls with timer and temperature readout simplify operation and ensure consistent results.
- Two independent 32.3" × 16.1" stone chambers deliver 752 °F peak temperature for crisp crusts.
- Xenon chamber lights provide uniform illumination, aiding visual monitoring without opening doors.
- Turbo‑Start reduces preheat time, while the 18.10 kW electric heating delivers high‑efficiency performance.
- UL EPH classified stainless‑steel exterior meets commercial safety standards and resists kitchen wear.
Choose Your Configuration
Select voltage before ordering. Voltage and phase must match your installation. Any finish surcharge is included in the selected variant price.
- Voltage: 2 × 208 V / 60 Hz / 3-Phase, 2 × 240 V / 60 Hz / 3-Phase, 480 V / 60 Hz / 3-Phase + Neutral
Technical Specifications
| Manufacturer | PizzaMaster |
|---|---|
| Model Number | PM 402ED-4DW |
| Shipping Weight (Supplier Reference) | 340 lbs |
| Width | 41.4 in. |
| Depth | 23.6 in. |
| Height | 31.5 in. |
| Installation Type | countertop |
| Power Type | electric |
| Number Of Decks | 2 decks |
| Control Type | digital controls |
| Certifications | UL, UL EPH Classified |
Installation and Optional Equipment
Have a qualified installer confirm the selected power supply, clearances and ventilation requirements against the manufacturer documentation. Optional factory equipment and extended warranty plans are not included unless explicitly identified in the selected configuration.
Documents and Resources
Available manufacturer documents: Spec Sheet, Terms and Conditions. Open the documents section to view or download the PDFs.
