Description

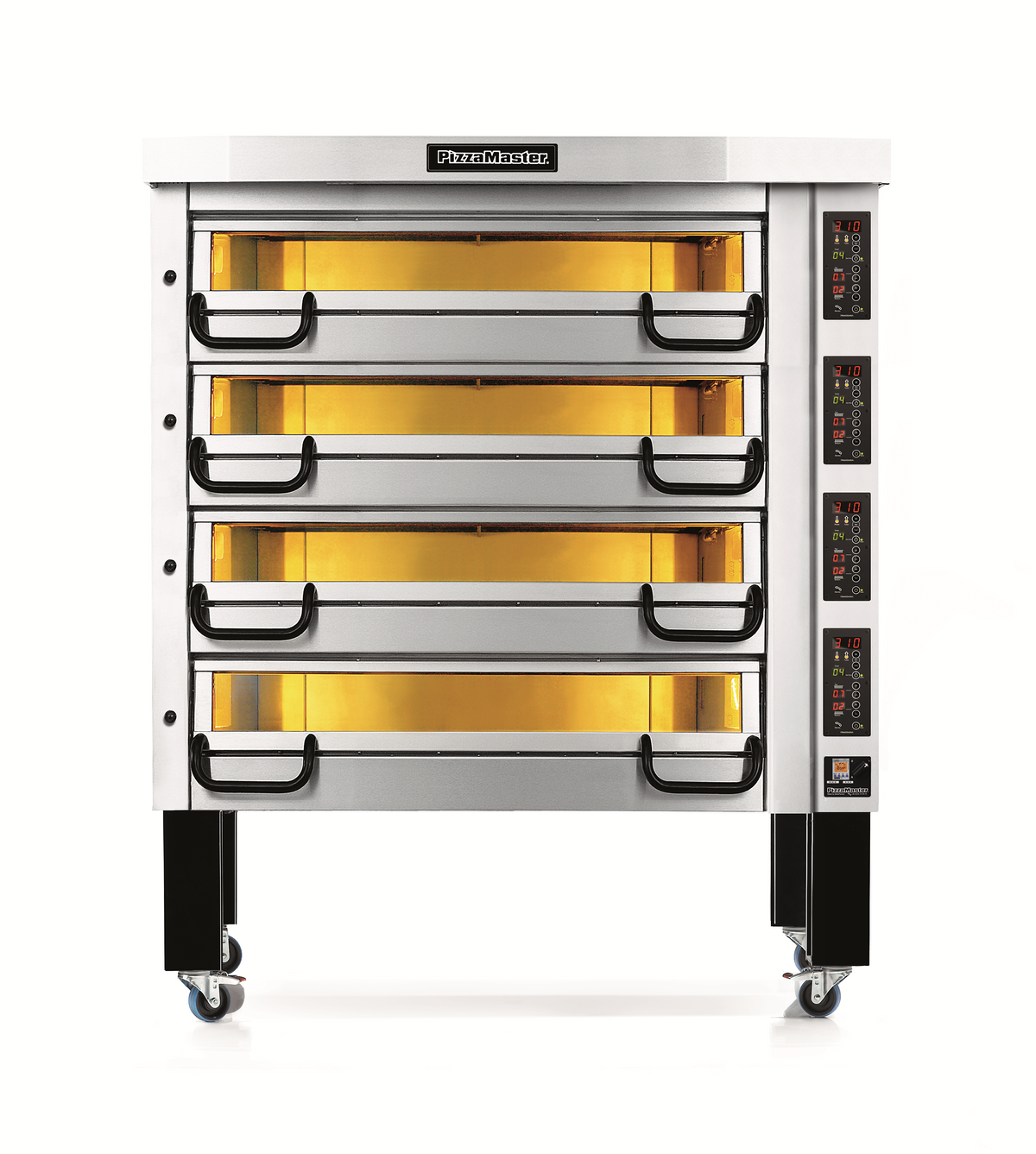

PizzaMaster PM 734ED
Review this model’s deck configuration, exterior dimensions and available electrical options to select the oven that fits your operation. Overall oven width is not the maximum pizza diameter; consult the manufacturer sheet for baking chamber dimensions.
Key Features
- Four 42" × 28" insulated decks provide 6 × 14" pizzas per deck, totaling 24 pies per bake cycle.
- Each deck outputs 9.5 kW and reaches 932°F, ensuring rapid bake times and crisp crusts.
- Digital display with electronic controls and Turbo‑Start reduces preheat time and simplifies temperature management.
- Heat‑reflecting glass door and halogen lighting give clear visibility while preserving heat efficiency.
- UL EPH classified construction with stainless‑steel front, 14" stone decks, and locking‑caster legs supports durable, code‑compliant kitchen operations.
Choose Your Configuration
Select voltage before ordering. Voltage and phase must match your installation. Any finish surcharge is included in the selected variant price.
- Voltage: 208 V / 60 Hz / 3-Phase, 240 V / 60 Hz / Single Phase, 480 V / 60 Hz / 3-Phase + Neutral, 208 V / 60 Hz / Single Phase, 240 V / 60 Hz / 3-Phase
Technical Specifications
| Manufacturer | PizzaMaster |
|---|---|
| Model Number | PM 734ED |
| Shipping Weight (Supplier Reference) | 1254 lbs |
| Width | 58.3 in. |
| Depth | 35.6 in. |
| Height | 78.5 in. |
| Power Type | electric |
Installation and Optional Equipment
Have a qualified installer confirm the selected power supply, clearances and ventilation requirements against the manufacturer documentation. Optional factory equipment and extended warranty plans are not included unless explicitly identified in the selected configuration.
Documents and Resources
Available manufacturer documents: Spec Sheet, Terms and Conditions, Warranty, Control Checklist, Owner's Manual, UL Form. Open the documents section to view or download the PDFs.
