Description

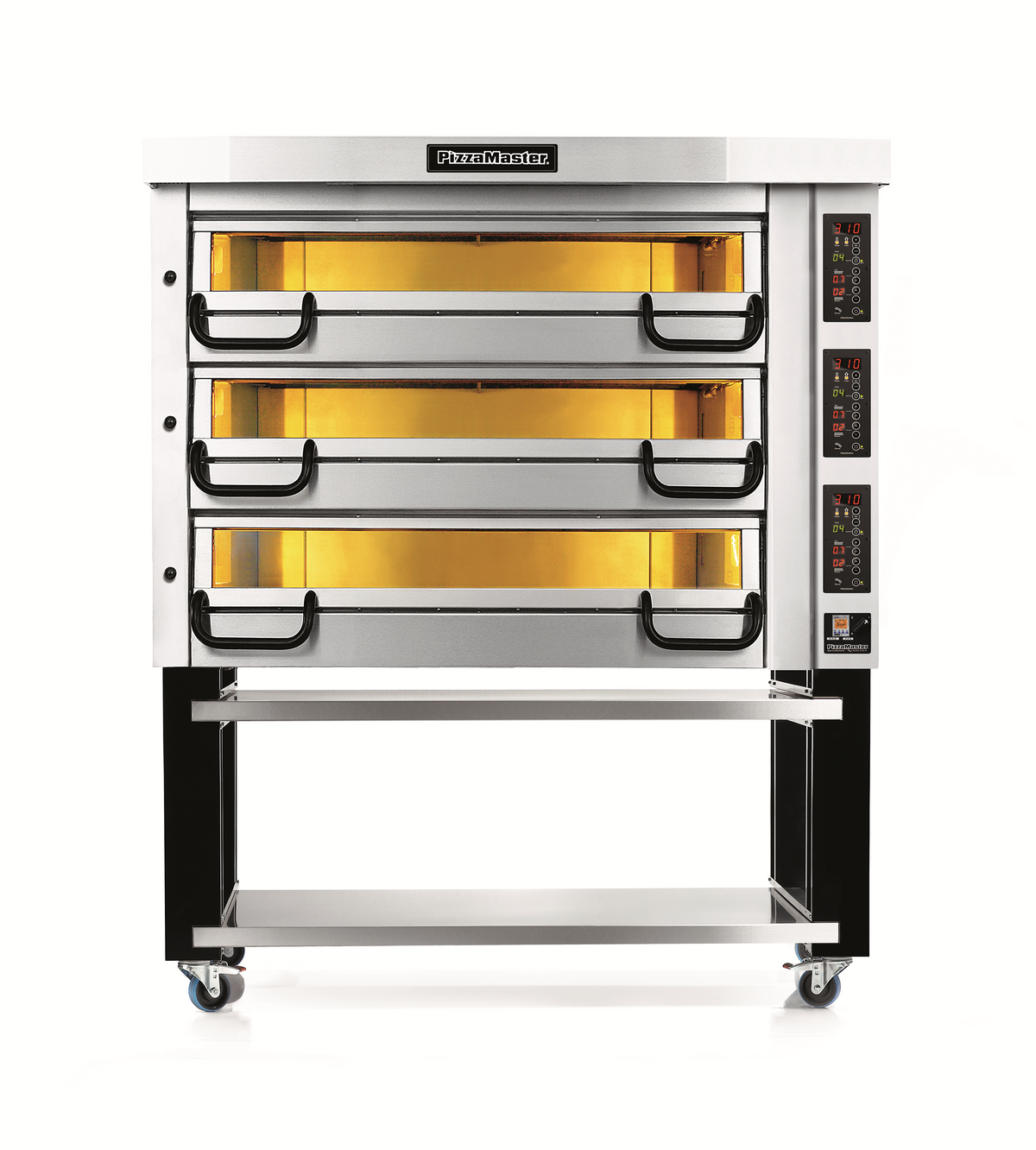

PizzaMaster PM 743ED
Review this model’s deck configuration, exterior dimensions and available electrical options to select the oven that fits your operation. Overall oven width is not the maximum pizza diameter; consult the manufacturer sheet for baking chamber dimensions.
Key Features
- Three 56" × 28" decks hold eight 14" pizzas each, providing 24‑pizza capacity per bake.
- Digital display with electronic controls and timer ensures precise 932°F temperature management.
- Four 14" stainless steel stones per deck and halogen lighting give even heat distribution and visual monitoring.
- Turbo‑start and heat‑reflecting glass door reduce preheat time, enhancing service speed.
- 12.5 kW per deck electric power, UL and UL EPH classified, with locking casters for safe mobility.
Choose Your Configuration
Select voltage before ordering. Voltage and phase must match your installation. Any finish surcharge is included in the selected variant price.
- Voltage: 208 V / 60 Hz / 3-Phase, 240 V / 60 Hz / Single Phase, 480 V / 60 Hz / 3-Phase + Neutral, 208 V / 60 Hz / Single Phase, 240 V / 60 Hz / 3-Phase
Technical Specifications
| Manufacturer | PizzaMaster |
|---|---|
| Model Number | PM 743ED |
| Shipping Weight (Supplier Reference) | 1299 lbs |
| Width | 72.3 in. |
| Depth | 35.6 in. |
| Height | 75.2 in. |
| Power Type | electric |
| Number Of Decks | 3 decks |
| Deck Depth (front - back) | 28" |
| Exterior Finish | stainless steel front & door |
Installation and Optional Equipment
Have a qualified installer confirm the selected power supply, clearances and ventilation requirements against the manufacturer documentation. Optional factory equipment and extended warranty plans are not included unless explicitly identified in the selected configuration.
Documents and Resources
Available manufacturer documents: Spec Sheet, UL Form, Owner's Manual, Terms and Conditions, Control Checklist, Warranty. Open the documents section to view or download the PDFs.
