Description

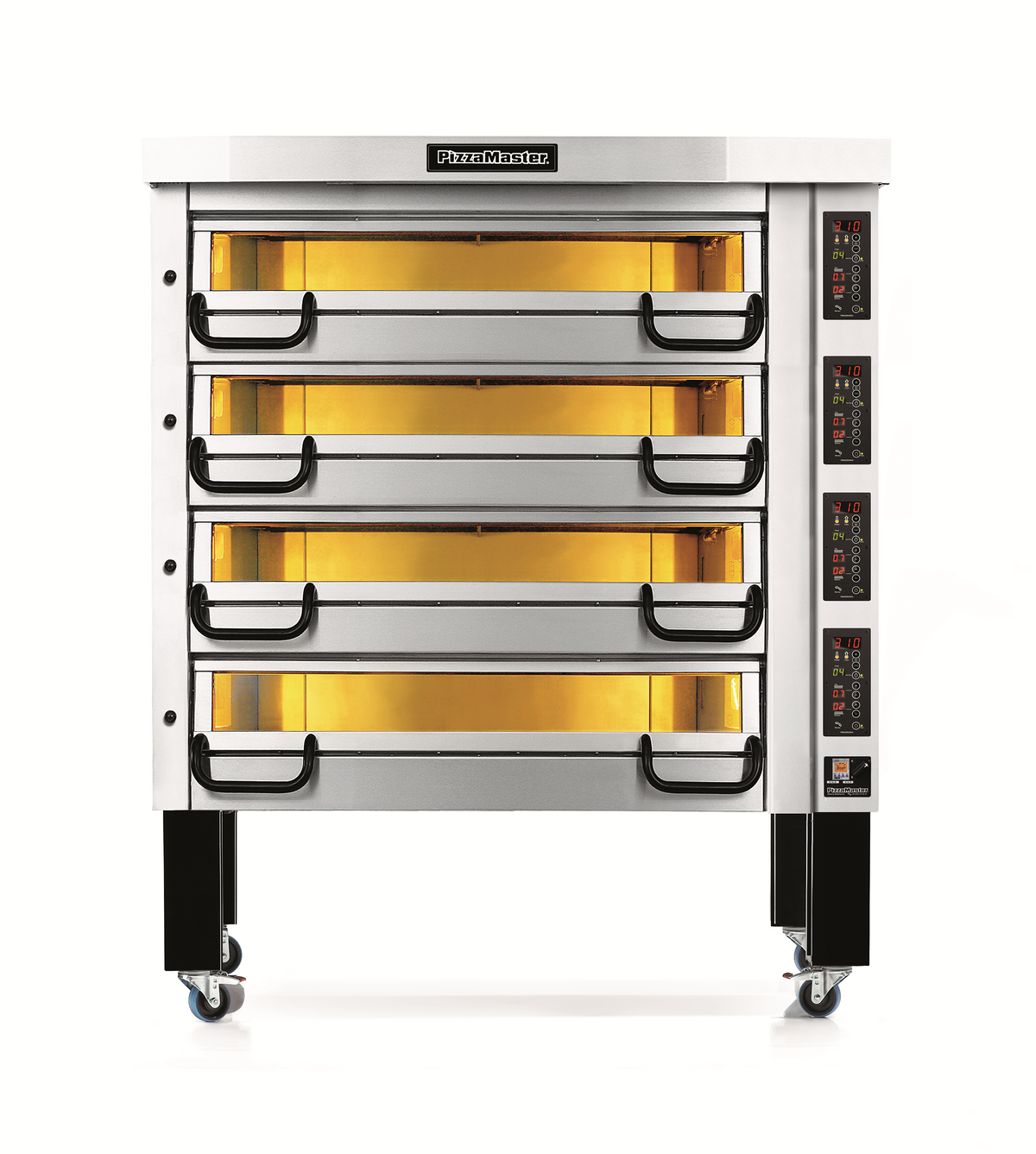

PizzaMaster PM 744ED
Review this model’s deck configuration, exterior dimensions and available electrical options to select the oven that fits your operation. Overall oven width is not the maximum pizza diameter; consult the manufacturer sheet for baking chamber dimensions.
Key Features
- Four 14‑inch decks provide 56 × 28 inches of cooking space, handling up to eight 14‑inch pizzas per deck.
- Digital display and electronic controls enable 932 °F max temperature and programmable timers for workflow efficiency.
- Stainless‑steel front and heat‑reflecting glass door ensure durability and energy retention in busy kitchens.
- Integrated halogen lighting and turbo‑start reduce bake time and give clear visual monitoring of each pizza.
- UL and UL EPH classified, 12.5 kW per deck power rating with locking casters for safe, mobile installation.
Choose Your Configuration
Select voltage before ordering. Voltage and phase must match your installation. Any finish surcharge is included in the selected variant price.
- Voltage: 208 V / 60 Hz / 3-Phase, 240 V / 60 Hz / 3-Phase, 240 V / 60 Hz / Single Phase, 480 V / 60 Hz / 3-Phase + Neutral, 208 V / 60 Hz / Single Phase
Technical Specifications
| Manufacturer | PizzaMaster |
|---|---|
| Model Number | PM 744ED |
| Shipping Weight (Supplier Reference) | 1605 lbs |
| Width | 72.3 in. |
| Depth | 35.6 in. |
| Height | 78.5 in. |
| Power Type | electric |
| Number Of Decks | 4 decks |
| Deck Depth (front - back) | 28" |
| Exterior Finish | stainless steel front & door |
Installation and Optional Equipment
Have a qualified installer confirm the selected power supply, clearances and ventilation requirements against the manufacturer documentation. Optional factory equipment and extended warranty plans are not included unless explicitly identified in the selected configuration.
Documents and Resources
Available manufacturer documents: Spec Sheet, Terms and Conditions, Warranty, UL Form, Owner's Manual, Control Checklist. Open the documents section to view or download the PDFs.
