Description

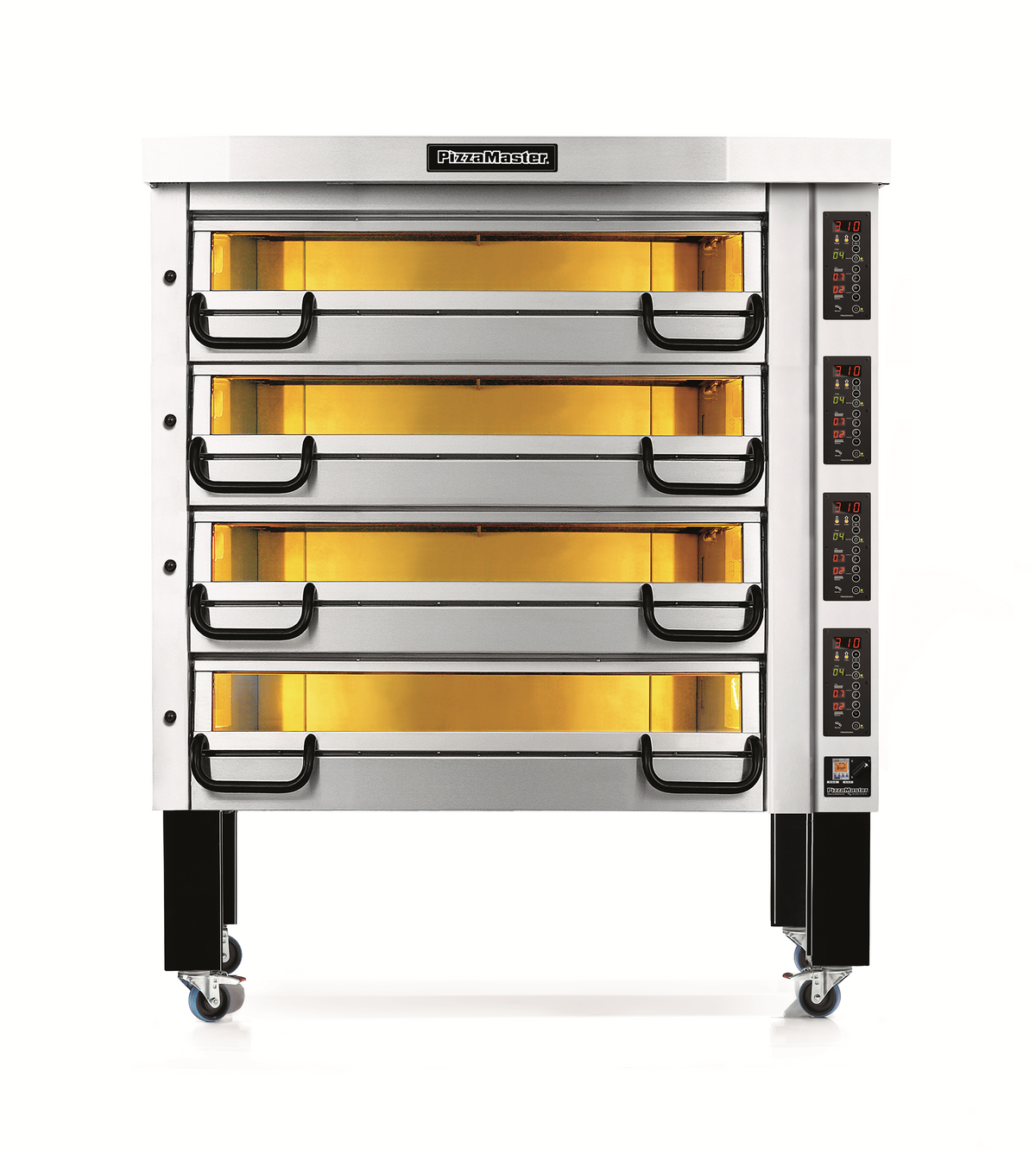

PizzaMaster PM 824ED
Review this model’s deck configuration, exterior dimensions and available electrical options to select the oven that fits your operation. Overall oven width is not the maximum pizza diameter; consult the manufacturer sheet for baking chamber dimensions.
Key Features
- Four 32.3" × 32.3" decks each hold a 16" pizza, giving up to 64 pizzas per cycle.
- Digital display with timer and electronic controls maintains a precise 932°F max temperature.
- Halogen lighting and heat‑reflective glass door let operators monitor cooking without heat loss.
- Stainless‑steel front, UL/UL‑EPH certification, and locking casters provide durability, safety, and easy mobility.
Choose Your Configuration
Select voltage before ordering. Voltage and phase must match your installation. Any finish surcharge is included in the selected variant price.
- Voltage: 208 V / 60 Hz / 3-Phase, 208 V / 60 Hz / Single Phase, 240 V / 60 Hz / 3-Phase, 240 V / 60 Hz / Single Phase, 480 V / 60 Hz / 3-Phase + Neutral
Technical Specifications
| Manufacturer | PizzaMaster |
|---|---|
| Model Number | PM 824ED |
| Shipping Weight (Supplier Reference) | 1153 lbs |
| Width | 49.2 in. |
| Depth | 40.4 in. |
| Height | 78.5 in. |
| Power Type | electric |
| Number Of Decks | 4 decks |
| Deck Depth (front - back) | 32" |
| Exterior Finish | stainless steel front & door |
Installation and Optional Equipment
Have a qualified installer confirm the selected power supply, clearances and ventilation requirements against the manufacturer documentation. Optional factory equipment and extended warranty plans are not included unless explicitly identified in the selected configuration.
Documents and Resources
Available manufacturer documents: Spec Sheet, Terms and Conditions, UL Form, Control Checklist, Owner's Manual, Warranty. Open the documents section to view or download the PDFs.
