Description

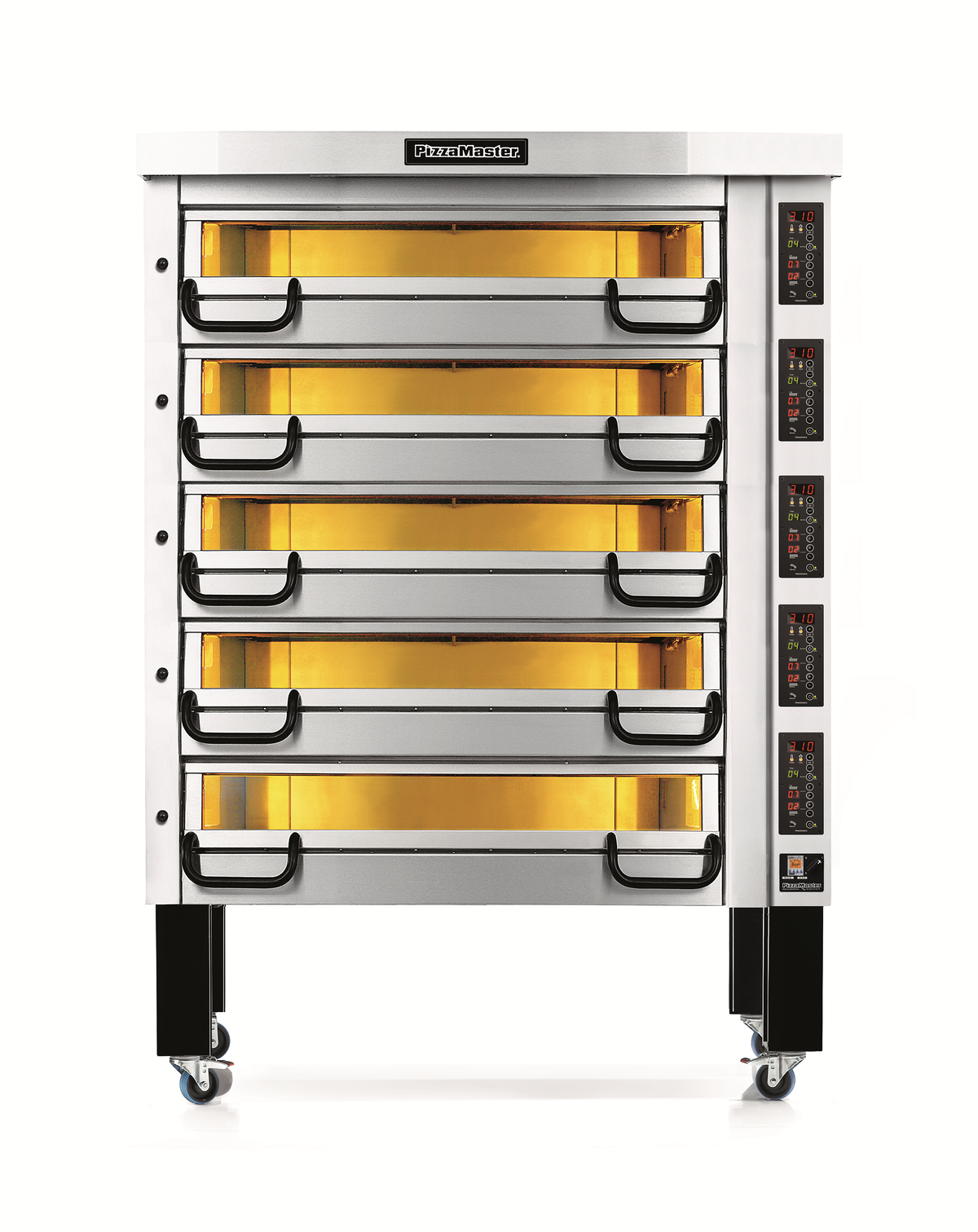

PizzaMaster PM 825ED
Review this model’s deck configuration, exterior dimensions and available electrical options to select the oven that fits your operation. Overall oven width is not the maximum pizza diameter; consult the manufacturer sheet for baking chamber dimensions.
Key Features
- Five 32.3" × 32.3" decks each hold four 16" pizzas, totaling 20 pies per batch.
- Maximum temperature of 932°F enables rapid crust development and quick bake cycles.
- Each deck supplies 9.0 kW of power and includes two 16" stone plates for even heat distribution.
- Digital display with timer, halogen lighting, and Turbo‑Start reduces pre‑heat time and simplifies operation.
- UL and UL EPH classified construction with stainless‑steel front and heat‑reflecting glass door ensures safety and durability.
Choose Your Configuration
Select voltage before ordering. Voltage and phase must match your installation. Any finish surcharge is included in the selected variant price.
- Voltage: 208 V / 60 Hz / 3-Phase, 240 V / 60 Hz / Single Phase, 480 V / 60 Hz / 3-Phase + Neutral, 208 V / 60 Hz / Single Phase, 240 V / 60 Hz / 3-Phase
Technical Specifications
| Manufacturer | PizzaMaster |
|---|---|
| Model Number | PM 825ED |
| Shipping Weight (Supplier Reference) | 1400 lbs |
| Width | 49.2 in. |
| Depth | 40.4 in. |
| Height | 91.9 in. |
| Power Type | electric |
Installation and Optional Equipment
Have a qualified installer confirm the selected power supply, clearances and ventilation requirements against the manufacturer documentation. Optional factory equipment and extended warranty plans are not included unless explicitly identified in the selected configuration.
Documents and Resources
Available manufacturer documents: Spec Sheet, Warranty, Control Checklist, Owner's Manual, UL Form, Terms and Conditions. Open the documents section to view or download the PDFs.
