Description

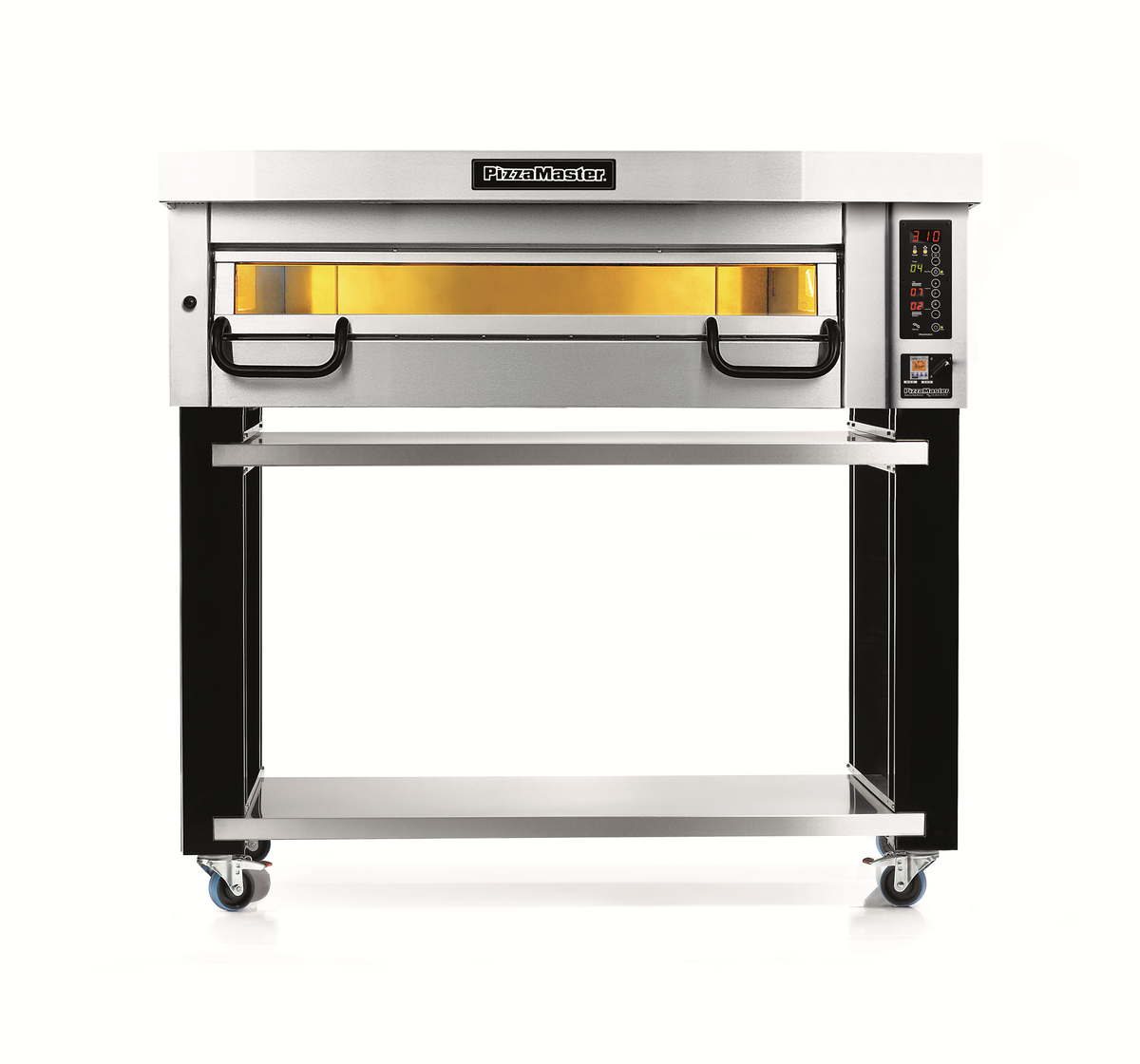

PizzaMaster PM 831ED
Review this model’s deck configuration, exterior dimensions and available electrical options to select the oven that fits your operation. Overall oven width is not the maximum pizza diameter; consult the manufacturer sheet for baking chamber dimensions.
Key Features
- One 48.4" W × 32.3" D deck holds six 16" pizzas per load, maximizing output in limited space.
- Maximum 932°F operating temperature and 13.5 kW power per deck ensure quick bake cycles and crisp crusts.
- Digital display with electronic controls, timer, and Turbo‑Start reduces pre‑heat time and simplifies operation.
- Three 16" hearth stones per deck and halogen lighting provide even heat distribution and visual monitoring.
- UL and UL EPH classified construction with heat‑reflecting glass door, stainless steel front, and locking casters for safety and durability.
Choose Your Configuration
Select exterior and voltage before ordering. Voltage and phase must match your installation. Any finish surcharge is included in the selected variant price.
- Exterior: Stainless Steel, Phantom Black
- Voltage: 240 V / 60 Hz / 3-Phase, 208 V / 60 Hz / 3-Phase, 240 V / 60 Hz / Single Phase, 480 V / 60 Hz / 3-Phase + Neutral, 208 V / 60 Hz / Single Phase
Technical Specifications
| Manufacturer | PizzaMaster |
|---|---|
| Model Number | PM 831ED |
| Shipping Weight (Supplier Reference) | 672 lbs |
| Width | 65.4 in. |
| Depth | 40.4 in. |
| Height | 65.2 in. |
| Power Type | electric |
| Number Of Decks | 1 deck |
| Deck Depth (front - back) | 32" |
| Deck Construction | hearth stone |
| Certifications | UL, UL EPH Classified |
Installation and Optional Equipment
Have a qualified installer confirm the selected power supply, clearances and ventilation requirements against the manufacturer documentation. Optional factory equipment and extended warranty plans are not included unless explicitly identified in the selected configuration.
Documents and Resources
Available manufacturer documents: Spec Sheet, Control Checklist. Open the documents section to view or download the PDFs.
