Description

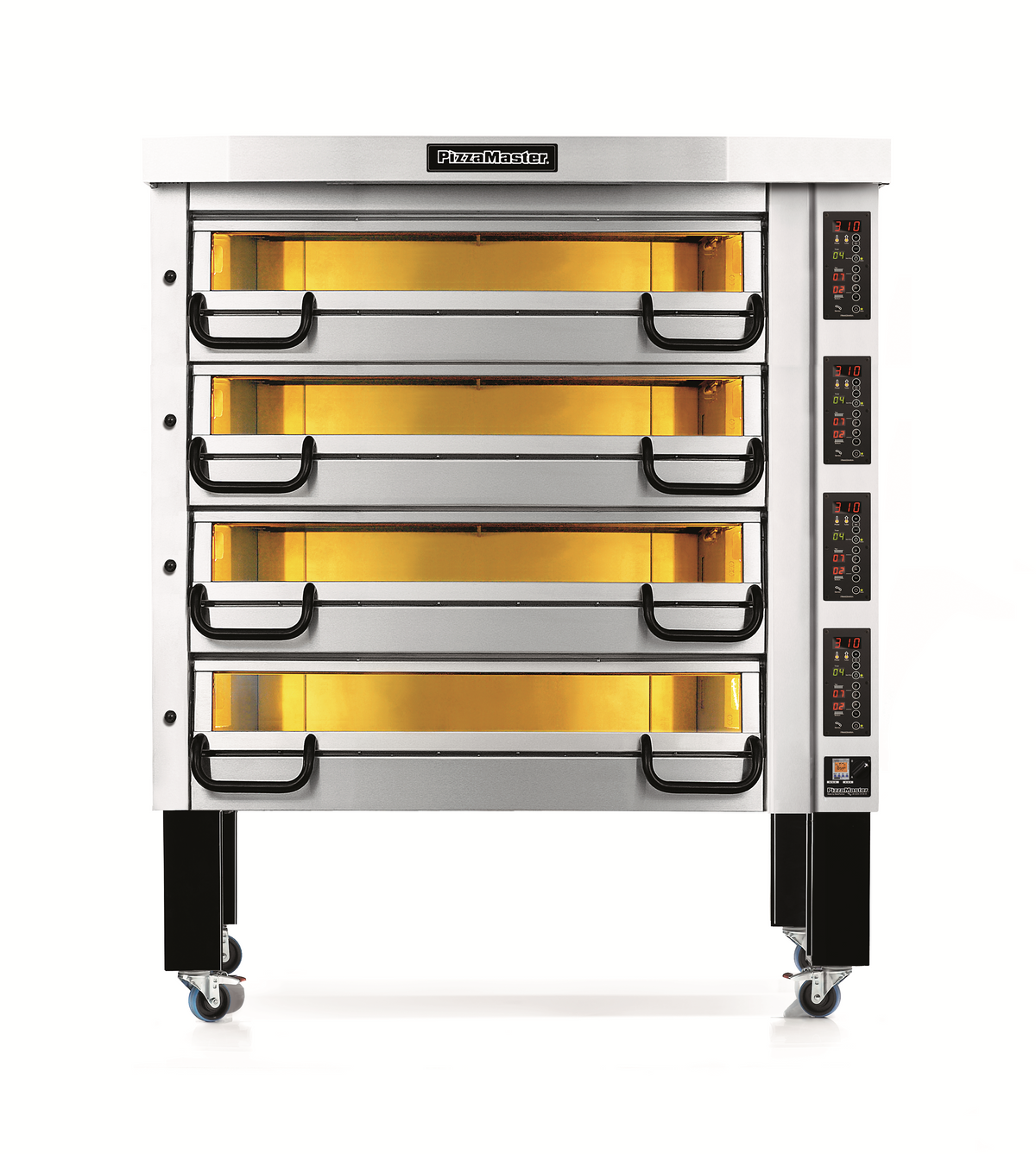

PizzaMaster PM 844ED
Review this model’s deck configuration, exterior dimensions and available electrical options to select the oven that fits your operation. Overall oven width is not the maximum pizza diameter; consult the manufacturer sheet for baking chamber dimensions.
Key Features
- Four 64.6" × 32.3" decks hold eight 16" pizzas each, delivering 32 pies per cycle.
- Digital display with electronic controls sets up to 932°F and programmable timers.
- Each deck includes a 16" stainless‑steel stone and halogen lighting for even baking.
- Turbo‑Start cuts preheat time and the heat‑reflecting glass door improves energy efficiency.
Choose Your Configuration
Select voltage before ordering. Voltage and phase must match your installation. Any finish surcharge is included in the selected variant price.
- Voltage: 208 V / 60 Hz / 3-Phase, 240 V / 60 Hz / 3-Phase, 240 V / 60 Hz / Single Phase, 480 V / 60 Hz / 3-Phase + Neutral, 208 V / 60 Hz / Single Phase
Technical Specifications
| Manufacturer | PizzaMaster |
|---|---|
| Model Number | PM 844ED |
| Shipping Weight (Supplier Reference) | 2218 lbs |
| Width | 81.5 in. |
| Depth | 40.4 in. |
| Height | 78.5 in. |
| Power Type | electric |
Installation and Optional Equipment
Have a qualified installer confirm the selected power supply, clearances and ventilation requirements against the manufacturer documentation. Optional factory equipment and extended warranty plans are not included unless explicitly identified in the selected configuration.
Documents and Resources
Available manufacturer documents: Spec Sheet, Owner's Manual, Terms and Conditions, Control Checklist, UL Form, Warranty. Open the documents section to view or download the PDFs.
