Description

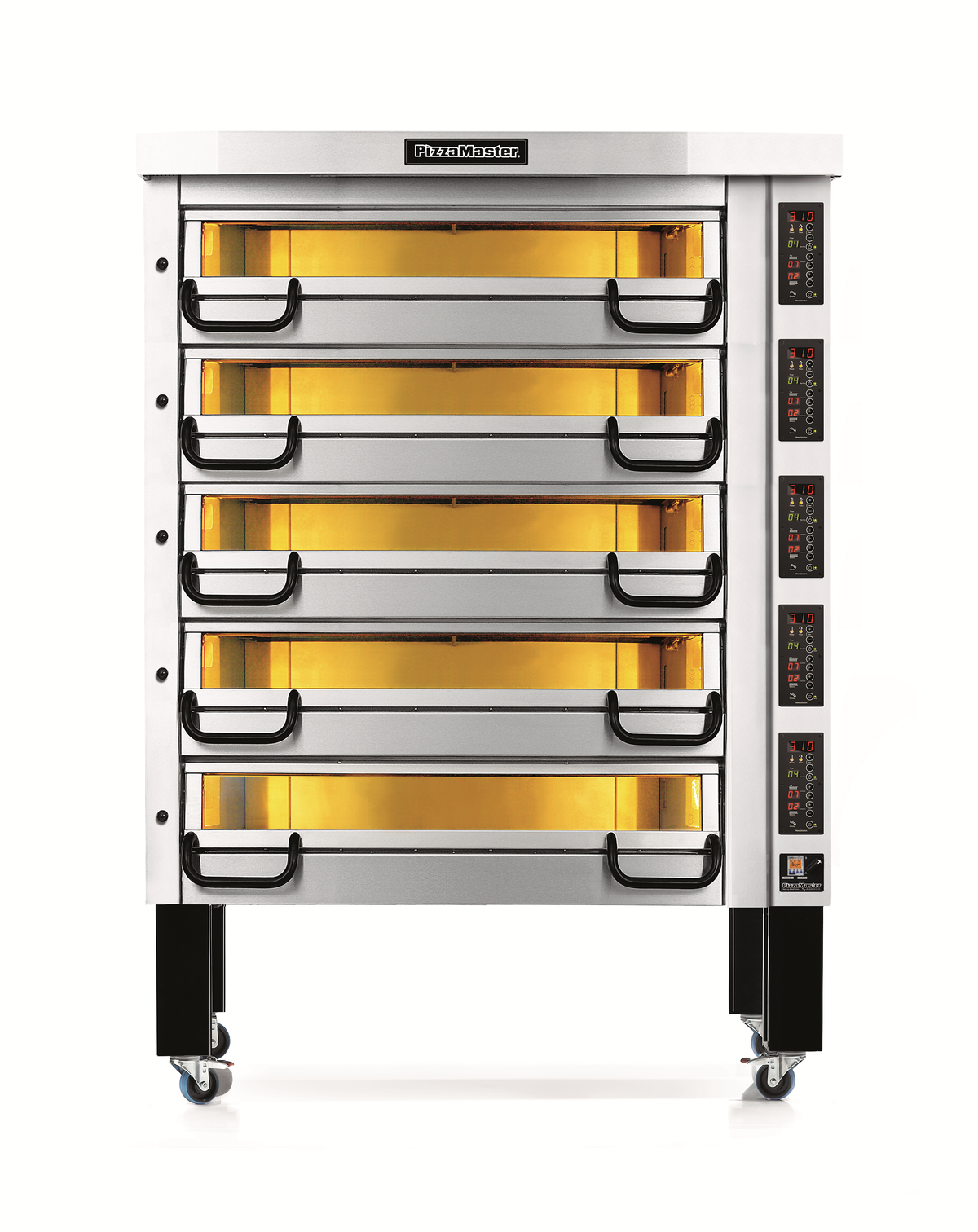

PizzaMaster PM 845ED
Review this model’s deck configuration, exterior dimensions and available electrical options to select the oven that fits your operation. Overall oven width is not the maximum pizza diameter; consult the manufacturer sheet for baking chamber dimensions.
Key Features
- Five 64.6" W x 32.3" D decks each hold eight 16" pizzas, totaling 40 pies per batch
- Maximum temperature of 932°F enables quick crust development and authentic wood‑fired flavor
- Each deck equipped with a 16" stone and halogen lighting for even bake and visual monitoring
- Digital display with electronic controls and timer streamlines temperature and cooking time management
- 17.0 kW per deck, UL and UL EPH classified for commercial safety and energy efficiency
Choose Your Configuration
Select voltage before ordering. Voltage and phase must match your installation. Any finish surcharge is included in the selected variant price.
- Voltage: 208 V / 60 Hz / 3-Phase, 240 V / 60 Hz / Single Phase, 480 V / 60 Hz / 3-Phase + Neutral, 208 V / 60 Hz / Single Phase, 240 V / 60 Hz / 3-Phase
Technical Specifications
| Manufacturer | PizzaMaster |
|---|---|
| Model Number | PM 845ED |
| Shipping Weight (Supplier Reference) | 2696 lbs |
| Width | 81.5 in. |
| Depth | 40.4 in. |
| Height | 91.9 in. |
| Power Type | electric |
Installation and Optional Equipment
Have a qualified installer confirm the selected power supply, clearances and ventilation requirements against the manufacturer documentation. Optional factory equipment and extended warranty plans are not included unless explicitly identified in the selected configuration.
Documents and Resources
Available manufacturer documents: Spec Sheet, Owner's Manual, Terms and Conditions, Control Checklist, Warranty, UL Form. Open the documents section to view or download the PDFs.
