Prepline EST48-3O-LT 48" 3-Well Open Electric Steam Table with Lighted Sneeze Guard and Undershelf, 1500W, 120V

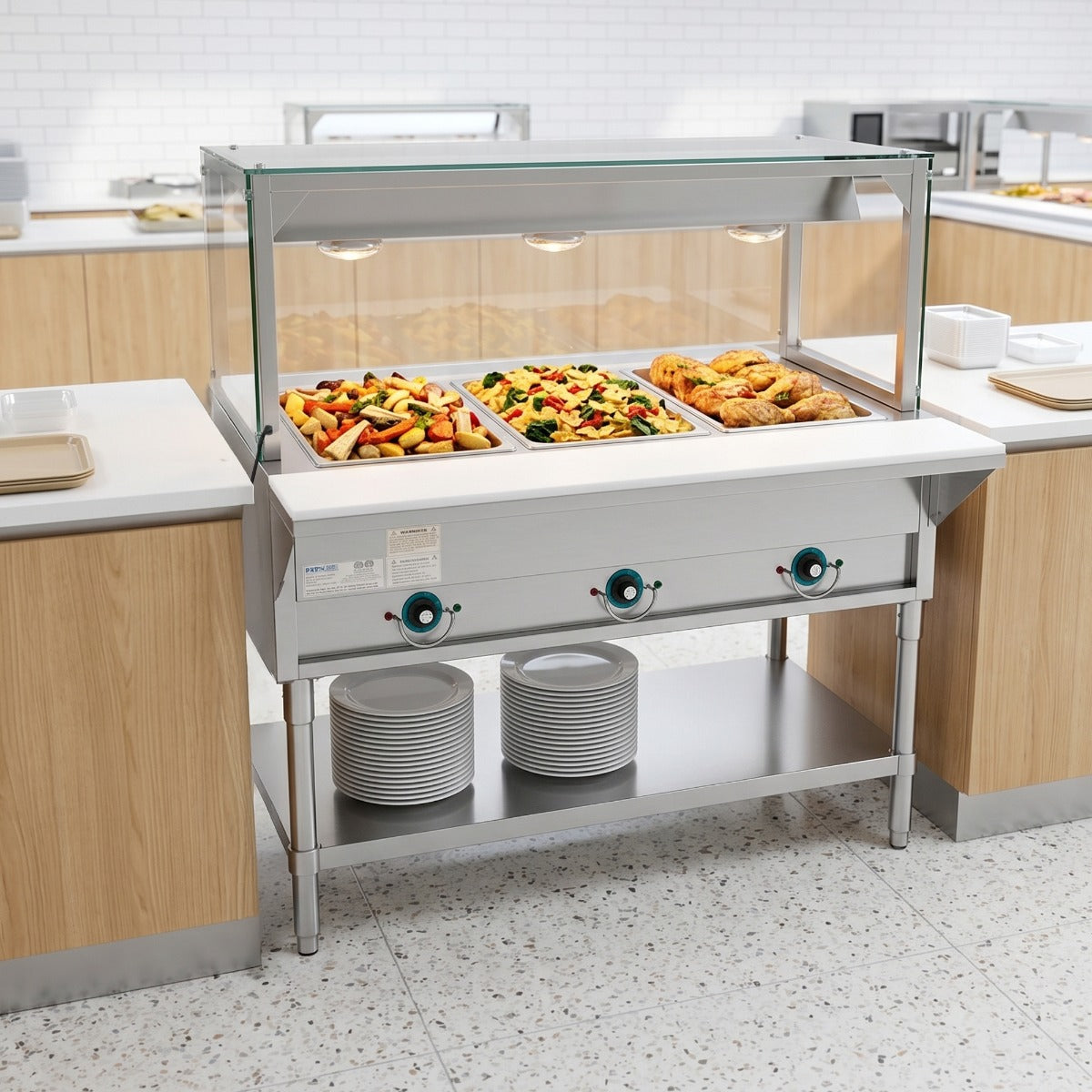

A 48" 3-well electric steam table that holds hot food wet or dry on the serving line, with a sneeze guard to protect it.

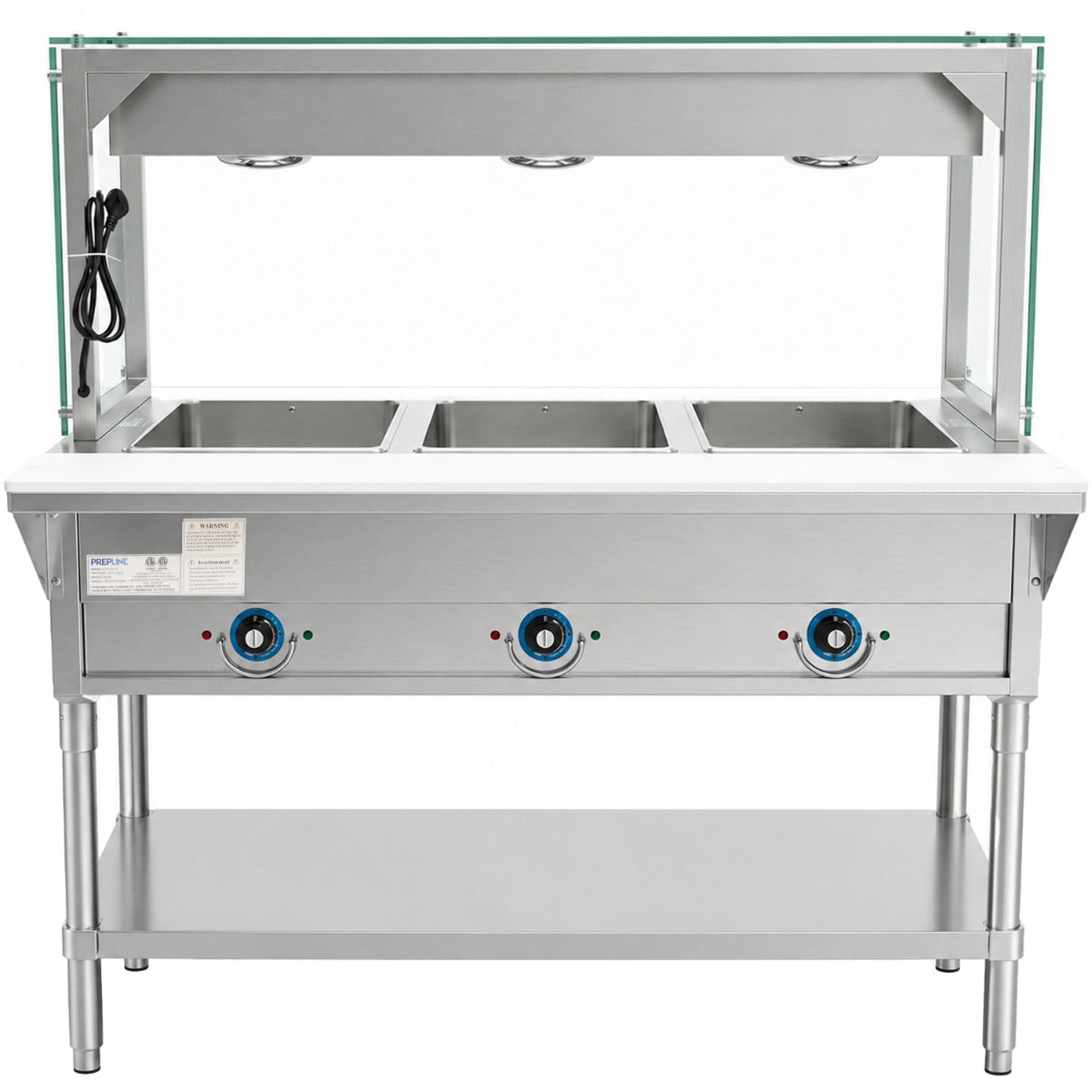

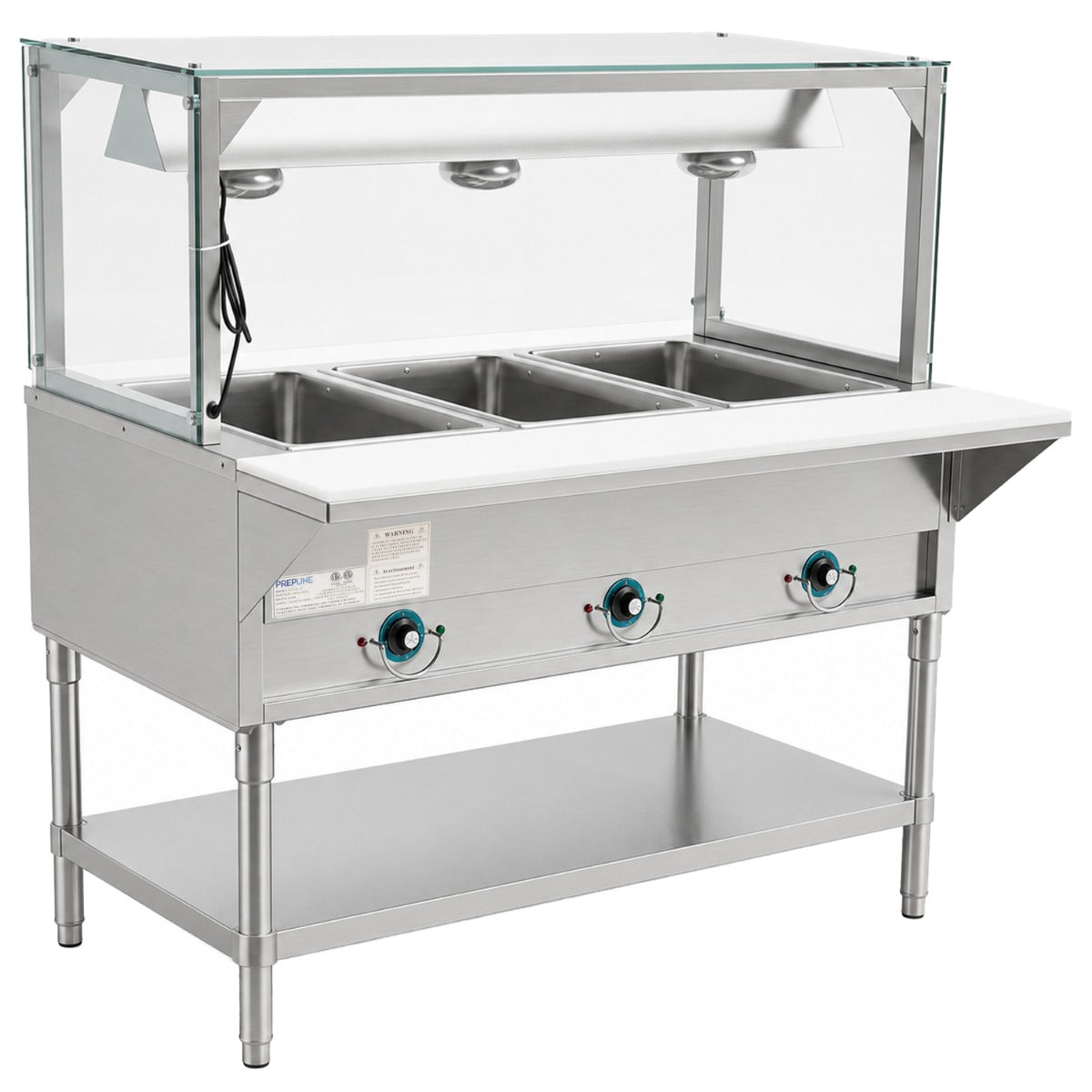

The Prepline EST48-3O-LT gives cafeterias, caterers, buffets and serving lines 3 open 12" × 20" wells, each with its own heat control and indicator light. The wells run dry, or wet with spillage pans (sold separately), and need no plumbing or drain. A 1/2" poly cutting board runs along the front, and the stainless steel undershelf holds pans, plates and lids. This package adds a PSG-LT-48 lighted sneeze guard with four-side tempered glass and 3 heat lamp bulbs that light and warm the food from above; it plugs into a separate 120V outlet. It plugs into a 120V NEMA 5-15P outlet on a dedicated 15 A circuit. Pans are sold separately.
The base ships for assembly on site; measure the spot on the line, including the 8" cutting board at the front.

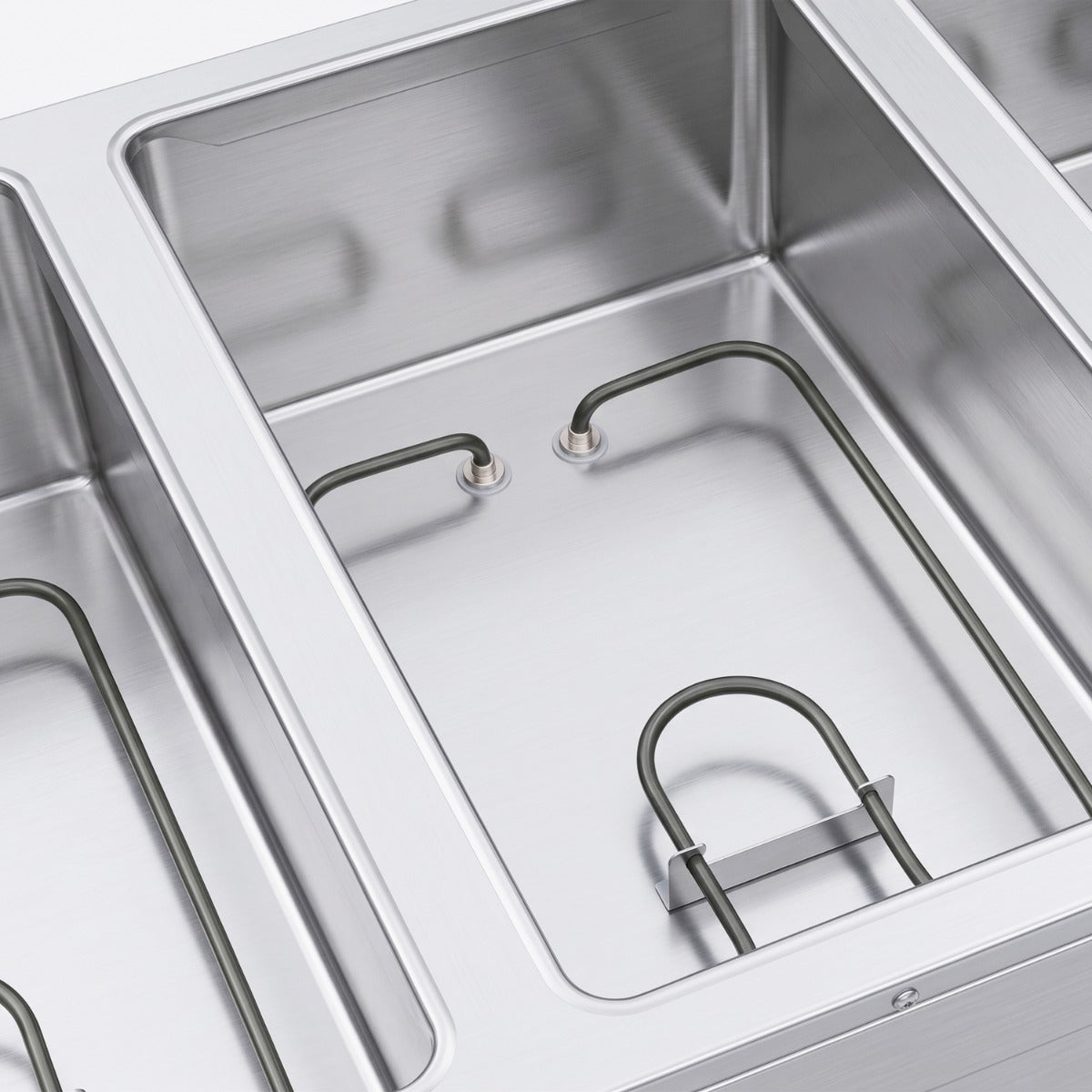

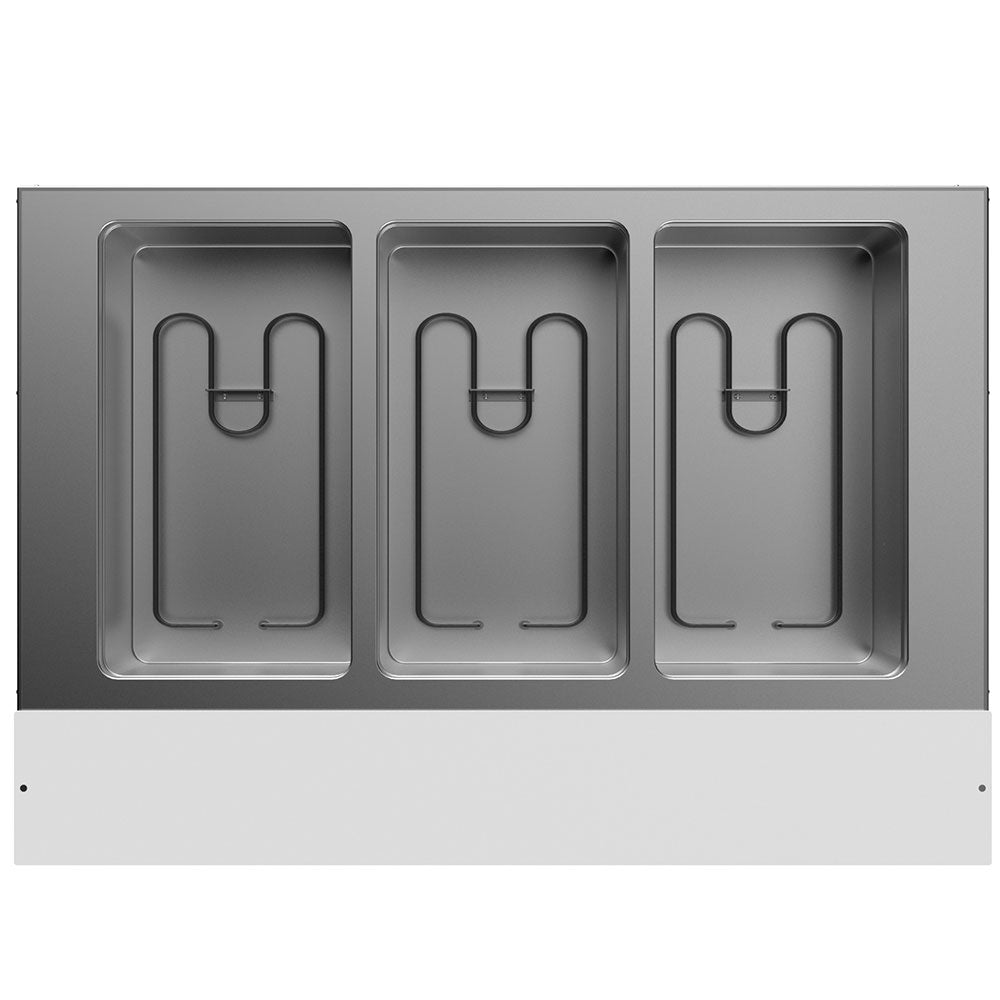

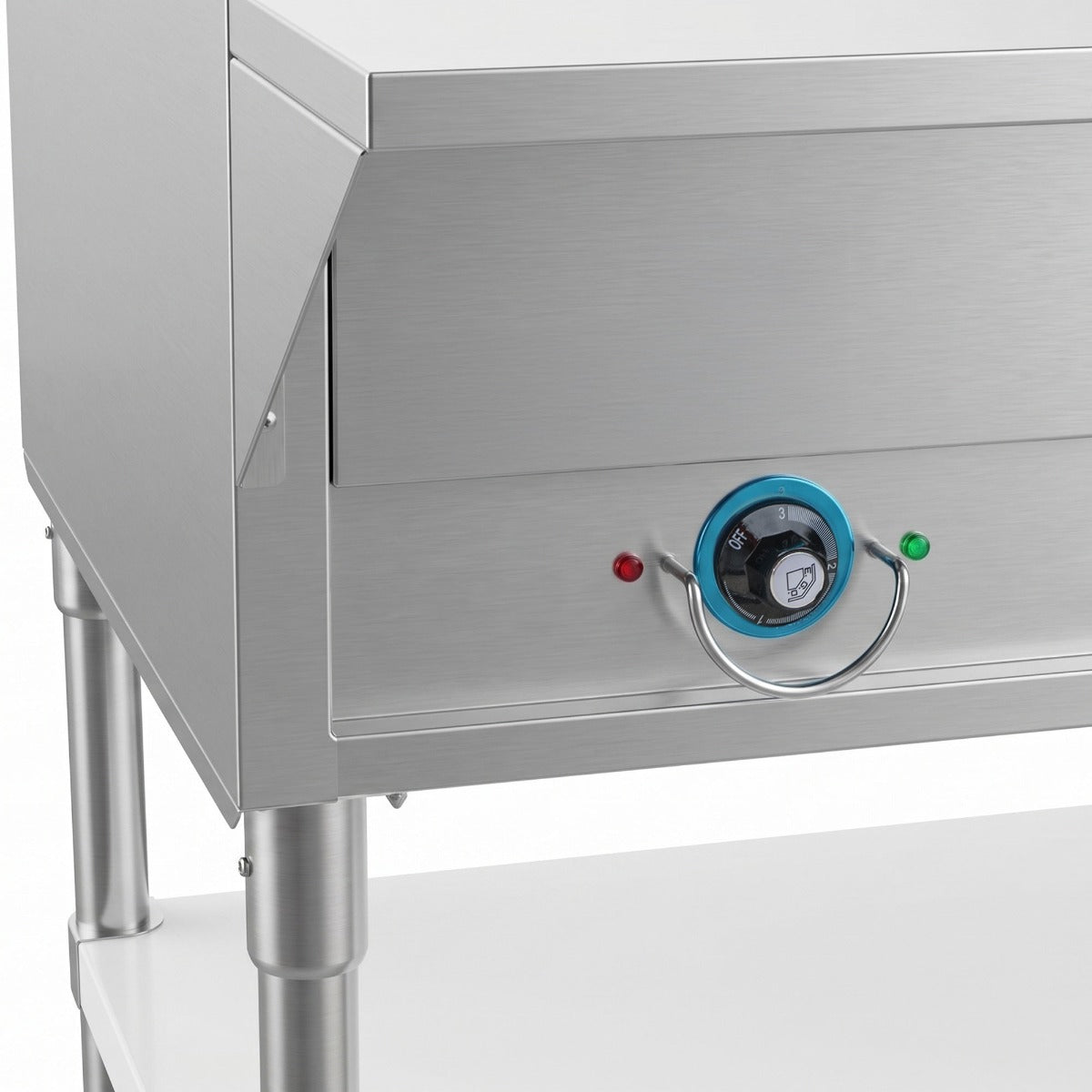

Each 12" × 20" well has its own heat control and indicator light.
Run the open wells dry, or add spillage pans with hot water; no plumbing needed.

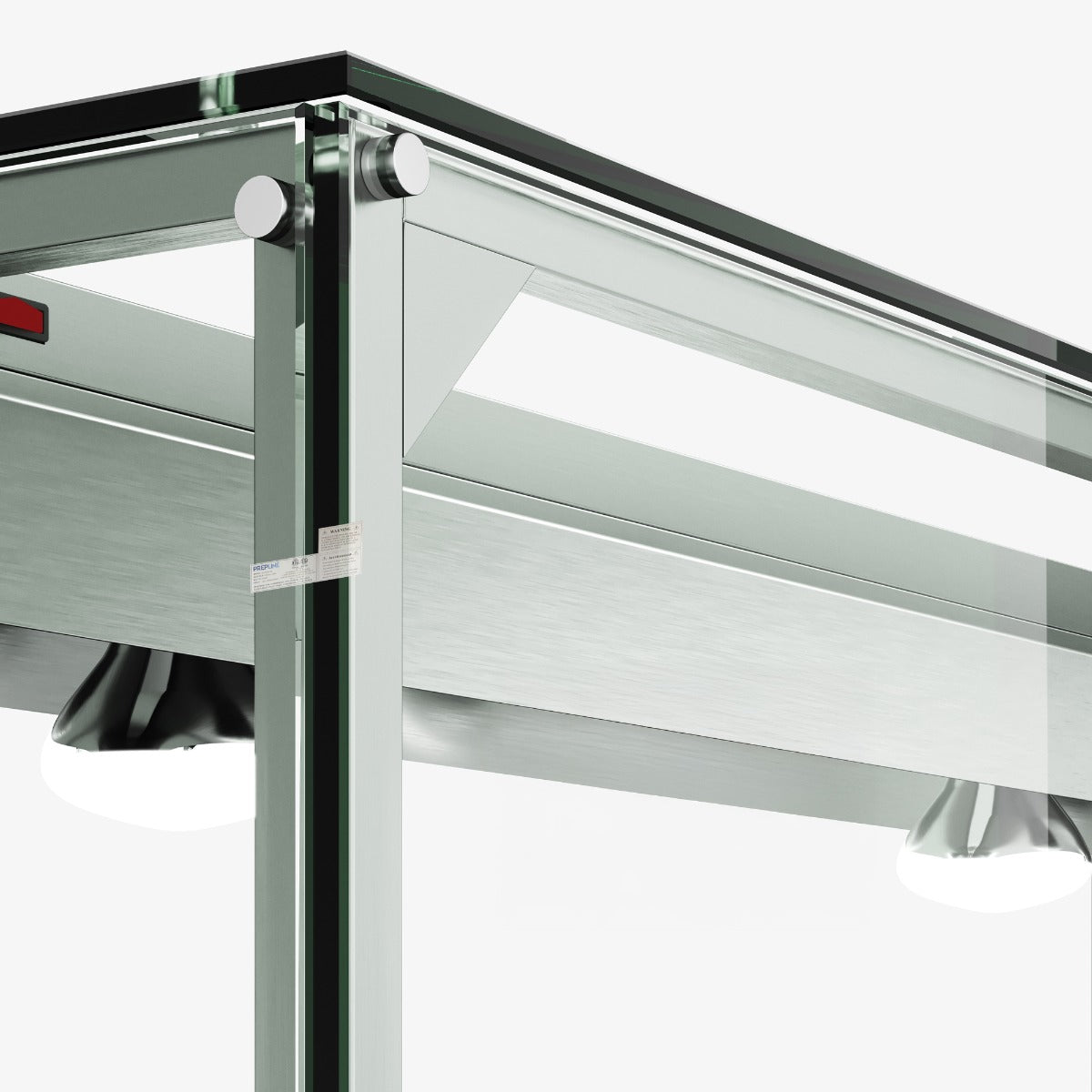

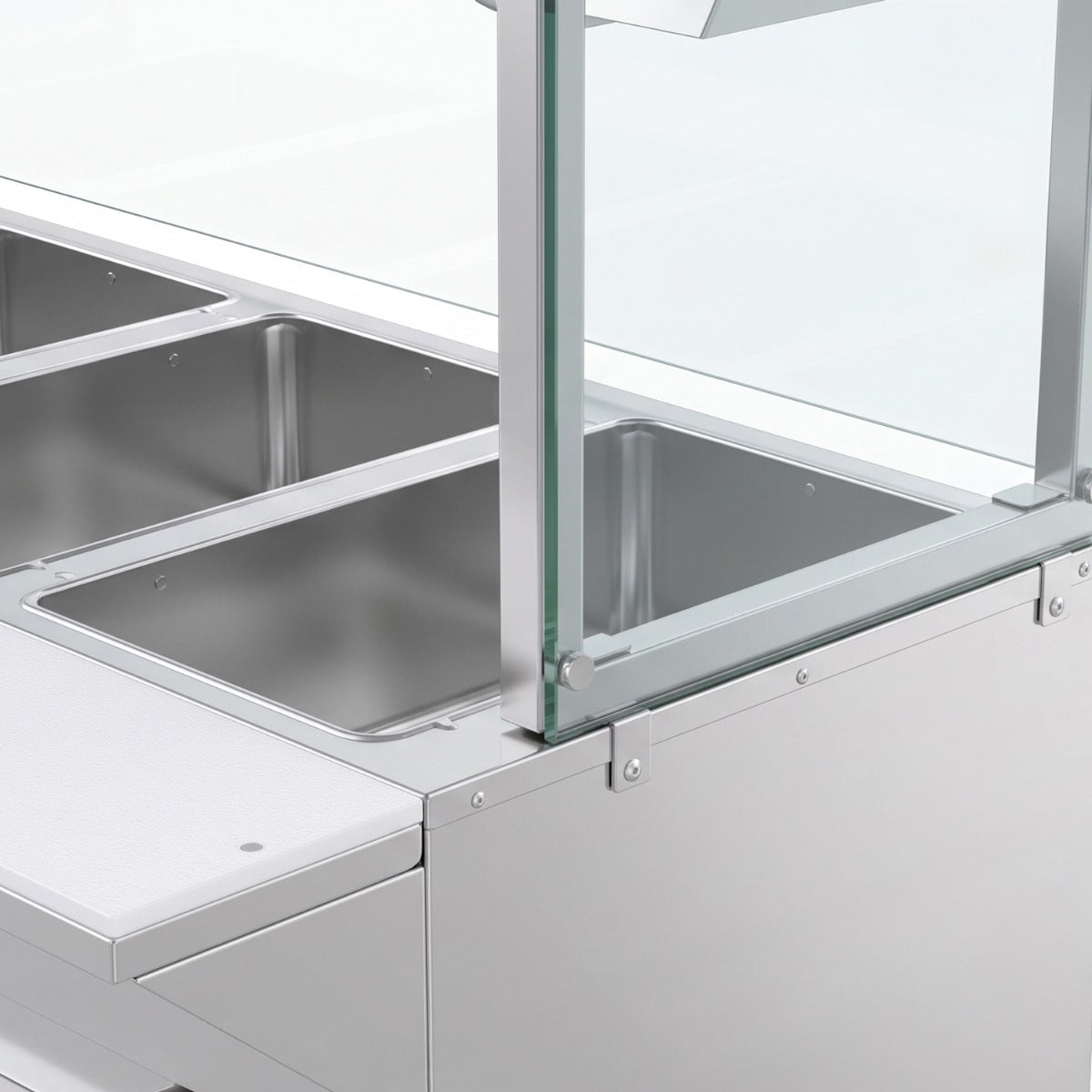

Tempered glass on four sides with 3 heat lamp bulbs that add top-down heat.
A 1/2"-thick poly board along the front for plating and serving.
A stainless steel undershelf keeps pans, plates and lids within reach.
A grounded 120V NEMA 5-15P outlet for its 6 ft. cord. It is rated 1,500W, and USR Brands requires a dedicated 15 A circuit installed by a licensed electrician. The lighted sneeze guard plugs separately into a standard 120V NEMA 5-15P outlet (750W).
Both. The open wells work with dry heat, or with hot water in spillage pans (sold separately); the manual says never to put water directly in the heating well or on the element. No plumbing or drain is needed.
No, pans and spillage pans are sold separately. Each of the 3 wells is 12" × 20" and 6.5" deep.
No. It holds food that is already cooked. The manual says to preheat for 45 minutes, load pre-cooked food at 160°F or more, and notes that NSF requires holding food at a minimum of 150°F.
It is 48" wide, 30.6" deep with the 8" cutting board and 34.4" high, and the sneeze guard adds 20" on top (48" × 19" footprint). The manual lists 2" of clearance at the sides and rear, and it may stand on combustible or non-combustible floors.
Yes. The PSG-LT-48 has 3 heat lamp bulbs that light the food and add heat from above, behind tempered glass on four sides. It ships for installation on the table.
USR Brands covers Prepline EST-series steam tables for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, residential use is not covered, and glass is not covered.
USR Brands, which backs the Prepline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | EST48-3O-LT |
| Quantity | 1/Each |
| Includes | EST48-3O Electric Steam TablePSG-LT-48 Lighted Sneeze Guard |
| Width | 48 Inches |
| Depth | 30.6 Inches |
| Height | 34.4 Inches |
| Body Depth without Cutting Board | 22.6 Inches |
| Voltage | 120 Volts |
| Wattage | 1,500W |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord | 6 ft., Cord and Plug Included |
| Circuit | Dedicated 15 Amp Circuit |
| Sneeze Guard Electrical | 120 Volts750WNEMA 5-15P |
| Capacity | 3 Wells, 12" x 20" Each |
| Well Depth | 6.5 Inches |
| Well Type | Open Well (Dry, or Wet with Spillage Pans) |
| Drain | None (No Plumbing Needed) |
| Controls | Independent Heat Controls with Indicator Lights |
| Heating Element | Stainless Steel |
| Cutting Board | 1/2" Thick Polyethylene, 8" Deep |
| Base | Stainless Steel Undershelf |
| Construction | Stainless Steel |
| Feet | Adjustable Stainless Steel |
| Pans | Sold Separately |
| Sneeze Guard | PSG-LT-48, 48" L x 19" D x 20" H |
| Sneeze Guard Glass | Four-Side Tempered Glass |
| Heat Lamp Bulbs | 3, Included |
| Sneeze Guard Frame | Stainless Steel |
| Assembly | Cabinet Assembly RequiredSneeze Guard Installation Required |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
