Prepline EST60-4O-110 60" 4-Well Open Electric Steam Table with Undershelf, 2000W, 110V

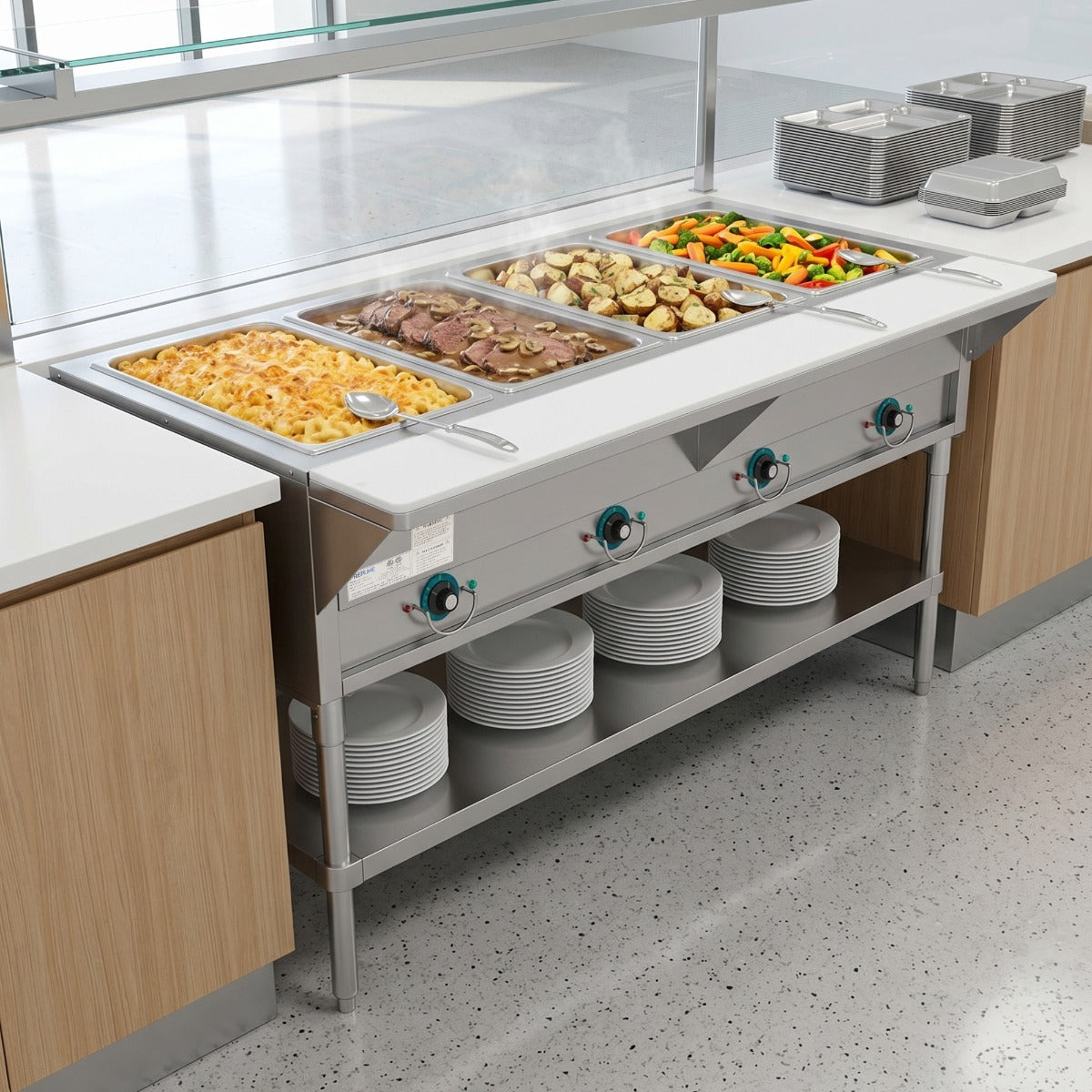

A 60" 4-well electric steam table that holds hot food wet or dry on the serving line, with an undershelf for storage.

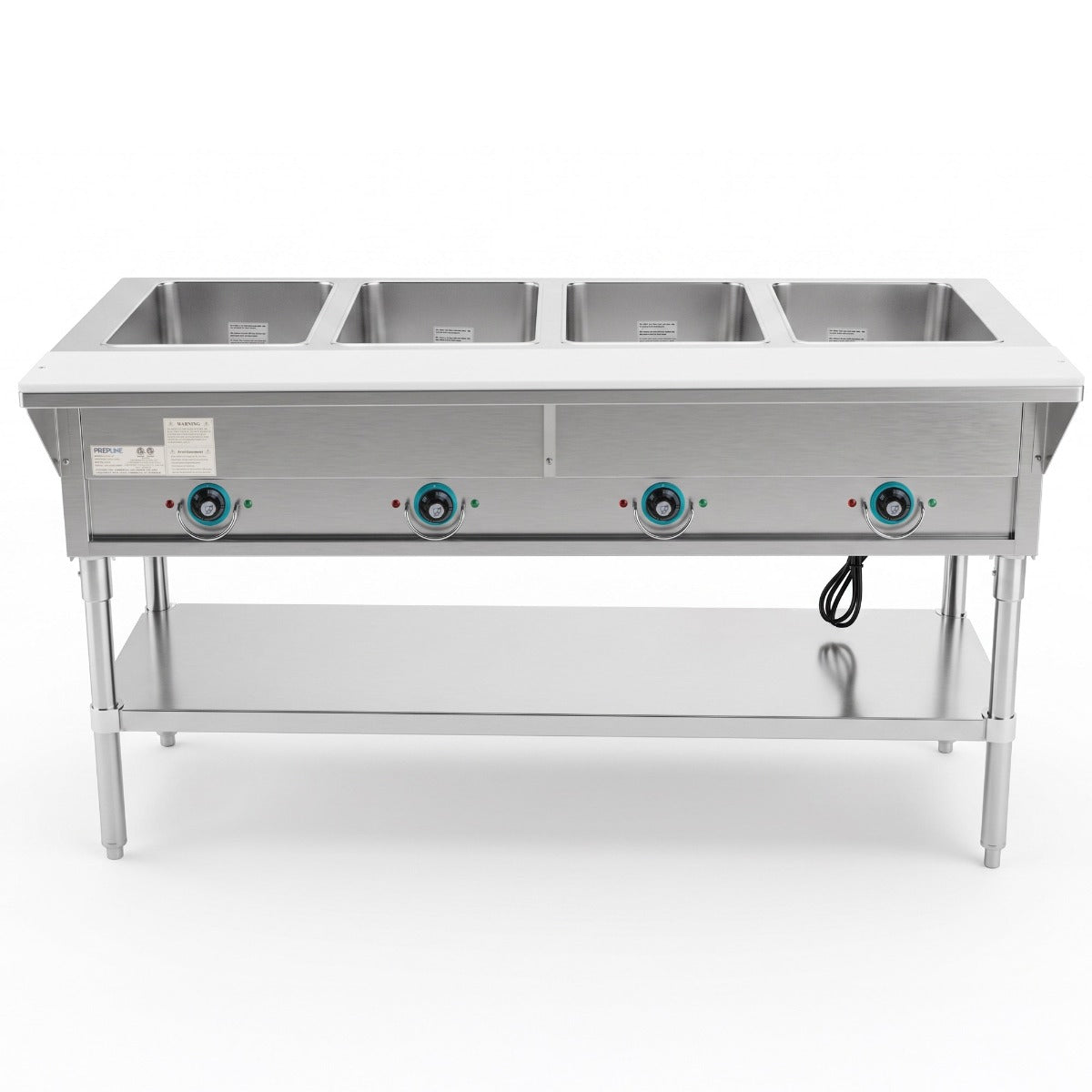

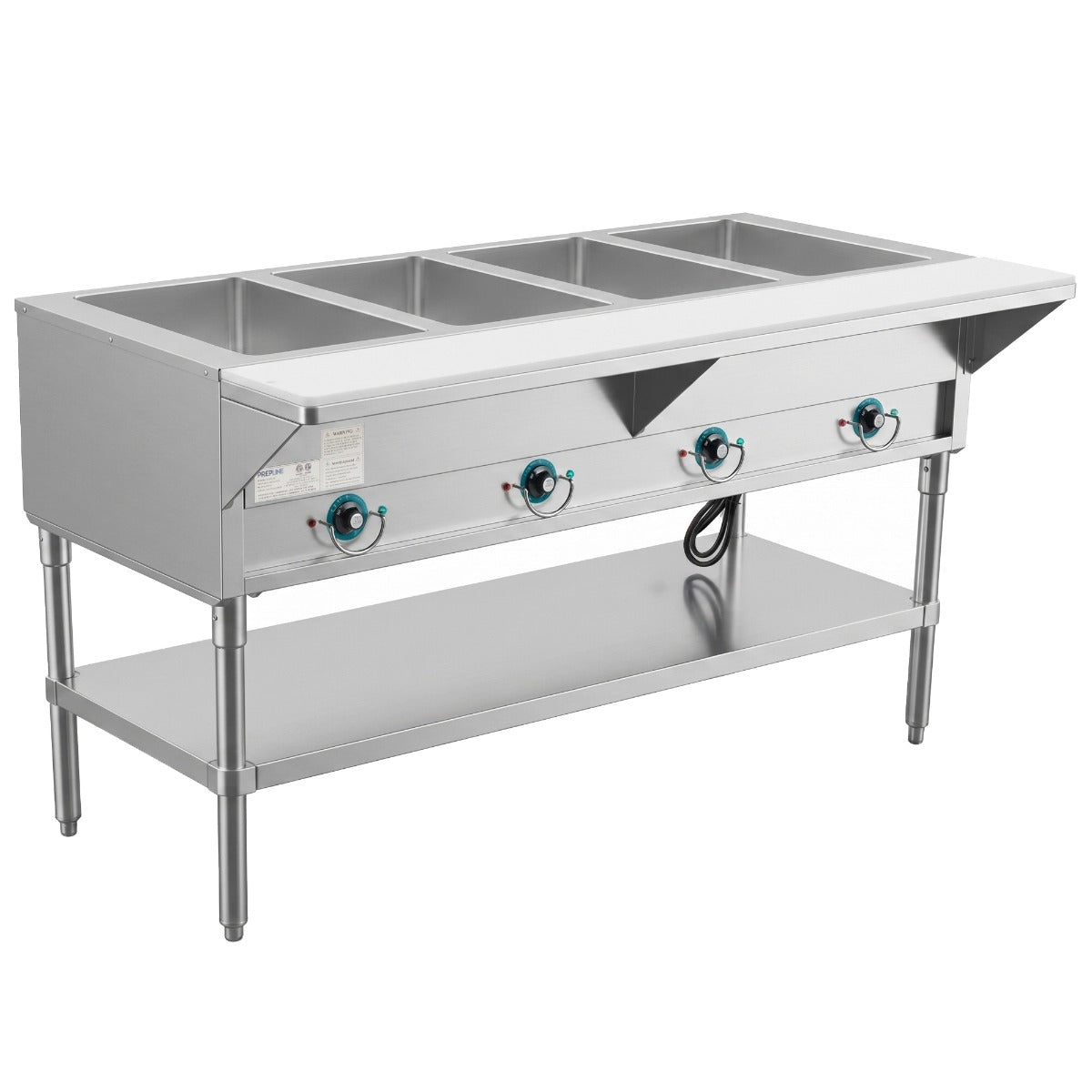

The Prepline EST60-4O-110 gives cafeterias, caterers, buffets and serving lines 4 open 12" × 20" wells, each with its own heat control and indicator light. The wells run dry, or wet with spillage pans (sold separately), and need no plumbing or drain. A removable 1/2" poly cutting board runs along the front, and the stainless steel undershelf holds pans, plates and lids. It plugs into a 110V NEMA 5-30P outlet on a dedicated 30 A circuit. Pans are sold separately.
The base ships for assembly on site; measure the spot on the line, including the 8" cutting board at the front.

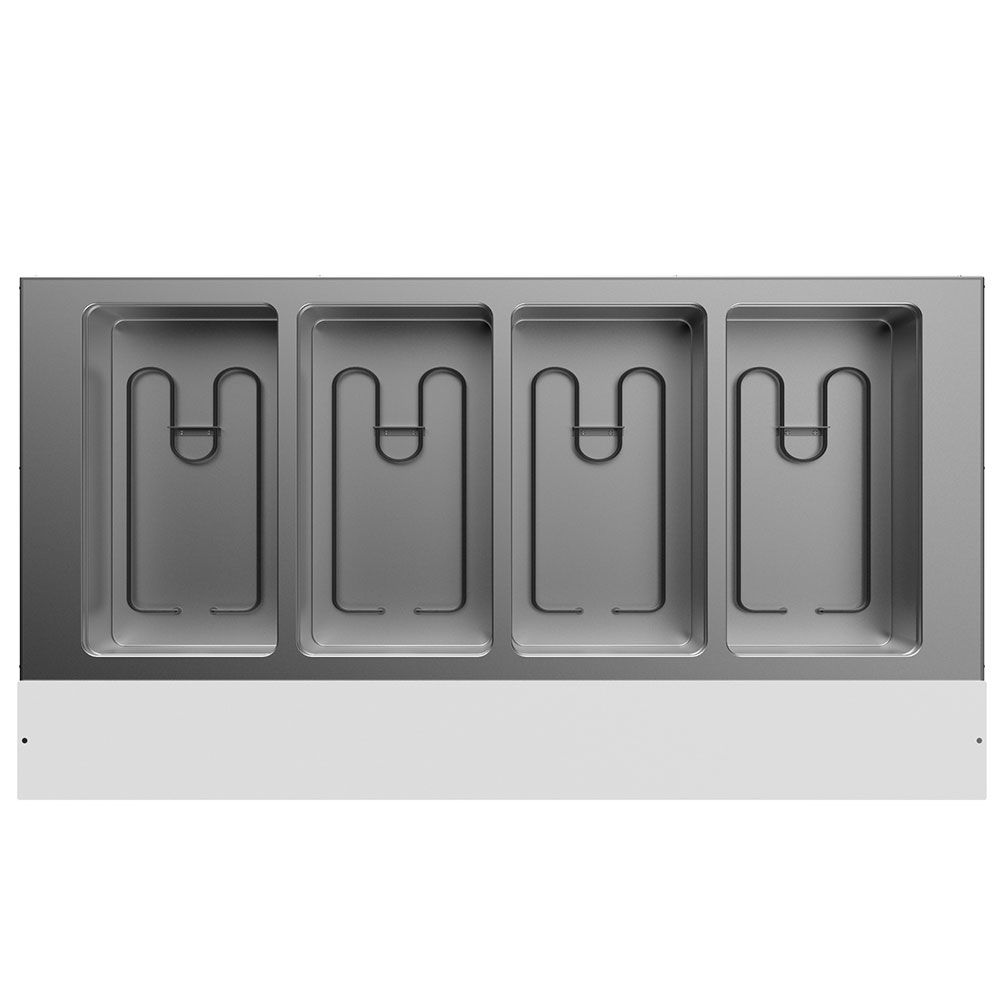

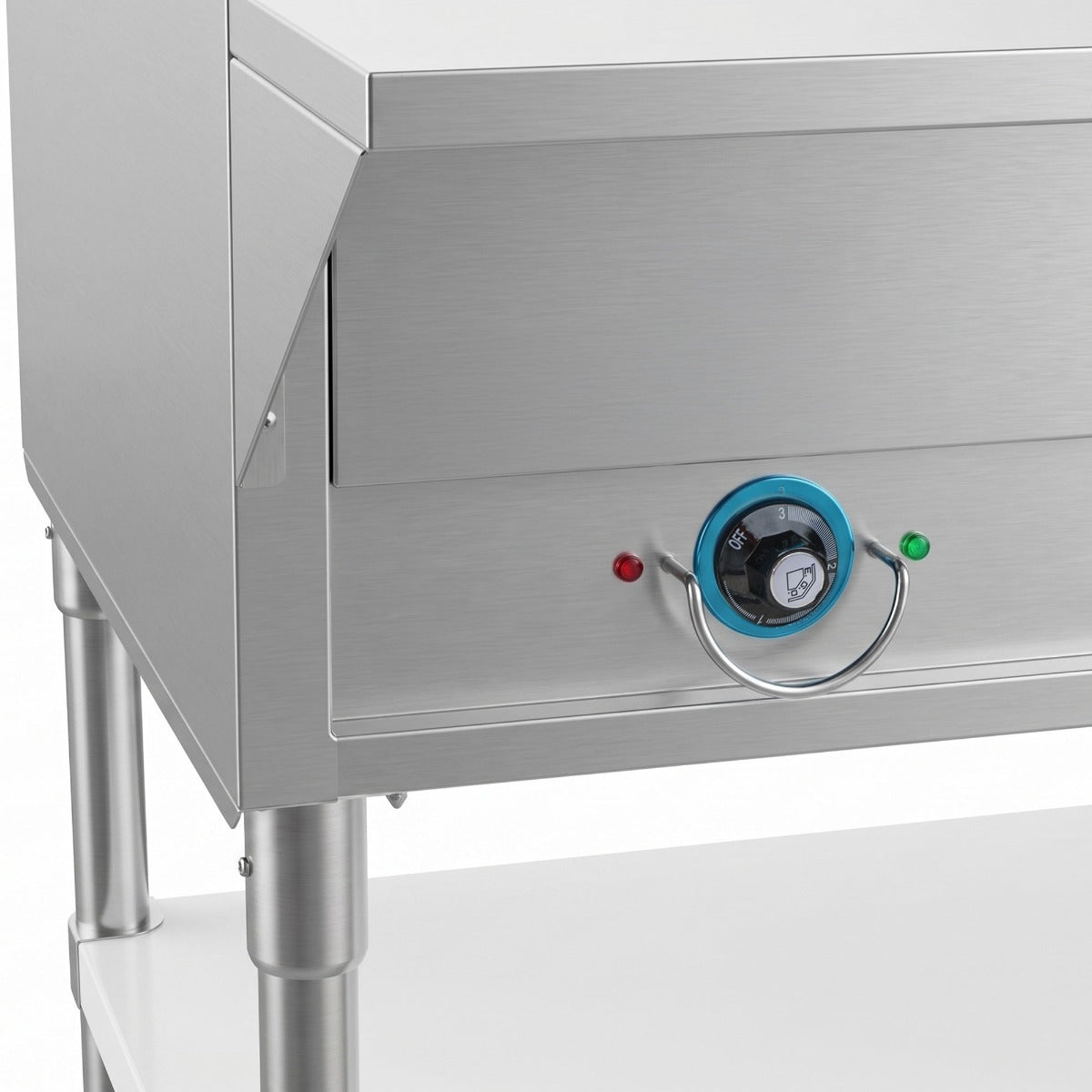

Each 12" × 20" well has its own heat control and indicator light.

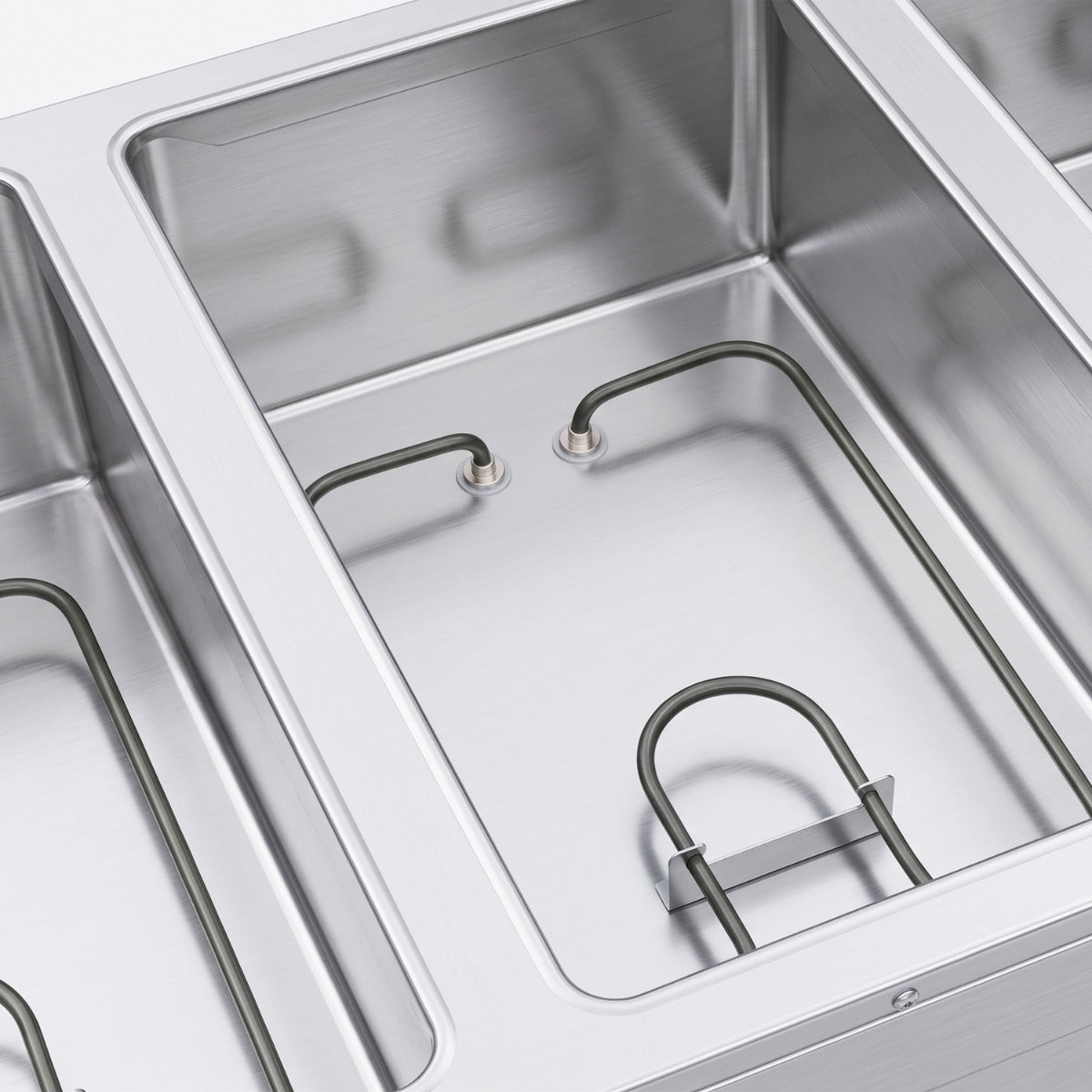

Run the open wells dry, or add spillage pans with hot water; no plumbing needed.
A removable 1/2"-thick poly board along the front for plating and serving.
A stainless steel undershelf keeps pans, plates and lids within reach.

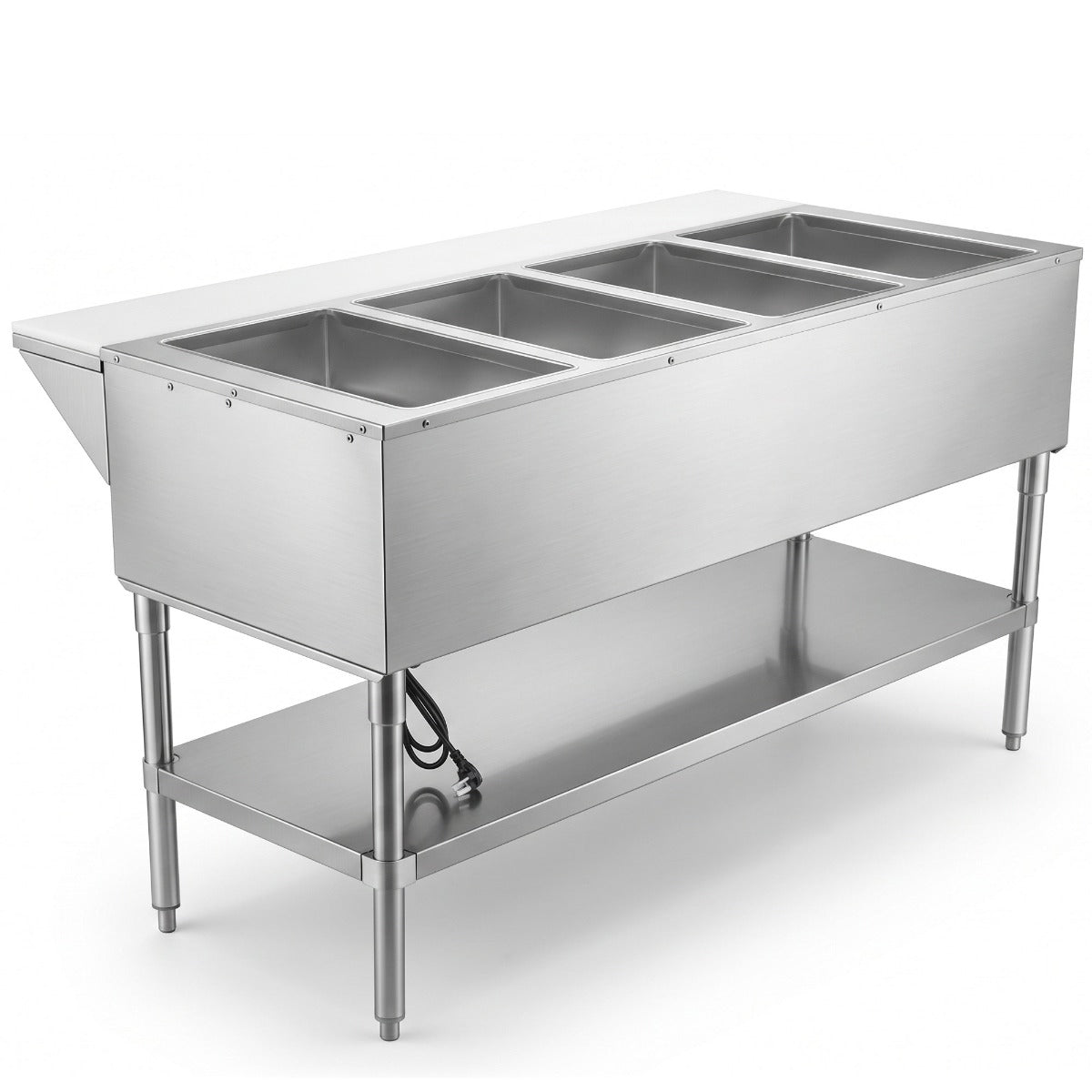

A grounded 110V NEMA 5-30P outlet for its 6 ft. cord. It is rated 2,000W, and USR Brands requires a dedicated 30 A circuit installed by a licensed electrician. Note the 30 A NEMA 5-30P plug: it does not fit a standard wall outlet.
Both. The open wells work with dry heat, or with hot water in spillage pans (sold separately); the manual says never to put water directly in the heating well or on the element. No plumbing or drain is needed.
No, pans and spillage pans are sold separately. Each of the 4 wells is 12" × 20" and 6.5" deep.
No. It holds food that is already cooked. The manual says to preheat for 45 minutes, load pre-cooked food at 160°F or more, and notes that NSF requires holding food at a minimum of 150°F.
It is 60" wide, 30.6" deep with the 8" cutting board and 34.4" high. The manual lists 2" of clearance at the sides and rear, and it may stand on combustible or non-combustible floors.
The base requires assembly; the manual shows the steps. Before first use, run each well on high for about 30 minutes to burn off residue from the elements; some smoke is normal.
USR Brands covers Prepline EST-series steam tables for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, residential use is not covered.
USR Brands, which backs the Prepline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | EST60-4O-110 |
| Quantity | 1/Each |
| Width | 60 Inches |
| Depth | 30.6 Inches |
| Height | 34.4 Inches |
| Body Depth without Cutting Board | 22.6 Inches |
| Voltage | 110 Volts |
| Wattage | 2,000W |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-30P |
| Power Cord | 6 ft., Cord and Plug Included |
| Circuit | Dedicated 30 Amp Circuit |
| Capacity | 4 Wells, 12" x 20" Each |
| Well Depth | 6.5 Inches |
| Well Type | Open Well (Dry, or Wet with Spillage Pans) |
| Drain | None (No Plumbing Needed) |
| Controls | Independent Heat Controls with Indicator Lights |
| Heating Element | Stainless Steel |
| Insulation | Fiberglass Between Wells |
| Cutting Board | Removable 1/2" Thick Polyethylene, 8" Deep |
| Base | Stainless Steel Undershelf |
| Construction | Stainless Steel |
| Feet | Adjustable Stainless Steel |
| Pans | Sold Separately |
| Sneeze Guard | Optional, Sold Separately |
| Assembly | Cabinet Assembly Required |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
