Prepline ESTC30-2S 32" 2-Well Sealed Electric Steam Table with Enclosed Base and Sliding Doors, 1000W, 120V
A 32" two-well electric steam table that holds hot food on the line and stores pans in its enclosed base.
The Prepline ESTC30-2S gives cafeterias, caterers, buffets and quick-service lines two sealed 12" × 20" wells, each with its own heat control and indicator light. The sealed wells are built for water heat and drain through a built-in drain. A removable 1/2" polyethylene cutting board runs along the front, and the enclosed base with sliding doors stores pans and lids. It plugs into a 120V NEMA 5-15P outlet on a dedicated 15 A circuit. Pans are sold separately.
The cabinet ships for assembly on site; measure the spot on the line, including the 8" cutting board at the front.

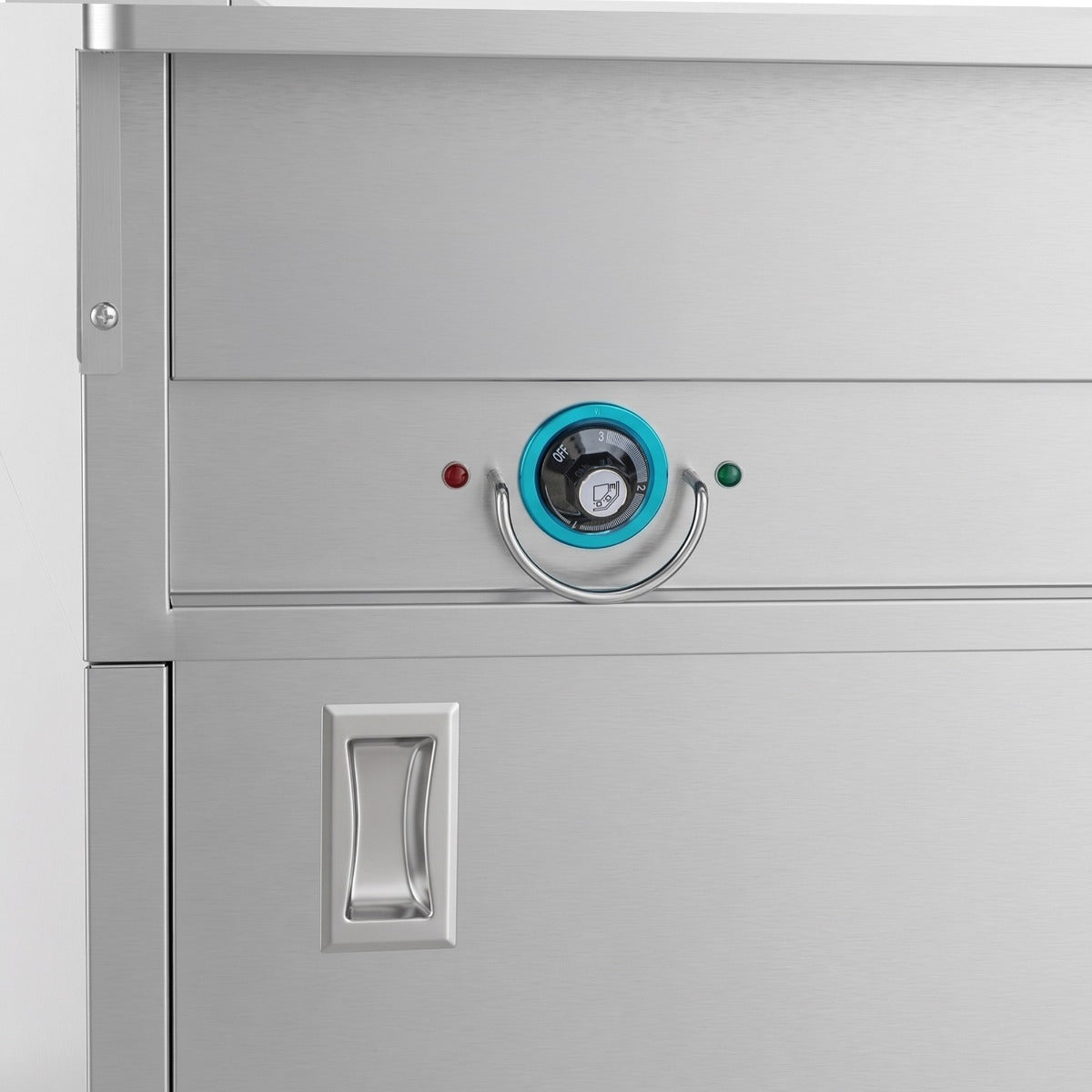

Each 12" × 20" sealed well has its own heat control and indicator light.

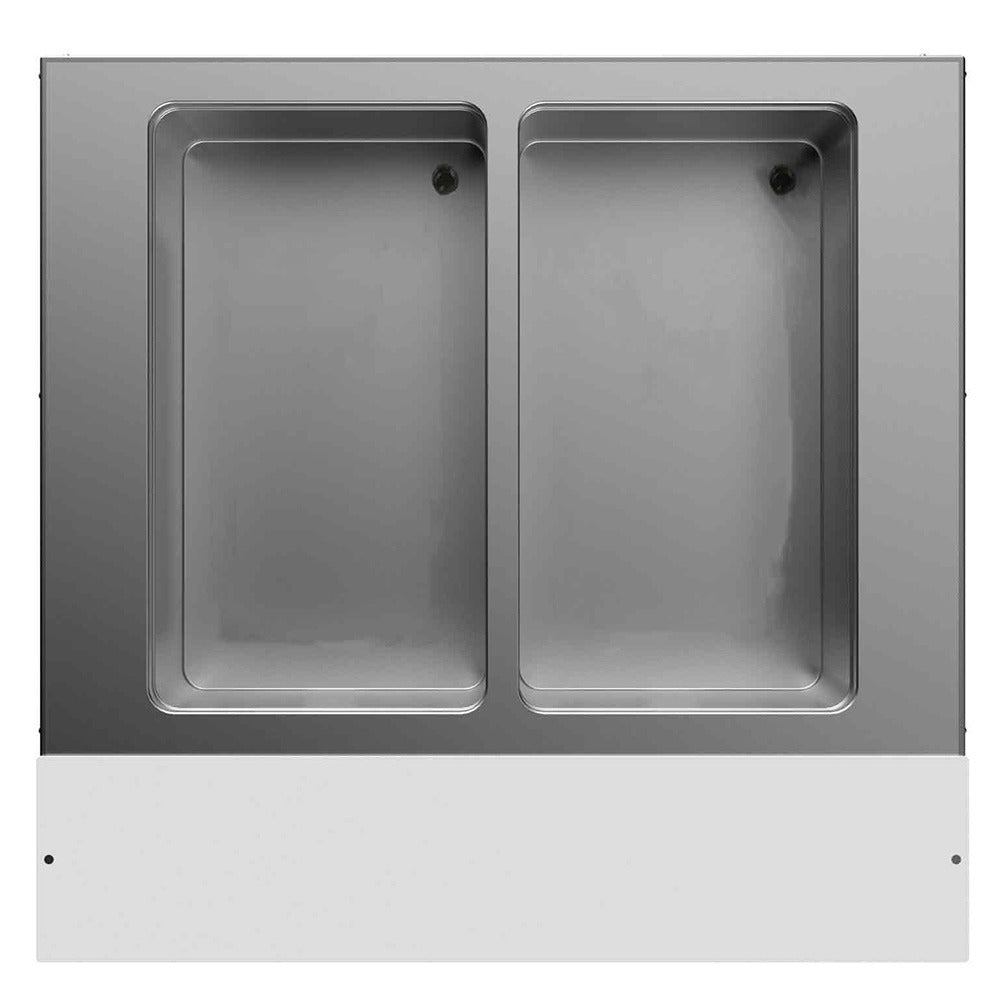

The sealed wells hold water for even heat and empty through a built-in water drain.
A removable 1/2"-thick, 8"-deep polyethylene board gives room for plating and serving.

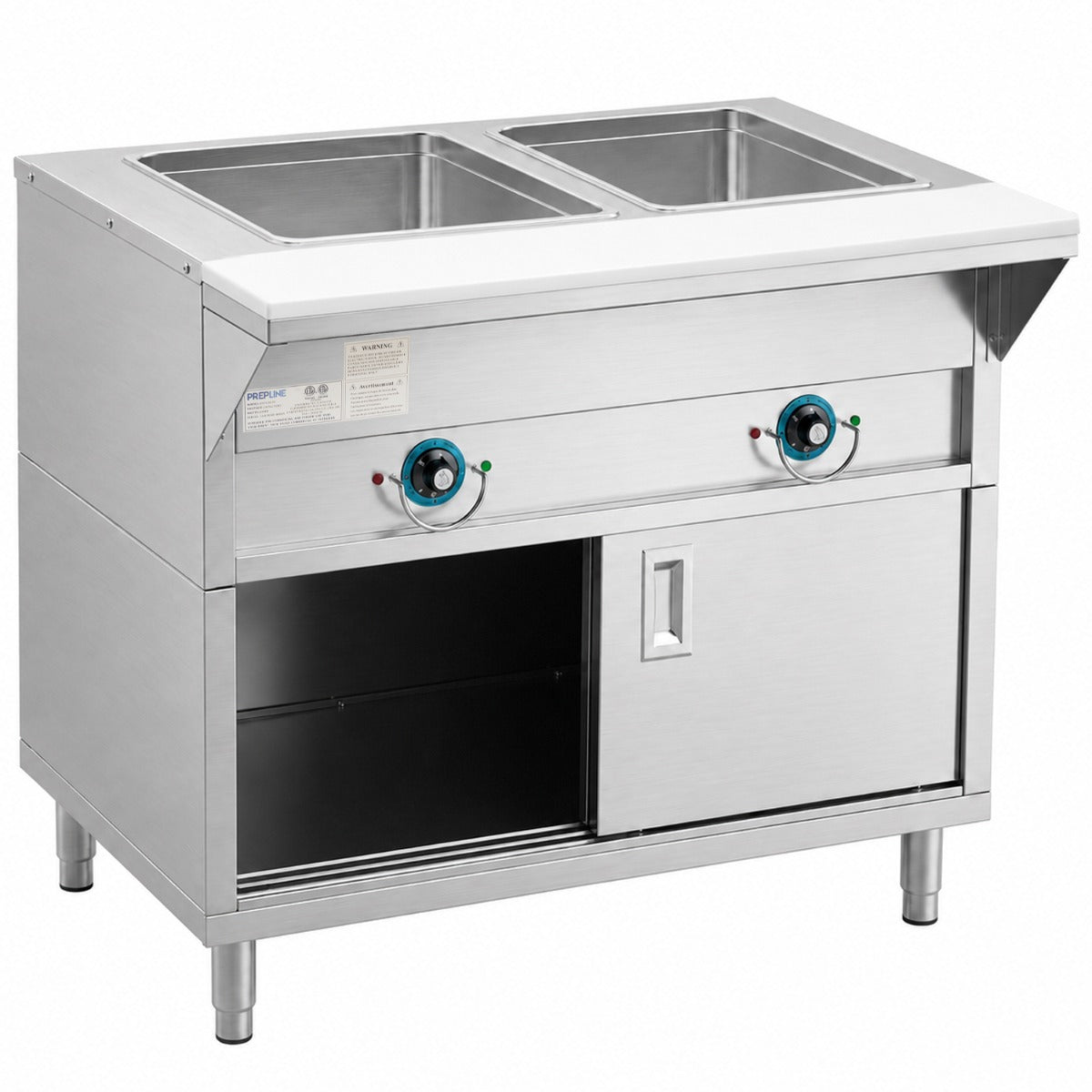

The stainless steel base has sliding doors to keep pans, lids and utensils within reach.
A grounded 120V outlet for its NEMA 5-15P plug. It is rated 1000W, and USR Brands requires a dedicated 15 A circuit installed by a licensed electrician.
No, pans are sold separately. Each sealed well is 12" × 20" and 6.5" deep.
Yes. The ESTC30-2S has sealed wells built for water heat and a built-in water drain for emptying them. Each well has its own heat control, so you can hold two different items.
No. Prepline steam tables are designed to hold food that is already cooked. The manual says to load pre-cooked food at 160°F or more and notes that NSF requires holding food at a minimum of 150°F.
It is 31.8" wide, 30.6" deep with the 8" cutting board and 34.4" high on 6" legs. The manual lists 2" of clearance at the sides and rear, and it may stand on combustible or non-combustible floors.
The cabinet requires assembly; the manual shows the steps. Before first use, run each well on high for about 30 minutes to burn off residue from the elements; some smoke is normal.
USR Brands covers Prepline EST-series steam tables for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, and residential use is not covered.
USR Brands, which backs the Prepline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | ESTC30-2S |
| Quantity | 1/Each |
| Width | 31.8 Inches |
| Depth | 30.6 Inches |
| Height | 34.4 Inches |
| Body Depth without Cutting Board | 22.6 Inches |
| Leg Height | 6 Inches |
| Voltage | 120 Volts |
| Wattage | 1,000W |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Circuit | Dedicated 15 Amp Circuit |
| Capacity | 2 Wells, 12" x 20" Each |
| Well Depth | 6.5 Inches |
| Well Type | Sealed Well (Water Heat) |
| Drain | Built-In Water Drain |
| Controls | Independent Heat Controls with Indicator Lights |
| Heating Element | Stainless Steel |
| Insulation | Fiberglass Between Wells |
| Cutting Board | Removable 1/2" Thick Polyethylene, 8" Deep |
| Base | Enclosed Cabinet with Sliding Doors |
| Construction | Stainless Steel |
| Legs | Stainless Steel LegsAdjustable Stainless Steel Feet |
| Casters | Optional |
| Pans | Sold Separately |
| Assembly | Cabinet Assembly Required |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
