Prepline ESTC60-4S-110 60" 4-Well Sealed Electric Steam Table with Enclosed Base and Sliding Doors, 2000W, 110V
A 60" 4-well electric steam table that holds hot food on the line and stores pans in its enclosed base.
The Prepline ESTC60-4S-110 gives cafeterias, caterers, buffets and serving lines 4 sealed 12" × 20" wells, each with its own heat control and indicator light. The sealed wells take water directly, with no spillage pans needed, and empty through a built-in drain. An 8"-deep polyethylene cutting board runs along the front, and the enclosed base with sliding doors stores pans and lids. It plugs into a 110V NEMA 5-30P outlet on a dedicated 30 A circuit. Pans are sold separately.
The cabinet ships for assembly on site; measure the spot on the line, including the 8" cutting board at the front.

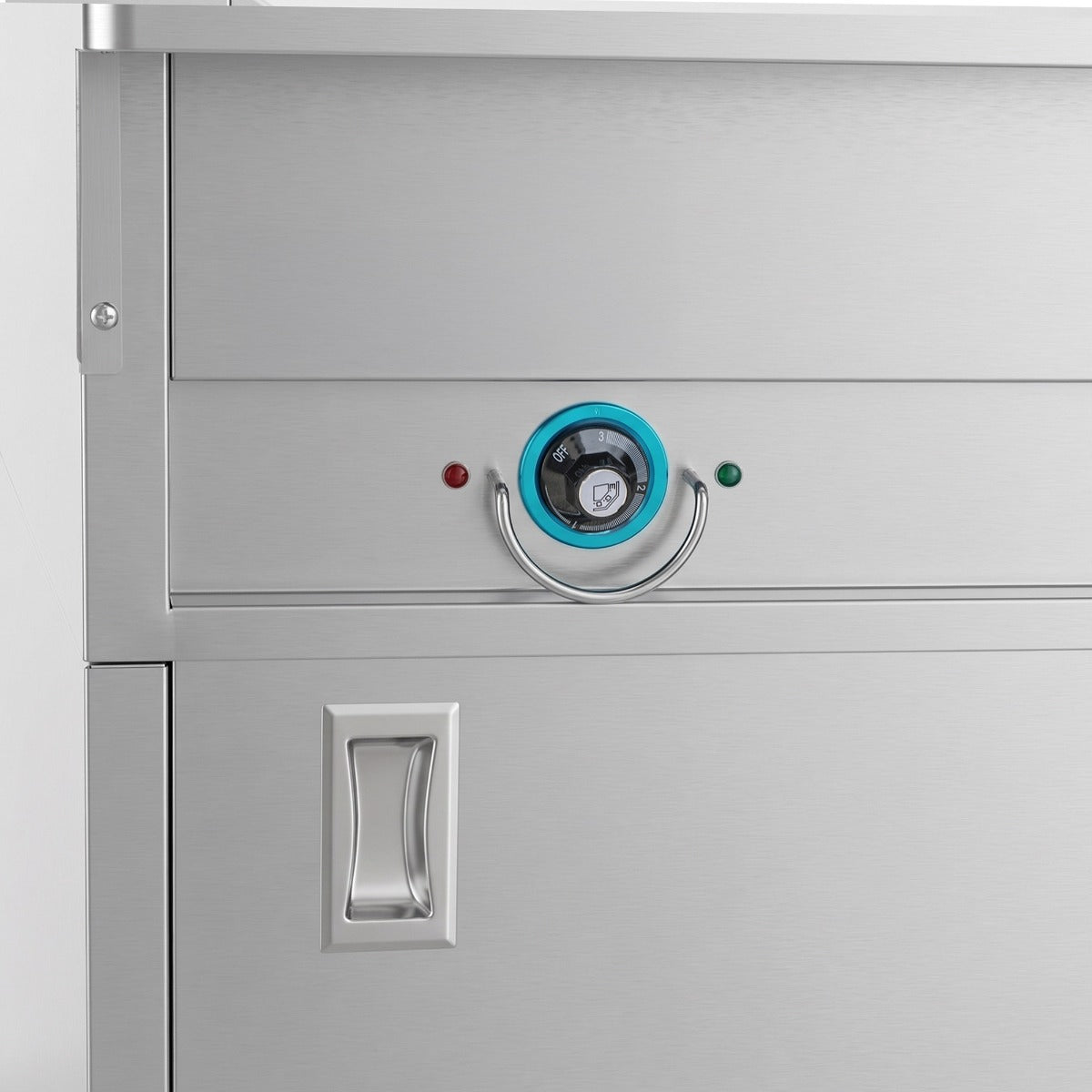

Each 12" × 20" well has its own heat control and indicator light.

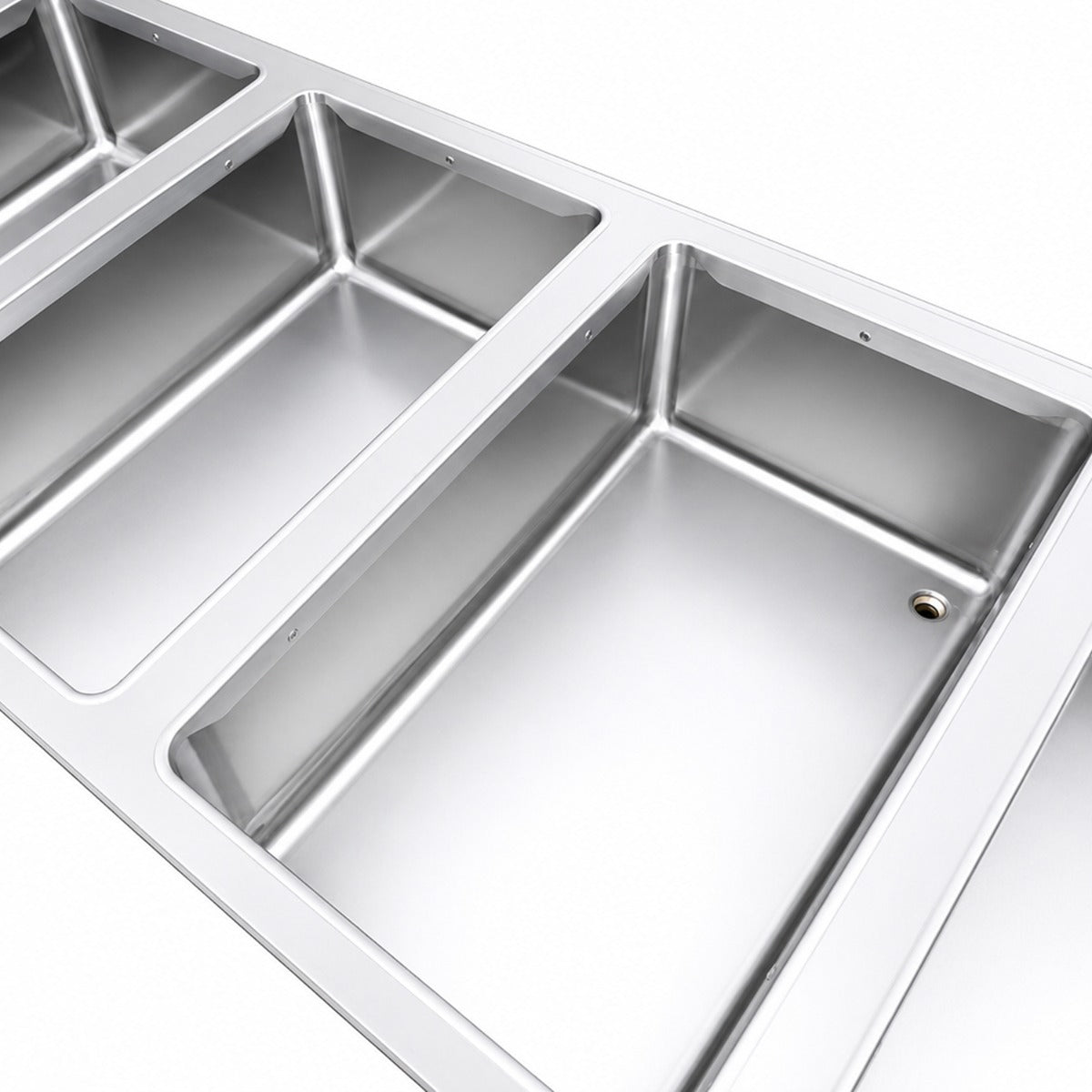

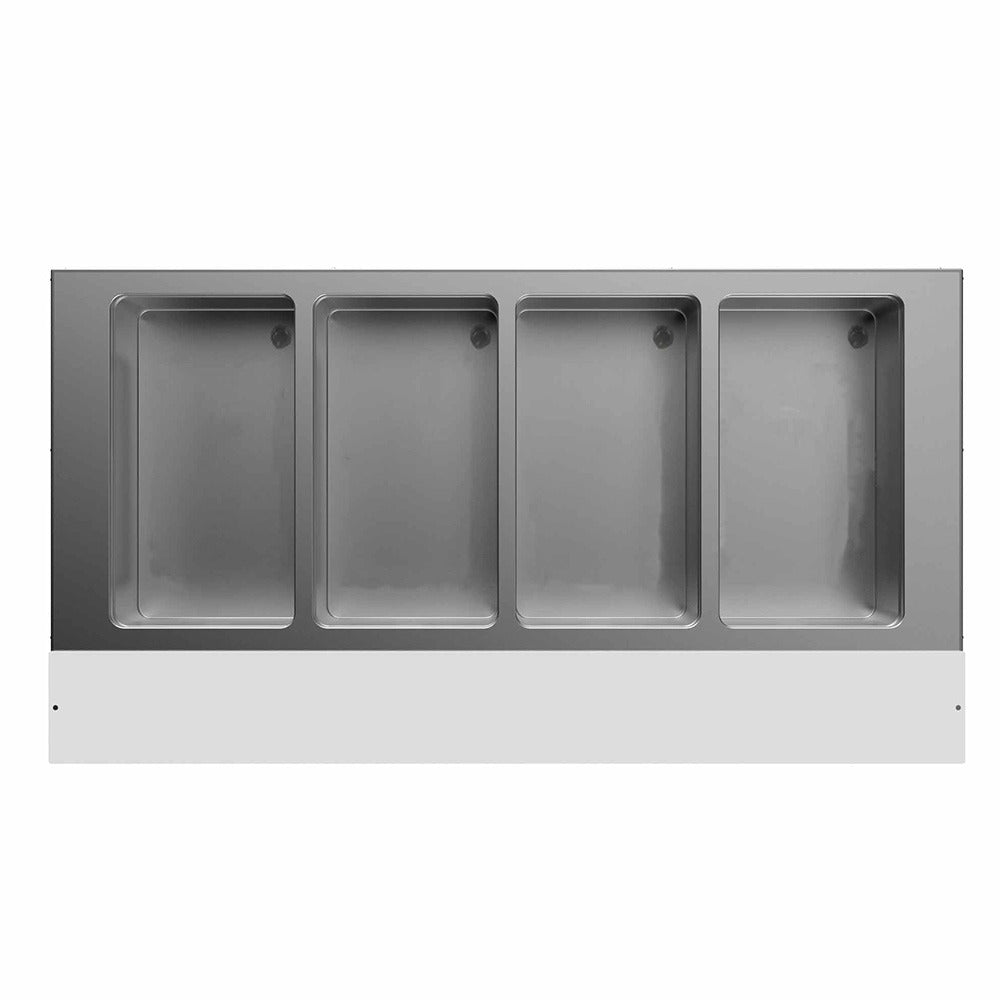

The sealed wells hold water for even heat and empty through a built-in water drain.
An 8"-deep polyethylene board along the front gives room for plating and serving.

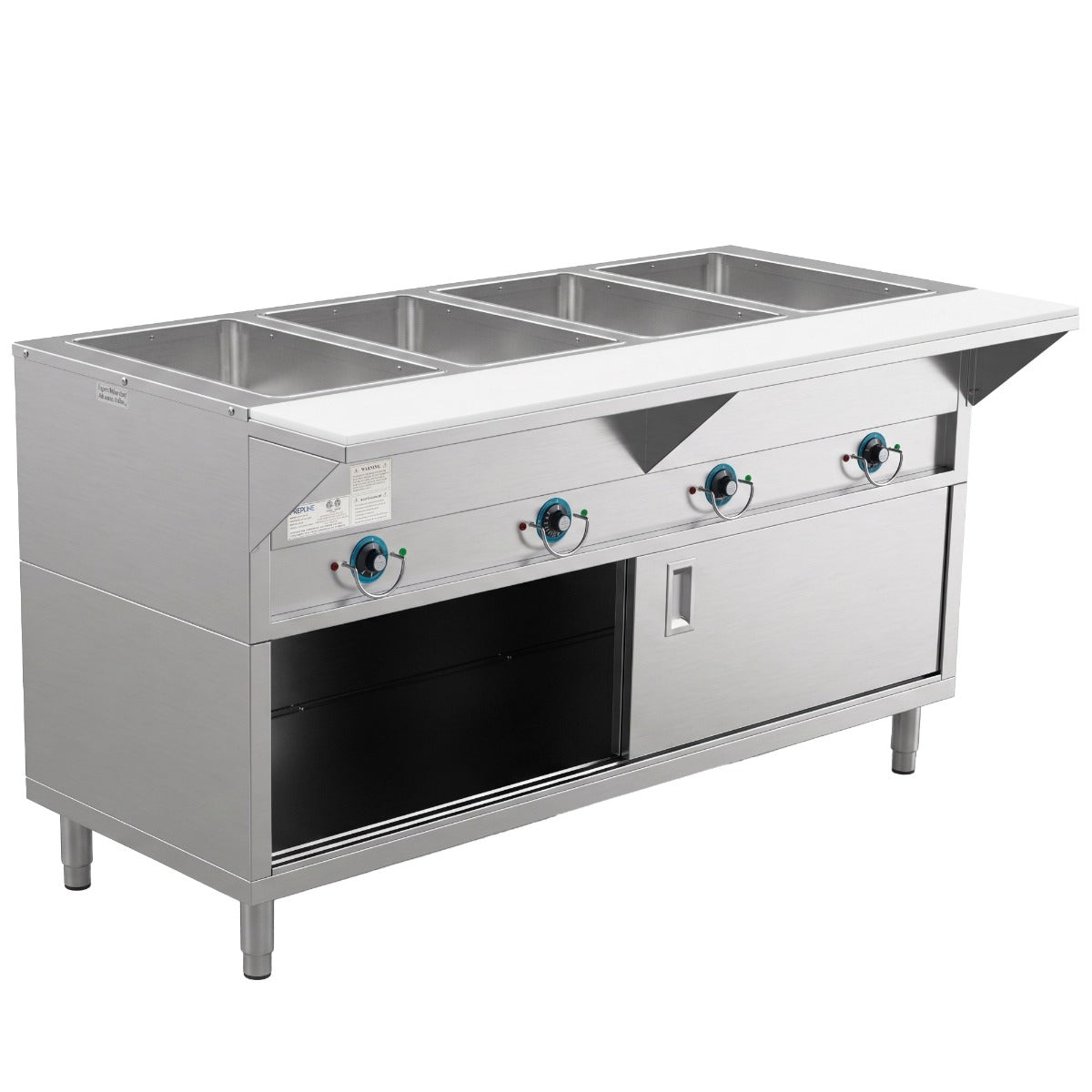

The stainless steel base has sliding doors to keep pans, lids and utensils within reach.
A grounded 110V outlet for its NEMA 5-30P plug. It is rated 2,000W, and USR Brands requires a dedicated 30 A circuit installed by a licensed electrician.
No, pans are sold separately. Each of the 4 wells is 12" × 20" and 6.5" deep.
Yes. The ESTC60-4S-110 has sealed wells: you add water directly to the well, with no spillage pans needed, and empty it through the built-in water drain. Each well has its own heat control.
No. Prepline steam tables are designed to hold food that is already cooked. The manual says to load pre-cooked food at 160°F or more and notes that NSF requires holding food at a minimum of 150°F.
It is 60" wide, 30.6" deep with the 8" cutting board and 34.4" high on 6" legs. The manual lists 2" of clearance at the sides and rear, and it may stand on combustible or non-combustible floors.
The cabinet requires assembly; the manual shows the steps. Before first use, run each well on high for about 30 minutes to burn off residue from the elements; some smoke is normal.
USR Brands covers Prepline EST-series steam tables for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, and residential use is not covered.
USR Brands, which backs the Prepline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | ESTC60-4S-110 |
| Quantity | 1/Each |
| Width | 60 Inches |
| Depth | 30.6 Inches |
| Height | 34.4 Inches |
| Body Depth without Cutting Board | 22.6 Inches |
| Leg Height | 6 Inches |
| Voltage | 110 Volts |
| Wattage | 2,000W |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-30P |
| Circuit | Dedicated 30 Amp Circuit |
| Capacity | 4 Wells, 12" x 20" Each |
| Well Depth | 6.5 Inches |
| Well Type | Sealed Well (Water Heat) |
| Drain | Built-In Water Drain |
| Controls | Independent Heat Controls with Indicator Lights |
| Heating Element | Stainless Steel |
| Insulation | Fiberglass Between Wells |
| Cutting Board | Polyethylene, 8" Deep |
| Base | Enclosed Cabinet with Sliding Doors |
| Construction | Stainless Steel |
| Legs | 6" LegsAdjustable Stainless Steel Feet |
| Casters | Optional |
| Pans | Sold Separately |
| Sneeze Guard | Optional, Sold Separately |
| Assembly | Cabinet Assembly Required |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
