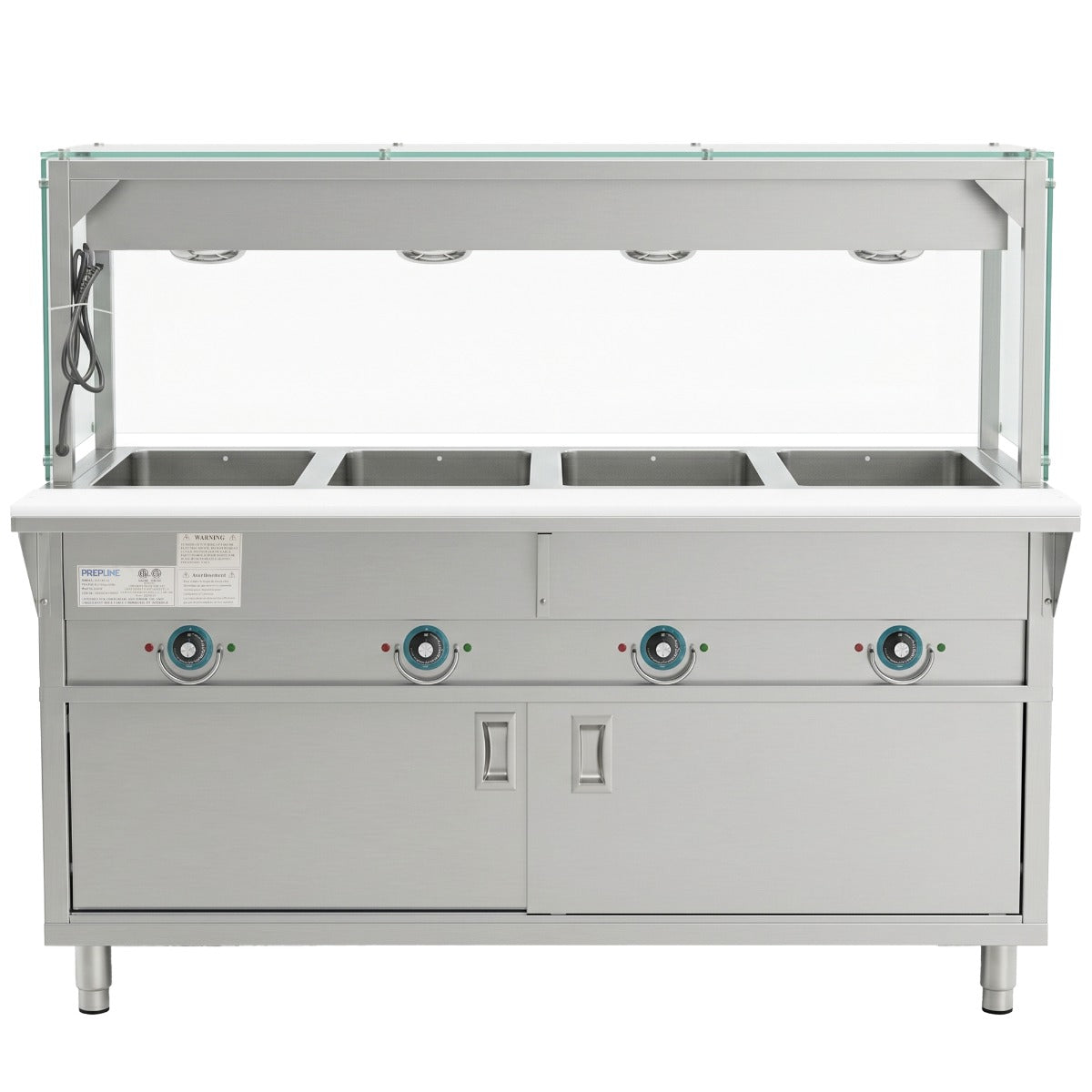

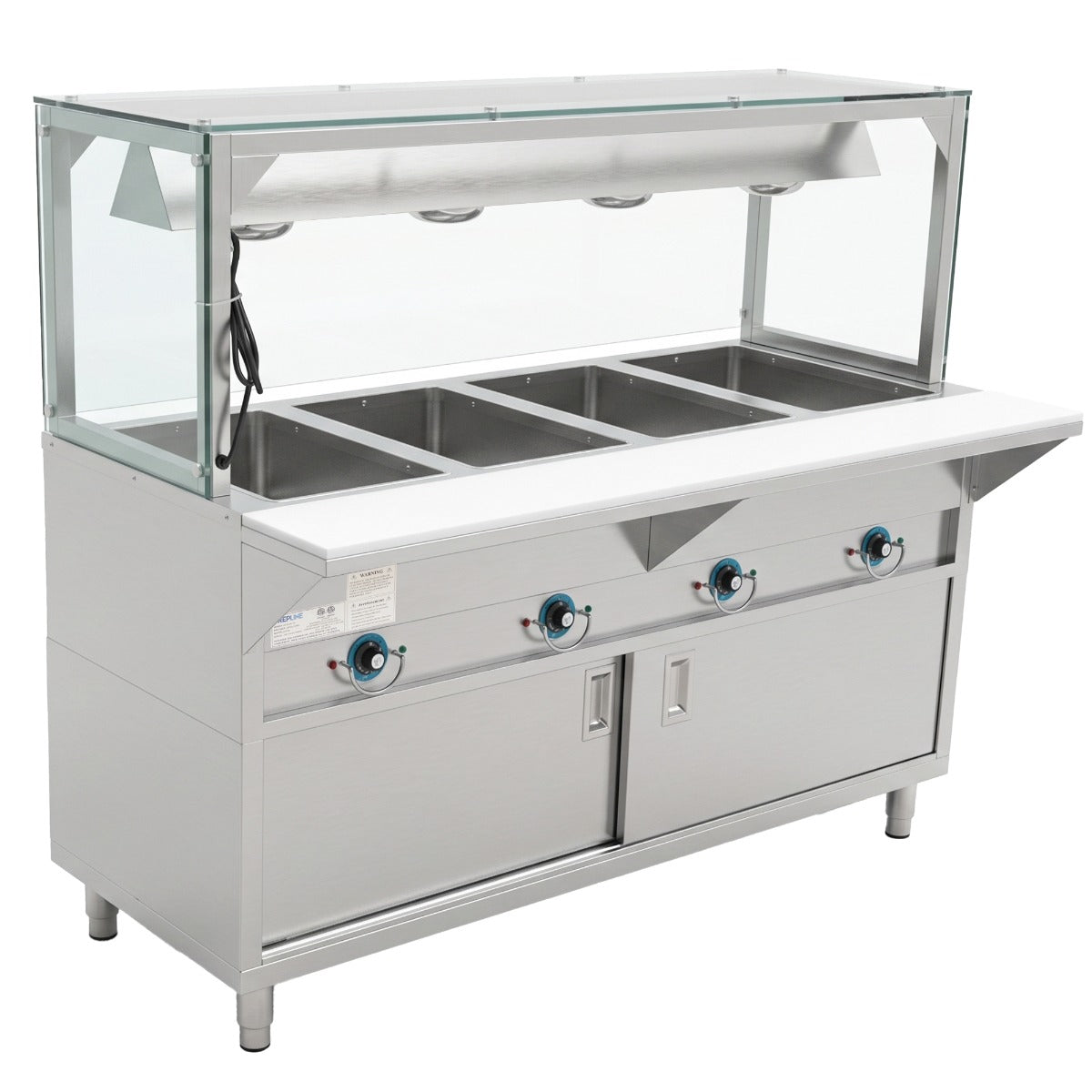

Prepline ESTC60-4S-LT-110 60" 4-Well Sealed Electric Steam Table with Lighted Sneeze Guard, Enclosed Base and Sliding Doors, 2000W, 110V

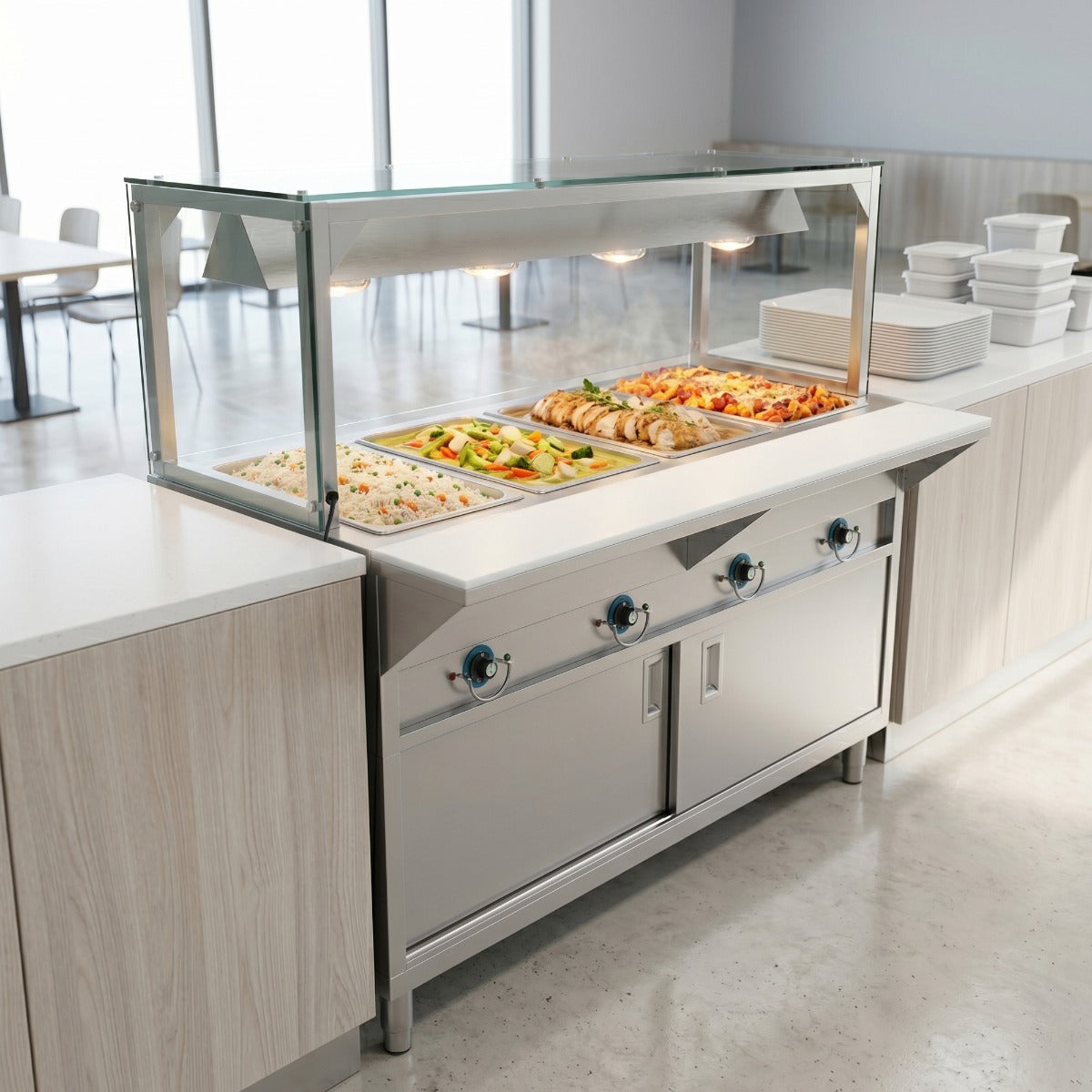

A 60" 4-well electric steam table that holds hot food on the line and stores pans in its enclosed base, with a sneeze guard to protect the food.
The Prepline ESTC60-4S-LT-110 gives cafeterias, caterers, buffets and serving lines 4 sealed 12" × 20" wells, each with its own heat control and indicator light. The sealed wells take water directly, with no spillage pans needed, and empty through a built-in drain. A removable 1/2" poly cutting board runs along the front, and the enclosed base with sliding doors stores pans and lids. This package adds a PSG-LT-60 lighted sneeze guard with four-side tempered glass and 4 heat lamp bulbs that light and warm the food from above; it plugs into a separate 120V outlet. It plugs into a 110V NEMA 5-30P outlet on a dedicated 30 A circuit. Pans are sold separately.
The cabinet ships for assembly on site; measure the spot on the line, including the 8" cutting board at the front.

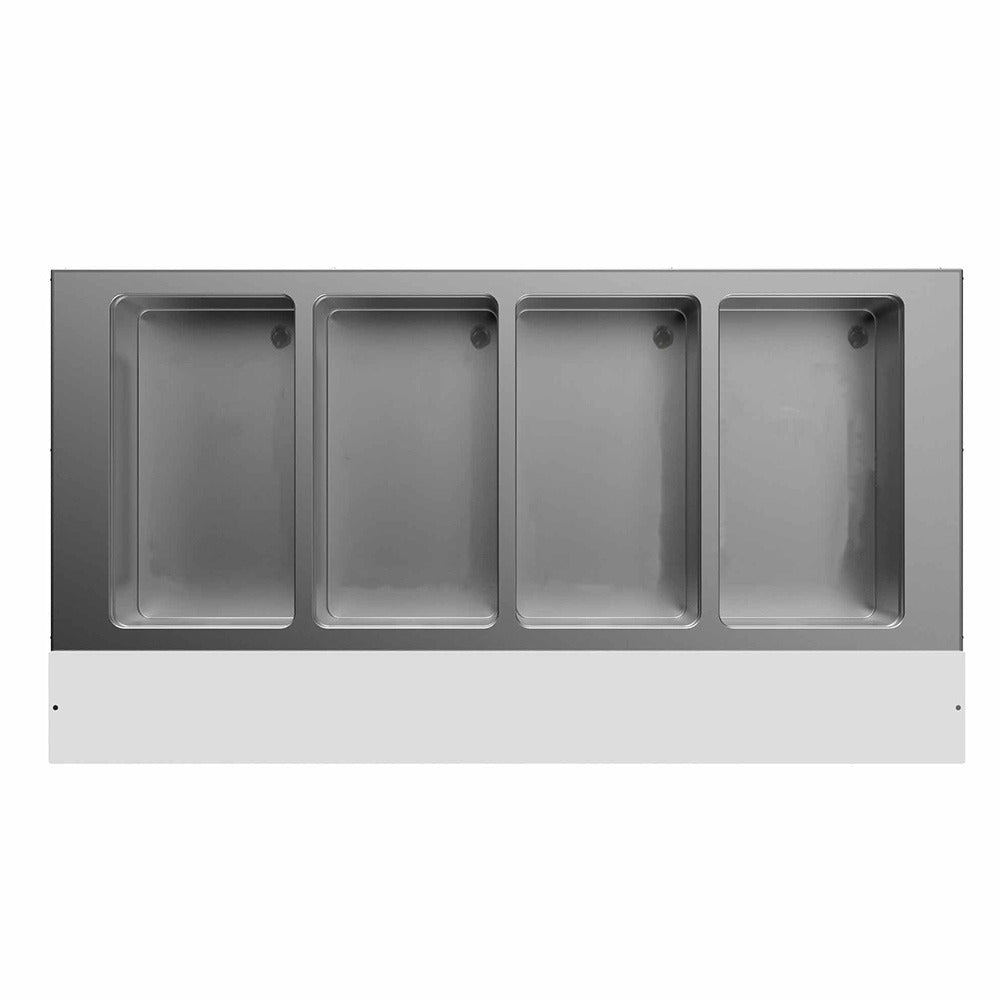

Each 12" × 20" well has its own heat control and indicator light.

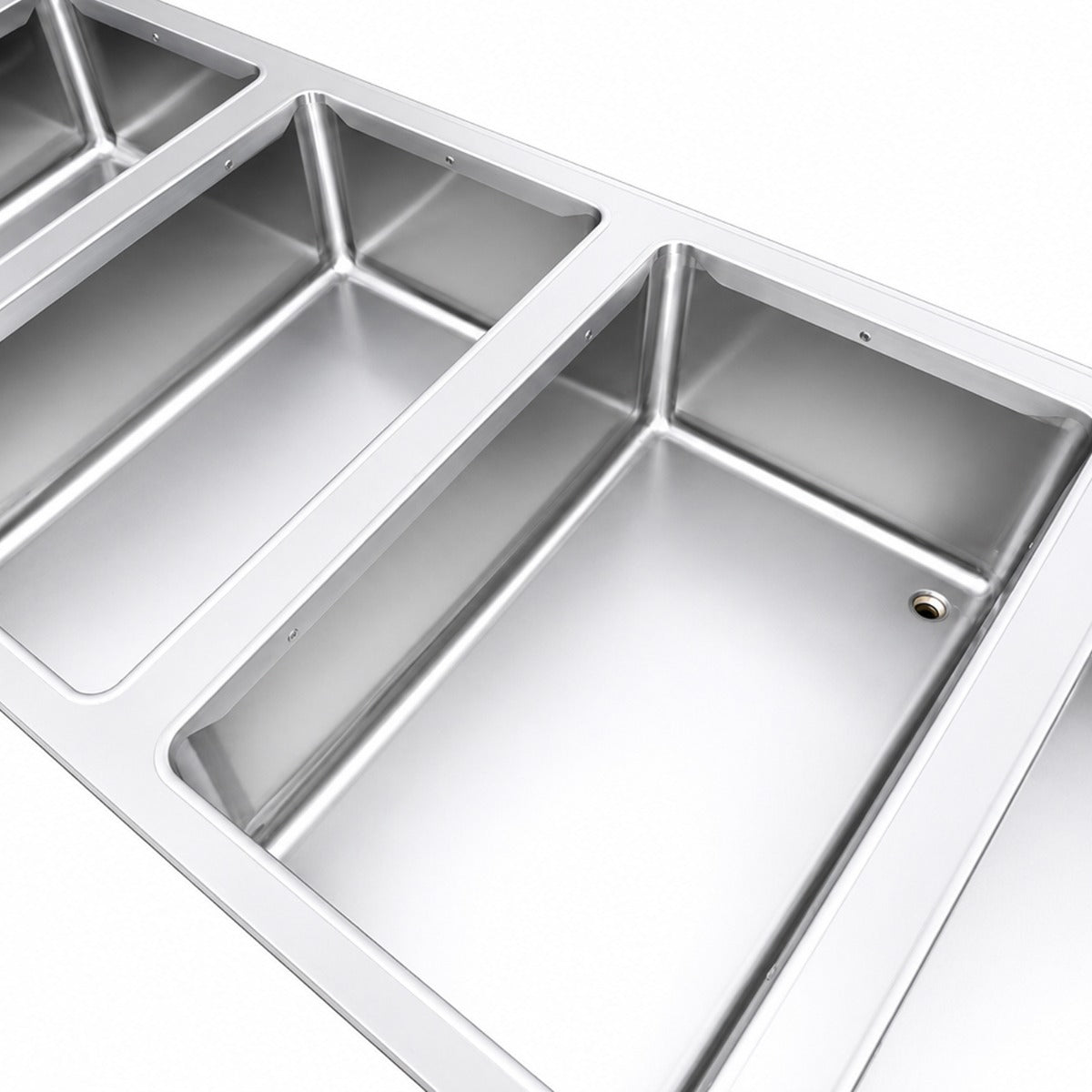

The sealed wells hold water for even heat and empty through a built-in water drain.

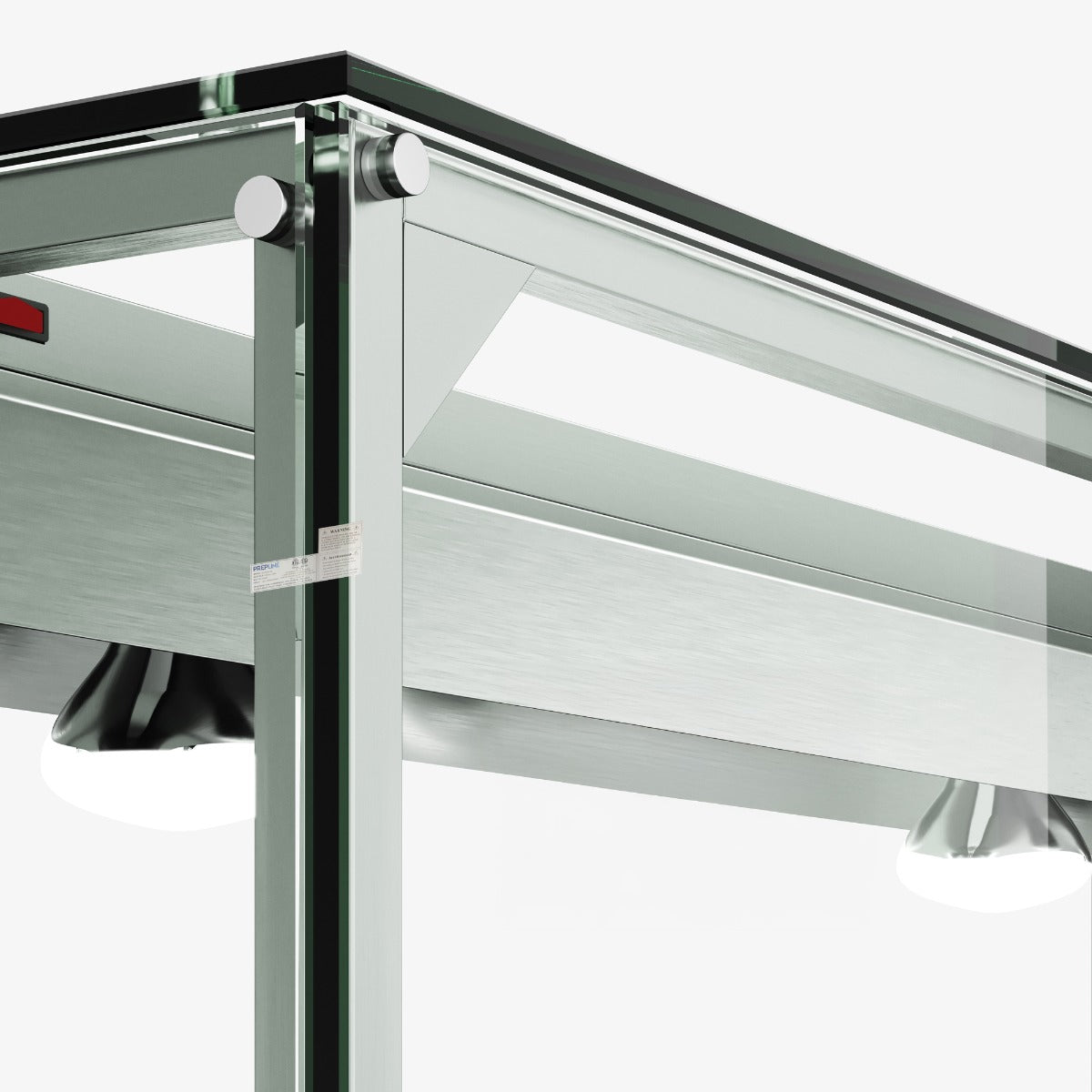

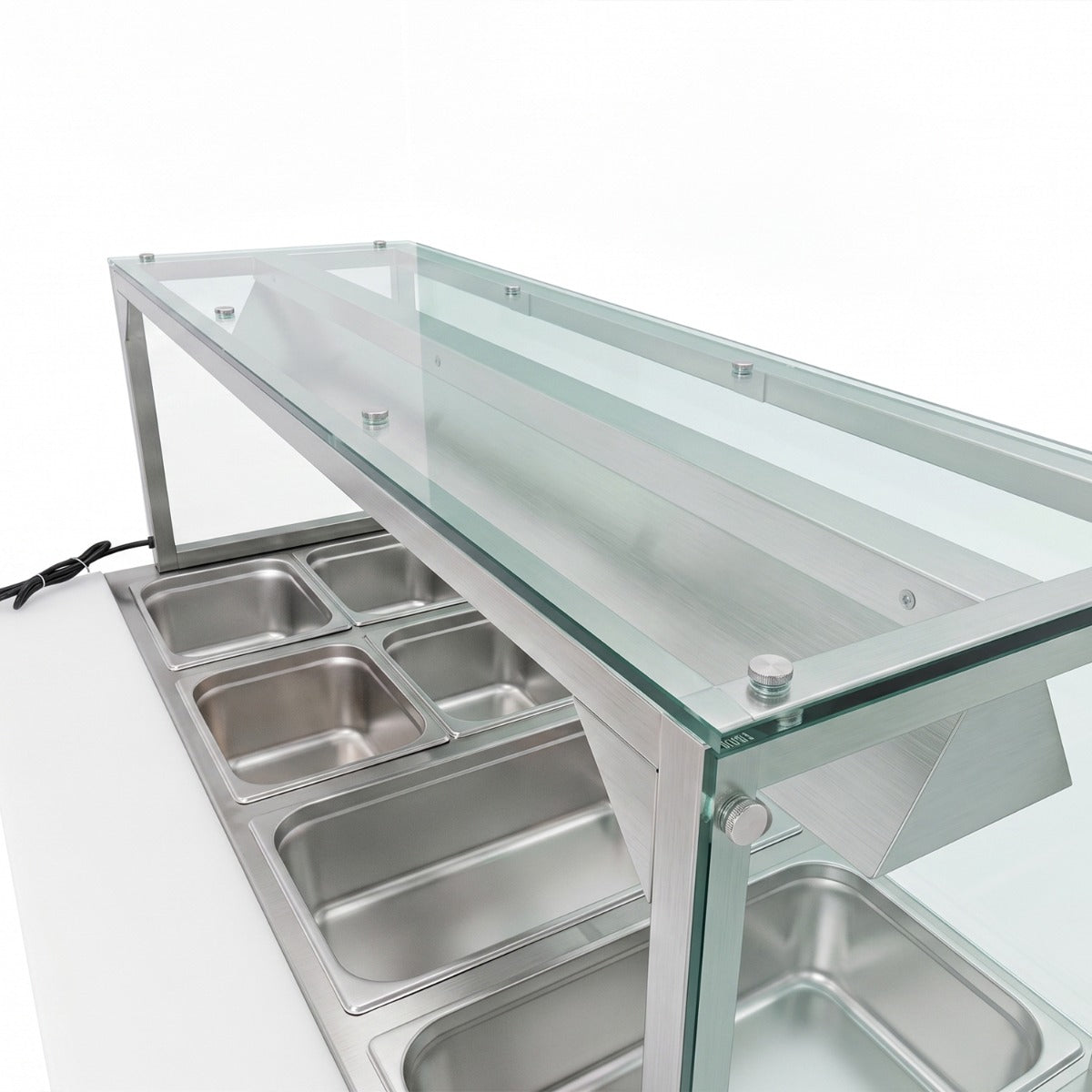

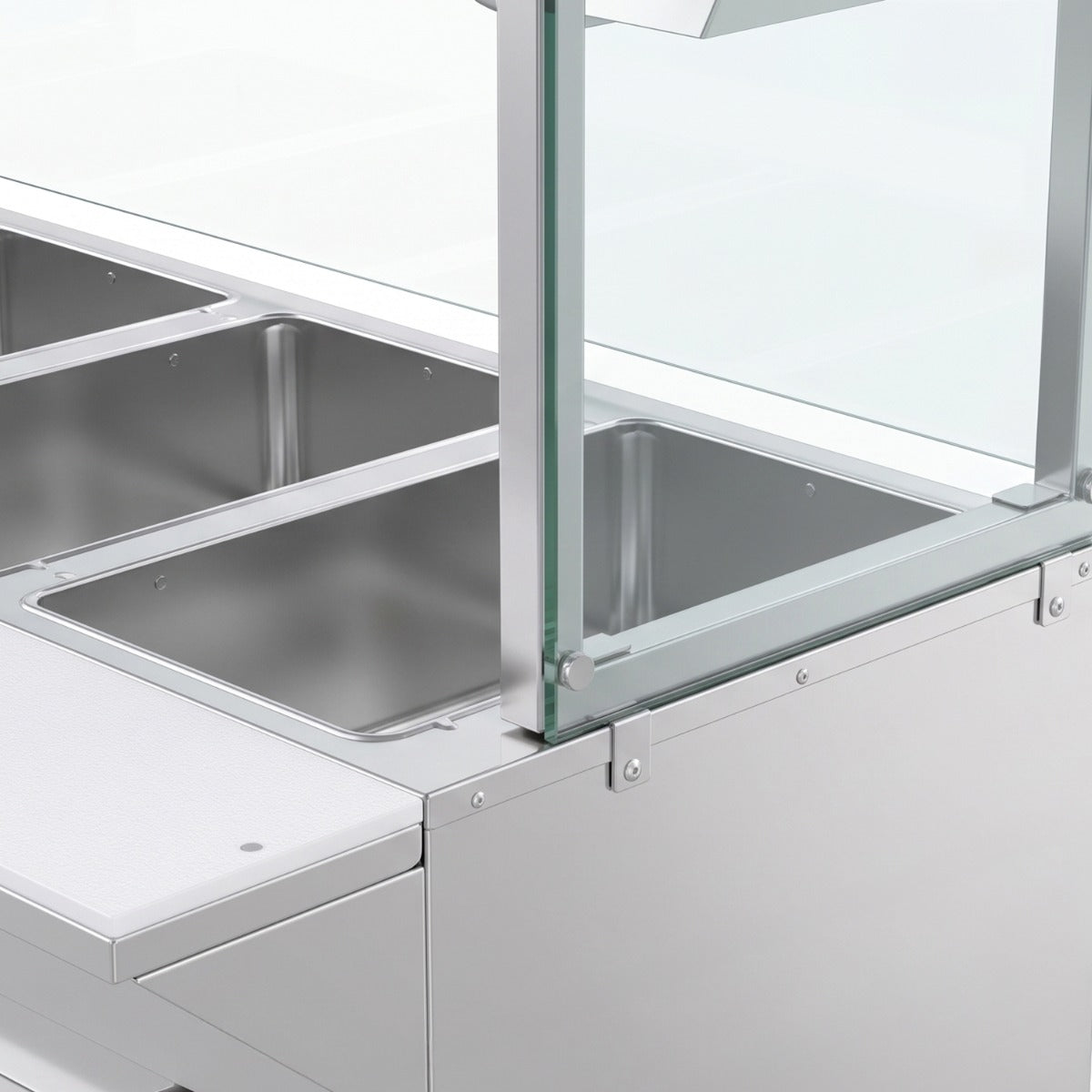

Tempered glass on four sides with 4 heat lamp bulbs that add top-down heat.
A removable 1/2"-thick poly board along the front for plating and serving.
The stainless steel base has sliding doors to keep pans, lids and utensils within reach.
A grounded 110V outlet for its NEMA 5-30P plug. It is rated 2,000W, and USR Brands requires a dedicated 30 A circuit installed by a licensed electrician. Note the 30 A NEMA 5-30P plug: it does not fit a standard wall outlet. The lighted sneeze guard plugs separately into a standard 120V NEMA 5-15P outlet (1,000W).
Yes. The ESTC60-4S-LT-110 has sealed wells: you add water directly to the well, with no spillage pans needed, and empty it through the built-in water drain. Each well has its own heat control.
No, pans are sold separately. Each of the 4 wells is 12" × 20" and 6.5" deep.
No. It holds food that is already cooked. The manual says to preheat for 45 minutes, load pre-cooked food at 160°F or more, and notes that NSF requires holding food at a minimum of 150°F.
It is 60" wide, 30.6" deep with the 8" cutting board and 34.4" high on 6" legs, and the sneeze guard adds 20" on top (60" × 19" footprint). The manual lists 2" of clearance at the sides and rear, and it may stand on combustible or non-combustible floors.
Yes. The PSG-LT-60 has 4 heat lamp bulbs that light the food and add heat from above, behind tempered glass on four sides. It ships for installation on the table.
USR Brands covers Prepline EST-series steam tables for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, residential use is not covered, and glass is not covered.
USR Brands, which backs the Prepline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | ESTC60-4S-LT-110 |
| Quantity | 1/Each |
| Includes | ESTC60-4S-110 Electric Steam TablePSG-LT-60 Lighted Sneeze Guard |
| Width | 60 Inches |
| Depth | 30.6 Inches |
| Height | 34.4 Inches |
| Body Depth without Cutting Board | 22.6 Inches |
| Leg Height | 6 Inches |
| Voltage | 110 Volts |
| Wattage | 2,000W |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-30P |
| Circuit | Dedicated 30 Amp Circuit |
| Sneeze Guard Electrical | 120 Volts1,000WNEMA 5-15P |
| Capacity | 4 Wells, 12" x 20" Each |
| Well Depth | 6.5 Inches |
| Well Type | Sealed Well (Water Heat) |
| Drain | Built-In Water Drain |
| Controls | Independent Heat Controls with Indicator Lights |
| Heating Element | Stainless Steel |
| Insulation | Fiberglass Between Wells |
| Cutting Board | Removable 1/2" Thick Polyethylene, 8" Deep |
| Base | Enclosed Cabinet with Sliding Doors |
| Construction | Stainless Steel |
| Legs | 6" LegsAdjustable Stainless Steel Feet |
| Casters | Optional |
| Pans | Sold Separately |
| Sneeze Guard | PSG-LT-60, 60" L x 19" D x 20" H |
| Sneeze Guard Glass | Four-Side Tempered Glass |
| Heat Lamp Bulbs | 4, Included |
| Sneeze Guard Frame | Stainless Steel |
| Assembly | Cabinet Assembly RequiredSneeze Guard Installation Required |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
