Prepline ESTC74-5O 74" 5-Well Open Electric Steam Table with Enclosed Base and Sliding Doors, 3750W, 208-240V
A 74" 5-well electric steam table that holds hot food on the line and stores pans in its enclosed base.

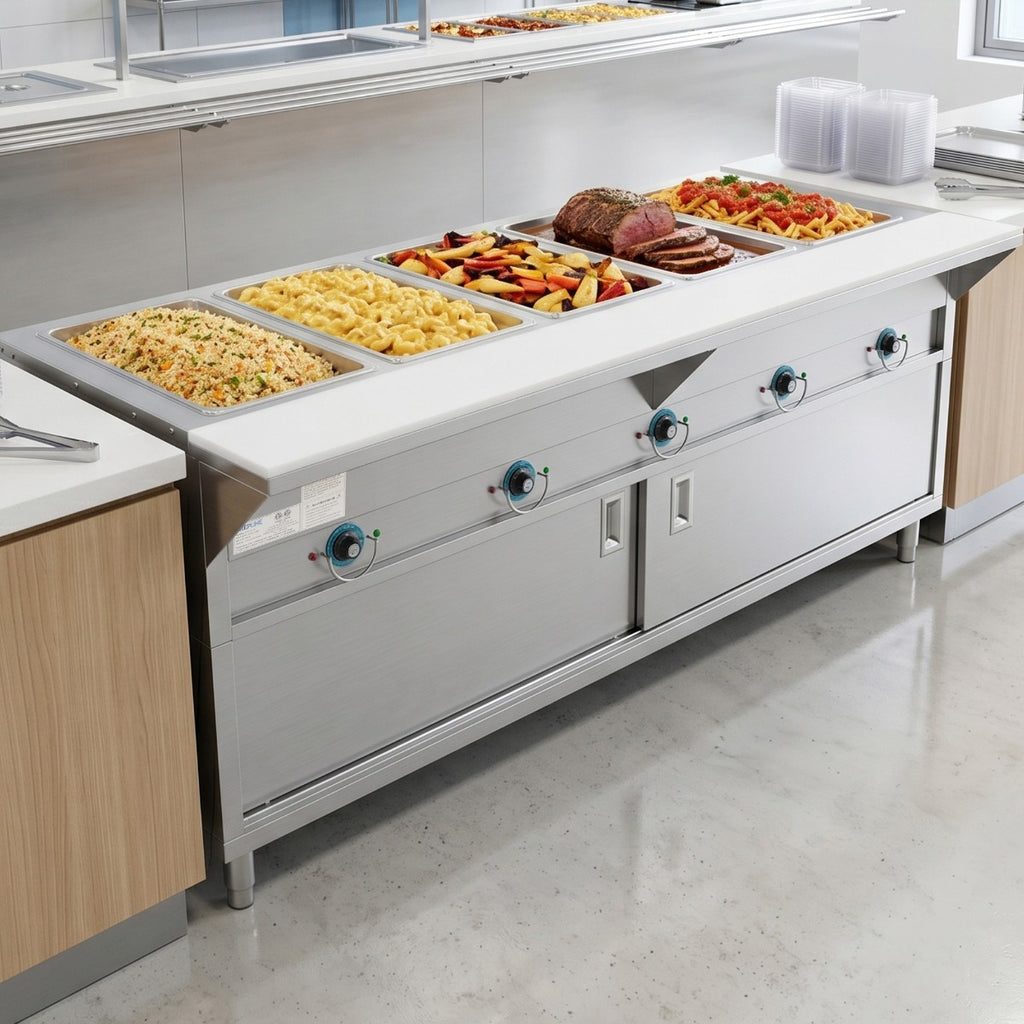

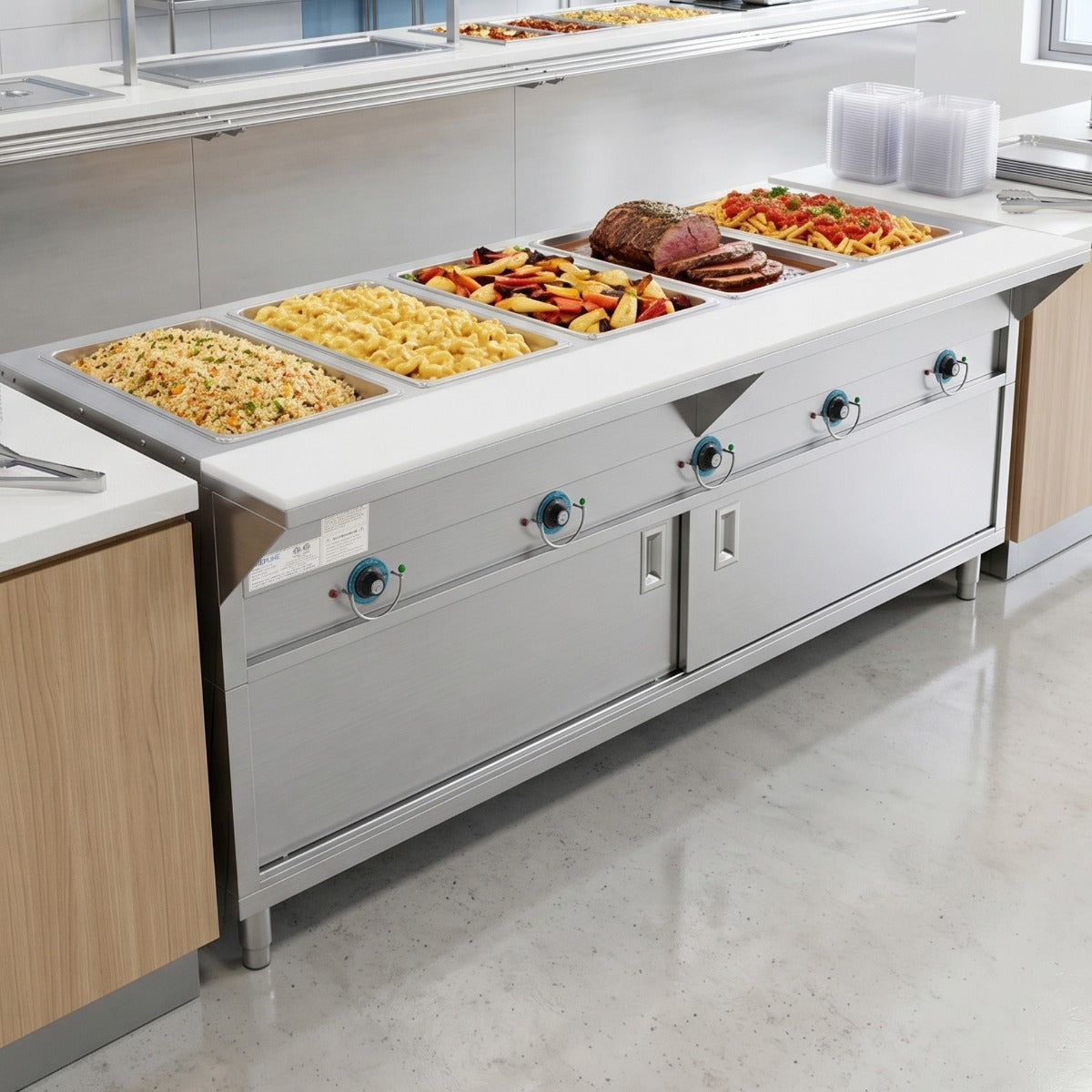

The Prepline ESTC74-5O gives cafeterias, caterers, buffets and serving lines 5 open 12" × 20" wells, each with its own heat control and indicator light. The open wells run dry, or wet with spillage pans (sold separately), and need no plumbing or drain. An 8"-deep polyethylene cutting board runs along the front, and the enclosed base with sliding doors stores pans and lids. It plugs into a 208-240V NEMA 6-20P outlet on a dedicated 20 A circuit. Pans are sold separately.
The cabinet ships for assembly on site; measure the spot on the line, including the 8" cutting board at the front.

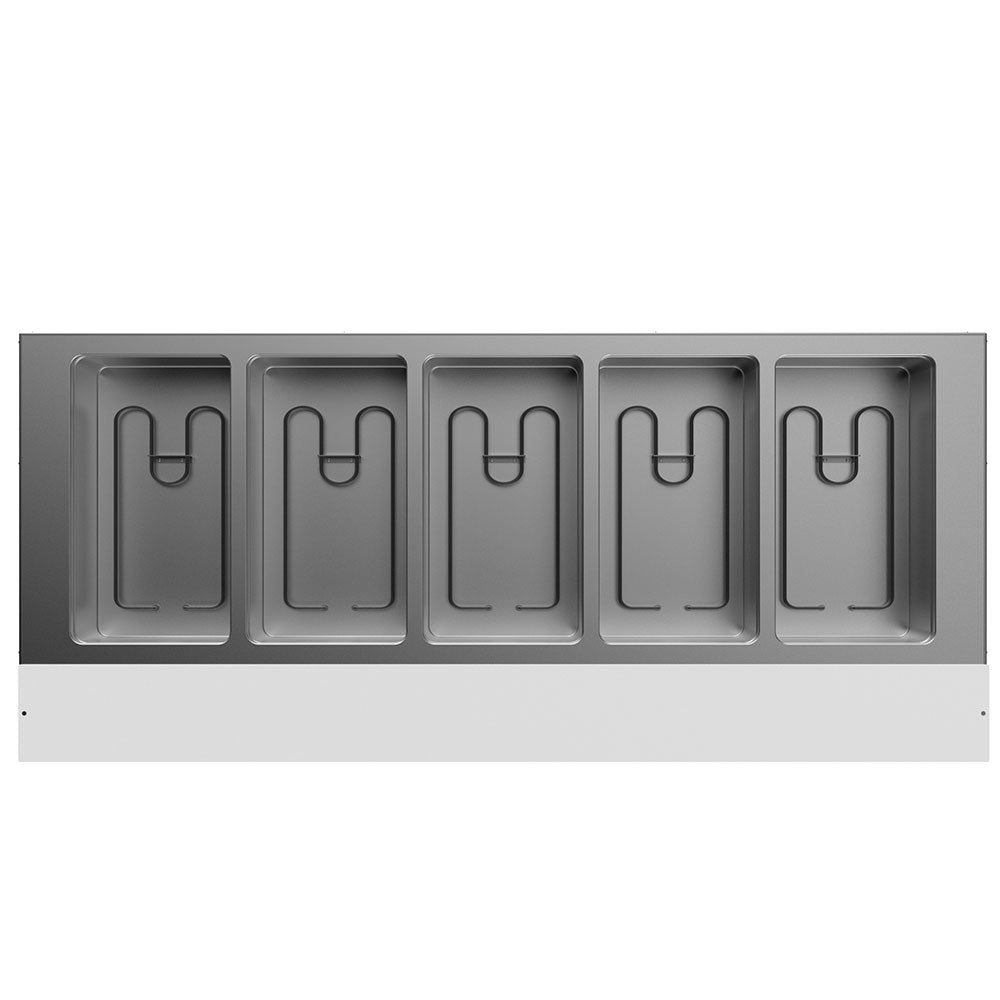

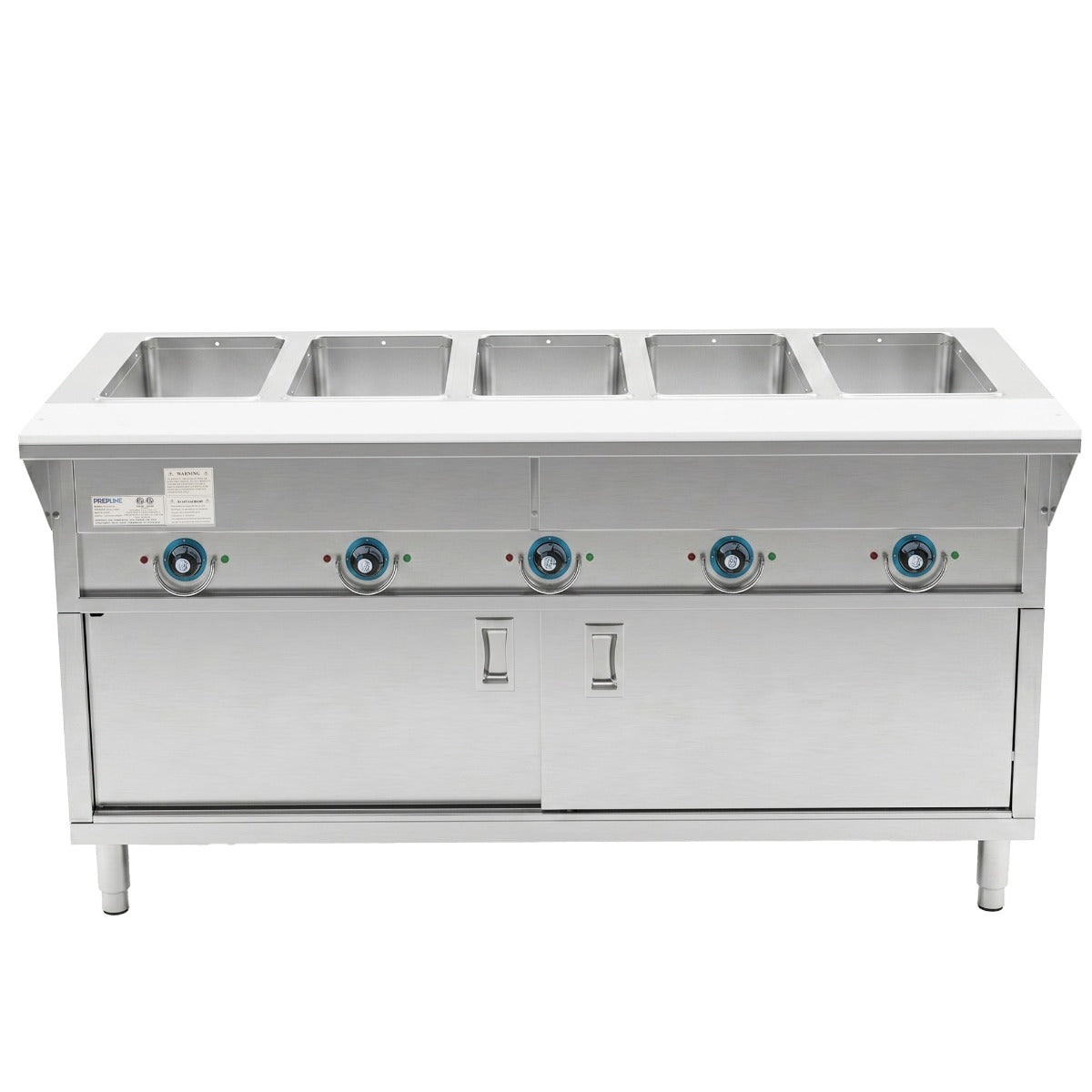

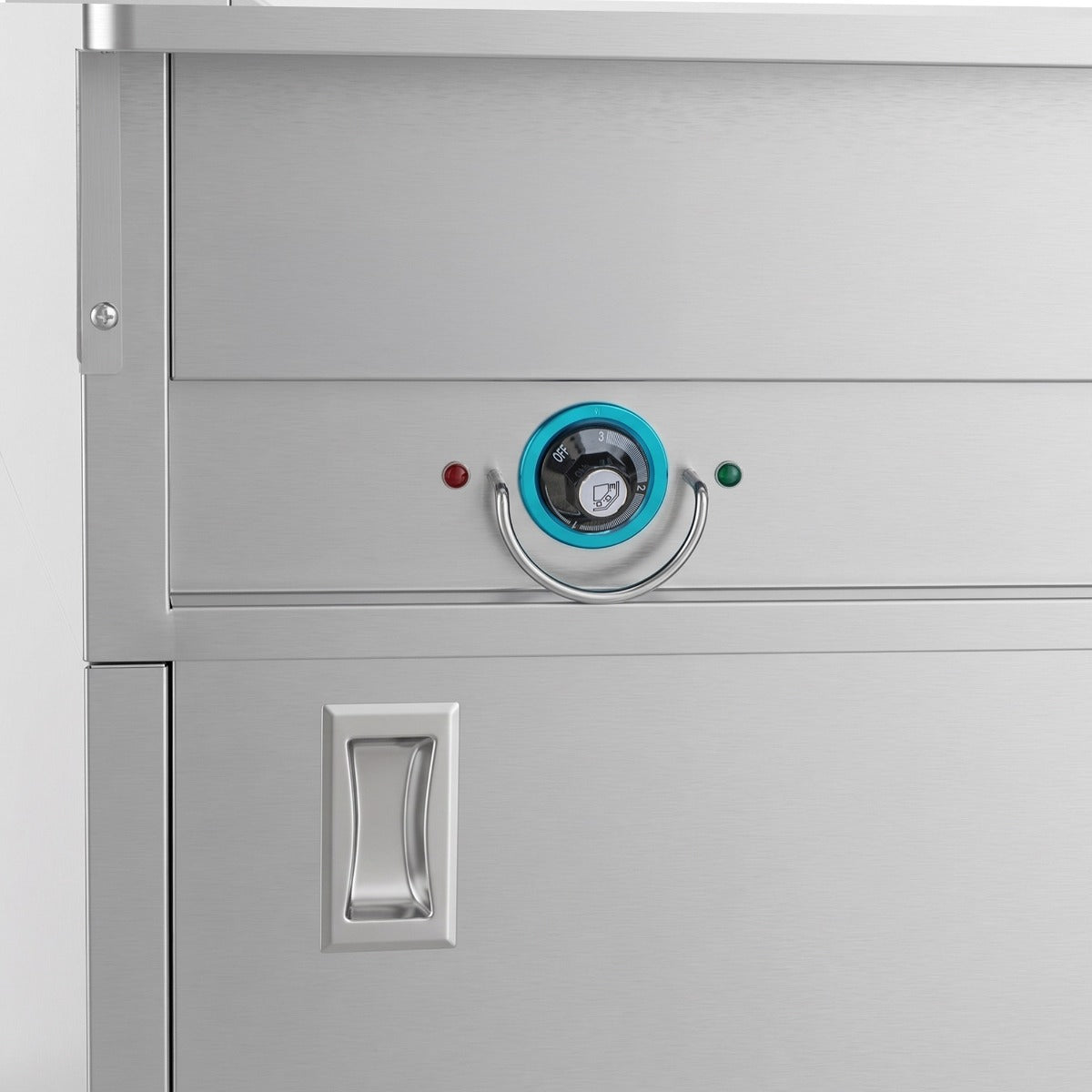

Each 12" × 20" well has its own heat control and indicator light.

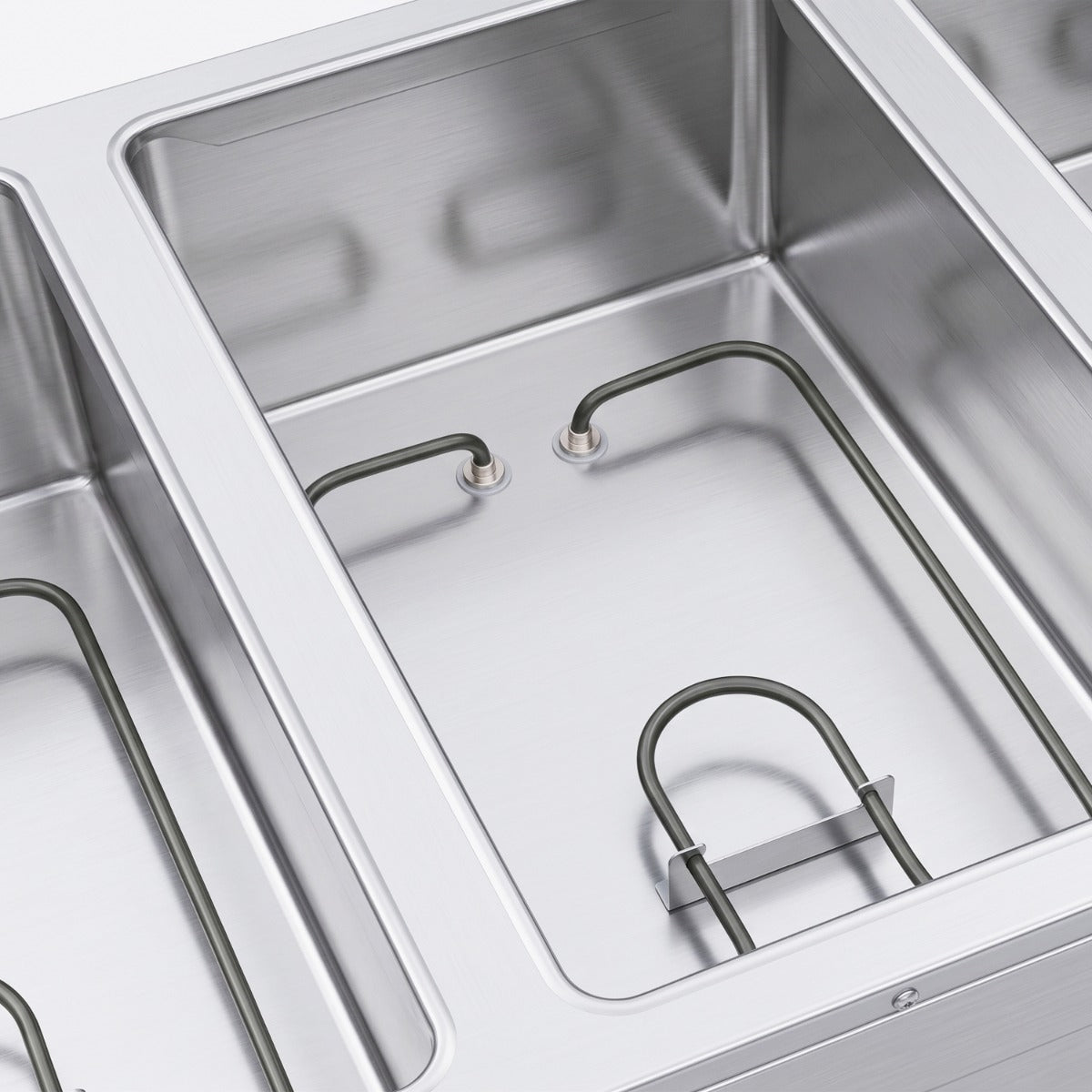

Run the open wells dry, or add spillage pans with hot water; no plumbing needed.
An 8"-deep polyethylene board along the front gives room for plating and serving.

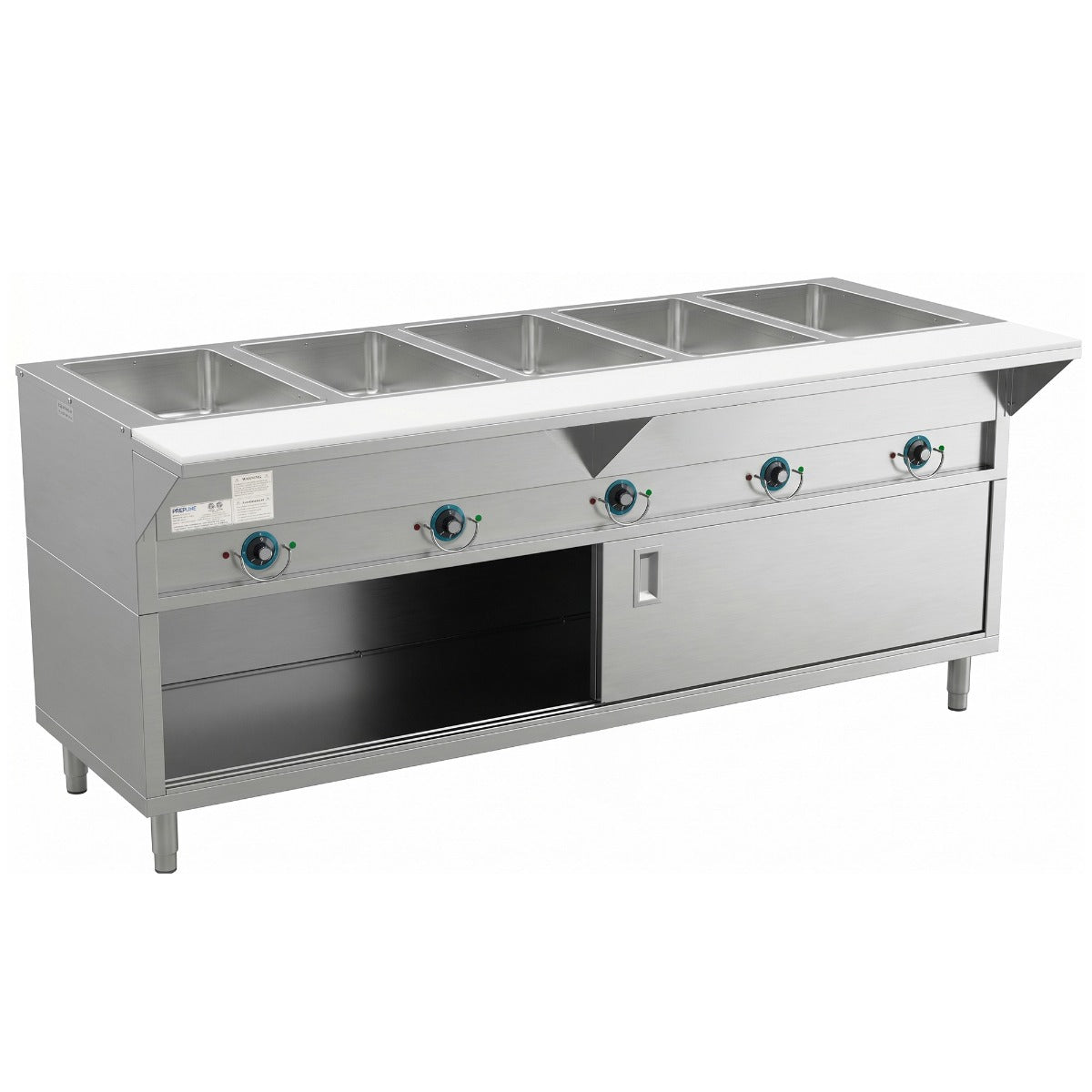

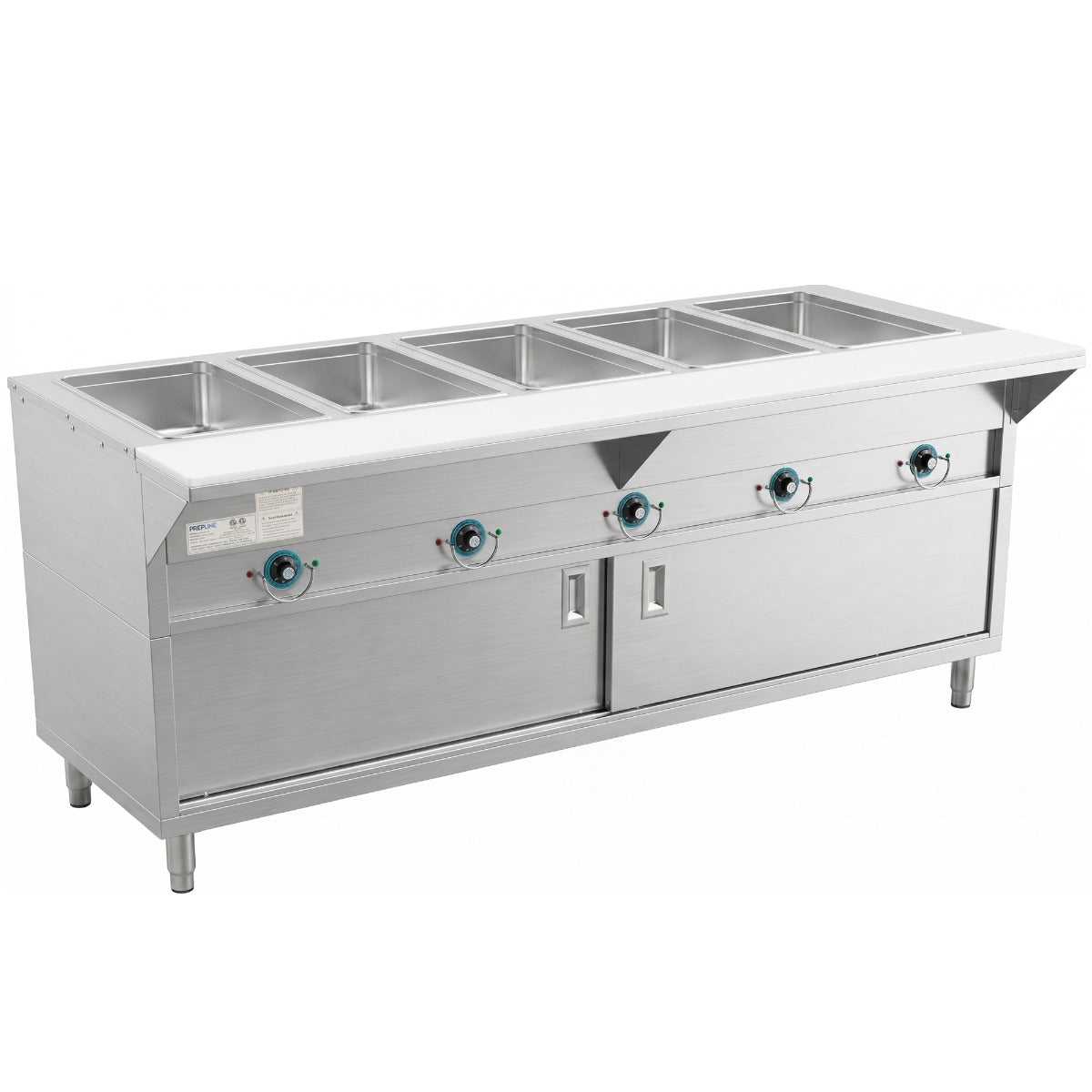

The stainless steel base has sliding doors to keep pans, lids and utensils within reach.
A grounded 208-240V outlet for its NEMA 6-20P plug (6 ft. cord). It is rated 3,750W, and USR Brands requires a dedicated 20 A circuit installed by a licensed electrician.
No, pans are sold separately. Each of the 5 wells is 12" × 20" and 6.5" deep.
Both. The open wells work with dry heat, or with water in spillage pans (sold separately); the manual says never to put water directly in the heating well. No plumbing or drain is needed.
No. Prepline steam tables are designed to hold food that is already cooked. The manual says to load pre-cooked food at 160°F or more and notes that NSF requires holding food at a minimum of 150°F.
It is 74" wide, 30.6" deep with the 8" cutting board and 34.4" high on 6" legs. The manual lists 2" of clearance at the sides and rear, and it may stand on combustible or non-combustible floors.
The cabinet requires assembly; the manual shows the steps. Before first use, run each well on high for about 30 minutes to burn off residue from the elements; some smoke is normal.
USR Brands covers Prepline EST-series steam tables for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, and residential use is not covered.
USR Brands, which backs the Prepline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | ESTC74-5O |
| Quantity | 1/Each |
| Width | 74 Inches |
| Depth | 30.6 Inches |
| Height | 34.4 Inches |
| Body Depth without Cutting Board | 22.6 Inches |
| Leg Height | 6 Inches |
| Voltage | 208-240 Volts |
| Wattage | 3,750W |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 6-20P |
| Power Cord | 6 ft., Cord and Plug Included |
| Circuit | Dedicated 20 Amp Circuit |
| Capacity | 5 Wells, 12" x 20" Each |
| Well Depth | 6.5 Inches |
| Well Type | Open Well (Wet with Spillage Pans or Dry) |
| Drain | None (No Plumbing Needed) |
| Controls | Independent Heat Controls with Indicator Lights |
| Heating Element | Stainless Steel |
| Insulation | Fiberglass Between Wells |
| Cutting Board | Polyethylene, 8" Deep |
| Base | Enclosed Cabinet with Sliding Doors |
| Construction | Stainless Steel |
| Legs | 6" LegsAdjustable Stainless Steel Feet |
| Casters | Optional |
| Pans | Sold Separately |
| Sneeze Guard | Optional, Sold Separately |
| Assembly | Cabinet Assembly Required |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
