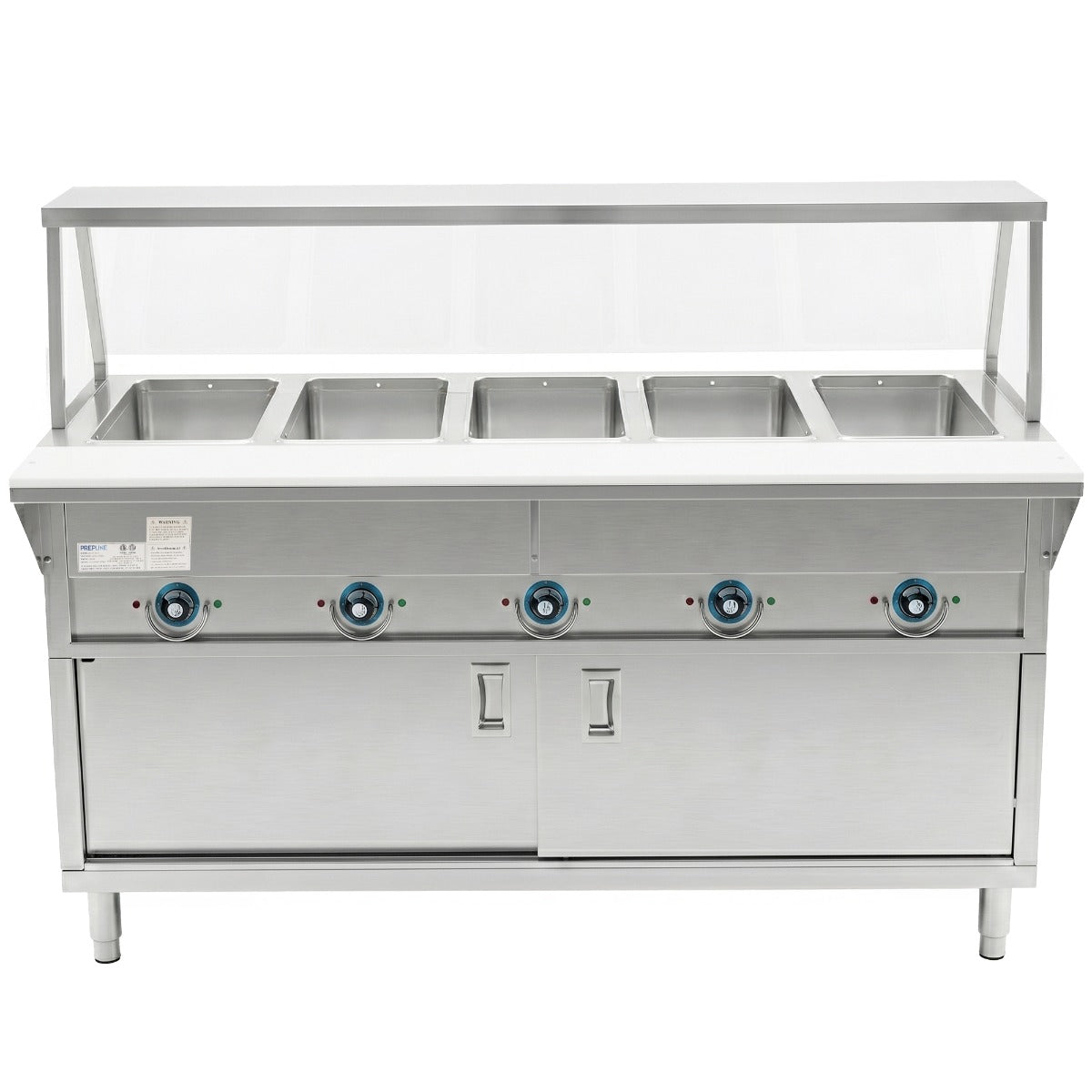

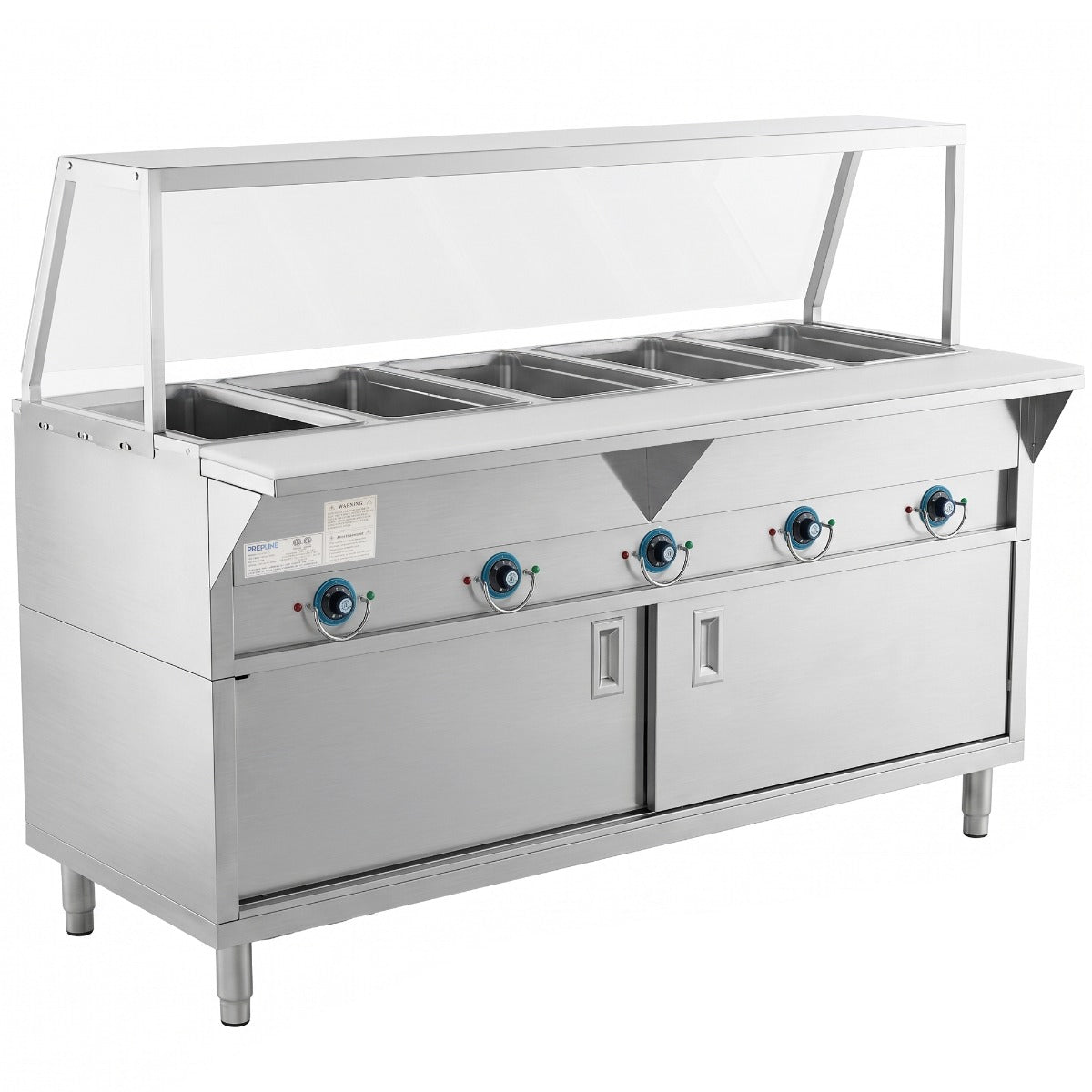

Prepline ESTC74-5S-SG 74" 5-Well Sealed Electric Steam Table with Sneeze Guard, Enclosed Base and Sliding Doors, 3750W, 208-240V

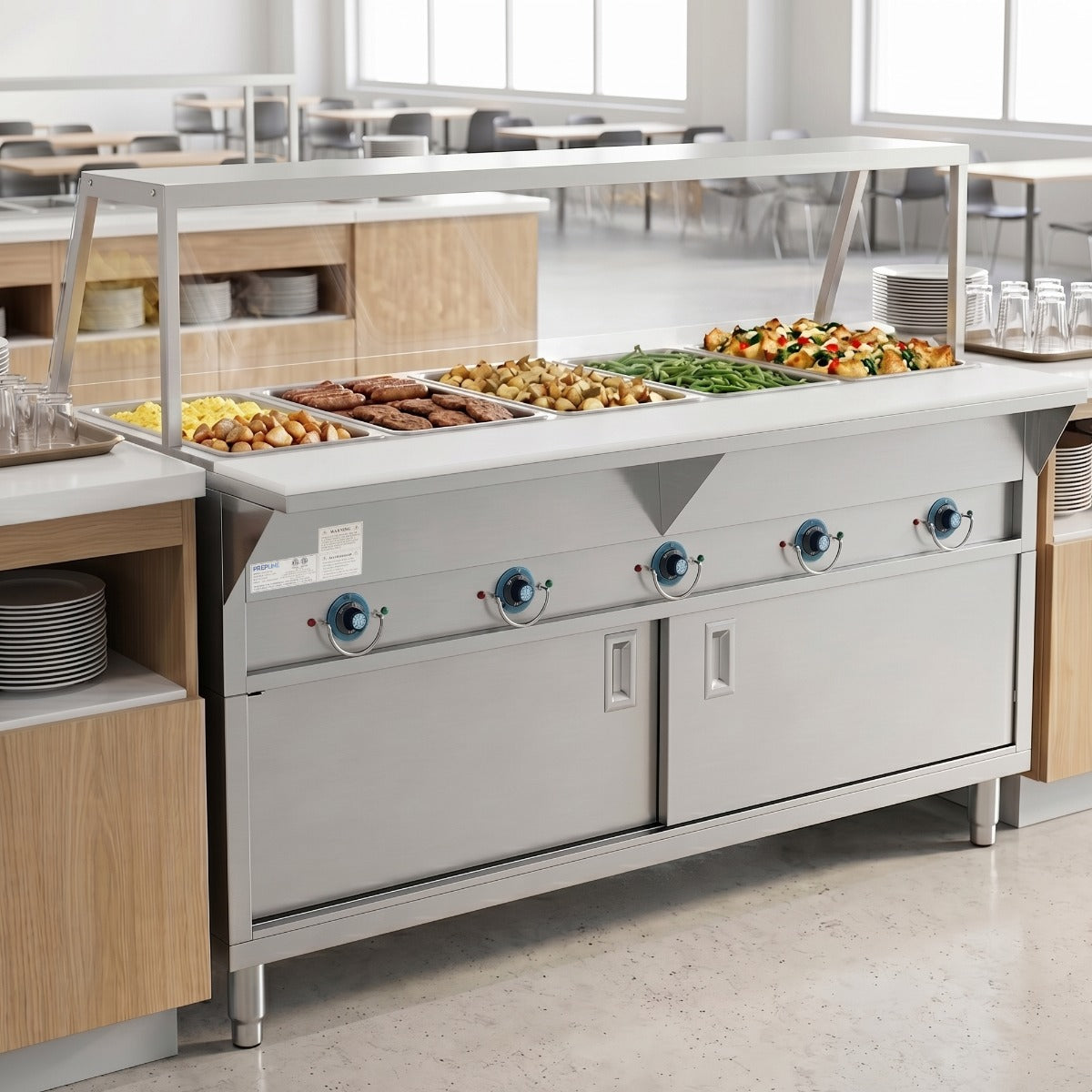

A 74" 5-well electric steam table that holds hot food on the line and stores pans in its enclosed base, with a sneeze guard to protect the food.
The Prepline ESTC74-5S-SG gives cafeterias, caterers, buffets and serving lines 5 sealed 12" × 20" wells, each with its own infinite heat control and indicator light. The sealed wells take water directly, with no spillage pans needed, and empty through a built-in drain. A 1/2" poly cutting board runs along the front, and the enclosed base with sliding doors stores pans and lids. This package adds an angled stainless steel sneeze guard that stands 15" above the top and protects the food on 3 sides. It plugs into a 208-240V NEMA 6-20P outlet on a dedicated 20 A circuit. Pans are sold separately.
The cabinet ships for assembly on site; measure the spot on the line, including the 8" cutting board at the front.

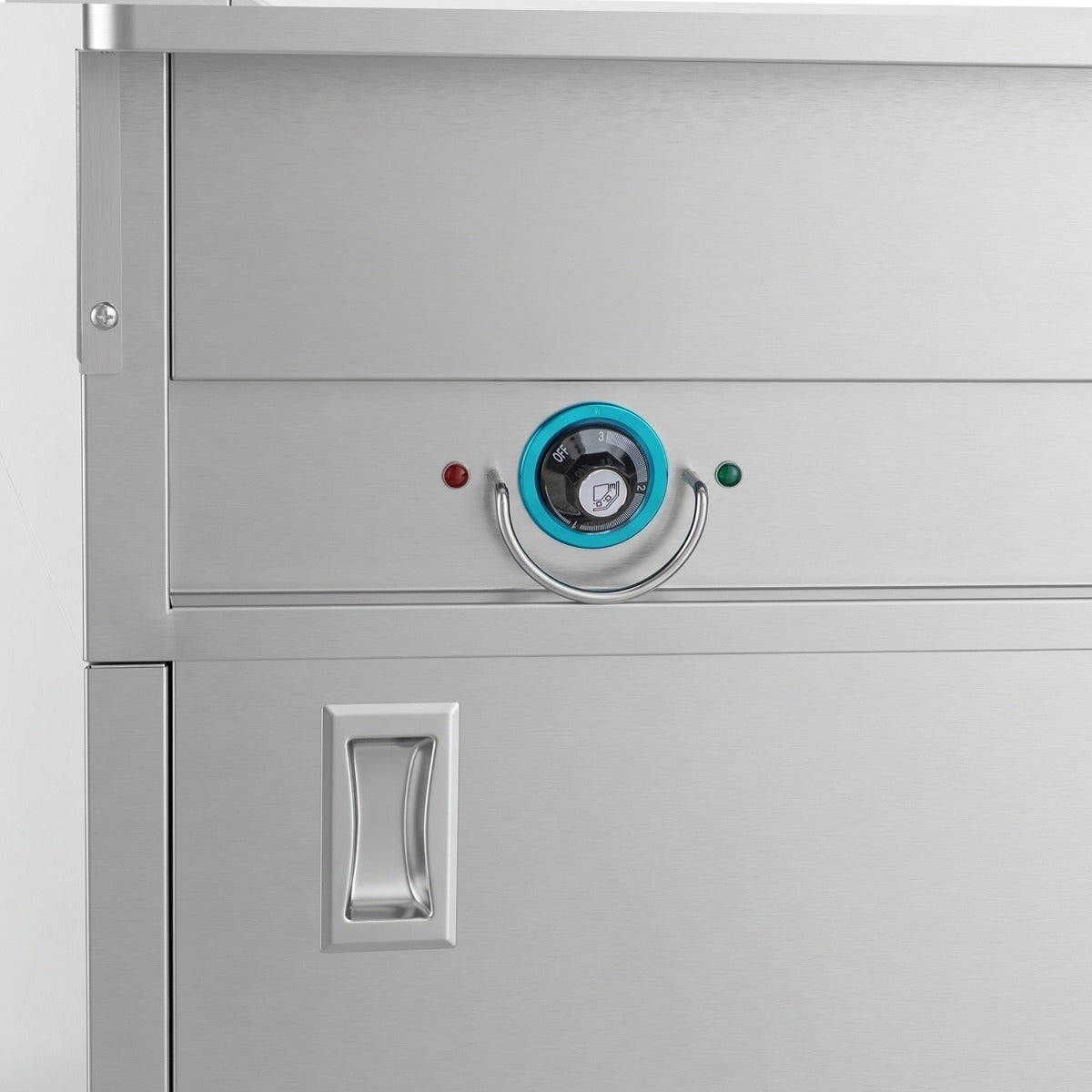

Each 12" × 20" well has its own infinite heat control and indicator light.

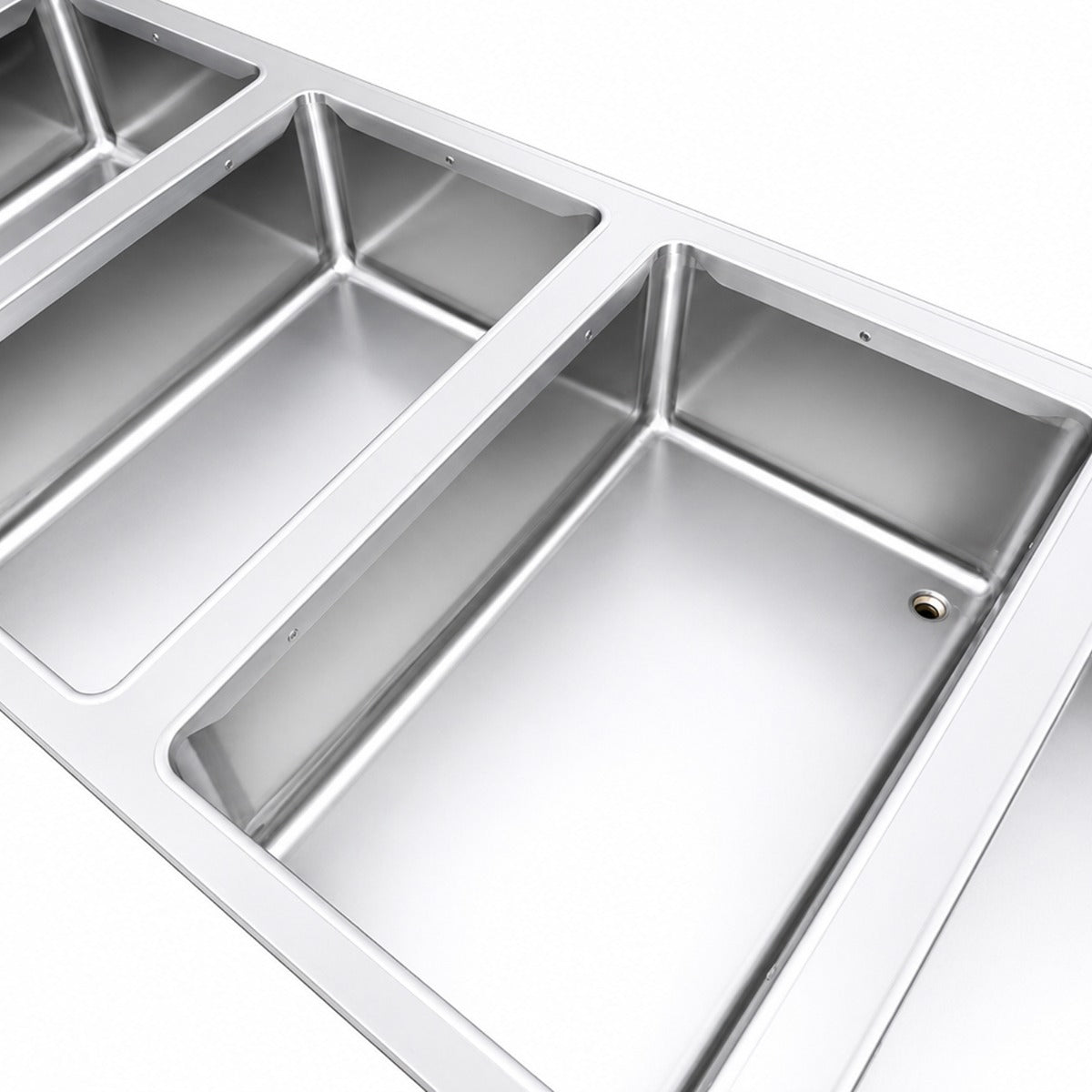

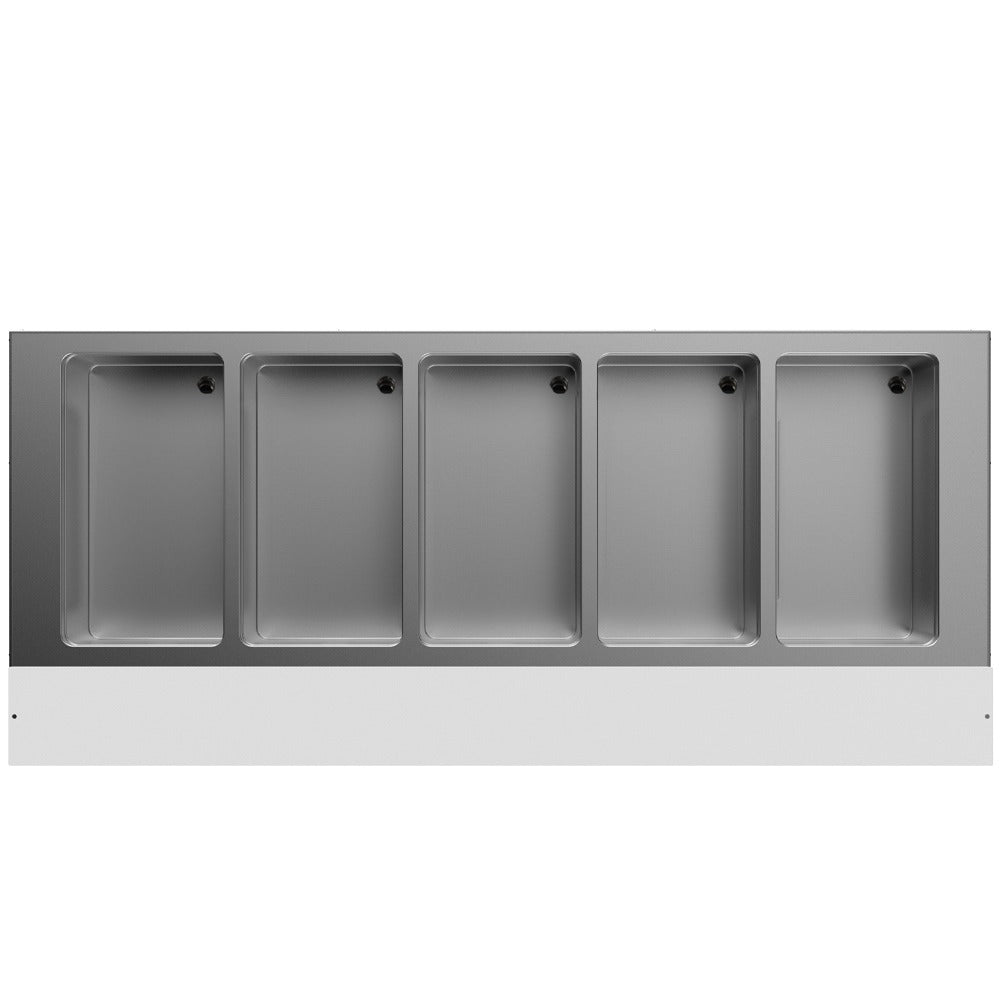

The sealed wells hold water for even heat and empty through a built-in water drain.

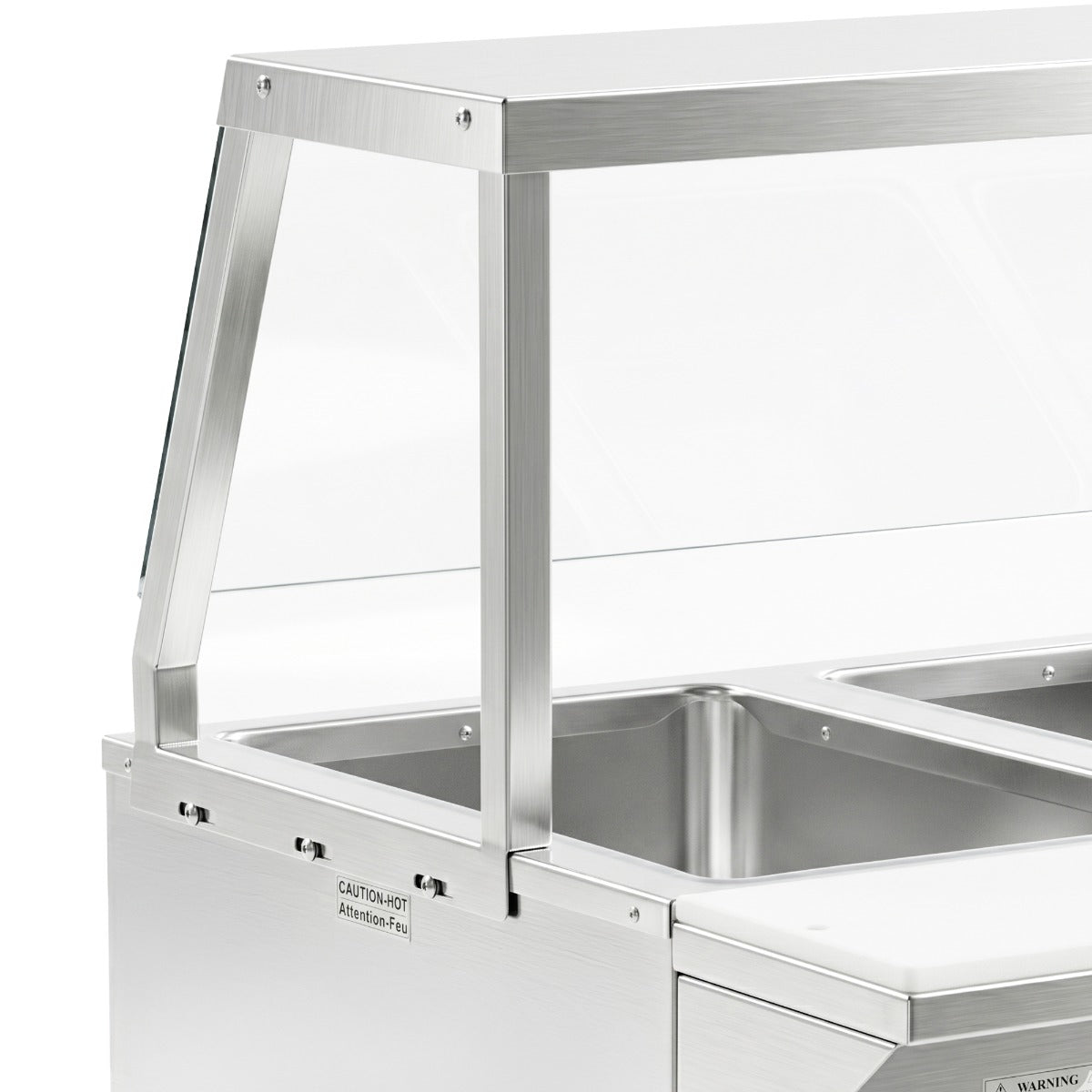

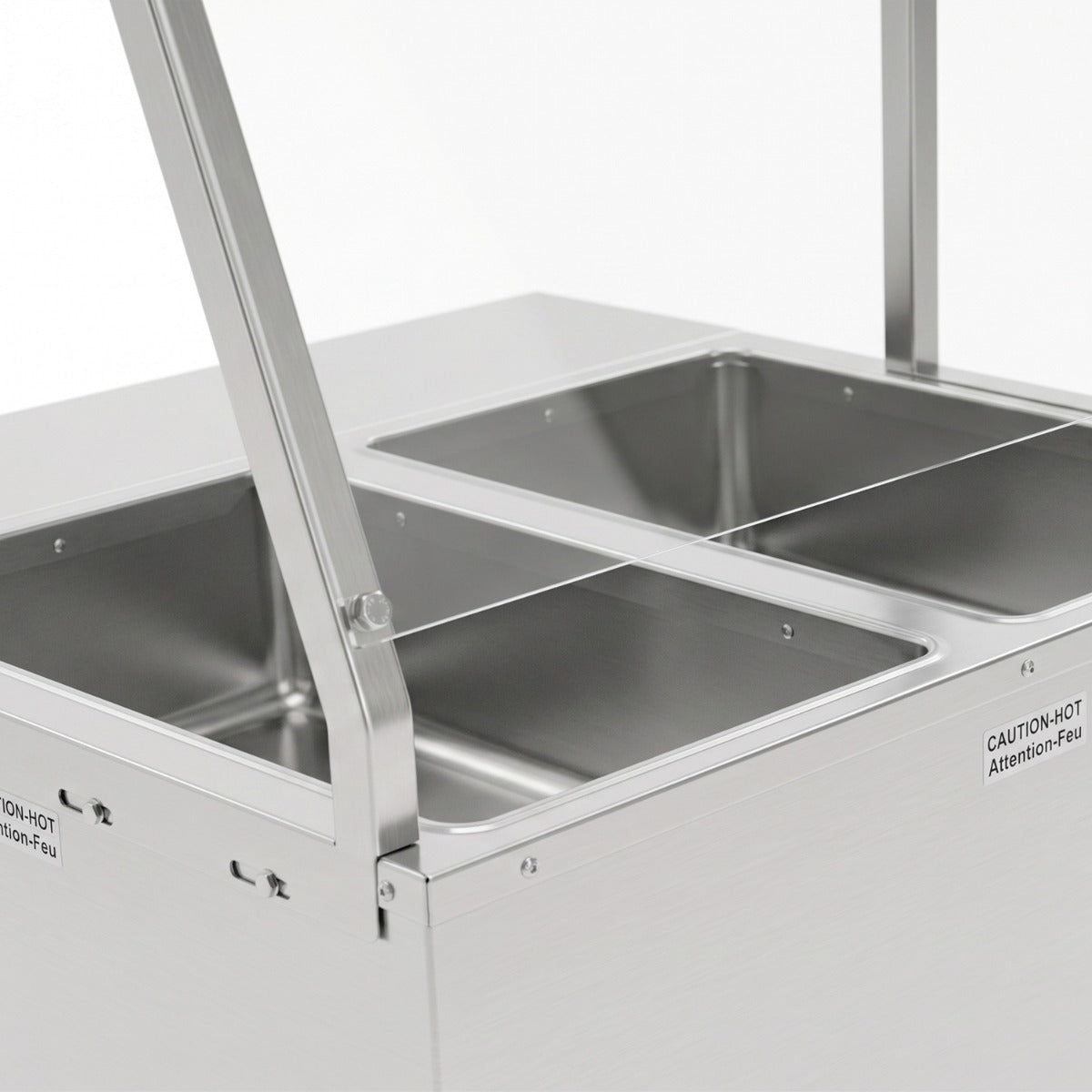

A stainless steel frame guard shields the food on 3 sides while customers see it.
A 1/2"-thick poly board along the front for plating and serving.
The stainless steel base has sliding doors to keep pans, lids and utensils within reach.
A grounded 208-240V outlet for its NEMA 6-20P plug (6 ft. cord). It is rated 3,750W, and USR Brands requires a dedicated 20 A circuit installed by a licensed electrician.
Yes. The ESTC74-5S-SG has sealed wells: you add water directly to the well, with no spillage pans needed, and empty it through the built-in water drain. Each well has its own heat control.
No, pans are sold separately. Each of the 5 wells is 12" × 20" and 6.5" deep.
No. It holds food that is already cooked. The manual says to preheat for 45 minutes, load pre-cooked food at 160°F or more, and notes that NSF requires holding food at a minimum of 150°F.
It is 73.8" wide, 30.6" deep with the 8" cutting board and 34.4" high on 6" legs, and the angled sneeze guard rises 15" above the top. The manual lists 2" of clearance at the sides and rear, and it may stand on combustible or non-combustible floors.
No. The angled stainless steel sneeze guard ships for installation on the steam table, and the cabinet also needs assembly.
USR Brands covers Prepline EST-series steam tables for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, residential use is not covered.
USR Brands, which backs the Prepline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | ESTC74-5S-SG |
| Quantity | 1/Each |
| Includes | ESTC74-5S Electric Steam TableAngled Sneeze Guard |
| Width | 73.8 Inches |
| Depth | 30.6 Inches |
| Height | 34.4 Inches |
| Body Depth without Cutting Board | 22.6 Inches |
| Leg Height | 6 Inches |
| Voltage | 208-240 Volts |
| Wattage | 3,750W |
| Hertz | 60 |
| Plug Type | NEMA 6-20P |
| Power Cord | 6 ft., Cord and Plug Included |
| Circuit | Dedicated 20 Amp Circuit |
| Capacity | 5 Wells, 12" x 20" Each |
| Well Depth | 6.5 Inches |
| Well Type | Sealed Well (Water Heat) |
| Drain | Built-In Water Drain |
| Controls | Independent Infinite Heat Controls with Indicator Lights |
| Heating Element | Stainless Steel |
| Cutting Board | 1/2" Thick Polyethylene, 8" Deep |
| Base | Enclosed Cabinet with Sliding Doors |
| Construction | Stainless Steel |
| Legs | 6" LegsAdjustable Stainless Steel Feet |
| Pans | Sold Separately |
| Sneeze Guard | Angled, 15" High Above the Top, 15" Deep |
| Sneeze Guard Frame | Stainless Steel |
| Assembly | Cabinet Assembly RequiredSneeze Guard Installation Required |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
