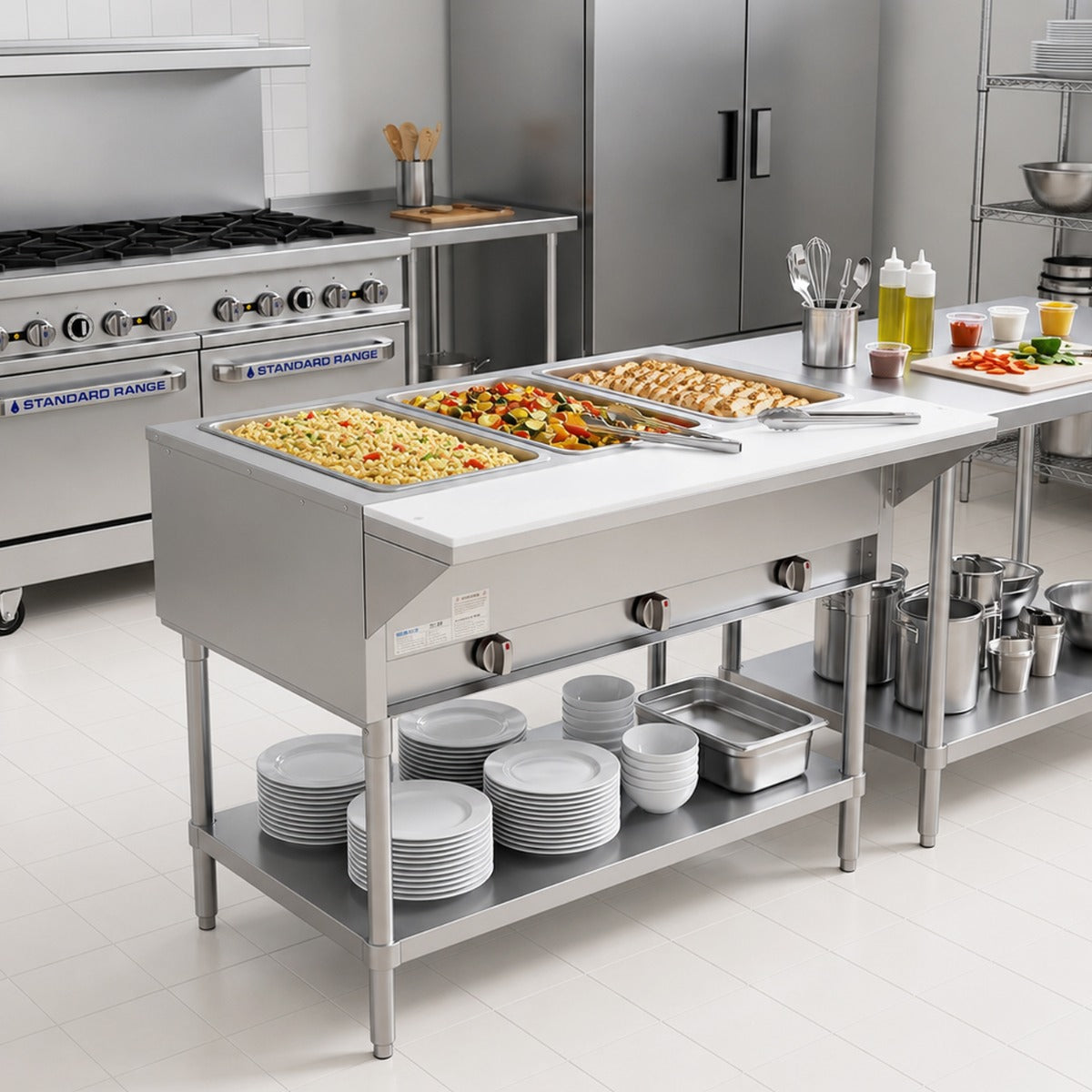

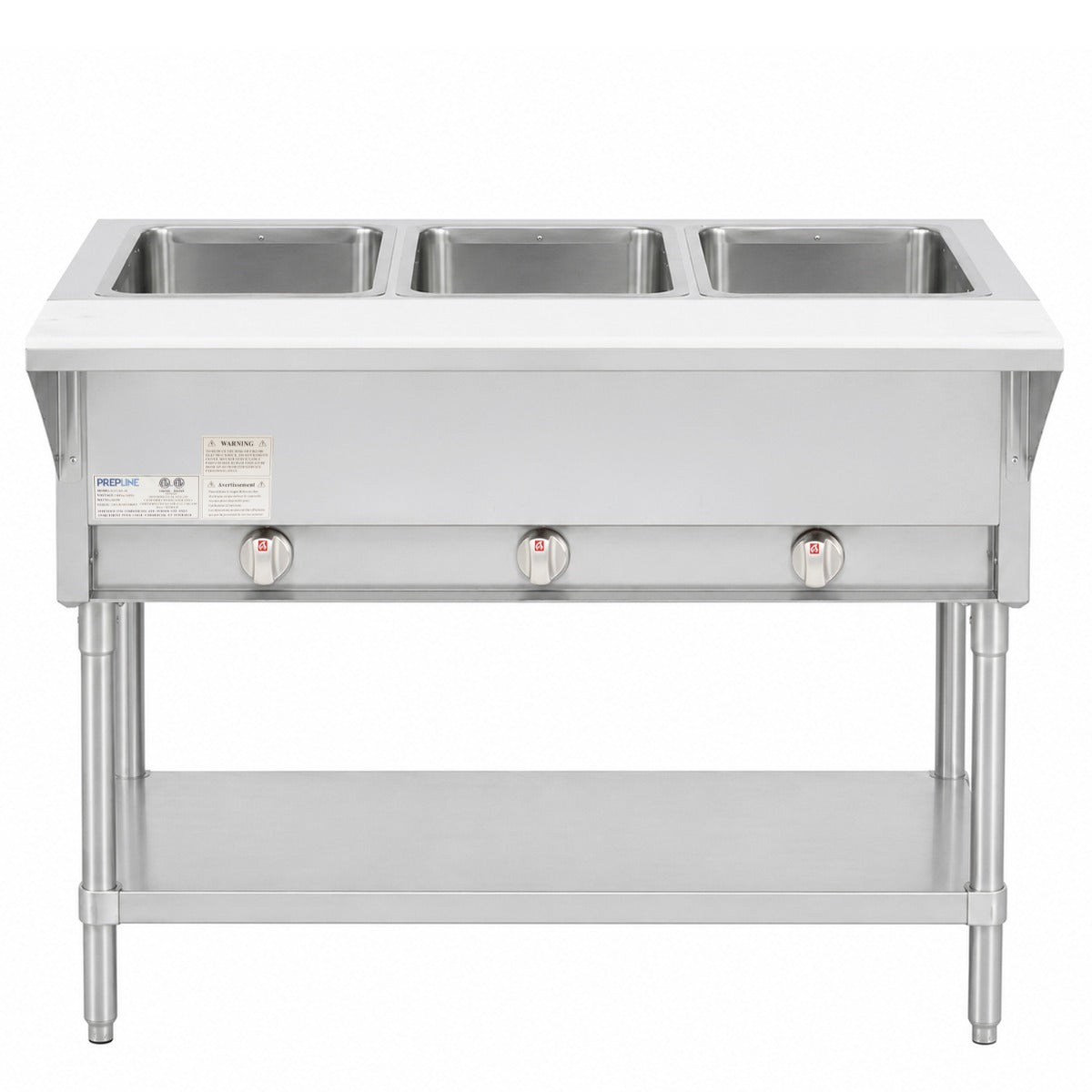

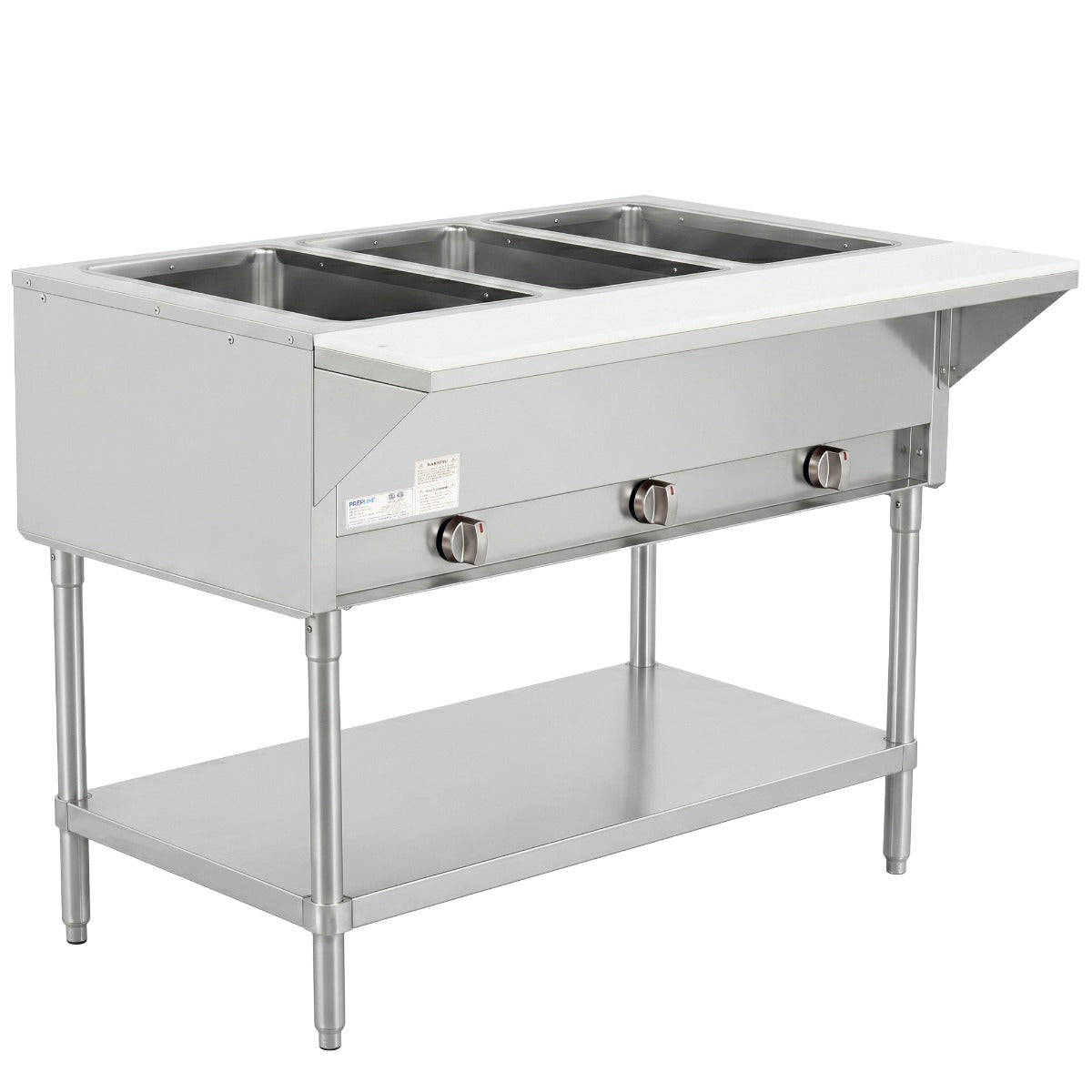

Prepline GST48-3O 48" 3-Well Open Gas Steam Table with Undershelf, 10,500 BTU
A 48" 3-well gas steam table that holds hot food on the line without an electrical hookup for the wells.
The Prepline GST48-3O gives cafeterias, caterers and serving lines 3 open 12" × 20" wells heated by 3 jet burners of 3,500 BTU each, with independent controls and no electrical hookup for the table itself. The wells run dry, or wet with spillage pans (sold separately), and need no plumbing or drain. A removable 1/2" poly cutting board runs along the front, and the undershelf holds pans and supplies. Pans are sold separately.
The table ships for assembly on site; measure the spot on the line, including the cutting board at the front.

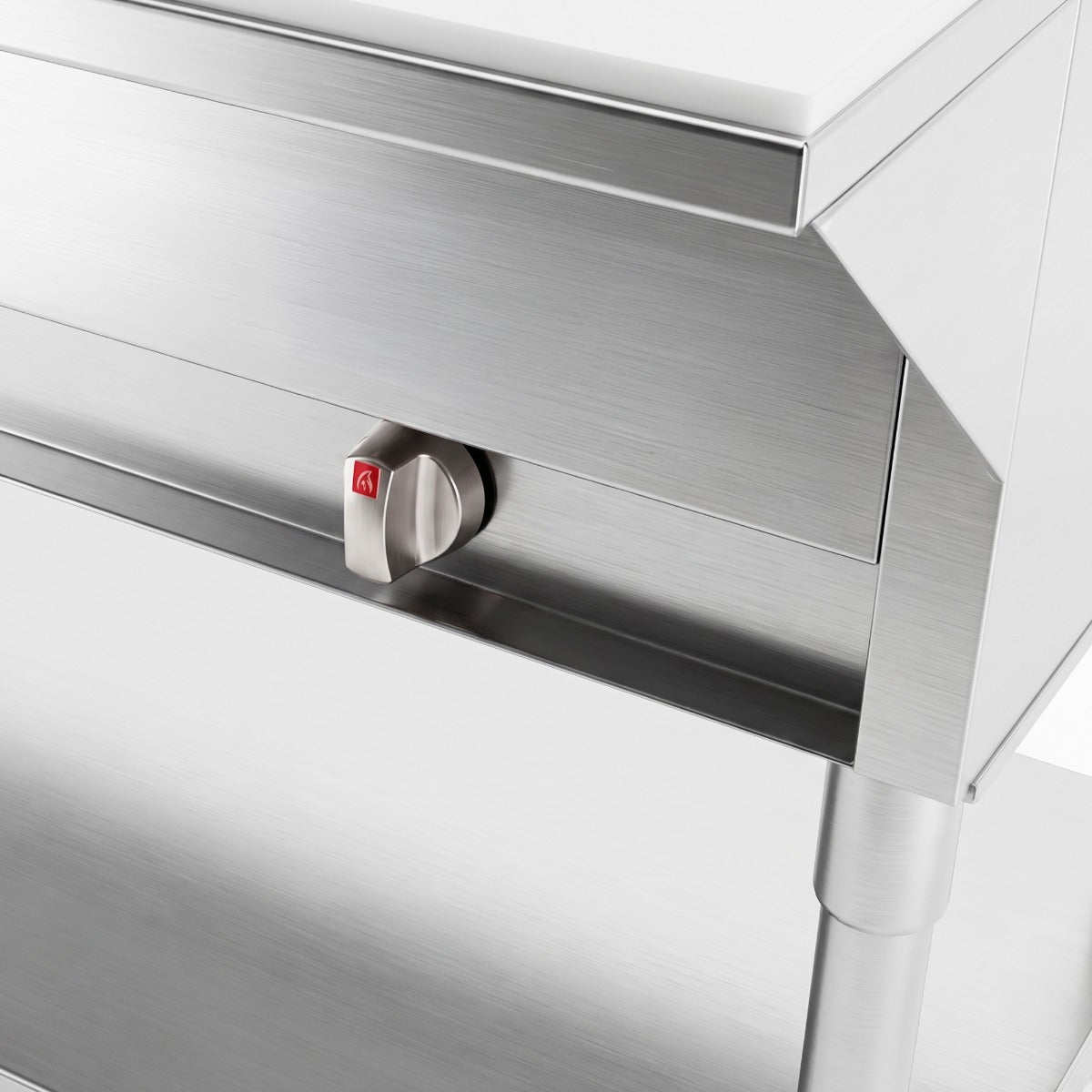

3 jet burners at 3,500 BTU each, each well with its own control.
Run the open wells dry, or add spillage pans with hot water; no plumbing needed.
A removable 1/2"-thick poly board along the front for plating.
A stainless steel undershelf keeps pans and supplies within reach.
The spec sheet does not state natural gas or LP. The GST manual describes the included regulator as adaptable to natural gas and LP with conversion by qualified personnel, but its conversion section is inconsistent, so call us to confirm the gas type and any conversion parts before ordering.
The burners total 10,500 BTU/H. A gas regulator with 1/2" NPT inlet and outlet is included; the manual says a manual shut-off valve must be installed in the supply line and is supplied by the user. Have a qualified installer connect it and leak-test it to local code.
Both. The Prepline sheet lists open wells for water heat with spillage pans (sold separately) or dry heat; no plumbing or drain is needed. The manual says to preheat on high for about 15 to 30 minutes with the openings covered before adding hot food.
Yes, but keep the burners breathing: the manual says not to close off the space between the undershelf and the body, and to keep at least 4" of air space between stored items and the burners.
No, pans and spillage pans are sold separately. Each of the 3 wells is 12" × 20" and 6.5" deep.
It is 48" wide, 30.6" deep with the 8" cutting board and 34.4" high. The manual lists 2" of clearance at the sides and rear, it may stand on combustible or non-combustible floors, and the area must be free of combustibles.
USR Brands covers Prepline GST-series steam tables for 1 year parts and labor from delivery, in the contiguous US. Gas connections must be made by a qualified installer. Food truck and farm installs are parts only, residential use is not covered.
USR Brands, which backs the Prepline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Prepline (USR Brands) |
|---|---|
| Model Number | GST48-3O |
| Quantity | 1/Each |
| Width | 48 Inches |
| Depth | 30.6 Inches |
| Height | 34.4 Inches |
| Body Depth without Cutting Board | 22.6 Inches |
| Total BTU | 10,500 BTU/H |
| Burners | 3 Jet Burners, 3,500 BTU/H Each |
| Gas Regulator | Included, 1/2" NPT Inlet and Outlet |
| Ignition | Standing Pilot (Match Lit) |
| Capacity | 3 Wells, 12" x 20" Each |
| Well Depth | 6.5 Inches |
| Well Type | Open Well (Wet with Spillage Pans, or Dry) |
| Drain | None (No Plumbing Needed) |
| Controls | Independent Heat Controls |
| Insulation | Fiberglass Between Wells |
| Cutting Board | Removable 1/2" Thick Polyethylene, 8" Deep |
| Base | Stainless Steel Undershelf |
| Construction | Stainless Steel |
| Legs | Included |
| Casters | Optional |
| Pans | Sold Separately |
| Sneeze Guard | Optional, Sold Separately |
| Assembly | Assembly Required |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
